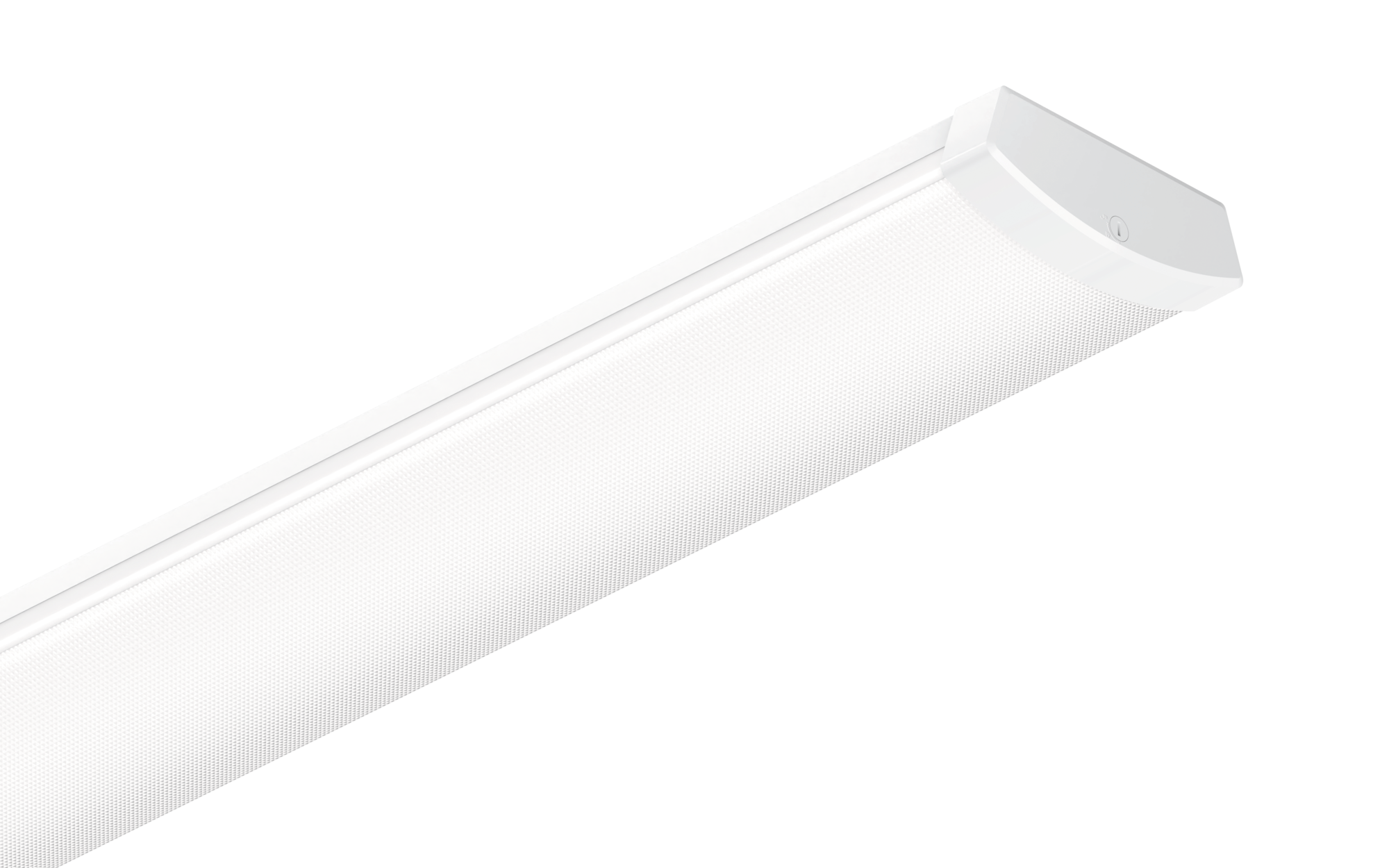

Siluette 21, wide distribution, enclosure, frosted, DALI 2, Multilumen, traffic white (RAL 9016)
Article wall and ceiling luminaire
Product name Siluette 21
Lamp LED
Rated luminous flux 2650lm
Luminous efficacy 133lm/W
Colour temperature 3000/4000/5000K
Colour rendering CRI > 80
Rated input power 19.6W
Service life 100000h (L80) at AT = 25°C
Protection rating IP44
Impact resistance IK04
Weight 1.6kg

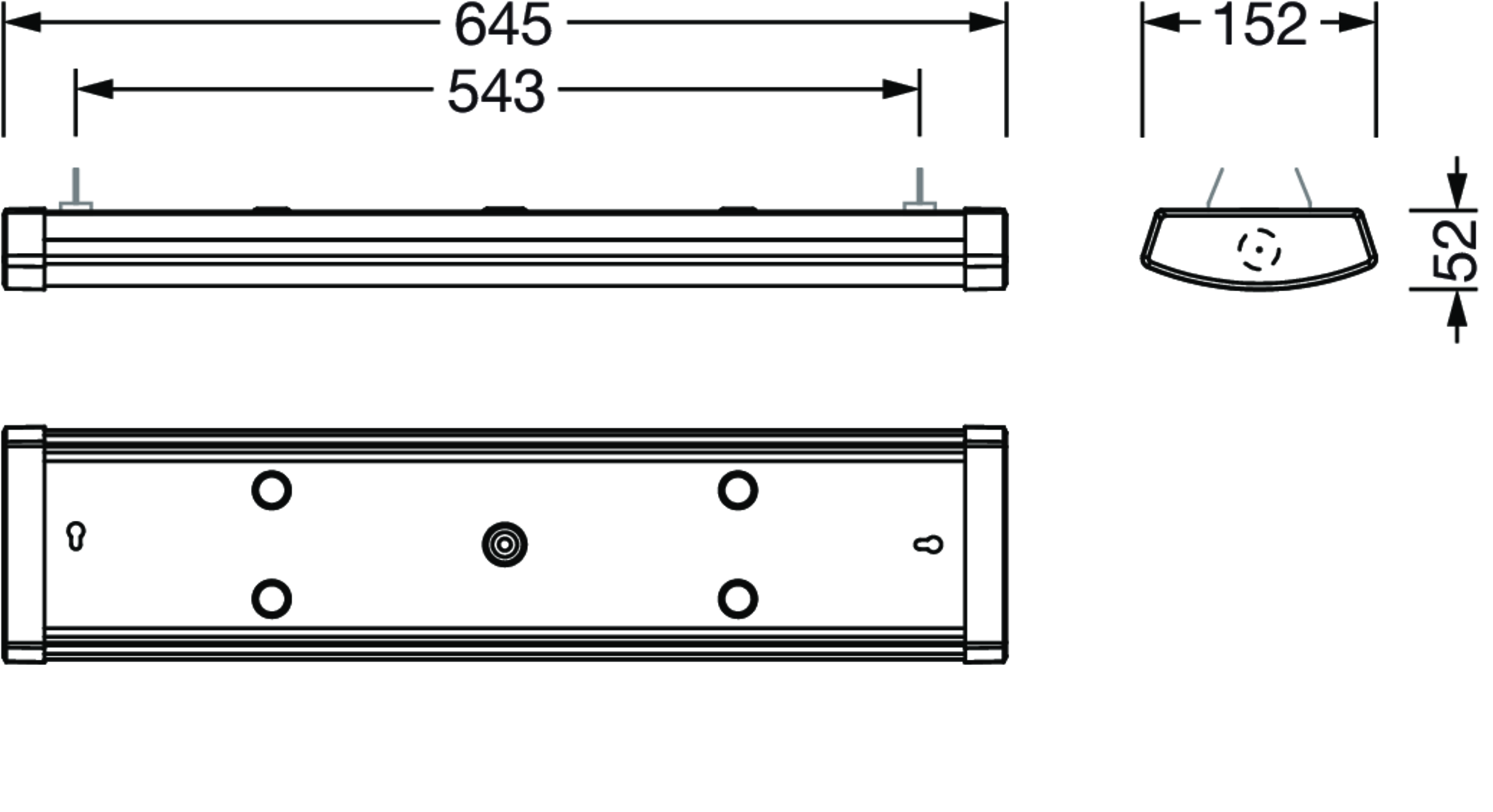

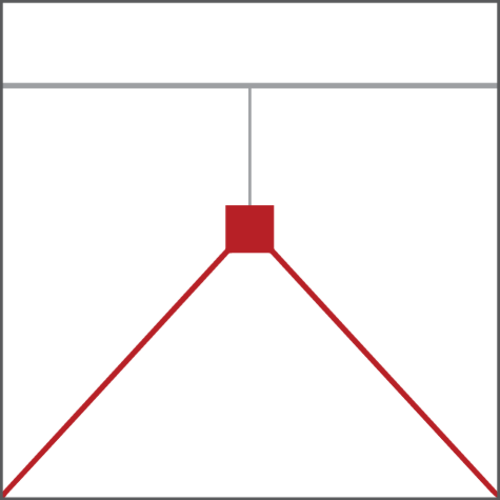

Siluette 21, wall and ceiling luminaire, primary optical cover: enclosure, of PMMA, frosted, light emission: direct distribution, primary light characteristic: symmetric, installation type: suspended mounting, surface-mounted, LED, rated luminous flux: 2.650lm, luminous efficacy: 133lm/W, light colour: 830/840/850, colour temperature: 3000/4000/5000K, control gear: DALI 2, Multilumen, with terminal, 5-pole, mains connection: 220..240V, AC/DC, 0/50..60Hz, rated input power: 19.6W, housing, of aluminium, traffic white (RAL 9016), length: 645mm, width: 152mm, height: 52mm, end cap, of PC, traffic white (RAL 9016), protection rating (complete): IP44, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, protection symbol: D, impact resistance: IK04, permissible operating ambient temperature: -20..+40°C, standard: EPBD ready: DALI 2 ECG, certified according to IEC62386, parts 251 (Luminaire Data), 252 (Energy Data), 253 (Diagnostics & Maintenance Data), corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity, packaging unit: 1 piece
