51MX53DA3ZM00991XX
Article floorstanding luminaire

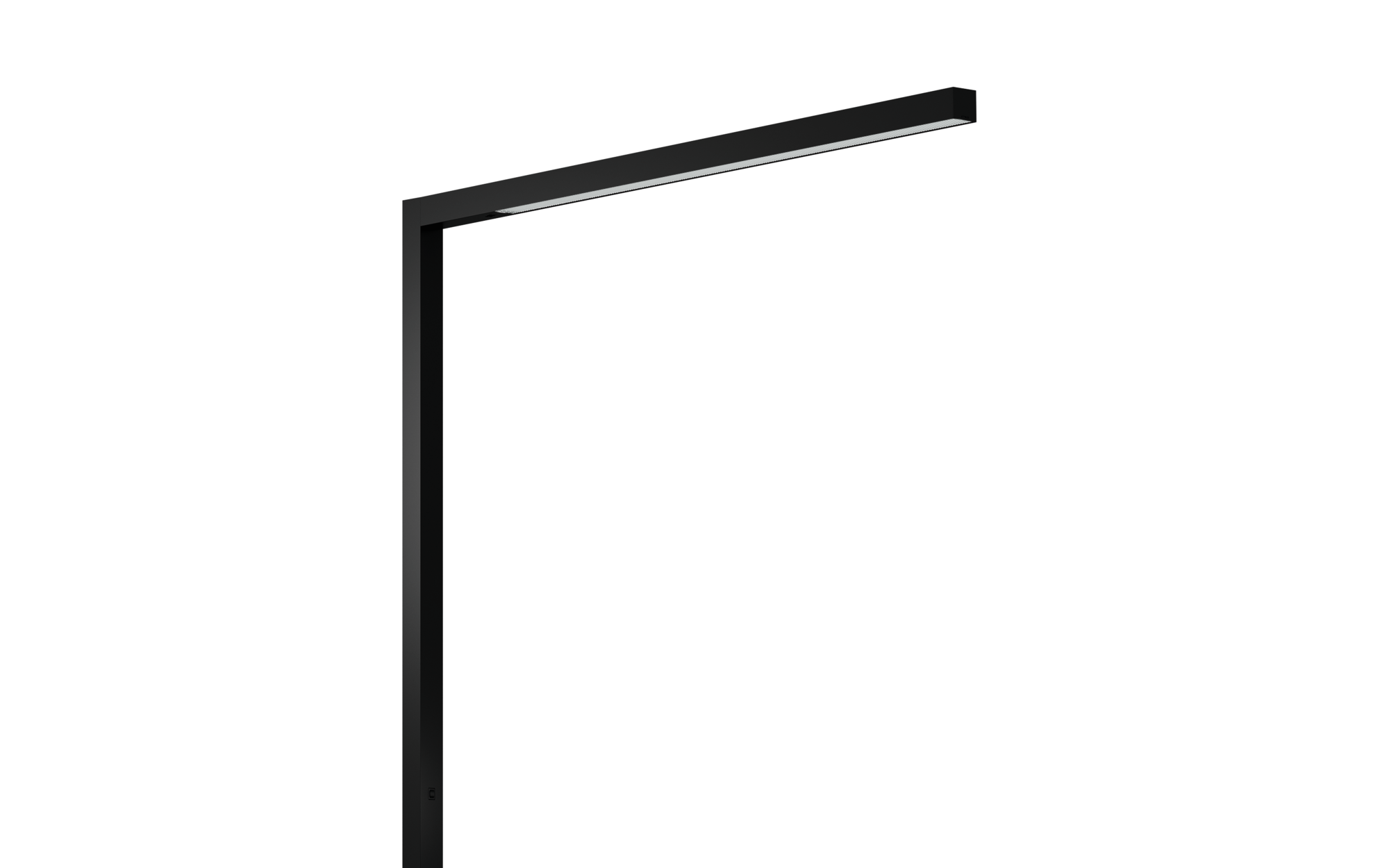

Product name Silica 21 Floor L
Lamp LED
Rated luminous flux 13280lm
Luminous efficacy 148lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 89.8W
Service life 50000h (L85) at AT = 25°C
Protection rating IP20
Weight 13.7kg

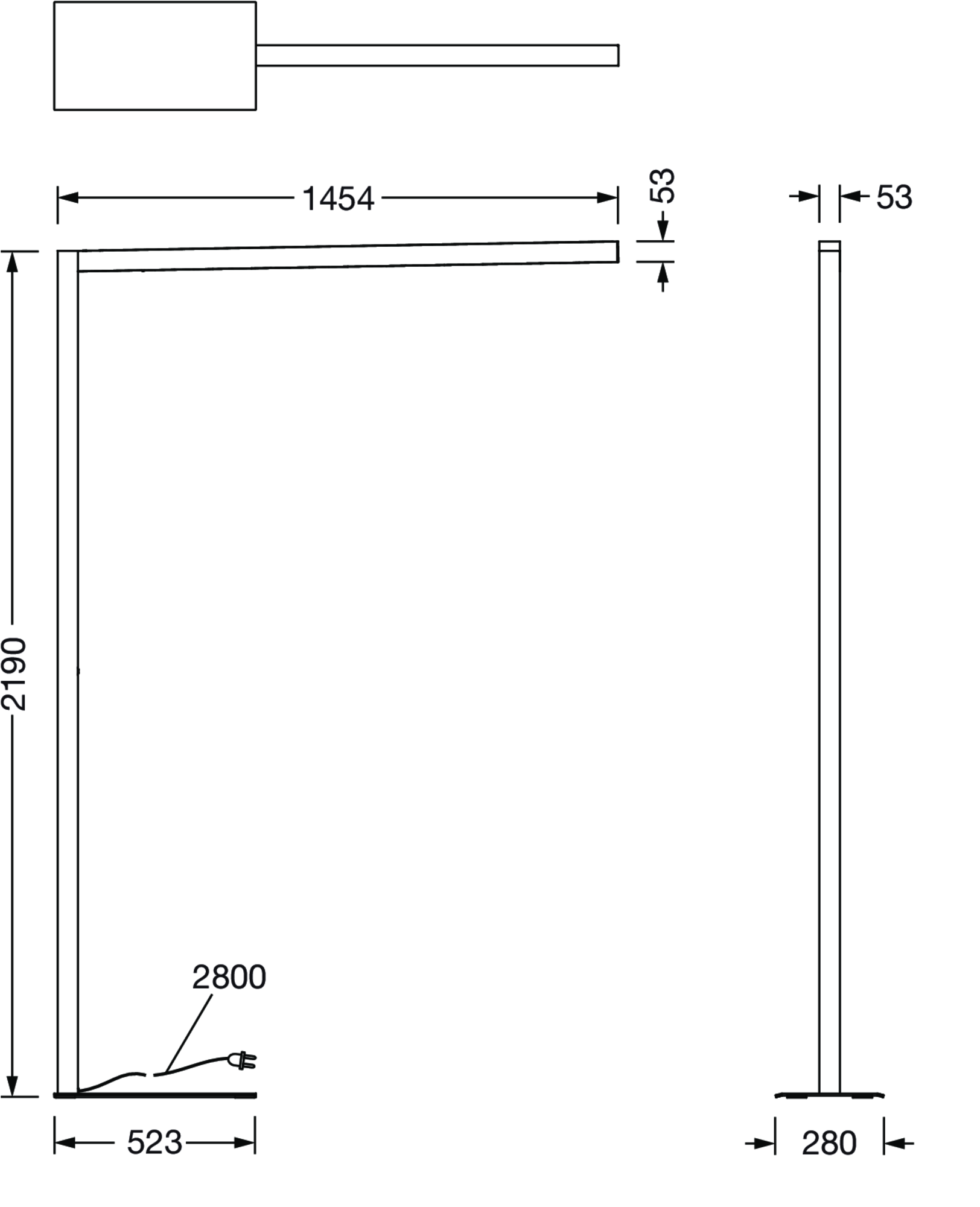

Silica 21 Floor L, floorstanding luminaire, primary light control with darklight reflector, of PMMA, of PMMA, CAT 2 (L= 3000cd/m²), light emission: indirect/direct distribution, primary light characteristic: symmetric, primary optical cover: cover panel, installation type: not mounted, LED, rated luminous flux: 13.280lm, luminous efficacy: 148lm/W, light colour: 830, colour temperature: 3000K, control gear: DALI 2, daylight-dependent control, mains connection: 230V, AC, 50/60Hz, connection cable pre-assembled, cable length: 2,5m, rated input power: 89.8W, luminaire head, of aluminium, powder-coated, jet black (RAL 9005), length: 1.454mm, width: 280mm, height: 2190mm, supporting column, angular, of aluminium, powder-coated, jet black (RAL 9005), baseplate, of steel, powder-coated, jet black (RAL 9005), sensor module PR3-S, local control - self-sufficient standalone sensors, equipment: master, direct and indirect component separately switchable, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, permissible operating ambient temperature: 0..+35°C, standard: EN 50419, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details
Photometric report / planning data
Sil21FLL
13280lm830,DA2,PIR-sens,bk

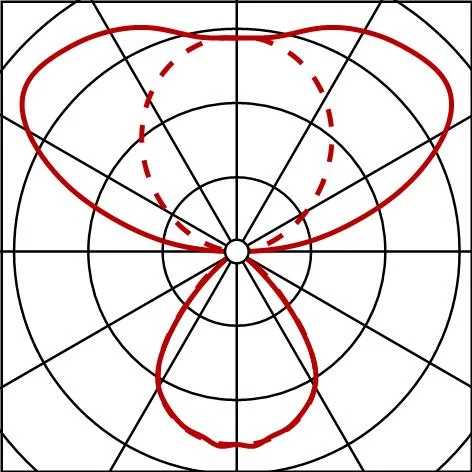

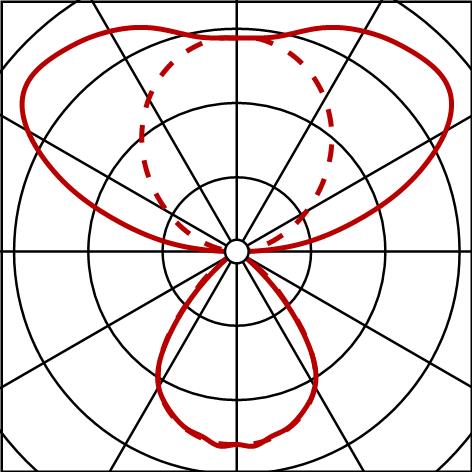

Lamps: LED 3000K / CRI >= 80, factory setting: direct and indirect light
Order No.: 51MX53DA3ZM00991XX
Sil21FLL

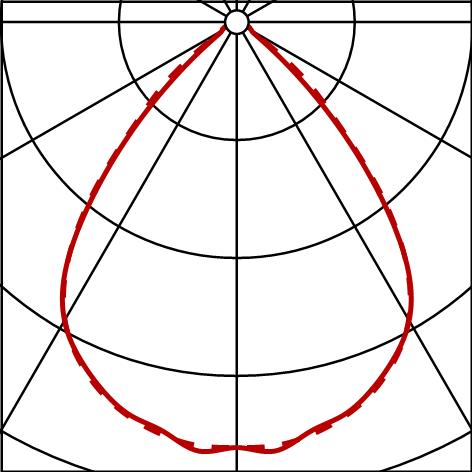

Lamps: LED 3000K / CRI >= 80, individual setting: only direct light
Order No.: 51MX53DA3ZM00991XX
Sil21FLL

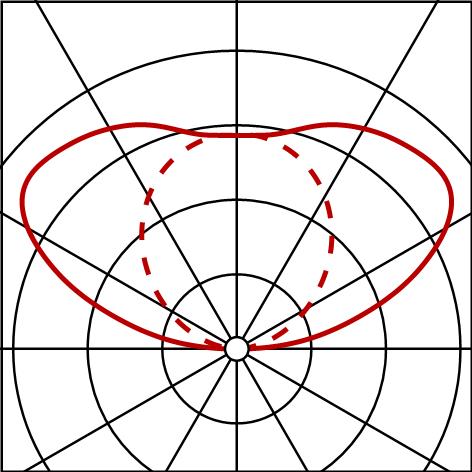

Lamps: LED 3000K / CRI >= 80, individual setting: only indirect light
Order No.: 51MX53DA3ZM00991XX
