51TL12DV4FXG3S

Order No.: 51TL12DV4FXG3S

Remember article Remember article

Article luminaire insert
Product name Licross 11 Recessed MO
Lamp LED
Rated luminous flux 15360lm
Luminous efficacy 175lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 88W
Service life 100000h (L90) at AT = ta max, 100000h (L95) at AT = 25°C
Protection rating IP40
Impact resistance IK06
Weight 2.5kg

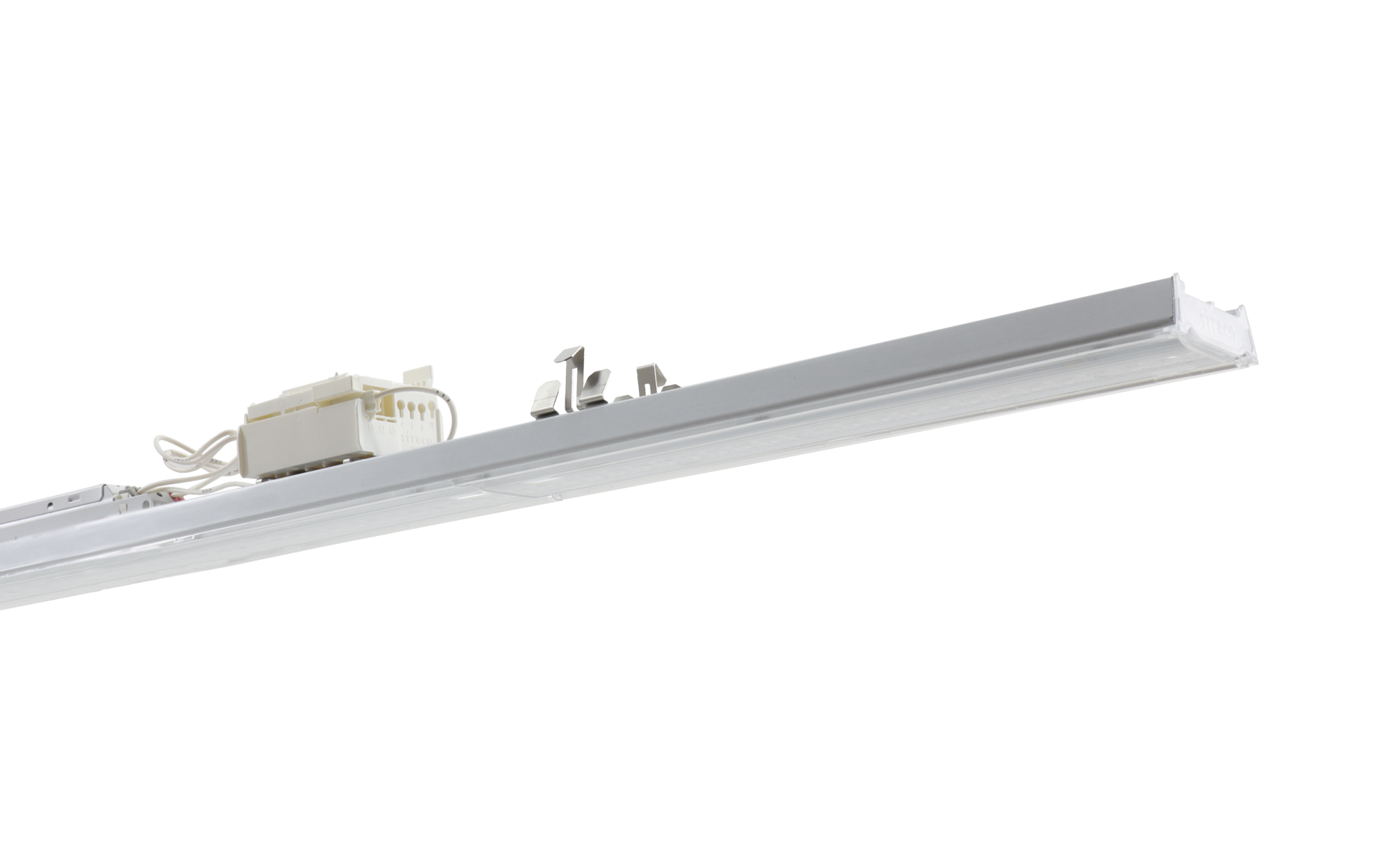

Licross 11 Recessed MO, luminaire insert, of sheet steel, coil coated, white, length: 2.250mm, width: 66mm, height: 67mm, LED rated luminous flux: 15.360lm, light colour: 840, SDCM (Standard Deviation of Colour Matching)MacAdam ≤ 2 SDCM (initial), control gear: DALI 2 (for two DALI lines), with plug, 6-pole, with phase selection, for trunking rail, 14-core, mains connection: 220..240V, AC, 50/60Hz, rated input power: 88W, for trunking rail, 14-core, internal wiring halogen-free, for emergency light function, converter,control gear: single battery element, battery: LiFePO4, 9Ah, primary optical cover: cover, of PMMA, light emission: direct distribution, primary light characteristic: symmetric, protection rating (complete): IP40, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, protection symbol: D if used in an environment without relevant dust loads with corresponding accessories, impact resistance: IK06, permissible ambient temperature for indoor applications: +5..+35°C, standard: EN 60598-2-22, LABS conformity tested according to VDMA 24364:2018-05, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, The light source and the operating device comply with the requirements of the Ecodesign Regulation (EU) 2019/2020 and are replaceable in accordance with this regulation, packaging unit: 1 piece

show moreshow less

Downloads

Technical product information

Data for applications

Product details

Key data

Product type luminaire insert
Product name Licross 11 Recessed MO
Order No. 51TL12DV4FXG3S

Component 1

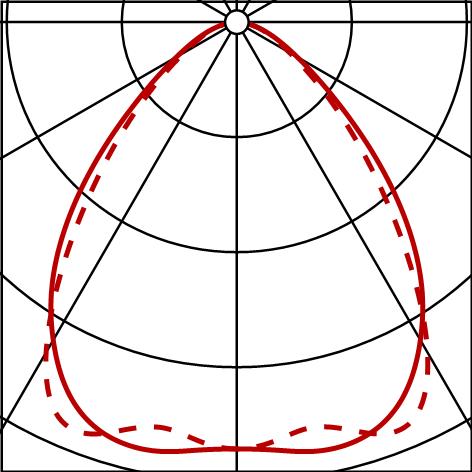

Lighting technology
Cover cover
Beam angle wide distribution
Symmetry symmetric

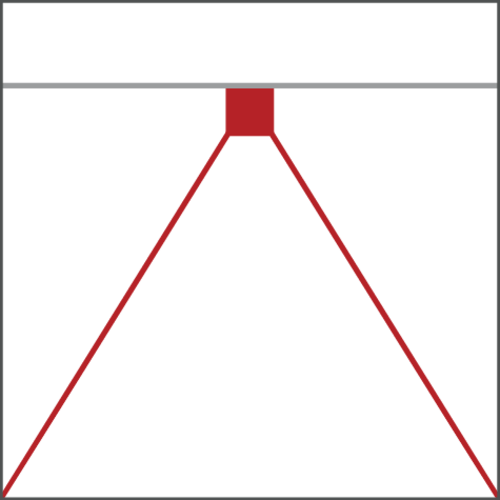

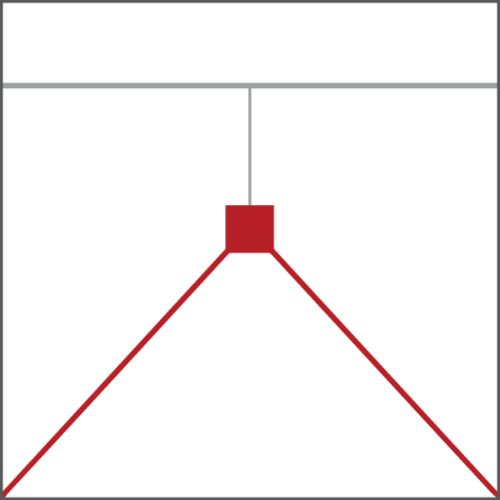

Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 25
UGR viewing direction along lateral luminaire axis ≤ 25

Lamps
Lamps with LED
Rated luminous flux 15360lm
Luminous efficacy 175lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 2 SDCM (initial)
Rated input power 88W
Supplement for emergency light function, internal wiring halogen-free, for trunking rail, 14-core

Operating device
Control DALI 2 (for two DALI lines)

Component 2

Lamps
Supplement with self-test function according to EN 60598-2-22, 2-rod battery, charging phase on R (wire number 6)

Operating device
Control gear single battery element
Battery LiFePO4
Nominal operating time 3h

Certificates, Standards

Protection rating IP40
Insulation class insulation class I (protective earthing)
Impact resistance IK06
Protection symbol D if used in an environment without relevant dust loads with corresponding accessories
Temperature range (operation) +5..+35°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, LABS conformity tested according to VDMA 24364:2018-05
Standard EN 60598-2-22
Certification, designation CE, UKCA

Material, Colour

Licross LED insert sheet steel, coil coated, white
Colour specification white
Cover cover of PMMA

Mounting

Mounting method, mounting location slip-in mounting, in the Licross trunking rail
Arrangement single/continuous arrangement
Supplement only suitable for use in indoor areas

Electrical connection

Connection plug, 6-pole, with phase selection, for trunking rail, 14-core
Nominal voltage 220..240V, 50/60Hz, AC

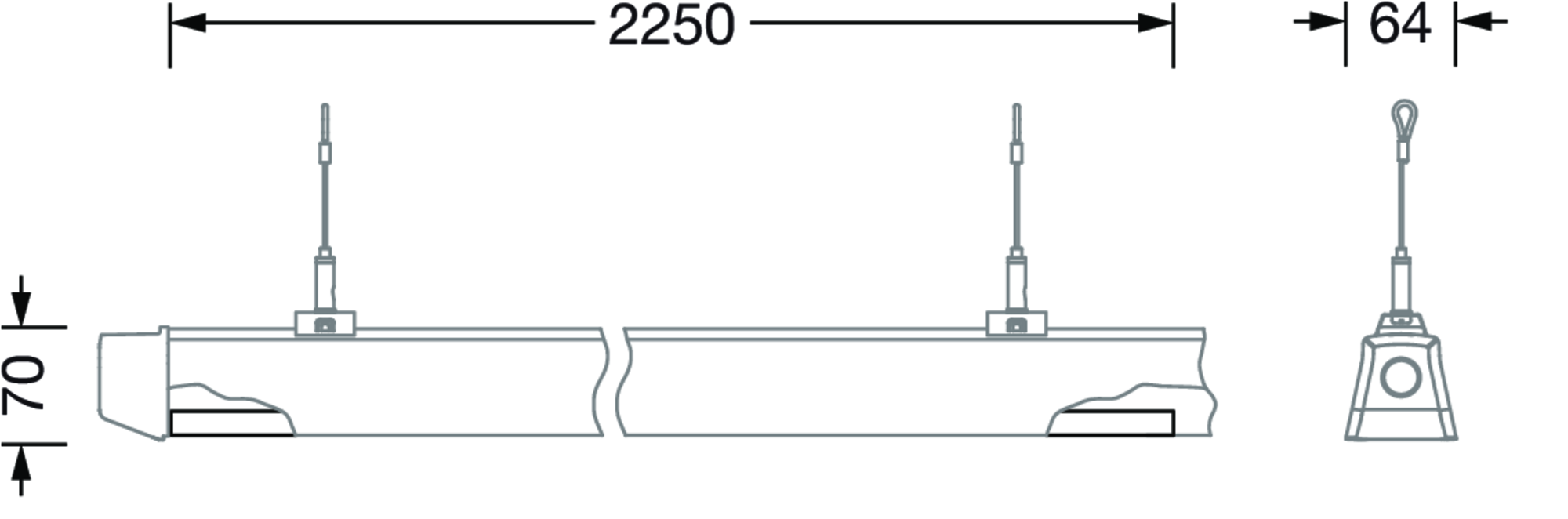

Dimensions, Weight

Length 2250mm
Width 66mm
Height 67mm
Weight 2.5kg

Service life

Rated service life 100000h (L95) at AT = 25°C, 100000h (L90) at AT = ta max

Key data

Product type
luminaire insert

Product name
Licross 11 Recessed MO

Order No.
51TL12DV4FXG3S

Component 1

Lighting technology

Cover
cover

Beam angle
wide distribution

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 25

UGR viewing direction along lateral luminaire axis
≤ 25

Lamps

Lamps
with LED

Rated luminous flux
15360lm

Luminous efficacy
175lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 2 SDCM (initial)

Rated input power
88W

Supplement
for emergency light function, internal wiring halogen-free, for trunking rail, 14-core

Operating device

Control
DALI 2 (for two DALI lines)

Component 2

Lamps

Supplement
with self-test function according to EN 60598-2-22, 2-rod battery, charging phase on R (wire number 6)

Operating device

Control gear
single battery element

Battery
LiFePO4

Nominal operating time
3h

Certificates, Standards

Protection rating
IP40

Insulation class
insulation class I (protective earthing)

Impact resistance
IK06

Protection symbol
D if used in an environment without relevant dust loads with corresponding accessories

Temperature range (operation)
+5..+35°C

Supplement
corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, LABS conformity tested according to VDMA 24364:2018-05

Standard
EN 60598-2-22

Certification, designation
CE, UKCA
