5EA1EW01

Order No.: 5EA1EW01
Remember articleRemember article

Article sensor

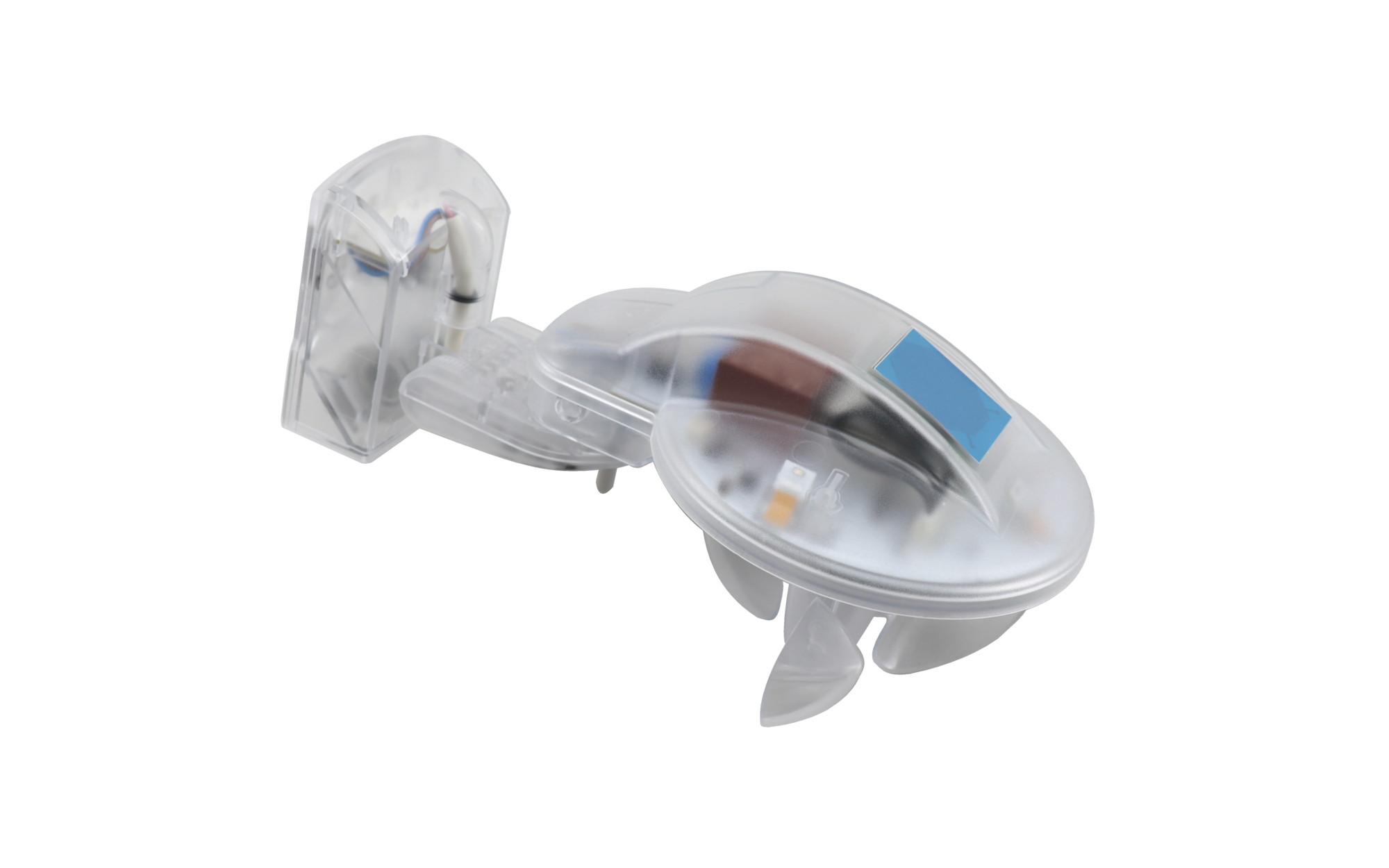

Product name SITECO Connect Wireless
Rated input power max. 5.5W
Protection rating IP44
Weight 0.1kg

SITECO Connect Wirelessmulti-sensor, sensor, communication: 2.4GHz, local mesh radio network, sensor technology: temperature sensor, rain sensor, daylight sensor, wind speed sensor, adjustable only with SL Configurator and wireless USB stick 5EAU0A000001, allows the display of wind speed, temperature, ambient brightness and rain, installation type: surface-mounted, installation location: to the wall, on mast, of plastic, voltage: 230V, voltage type: AC, protection rating (complete): IP44, insulation class (complete): insulation class II (safety insulation), certification: CE, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

System family SITECO Connect 31 Wireless
Product type sensor
Product name SITECO Connect Wireless
Order No. 5EA1EW01

Rated input power

Certificates, Standards

Protection rating IP44
Insulation class insulation class II (safety insulation)
Temperature range (operation) -20..+55°C
Certification, designation CE

Material, Colour

housing plastic, transparent

Mounting

Mounting method, mounting location surface-mounted, to the wall, on mast

Electrical connection

Connection terminal, 2-pole, max. 1.5mm²
Nominal voltage 230V, 50/60Hz, AC

Dimensions, Weight

Length 227mm
Width 121mm
Height 108mm
Weight 0.1kg

System family
SITECO Connect 31 Wireless

Product type
sensor

Product name
SITECO Connect Wireless

Order No.
5EA1EW01

Protection rating
IP44

Insulation class
insulation class II (safety insulation)

Temperature range (operation)
-20..+55°C

Certification, designation
CE

housing
plastic, transparent

Mounting method, mounting location
surface-mounted, to the wall, on mast

Connection
terminal, 2-pole, max. 1.5mm²

Nominal voltage
230V, 50/60Hz, AC

Length
227mm

Width
121mm

Height
108mm

Weight
0.1kg
