5XA779627X01AB

Order No.: 5XA779627X01AB
Remember articleRemember article

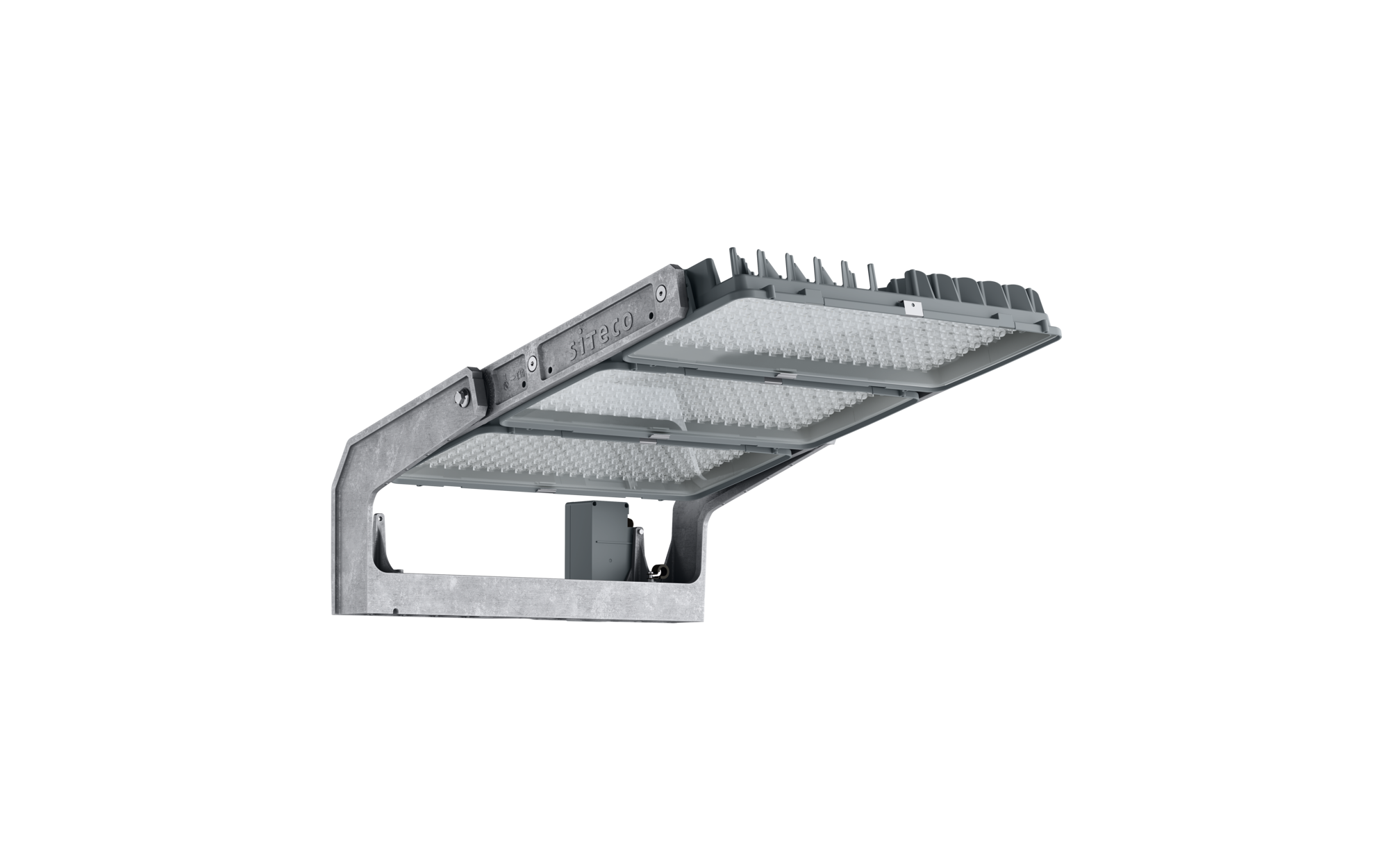

Article floodlight
Product name Floodlight FL 11 maxi pro Remote
Lamp LED
Rated luminous flux 180530lm
Luminous efficacy 103.7lm/W
Colour temperature 5000K
Colour rendering CRI > 70
Pnom 1741.1W
Service life 10000h (L96/B10) at AT = 10°C, 75000h (L80/B10) at AT = 10°C
Protection rating IP66
Impact resistance IK07
Weight 30.6kg

Floodlight FL 11 maxi pro Remote floodlight; light control with lens of PMMA; cover panel of toughened safety glass, transparent; light distribution: A33B001, asymmetric direct distribution, rated values: 180.530lm | 1.741,1W | 103,7lm/W, colour temperature: 5000K, colour rendering: CRI > 70, light colour: 750, light setting 1 (further light settings possible): 100% | 180.530lm | 1.741,1W | 103,7lm/W | 5.000Kdimming curve linear; brightness control: DALI 2; mains connection: 200..400V AC, 50/60Hz, surge voltage resistance: line to ground: 10kV, electrical connection: terminal, 5-pole, max. 2.5mm², solid wire, fine wire, ECG replaceable separately, LED unit replaceable without ESD environment, dimming range 10..100%; floodlight with 3x LED unit of diecast aluminium, grey; length: 928mm / width: 655mm / height: 346mm; mounting bracket, of diecast aluminium, uncoated, junction box, of PA66, black, ECG unit, of diecast aluminium, coated, grey, equipment: Power, protection rating (complete): IP66; insulation class (complete): insulation class I (protective earthing); certification: CE, ENEC, VDE, UKCA; ball protection: ball impact resistance with accessories, impact resistance: IK07; only for outdoor installations in the designated locations, permissible operating ambient temperature: -40..+30°C, permissible storage temperature: -40..+85°Cpackaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type floodlight
Product name Floodlight FL 11 maxi pro Remote
Order No. 5XA779627X01AB

Lighting technology

Light control lens of PMMA
Cover cover panel, transparent
Light distribution A33B001
Symmetry asymmetric distribution
Light emission direct distribution

Lamps

Lamps with LED
Rated values 180530lm | 1741.1W | 103.7lm/W
Colour temperature 5000K
Colour rendering index CRI > 70
Light colour 750
Supplement LED service life up to 100,000h L90. Typical operating time: 1000h per year.

Factory light settings (LS)

LS 1 100% | 180530lm | 1741.1W | 103.7lm/W | 5000K
further light settings possible

Operating device

Control DALI 2
Equipment dimming curve linear

Certificates, Standards

Protection rating IP66
Insulation class insulation class I (protective earthing)
Impact resistance IK07
Temperature range (operation) -40..+30°C
Supplement only for outdoor installations in the designated locations
Corrosion protection corrosivity category C3 according to DIN EN ISO 12944; fastening screws made of non-corrosive material, additionally with anti-corrosion coating, tested according to DIN EN ISO 9227 NSS:Jul17 (similar to DIN EN ISO 12944 for C5)
Certification, designation CE, ENEC, VDE, UKCA

Material, Colour

LED unit diecast aluminium, grey
Quantity 3 piece
mounting bracket diecast aluminium, uncoated
junction box PA66, black
ECG unit diecast aluminium, coated, grey
Cover cover panel of toughened safety glass

Mounting

Mounting method, mounting location surface-mounted, to supporting structure, to the ceiling, to the cross arm

Electrical connection

Connection terminal, 5-pole, max. 2.5mm², solid wire, fine wire
Nominal voltage 200..400V, 50/60Hz, AC
Surge voltage resistance line to ground: 10kV

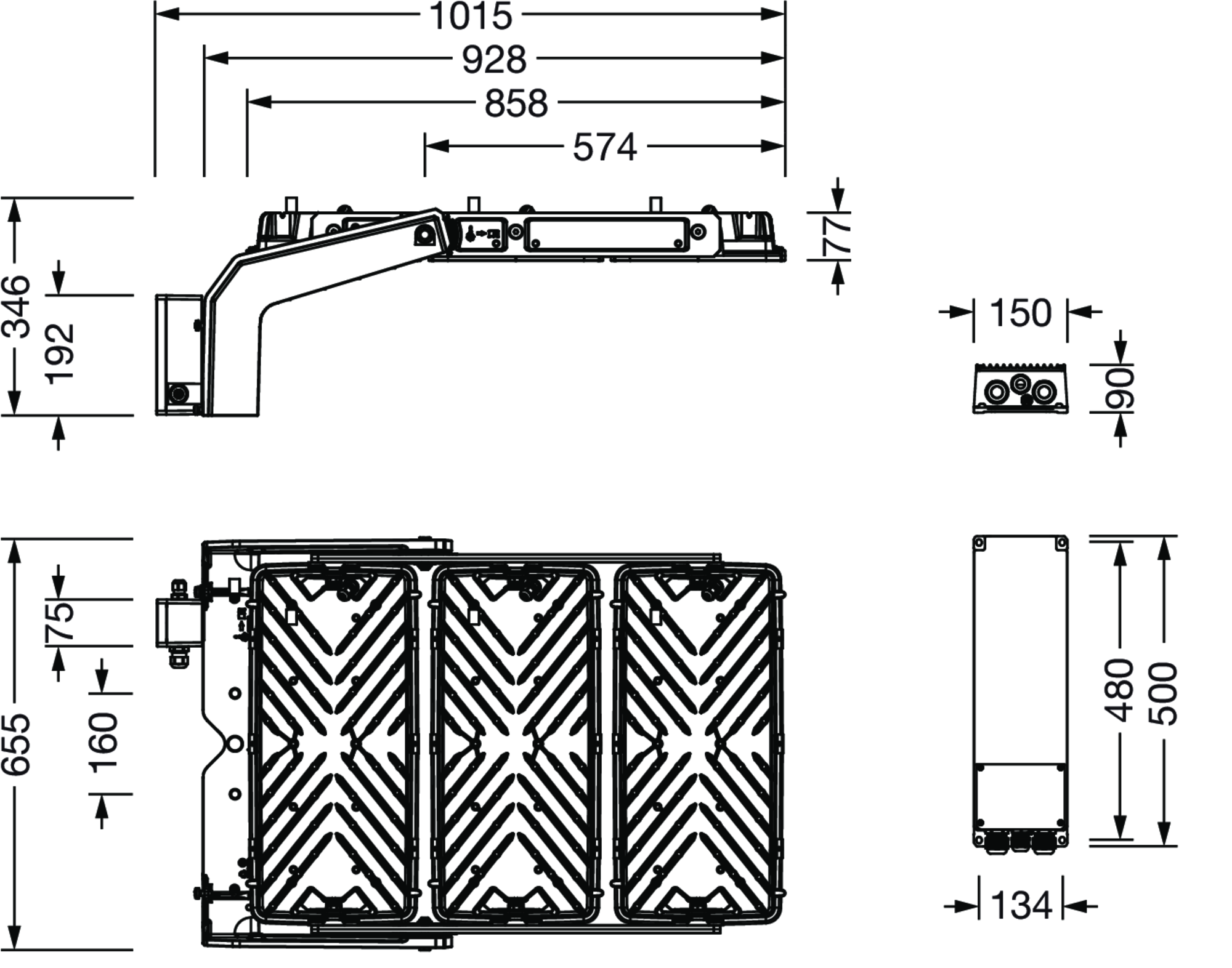

Dimensions, Weight

Length 928mm
Width 655mm
Height 346mm
Weight 30.6kg
Supplement luminaire head with bracket: 24kg, ECG unit: 6.8kg

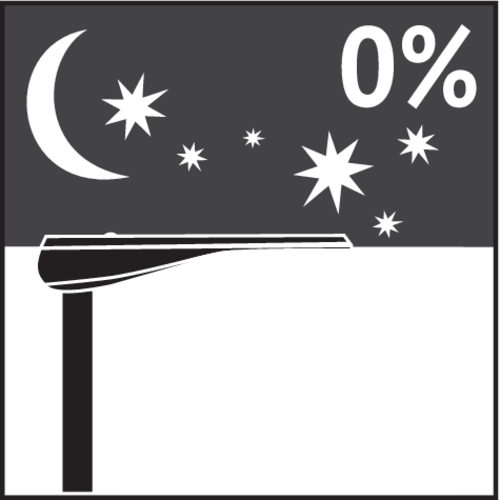

Light emission

Light emission 0%

Service life

Rated service life 10000h (L96/B10) at AT = 10°C, 75000h (L80/B10) at AT = 10°C

Place of operation

Suitable for Austria, Belgium, Czech Republic, Denmark, France, Germany, Hungary, Italy (north), Luxembourg, Netherlands, New Zealand, Poland, Slovakia, Slovenia, Switzerland, United Kingdom
