SITECO

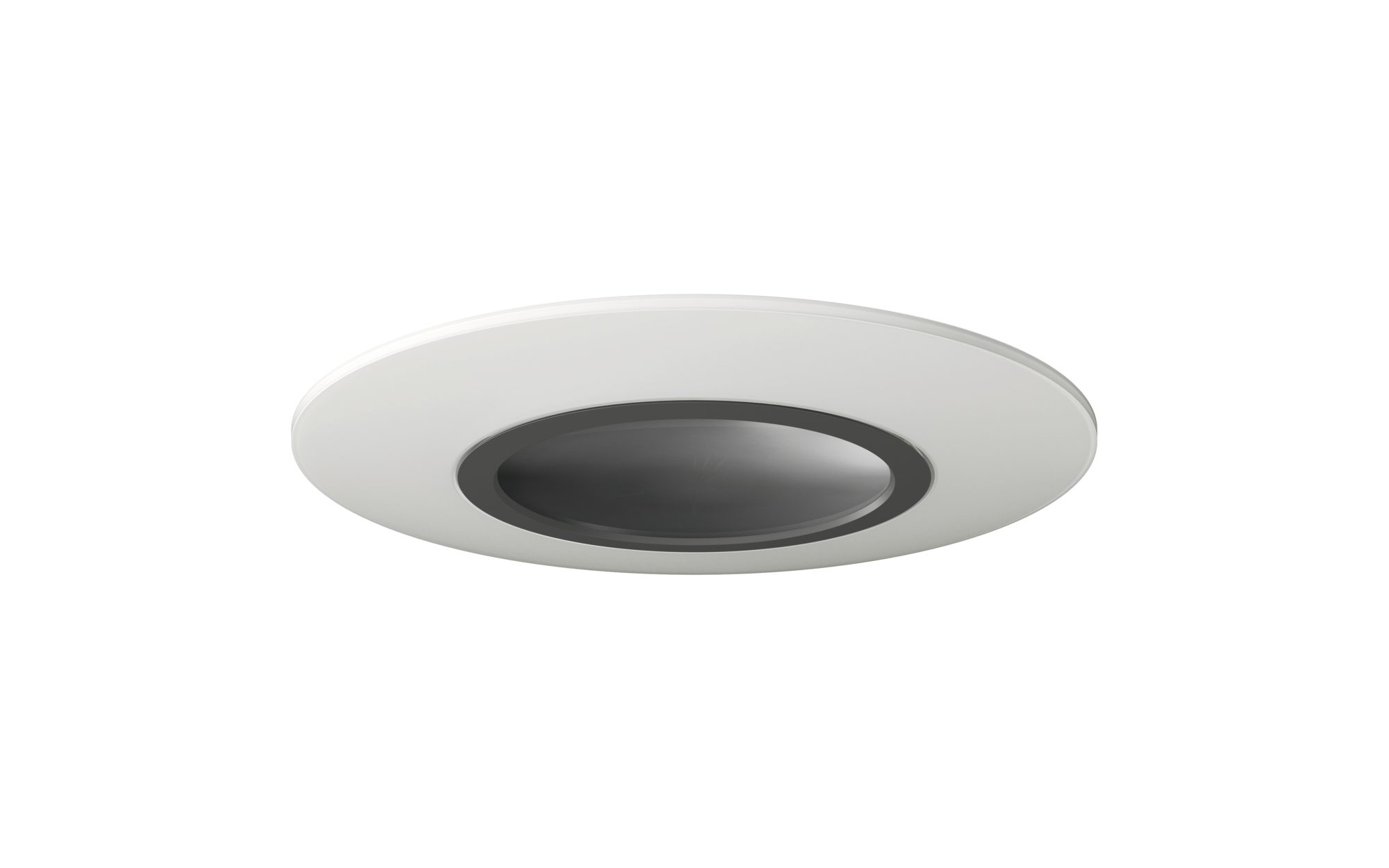

Rondel
References
Constantin Vanotti School, Überlingen, Germany
Products: Licross
learn more
UPP, Great Britain
learn more
Family
Rondel 21 Performance. Our classic with unique modularity and lighting technology with an individual design language
Rondel 31 Standard. Proven technology for standard applications with good efficiency (121lm/W) and service life (50,000 hours)
Rondel 41 Basic. Practical, efficient and durable
SITECO Connect wireless by Casambi Components for the complete lighting solution. Energy-efficient. Scalable. EPBD-ready.
SITECO Connect wireless by Casambi
Special features
A single platform for all applications connects luminaire families
Ideal for refurbishment – simple retrofitting of controls and sensors without rewiring
Greater efficiency and comfort – light only where and when it is needed – demand-based control and easy operation
Flexible system architecture – as a standalone solution or with integration into lighting and building management systems
EPBD-ready – prepared for the requirements of energy-efficient buildings
Complete solution from a single source – accessories and components are optimally matched
Flexible combination options – the control components complement selected luminaires and can be seamlessly combined with luminaires featuring integrated Siteco Connect Wireless by Casambi as standard
Links
Configuration & data sheets
- operation and commissioning (always necessary) via CASAMBI app
- Compatibility with other Casambi components or lighting and building management systems must be checked in each project case
- Casambi für iOS: Https://apps.apple.com/de/app/casambi/id731859317?platform=iphone
- Casambi für Android: Https://play.google.com/store/apps/details?id=casambi.ambi&gl=DE
- Silica 21 Linear: modular sensor modules equipped as standard with SITECO Connect Wireless by Casambi
- Silica 21 Rectangular: comes equipped with SITECO Connect Wireless by Casambi as standard
- Silica 21 Round: comes equipped as standard with SITECO Connect Wireless by Casambi
- technical requirement for monitoring: luminaire equipped with a DALI-2 ECG certified according to IEC 62386, parts 251 (Luminaire Data), 252 (Energy Data), and 253 (Diagnostics & Maintenance Data)
Results
Delivery time on request
multi-sensor
Order No.: 5LZ980200A GTIN (EAN): 4069025765611
| Installation location | Mounting height | Sensor technology | Feature | Supply voltage | Batterie | Equipment | System current | Detection range movement | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| in the ceiling | 2.5..5m | 1 PIR movement sensor, daylight sensor | circular detection area | 230V | master | max. 80mA | radial max. ø6m; tangential max. ø10m | 0.1 | 290.20 |
Delivery time on request
multi-sensor
Order No.: 5LZ980201A GTIN (EAN): 4069025765635
| Installation location | Mounting height | Sensor technology | Feature | Supply voltage | Batterie | Equipment | System current | Detection range movement | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| in the ceiling | 2.5..4m | 1 PIR movement sensor, daylight sensor | circular detection area | 230V | slave | at mounting height (Mh) = 3m: max. ø8m | 0.1 | 139.20 |
Delivery time on request
Control Panel
Order No.: 5LZ980731A GTIN (EAN): 4069025765673
| Installation location | Mounting height | Sensor technology | Feature | Supply voltage | Batterie | Equipment | System current | Detection range movement | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| to the wall | slave | 0.1 | 115.70 |
Delivery time on request
Xpress Button
Order No.: 5EA6CX01 GTIN (EAN): 4069025277992
| Installation location | Mounting height | Sensor technology | Feature | Supply voltage | Batterie | Equipment | System current | Detection range movement | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| to the wall, in housing | 3V | 1x button cell CR2430 | slave | 0.1 | 192.20 |
Delivery time on request
push button interface
Order No.: 5LZ980100 GTIN (EAN): 4058352398517
| Installation location | Mounting height | Sensor technology | Feature | Supply voltage | Batterie | Equipment | System current | Detection range movement | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| in the switch box | 230V | slave | 0.1 | 266.70 |
Delivery time on request
controller
Order No.: 5LZ980301A GTIN (EAN): 4069025765659
| Installation location | Mounting height | Sensor technology | Feature | Supply voltage | Batterie | Equipment | System current | Detection range movement | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| in the ceiling | 230V | master | max. 50mA | 0.1 | 196.10 |
Delivery time on request
relay unit
Order No.: 5LZ980300 GTIN (EAN): 4058352398579
| Installation location | Mounting height | Sensor technology | Feature | Supply voltage | Batterie | Equipment | System current | Detection range movement | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| in the ceiling | 230V | master | max. 2mA | 0.1 | 137.30 |
Delivery time on request
multi-sensor
Order No.: 5LZ980200AGTIN (EAN): 4069025765611
| Installation location | in the ceiling |
|---|---|
| Mounting height | 2.5..5m |
| Sensor technology | 1 PIR movement sensor, daylight sensor |
| Feature | circular detection area |
| Supply voltage | 230V |
| Batterie | |
| Equipment | master |
| System current | max. 80mA |
| Detection range movement | radial max. ø6m; tangential max. ø10m |
| Wt. (kg) | 0.1 |
| Price (EUR) | 290.20 |
Delivery time on request
multi-sensor
Order No.: 5LZ980201AGTIN (EAN): 4069025765635
| Installation location | in the ceiling |
|---|---|
| Mounting height | 2.5..4m |
| Sensor technology | 1 PIR movement sensor, daylight sensor |
| Feature | circular detection area |
| Supply voltage | 230V |
| Batterie | |
| Equipment | slave |
| System current | |
| Detection range movement | at mounting height (Mh) = 3m: max. ø8m |
| Wt. (kg) | 0.1 |
| Price (EUR) | 139.20 |
Delivery time on request
Control Panel
Order No.: 5LZ980731AGTIN (EAN): 4069025765673
| Installation location | to the wall |
|---|---|
| Mounting height | |
| Sensor technology | |
| Feature | |
| Supply voltage | |
| Batterie | |
| Equipment | slave |
| System current | |
| Detection range movement | |
| Wt. (kg) | 0.1 |
| Price (EUR) | 115.70 |
Delivery time on request
Xpress Button
Order No.: 5EA6CX01GTIN (EAN): 4069025277992
| Installation location | to the wall, in housing |
|---|---|
| Mounting height | |
| Sensor technology | |
| Feature | |
| Supply voltage | 3V |
| Batterie | 1x button cell CR2430 |
| Equipment | slave |
| System current | |
| Detection range movement | |
| Wt. (kg) | 0.1 |
| Price (EUR) | 192.20 |
Delivery time on request
push button interface
Order No.: 5LZ980100GTIN (EAN): 4058352398517
| Installation location | in the switch box |
|---|---|
| Mounting height | |
| Sensor technology | |
| Feature | |
| Supply voltage | 230V |
| Batterie | |
| Equipment | slave |
| System current | |
| Detection range movement | |
| Wt. (kg) | 0.1 |
| Price (EUR) | 266.70 |
Delivery time on request
controller
Order No.: 5LZ980301AGTIN (EAN): 4069025765659
| Installation location | in the ceiling |
|---|---|
| Mounting height | |
| Sensor technology | |
| Feature | |
| Supply voltage | 230V |
| Batterie | |
| Equipment | master |
| System current | max. 50mA |
| Detection range movement | |
| Wt. (kg) | 0.1 |
| Price (EUR) | 196.10 |
Delivery time on request
relay unit
Order No.: 5LZ980300GTIN (EAN): 4058352398579
| Installation location | in the ceiling |
|---|---|
| Mounting height | |
| Sensor technology | |
| Feature | |
| Supply voltage | 230V |
| Batterie | |
| Equipment | master |
| System current | max. 2mA |
| Detection range movement | |
| Wt. (kg) | 0.1 |
| Price (EUR) | 137.30 |
Optional accessories
| Order No.: 5LZ980200ACKGTIN (EAN): 4069025765628 | Show all details |
| Order No.: 5LZ980201ACKGTIN (EAN): 4069025765642 | Show all details |
| Order No.: 5LZ980301ASRGTIN (EAN): 4069025765666 | Show all details |
