SITECO
Rondel
References
Constantin Vanotti School, Überlingen, Germany
Products: Licross
learn more
UPP, Great Britain
learn more
Family
Rondel 21 Performance. Our classic with unique modularity and lighting technology with an individual design language
Rondel 31 Standard. Proven technology for standard applications with good efficiency (121lm/W) and service life (50,000 hours)
Rondel 41 Basic. Practical, efficient and durable
SITECO Connect wireless by Casambi Components for the complete lighting solution. Energy-efficient. Scalable. EPBD-ready.
Product selection
Rondel 41
Key data
Article wall and ceiling luminaire
Lighting effect direct symmetric diffuse distribution
Net luminous flux 1350lm to 2300lm
Colour temperature 3000/4000K
Control ON/OFF
Cover PMMA
Protection rating IP44
Insulation class insulation class I (protective earthing)
Impact resistance IK02
Special features
Configuration & data sheets
- ceiling or wall installation without other luminaire-specific mounting accessories
Results
Rondel 41, direct distribution, diffuse distribution, ON/OFF, white
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 3000/4000K | CRI > 80 | 1350lm | 13W | 104lm/W | ON/OFF | 280 | 0.6 | 34.40 |
Rondel 41, direct distribution, diffuse distribution, ON/OFF, HF sensor, white
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 3000/4000K | CRI > 80 | 1350lm | 14W | 96lm/W | ON/OFF | 280 | 0.6 | 51.60 |
Rondel 41, direct distribution, diffuse distribution, ON/OFF, white
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 3000/4000K | CRI > 80 | 2300lm | 21W | 105lm/W | ON/OFF | 330 | 0.7 | 42.30 |
Rondel 41, direct distribution, diffuse distribution, ON/OFF, HF sensor, white
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 3000/4000K | CRI > 80 | 2300lm | 22W | 100lm/W | ON/OFF | 330 | 0.8 | 60.90 |
Rondel 41, direct distribution, diffuse distribution, ON/OFF, white
Order No.: 51WD107AG1AGTIN (EAN): 4058352520949
| Colour temperature | 3000/4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 1350lm |
| Connected load | 13W |
| Luminous efficacy | 104lm/W |
| Control | ON/OFF |

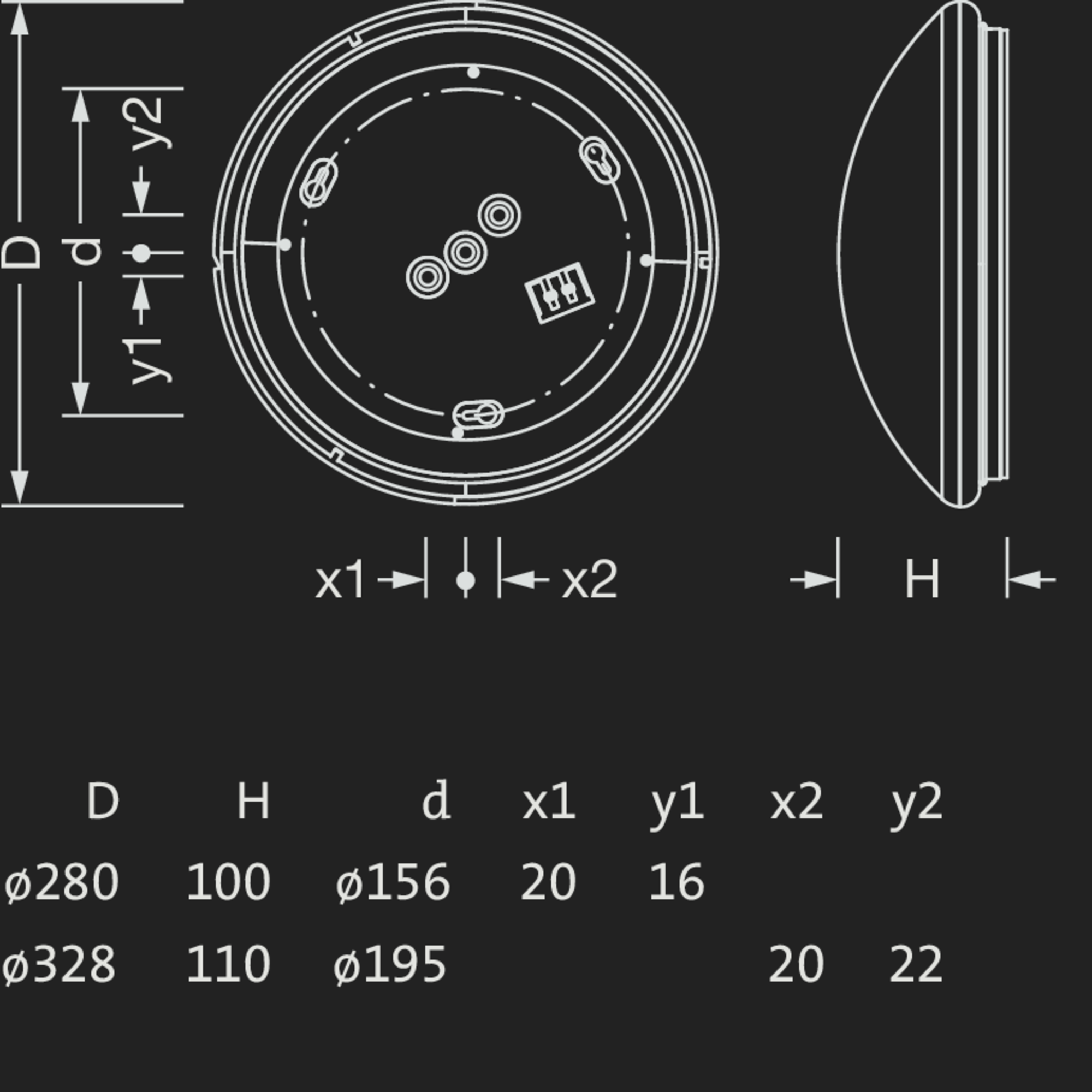

| D (mm) | 280 |
| Wt. (kg) | 0.6 |
| Price (EUR) | 34.40 |
Rondel 41, direct distribution, diffuse distribution, ON/OFF, HF sensor, white
Order No.: 51WD107AG1ASGTIN (EAN): 4058352520956
| Colour temperature | 3000/4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 1350lm |
| Connected load | 14W |
| Luminous efficacy | 96lm/W |
| Control | ON/OFF |
| D (mm) | 280 |
| Wt. (kg) | 0.6 |
| Price (EUR) | 51.60 |
Rondel 41, direct distribution, diffuse distribution, ON/OFF, white
Order No.: 51WD107BG2AGTIN (EAN): 4058352520963
| Colour temperature | 3000/4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2300lm |
| Connected load | 21W |
| Luminous efficacy | 105lm/W |
| Control | ON/OFF |
| D (mm) | 330 |
| Wt. (kg) | 0.7 |
| Price (EUR) | 42.30 |
Rondel 41, direct distribution, diffuse distribution, ON/OFF, HF sensor, white
Order No.: 51WD107BG2ASGTIN (EAN): 4058352520970
| Colour temperature | 3000/4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2300lm |
| Connected load | 22W |
| Luminous efficacy | 100lm/W |
| Control | ON/OFF |
| D (mm) | 330 |
| Wt. (kg) | 0.8 |
| Price (EUR) | 60.90 |
