SITECO

Rondel

ReferencesFamily Product selection Configuration & data sheets

References

Constantin Vanotti School, Überlingen, Germany
Products: Licross
learn more

UPP, Great Britain
learn more

Product selection

Rondel 21, switchable

Rondel 21, switchable

Key data

Article wall and ceiling luminaire
Lighting effect direct distribution
Net luminous flux 1800lm
Colour temperature 3000/4000K
Control ON/OFF Multilumen

Special features

Modern, elegant design for sophisticated surroundings

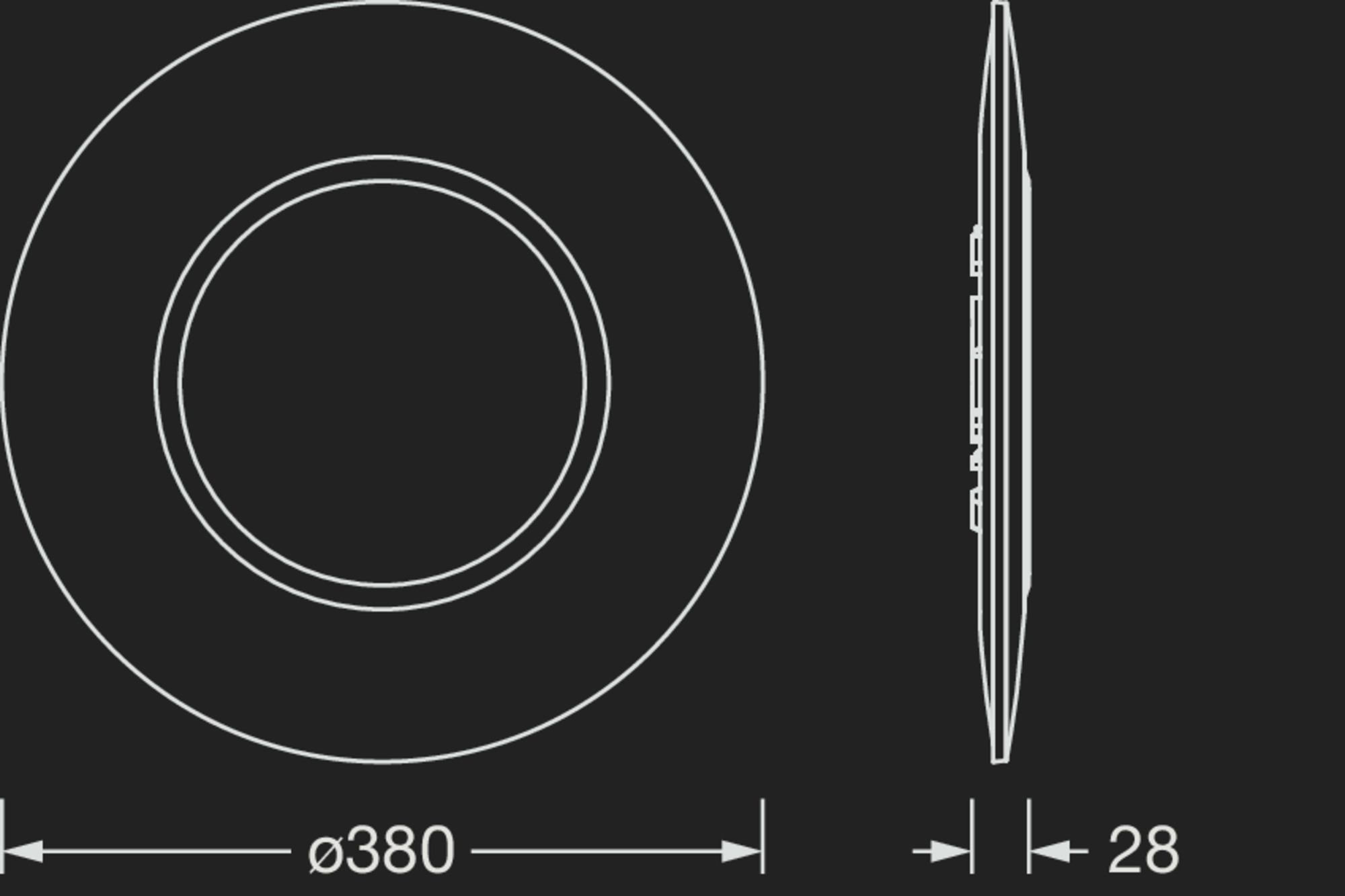

Ultraflat construction with a visible edge of less than 15mm
Uniform light distribution with decorative ceiling illumination
Flexible mounting distances, also suitable for mounting to flush-mounted distribution box/switch box
Integration of an optional emergency light element or sensor element in the central module

Configuration & data sheets

  • sensor module and emergency light module for tool-free installation in the central area of the Rondel 21 luminaire

Results

Available from stock

Rondel 21, Light colour 830/840, ON/OFF Multilumen

Order No.: 51WB14MC82B GTIN (EAN): 4069025719614
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
3000/4000KCRI > 801800lm15W120lm/WON/OFF Multilumen1.3
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list
Available from stock

Rondel 21, Light colour 830/840, ON/OFF Multilumen

Order No.: 51WB14MC82BGTIN (EAN): 4069025719614

Colour temperature3000/4000K
Colour renderingCRI > 80
Luminous flux1800lm
Connected load15W
Luminous efficacy120lm/W
ControlON/OFF Multilumen
Wt. (kg)1.3
Show all details

Optional accessories

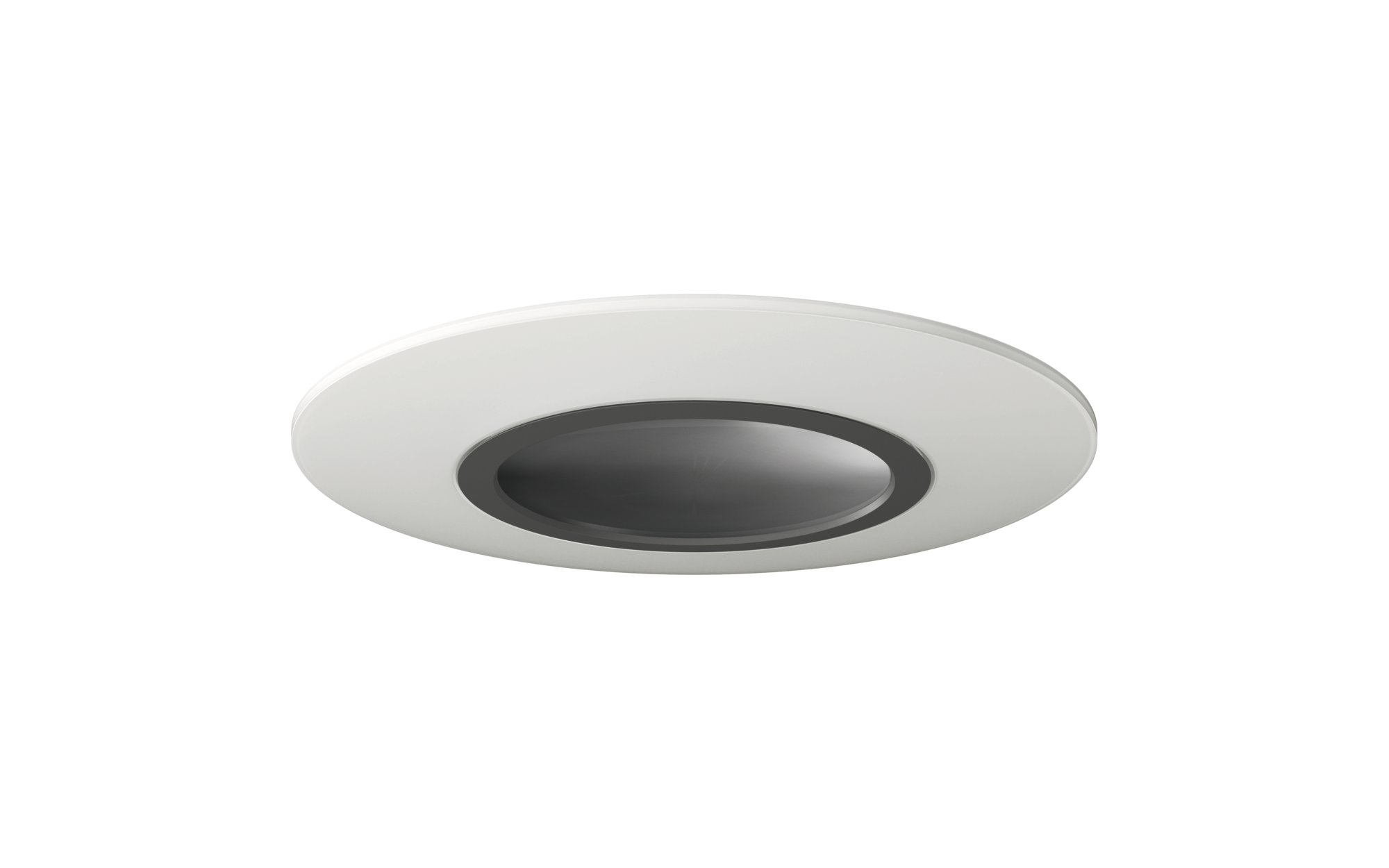

Articlemulti-sensor, h= 2.5..6m, recessed in the luminaireLuminous flux PU1 pc.Wt. (kg)0.5Order No.: 5MD53003SGTIN (EAN): 4058352327166Show all details
Articleemergency light elementLuminous flux260lmPU1 pc.Wt. (kg)0.3Order No.: 58WB1O1BGTIN (EAN): 4069025723482Show all details
