SITECO
Monsun
Product selection
Monsun Ex zone 2/22
Key data
Article damp-proof luminaire
Lighting effect direct symmetric narrow/medium distribution
Net luminous flux 7310lm
Colour temperature 4000K
Control DALI 2
Cover PC
Protection rating IP66
Insulation class insulation class I (protective earthing)
Impact resistance IK10
Explosion class zone2,22 II 3G Ex nR IIC T6 GC, II 3D Ex tc IIIC T80°C Dc
Special features
ATEX certified luminaire for potentially explosive environments
Integrated through-wiring for easy installation and individual connection options
Catches and fastening material of stainless steel
Configuration & data sheets
- includes ceiling/wall fixing element
Results
Delivery time on request
Monsun Ex, narrow/medium distribution, DALI 2, PC
Order No.: 51FXB1DP470A GTIN (EAN): 4058352933398
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 7310lm | 43.8W | 167lm/W | DALI 2 | 7x 2.5mm² | -20..+60°C | IK10 | 1580 | 3.5 |
Delivery time on request
Monsun Ex, narrow/medium distribution, DALI 2, PC
Order No.: 51FXB1DP470AGTIN (EAN): 4058352933398
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7310lm |
| Connected load | 43.8W |
| Luminous efficacy | 167lm/W |
| Control | DALI 2 |
| Through-wiring | 7x 2.5mm² |
| ta | -20..+60°C |
| Impact resistance | IK10 |

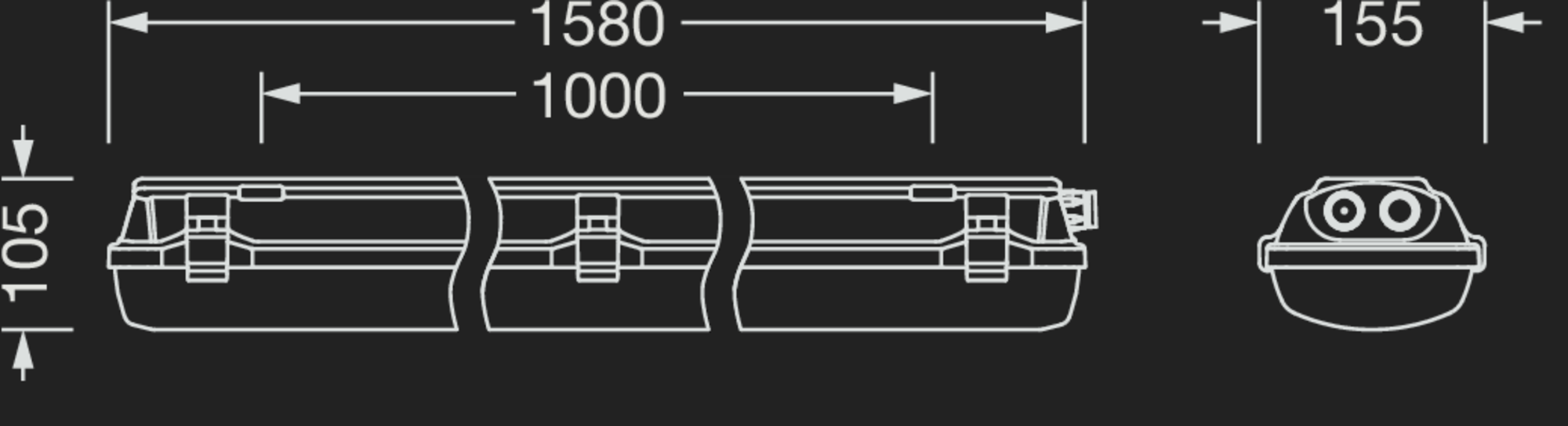

| L (mm) | 1580 |
| Wt. (kg) | 3.5 |
