Apollon
Application
Family
Product selection
Apollon 31 Surface with rectangular housing
Key data
Article office luminaire
Lighting effect direct symmetric wide distribution, 90°
Net luminous flux 3600lm to 4600lm
Colour temperature 3000K; 4000K
Control ON/OFF Multilumen; DALI 2
Protection rating IP20/IP40; IP20/IP40
Service life 50000h (L80) at AT = 25°C
Special features
Apollon 31 Surface is suitable for most applications in offices and for general lighting in commercial buildings with system ceilings
Long-life replacement for traditional louvre solutions
Good colour rendering, with uniformly illuminated cover without dark spots
VDU-compliant in accordance with EN 12464-1 for computer screens with high luminance levels
Configuration & data sheets
- surface-mounting to ceilings without further luminaire-specific mounting accessories
- for multilumen types, luminous flux adjustment is possible in four levels, UGR ≤ 19 is maintained up to the factory setting
- Please refer to the assembly instructions for information about the settings
Results
Apollon Rectangular, wide distribution, 90°, Light colour 840, DALI 2, traffic white (RAL 9016)
Order No.: 51MP25WD2441W GTIN (EAN): 4058352614563
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 3800lm | 28W | 134lm/W | DALI 2 | traffic white (RAL 9016) | 1245x200 | 3.4 |
Apollon Rectangular, wide distribution, 90°, Light colour 840, DALI 2, traffic white (RAL 9016)
Order No.: 51MP25WD2441WB GTIN (EAN): 4069025079787
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 3800lm | 28W | 134lm/W | DALI 2 | traffic white (RAL 9016) | 1245x200 | 3.4 |
Apollon Rectangular, wide distribution, 90°, Light colour 830, DALI 2, traffic white (RAL 9016)
Order No.: 51MP26WD2341W GTIN (EAN): 4058352614624
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 4400lm | 33W | 133lm/W | DALI 2 | traffic white (RAL 9016) | 1545x200 | 4.1 |
Apollon Rectangular, wide distribution, 90°, Light colour 840, DALI 2, metallic grey (RAL 9006)
Order No.: 51MP26WD2441E GTIN (EAN): 4058352614631
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4600lm | 33W | 139lm/W | DALI 2 | metallic grey (RAL 9006) | 1545x200 | 4.1 |
Apollon Rectangular, wide distribution, 90°, Light colour 840, DALI 2, traffic white (RAL 9016)
Order No.: 51MP26WD2441WB GTIN (EAN): 4069025079947
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4600lm | 33W | 139lm/W | DALI 2 | traffic white (RAL 9016) | 1545x200 | 4.1 |
Apollon Rectangular, wide distribution, 90°, Light colour 840, DALI 2, metallic grey (RAL 9006)
Order No.: 51MP25WD2441E GTIN (EAN): 4058352614556
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 3800lm | 28W | 134lm/W | DALI 2 | metallic grey (RAL 9006) | 1245x200 | 3.4 |
Apollon Rectangular, wide distribution, 90°, Light colour 830, ON/OFF Multilumen, traffic white (RAL 9016)
Order No.: 51MP25WM2341WA GTIN (EAN): 4069025077943
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 3600lm | 27W | 132lm/W | ON/OFF Multilumen | traffic white (RAL 9016) | 1245x200 | 3.4 |
Apollon Rectangular, wide distribution, 90°, Light colour 830, DALI 2, metallic grey (RAL 9006)
Order No.: 51MP26WD2341E GTIN (EAN): 4058352614617
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 4400lm | 33W | 133lm/W | DALI 2 | metallic grey (RAL 9006) | 1545x200 | 4.1 |
Apollon Rectangular, wide distribution, 90°, Light colour 830, ON/OFF Multilumen, metallic grey (RAL 9006)
Order No.: 51MP26WM2341E GTIN (EAN): 4058352614655
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 4400lm | 33W | 133lm/W | ON/OFF Multilumen | metallic grey (RAL 9006) | 1545x200 | 4.1 |
Apollon Rectangular, wide distribution, 90°, Light colour 830, ON/OFF Multilumen, traffic white (RAL 9016)
Order No.: 51MP26WM2341W GTIN (EAN): 4058352614662
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 4400lm | 33W | 133lm/W | ON/OFF Multilumen | traffic white (RAL 9016) | 1545x200 | 4.1 |
Apollon Rectangular, wide distribution, 90°, Light colour 840, DALI 2, metallic grey (RAL 9006)
Order No.: 51MP25WD2441EA GTIN (EAN): 4069025077882
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 3800lm | 28W | 134lm/W | DALI 2 | metallic grey (RAL 9006) | 1245x200 | 3.4 |
Apollon Rectangular, wide distribution, 90°, Light colour 840, DALI 2, traffic white (RAL 9016)
Order No.: 51MP25WD2441WA GTIN (EAN): 4069025077905
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 3800lm | 28W | 134lm/W | DALI 2 | traffic white (RAL 9016) | 1245x200 | 3.4 |
Apollon Rectangular, wide distribution, 90°, Light colour 840, ON/OFF Multilumen, metallic grey (RAL 9006)
Order No.: 51MP25WM2441EA GTIN (EAN): 4069025077967
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 3800lm | 27W | 139lm/W | ON/OFF Multilumen | metallic grey (RAL 9006) | 1245x200 | 3.4 |
Apollon Rectangular, wide distribution, 90°, Light colour 840, ON/OFF Multilumen, traffic white (RAL 9016)
Order No.: 51MP25WM2441WA GTIN (EAN): 4069025077981
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 3800lm | 27W | 139lm/W | ON/OFF Multilumen | traffic white (RAL 9016) | 1245x200 | 3.4 |
Apollon Rectangular, wide distribution, 90°, Light colour 840, ON/OFF Multilumen, metallic grey (RAL 9006)
Order No.: 51MP26WM2441EA GTIN (EAN): 4069025078124
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4600lm | 33W | 139lm/W | ON/OFF Multilumen | metallic grey (RAL 9006) | 1545x200 | 4.1 |
Apollon Rectangular, wide distribution, 90°, Light colour 840, DALI 2, metallic grey (RAL 9006)
Order No.: 51MP26WD2441EA GTIN (EAN): 4069025078049
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4600lm | 33W | 139lm/W | DALI 2 | metallic grey (RAL 9006) | 1545x200 | 4.1 |
Apollon Rectangular, wide distribution, 90°, Light colour 840, DALI 2, traffic white (RAL 9016)
Order No.: 51MP26WD2441WA GTIN (EAN): 4069025078063
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4600lm | 33W | 139lm/W | DALI 2 | traffic white (RAL 9016) | 1545x200 | 4.1 |
Apollon Rectangular, wide distribution, 90°, Light colour 840, ON/OFF Multilumen, traffic white (RAL 9016)
Order No.: 51MP26WM2441WA GTIN (EAN): 4069025078148
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4600lm | 33W | 139lm/W | ON/OFF Multilumen | traffic white (RAL 9016) | 1545x200 | 4.1 |
Apollon Rectangular, wide distribution, 90°, Light colour 840, DALI 2, traffic white (RAL 9016)
Order No.: 51MP25WD2441WGTIN (EAN): 4058352614563
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3800lm |
| Connected load | 28W |
| Luminous efficacy | 134lm/W |
| Control | DALI 2 |
| Colour | traffic white (RAL 9016) |

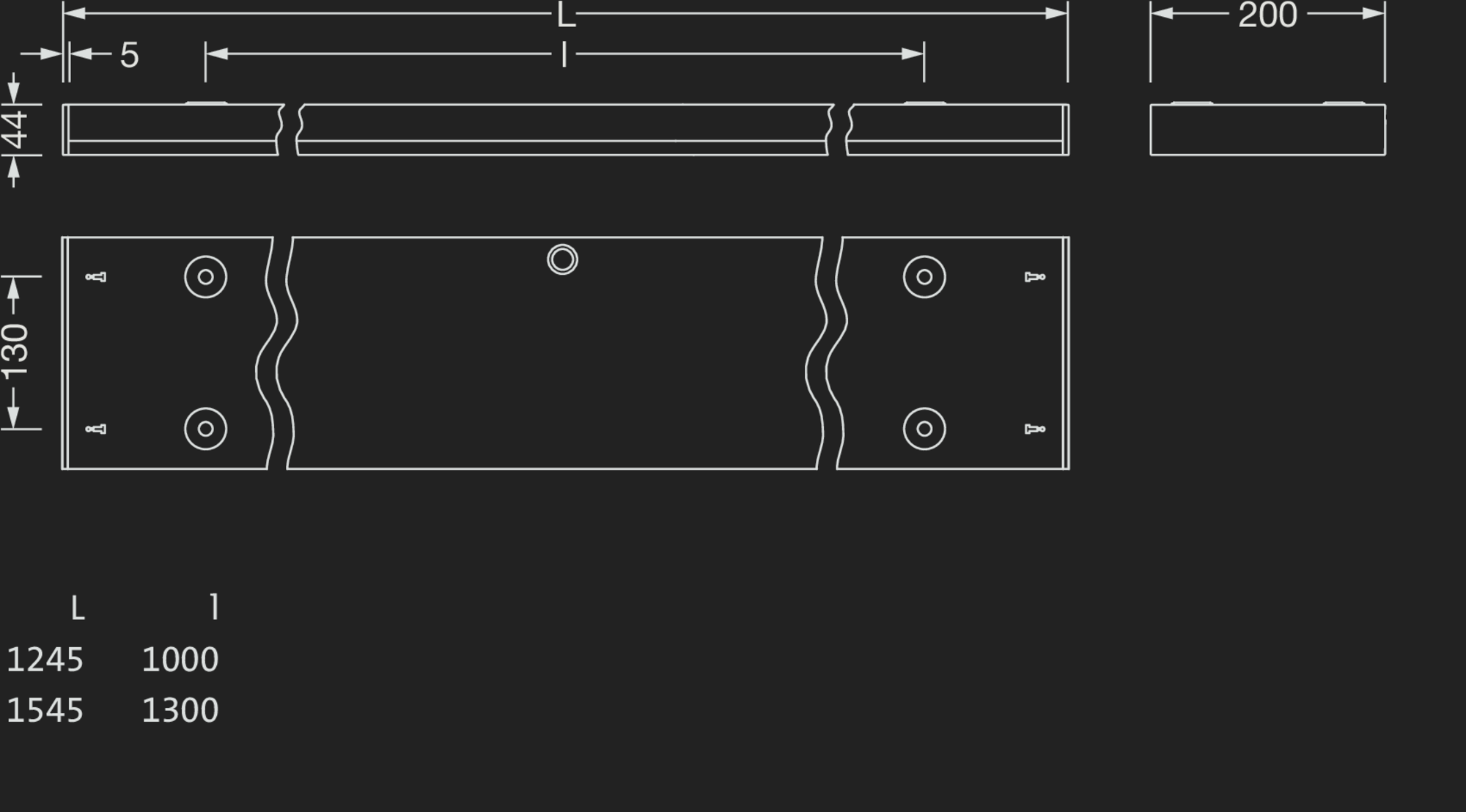

| Dimension (mm) | 1245x200 |
| Wt. (kg) | 3.4 |
Apollon Rectangular, wide distribution, 90°, Light colour 840, DALI 2, traffic white (RAL 9016)
Order No.: 51MP25WD2441WBGTIN (EAN): 4069025079787
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3800lm |
| Connected load | 28W |
| Luminous efficacy | 134lm/W |
| Control | DALI 2 |
| Colour | traffic white (RAL 9016) |
| Dimension (mm) | 1245x200 |
| Wt. (kg) | 3.4 |
Apollon Rectangular, wide distribution, 90°, Light colour 830, DALI 2, traffic white (RAL 9016)
Order No.: 51MP26WD2341WGTIN (EAN): 4058352614624
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4400lm |
| Connected load | 33W |
| Luminous efficacy | 133lm/W |
| Control | DALI 2 |
| Colour | traffic white (RAL 9016) |
| Dimension (mm) | 1545x200 |
| Wt. (kg) | 4.1 |
Apollon Rectangular, wide distribution, 90°, Light colour 840, DALI 2, metallic grey (RAL 9006)
Order No.: 51MP26WD2441EGTIN (EAN): 4058352614631
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4600lm |
| Connected load | 33W |
| Luminous efficacy | 139lm/W |
| Control | DALI 2 |
| Colour | metallic grey (RAL 9006) |
| Dimension (mm) | 1545x200 |
| Wt. (kg) | 4.1 |
Apollon Rectangular, wide distribution, 90°, Light colour 840, DALI 2, traffic white (RAL 9016)
Order No.: 51MP26WD2441WBGTIN (EAN): 4069025079947
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4600lm |
| Connected load | 33W |
| Luminous efficacy | 139lm/W |
| Control | DALI 2 |
| Colour | traffic white (RAL 9016) |
| Dimension (mm) | 1545x200 |
| Wt. (kg) | 4.1 |
Apollon Rectangular, wide distribution, 90°, Light colour 840, DALI 2, metallic grey (RAL 9006)
Order No.: 51MP25WD2441EGTIN (EAN): 4058352614556
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3800lm |
| Connected load | 28W |
| Luminous efficacy | 134lm/W |
| Control | DALI 2 |
| Colour | metallic grey (RAL 9006) |
| Dimension (mm) | 1245x200 |
| Wt. (kg) | 3.4 |
Apollon Rectangular, wide distribution, 90°, Light colour 830, ON/OFF Multilumen, traffic white (RAL 9016)
Order No.: 51MP25WM2341WAGTIN (EAN): 4069025077943
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3600lm |
| Connected load | 27W |
| Luminous efficacy | 132lm/W |
| Control | ON/OFF Multilumen |
| Colour | traffic white (RAL 9016) |
| Dimension (mm) | 1245x200 |
| Wt. (kg) | 3.4 |
Apollon Rectangular, wide distribution, 90°, Light colour 830, DALI 2, metallic grey (RAL 9006)
Order No.: 51MP26WD2341EGTIN (EAN): 4058352614617
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4400lm |
| Connected load | 33W |
| Luminous efficacy | 133lm/W |
| Control | DALI 2 |
| Colour | metallic grey (RAL 9006) |
| Dimension (mm) | 1545x200 |
| Wt. (kg) | 4.1 |
Apollon Rectangular, wide distribution, 90°, Light colour 830, ON/OFF Multilumen, metallic grey (RAL 9006)
Order No.: 51MP26WM2341EGTIN (EAN): 4058352614655
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4400lm |
| Connected load | 33W |
| Luminous efficacy | 133lm/W |
| Control | ON/OFF Multilumen |
| Colour | metallic grey (RAL 9006) |
| Dimension (mm) | 1545x200 |
| Wt. (kg) | 4.1 |
Apollon Rectangular, wide distribution, 90°, Light colour 830, ON/OFF Multilumen, traffic white (RAL 9016)
Order No.: 51MP26WM2341WGTIN (EAN): 4058352614662
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4400lm |
| Connected load | 33W |
| Luminous efficacy | 133lm/W |
| Control | ON/OFF Multilumen |
| Colour | traffic white (RAL 9016) |
| Dimension (mm) | 1545x200 |
| Wt. (kg) | 4.1 |
Apollon Rectangular, wide distribution, 90°, Light colour 840, DALI 2, metallic grey (RAL 9006)
Order No.: 51MP25WD2441EAGTIN (EAN): 4069025077882
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3800lm |
| Connected load | 28W |
| Luminous efficacy | 134lm/W |
| Control | DALI 2 |
| Colour | metallic grey (RAL 9006) |
| Dimension (mm) | 1245x200 |
| Wt. (kg) | 3.4 |
Apollon Rectangular, wide distribution, 90°, Light colour 840, DALI 2, traffic white (RAL 9016)
Order No.: 51MP25WD2441WAGTIN (EAN): 4069025077905
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3800lm |
| Connected load | 28W |
| Luminous efficacy | 134lm/W |
| Control | DALI 2 |
| Colour | traffic white (RAL 9016) |
| Dimension (mm) | 1245x200 |
| Wt. (kg) | 3.4 |
Apollon Rectangular, wide distribution, 90°, Light colour 840, ON/OFF Multilumen, metallic grey (RAL 9006)
Order No.: 51MP25WM2441EAGTIN (EAN): 4069025077967
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3800lm |
| Connected load | 27W |
| Luminous efficacy | 139lm/W |
| Control | ON/OFF Multilumen |
| Colour | metallic grey (RAL 9006) |
| Dimension (mm) | 1245x200 |
| Wt. (kg) | 3.4 |
Apollon Rectangular, wide distribution, 90°, Light colour 840, ON/OFF Multilumen, traffic white (RAL 9016)
Order No.: 51MP25WM2441WAGTIN (EAN): 4069025077981
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3800lm |
| Connected load | 27W |
| Luminous efficacy | 139lm/W |
| Control | ON/OFF Multilumen |
| Colour | traffic white (RAL 9016) |
| Dimension (mm) | 1245x200 |
| Wt. (kg) | 3.4 |
Apollon Rectangular, wide distribution, 90°, Light colour 840, ON/OFF Multilumen, metallic grey (RAL 9006)
Order No.: 51MP26WM2441EAGTIN (EAN): 4069025078124
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4600lm |
| Connected load | 33W |
| Luminous efficacy | 139lm/W |
| Control | ON/OFF Multilumen |
| Colour | metallic grey (RAL 9006) |
| Dimension (mm) | 1545x200 |
| Wt. (kg) | 4.1 |
Apollon Rectangular, wide distribution, 90°, Light colour 840, DALI 2, metallic grey (RAL 9006)
Order No.: 51MP26WD2441EAGTIN (EAN): 4069025078049
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4600lm |
| Connected load | 33W |
| Luminous efficacy | 139lm/W |
| Control | DALI 2 |
| Colour | metallic grey (RAL 9006) |
| Dimension (mm) | 1545x200 |
| Wt. (kg) | 4.1 |
Apollon Rectangular, wide distribution, 90°, Light colour 840, DALI 2, traffic white (RAL 9016)
Order No.: 51MP26WD2441WAGTIN (EAN): 4069025078063
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4600lm |
| Connected load | 33W |
| Luminous efficacy | 139lm/W |
| Control | DALI 2 |
| Colour | traffic white (RAL 9016) |
| Dimension (mm) | 1545x200 |
| Wt. (kg) | 4.1 |
Apollon Rectangular, wide distribution, 90°, Light colour 840, ON/OFF Multilumen, traffic white (RAL 9016)
Order No.: 51MP26WM2441WAGTIN (EAN): 4069025078148
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4600lm |
| Connected load | 33W |
| Luminous efficacy | 139lm/W |
| Control | ON/OFF Multilumen |
| Colour | traffic white (RAL 9016) |
| Dimension (mm) | 1545x200 |
| Wt. (kg) | 4.1 |
