Streetlight SL 21 mini lite, direct asymmetric wide distribution, ST1.0a, with Smart Interface above
Close
Article mast luminaire
Product name Streetlight SL 21 mini lite
Lamp LED
Rated luminous flux 5110lm
Luminous efficacy 131lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom begin service life 39
Pnom end service life 41
Pred at 50% lumin. flux 18
Service life 100000h (L96/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK09
Weight 5.8kg

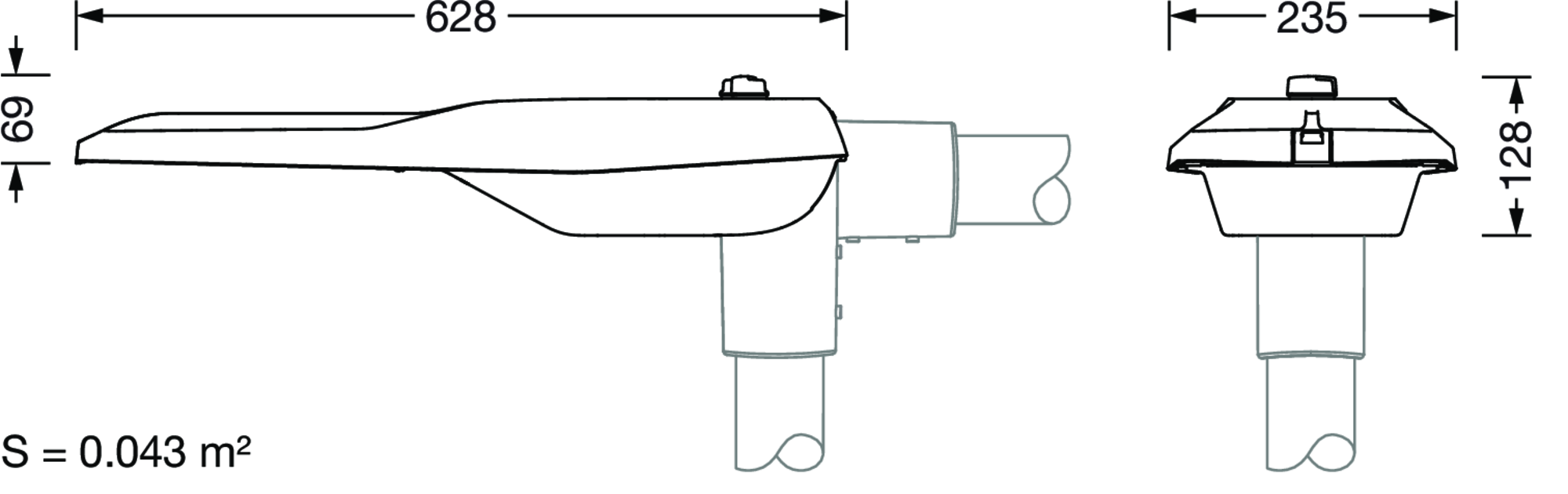

Streetlight SL 21 mini lite, mast luminaire, primary light control with lens, of PMMA, primary optical cover: cover, of toughened safety glass, transparent, light distribution: ST1.0a, light emission: direct distribution, primary light characteristic: asymmetric, installation type: post-top, side-entry, LED, High Power LED, rated luminous flux: 5.110lm, luminous efficacy: 131lm/W, light colour: 730, colour temperature: 3000K, control gear: ECG Smart Interface, control: flexible luminous flux parameterisation, time-dependent luminous flux control, constant luminous flux control, overheat protection, power reduction, electronic power reduction, mains connection: 220..240V, AC, 50/60Hz, start of lifetime: 39W, end of lifetime: 41W, reduction: 18W, luminaire housing, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), length: 628mm, width: 235mm, height: 110mm, spigot size: 60/76mm (post-top) and 42/60/76mm (side-entry), mast flange for spigot size: 42mm: 5XC10008XM4, 60mm: 5XC10008XM2, 76/60mm: 5XC10108XM1, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, impact resistance: IK09, permissible operating ambient temperature for outdoor applications: -35..+50°C, standard-compliant lighting for roads and squares, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
Product details
Photometric report / planning data
SL21mnl
ST1.0a,5110lm730,DA,p-red
Ordercode: 5XE2D32V08DA
