5TR305FCMA

: 5TR305FCMA

Article base module

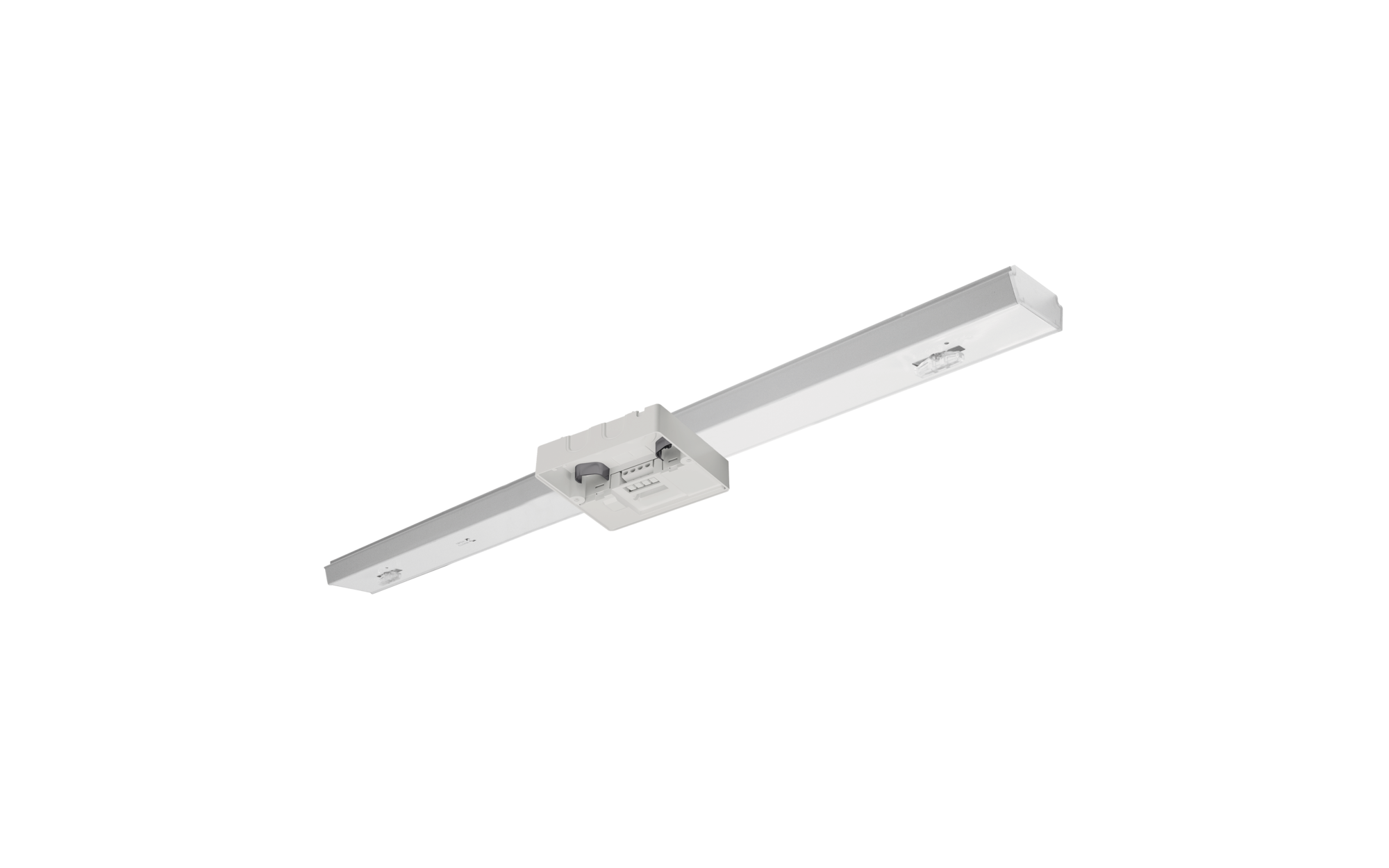

Product name Modario 31 Interface
Protection rating IP20
Weight 0.4kg

Modario 31 InterfaceInterface MD, master, local control - self-sufficient standalone sensors, dimmable, installation type: slip-in mounting, installation location: to the Modario trunking rail, of sheet steel, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, VDE, voltage: 230V, voltage type: AC, 1 x DALI, packaging unit: 1 piece

Downloads

Key data

System family SITECO Connect 31 Logistic DALI
Product type base module
Product name Modario 31 Interface
Order No. 5TR305FCMA

Lamps

Supplement internal wiring halogen-free

Operating device

Control DALI, dimmable

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) -20..+50°C
Certification, designation CE, VDE

Material, Colour

trunking rail adapter set sheet steel, coil coated, white

Mounting

Mounting method, mounting location slip-in mounting, to the Modario trunking rail
Supplement only suitable for use in indoor areas

Electrical connection

Connection plug, 5-pole, with phase selection
Nominal voltage 230V, 50Hz, AC

Dimensions, Weight

Length 597mm
Width 96mm
Height 97mm
Weight 0.4kg

Outputs

DALI
Feature DALI, master function, broadcast addressing, max. 30 DALI ECGs

System family
SITECO Connect 31 Logistic DALI

Product type
base module

Product name
Modario 31 Interface

Order No.
5TR305FCMA

Supplement
internal wiring halogen-free

Control
DALI, dimmable

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
-20..+50°C

Certification, designation
CE, VDE

trunking rail adapter set
sheet steel, coil coated, white

Mounting method, mounting location
slip-in mounting, to the Modario trunking rail

Supplement
only suitable for use in indoor areas

Connection
plug, 5-pole, with phase selection

Nominal voltage
230V, 50Hz, AC

Length
597mm

Width
96mm

Height
97mm

Weight
0.4kg

DALI

Feature
DALI, master function, broadcast addressing, max. 30 DALI ECGs
