5XA7762A4D1A
Article floodlight
Product name Floodlight FL 21 iQ micro
Lamp LED
Rated luminous flux 3010lm
Luminous efficacy 130.3lm/W
Colour temperature 4000K
Colour rendering CRI > 70
Pnom 23.1W
Pnom end service life 23.8W
Pred at 50% lumin. flux 11W
Service life 100000h (L97/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK07
Weight 3.3kg

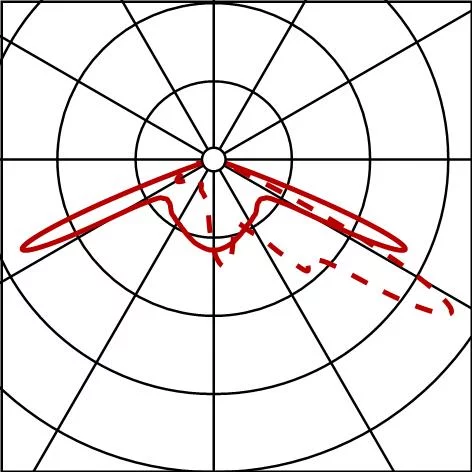

Floodlight FL 21 iQ micro, floodlight, primary light control with lens, of PMMA, primary optical cover: protective disc, of toughened safety glass, transparent, light distribution: A520003, light emission: direct distribution, 0% light immission, installation type: surface-mounted, installation location: to supporting structure, to the cross arm, to the wall, with mounting bracket, screws of glass cover cannot be lost, lamps: LED, rated values: 3.010lm | 23,1W | 130,3lm/W (begin service life); end service life: 3.010lm | 23,8W; at 50% lumin. flux: 1.505lm | 11W | 136,8lm/W, colour temperature: 4000K, colour rendering: CRI > 70, light colour: 740, light setting 1 (further light settings possible): 100% | 3.010lm | 23,1W | 130,3lm/W | 4.000K (begin service life); end service life: 23,8W, control gear: iQ Street-Remote/DALI, control: Auto-Match, Temp-Guard, Night-Set, Smart-Wire, Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), optimised constant luminous flux control (CLO 2.0), Street-Remote, pre-setting: linear dimming characteristic, mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: surge voltage resistance: 10kV (common mode); 6kV (differential mode), electrical connection: terminal, 6-pole, max. 1.5mm², solid wire, fine wire, electronic type plate, CLO2.0: advanced constant luminous flux control taking into account current and historical weather, temperature and operating conditions to increase efficiency over the service life, exclusion of faulty assembly when replacing spare parts thanks to reverse polarity protected plug connection, ECG replaceable without ESD environment, ECG replaceable at mast without ESD environment, luminaire housing, of diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), corrosivity category C5 mid according to DIN EN ISO 12944, suitable for swimming pools, chlorine-resistant, sealing non-destructively replaceable, mounting bracket, of steel, galvanised, powder-coated, SITECO metallic grey (DB 702S), protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, protection symbol: D, impact resistance: IK07, permissible operating ambient temperature: -40..+40°C, permissible operating ambient temperature for outdoor applications: -40..+50°C, standard: DIN EN 12944, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece

Floodlight FL 21 iQ micro
LED, direct distribution, surface-mounted, to supporting structure, to the cross arm, to the wall
: LED 4000K / CRI >= 70
: 5XA7762A4D1A
