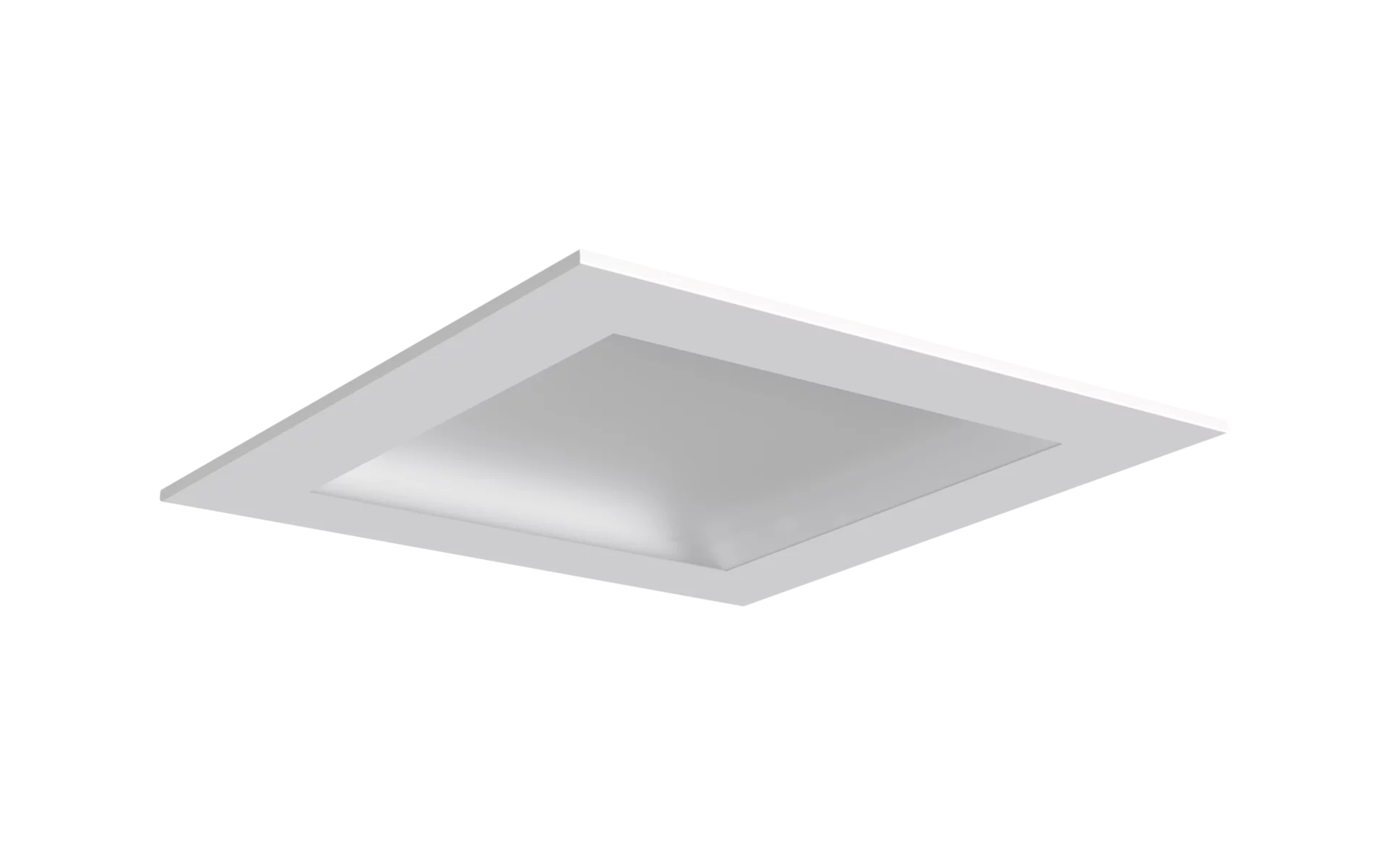

Article clean room luminaire
Product name Mira 11 SL
Lamp LED
Rated luminous flux 3150lm
Luminous efficacy 113lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 28W
Service life 50000h (L80/B10) at AT = 25°C
Protection rating IP54
Impact resistance ??
Weight 10.0kg

Mira 11 SL, clean room luminaire, primary light control with reflector, primary optical cover: cover, of PC, light emission: direct distribution, primary light characteristic: symmetric, installation type: recessed, LED, rated luminous flux: 3.150lm, luminous efficacy: 113lm/W, light colour: 840, colour temperature: 4000K, control gear: ON/OFF, with terminal, 3-pole, max. 2.5mm², mains connection: 230V, AC, 50/60Hz, rated input power: 28W, luminaire housing, of sheet steel, coated, pure white (RAL 9010), with wing nuts, module: M625, length: 623mm, width: 623mm, height: 91mm, protection rating (complete): IP54, protection rating (on room side): IP65, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, permissible operating ambient temperature: -5..+40°C, standard: EN 50419, packaging unit: 1 piece

Downloads

Key data

Product type clean room luminaire
Product name Mira 11 SL
Order No. 51FR427A433A

Lighting technology

Light control reflector
Cover cover

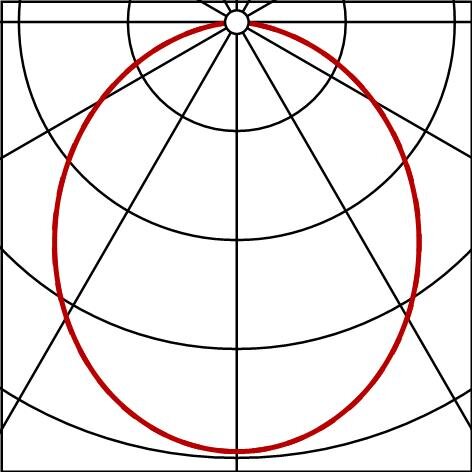

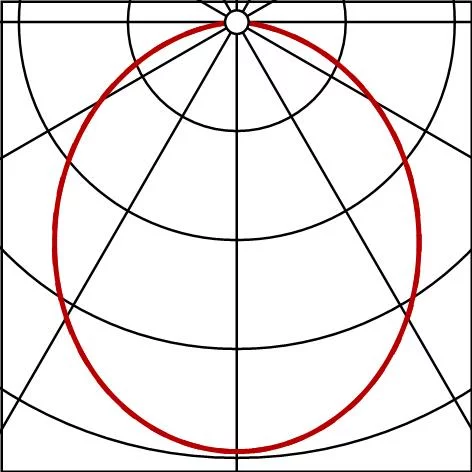

Beam angle wide distribution
Symmetry symmetric

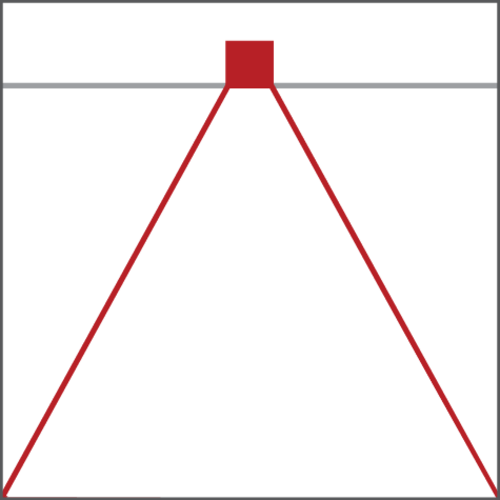

Light emission direct distribution

Lamps

Lamps with LED
Rated luminous flux 3150lm
Luminous efficacy 113lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 28W

Operating device

Control gear ECG
Control ON/OFF

Certificates, Standards

Protection rating IP54
Protection rating (on room side) IP65
Insulation class insulation class I (protective earthing)
Temperature range (operation) -5..+40°C
Standard EN 50419
Certification, designation CE, UKCA

Material, Colour

luminaire housing sheet steel, coated, pure white (RAL 9010), with wing nuts
Cover cover of PC

Mounting

Mounting method, mounting location recessed, in the ceiling
Arrangement single arrangement
Supplement only suitable for use in indoor areas, for flush recessing into metal cassettes, inspection from below, inspection from above

Electrical connection

Connection terminal, 3-pole, max. 2.5mm²
Nominal voltage 230V, 230..240V, 50/60Hz, AC

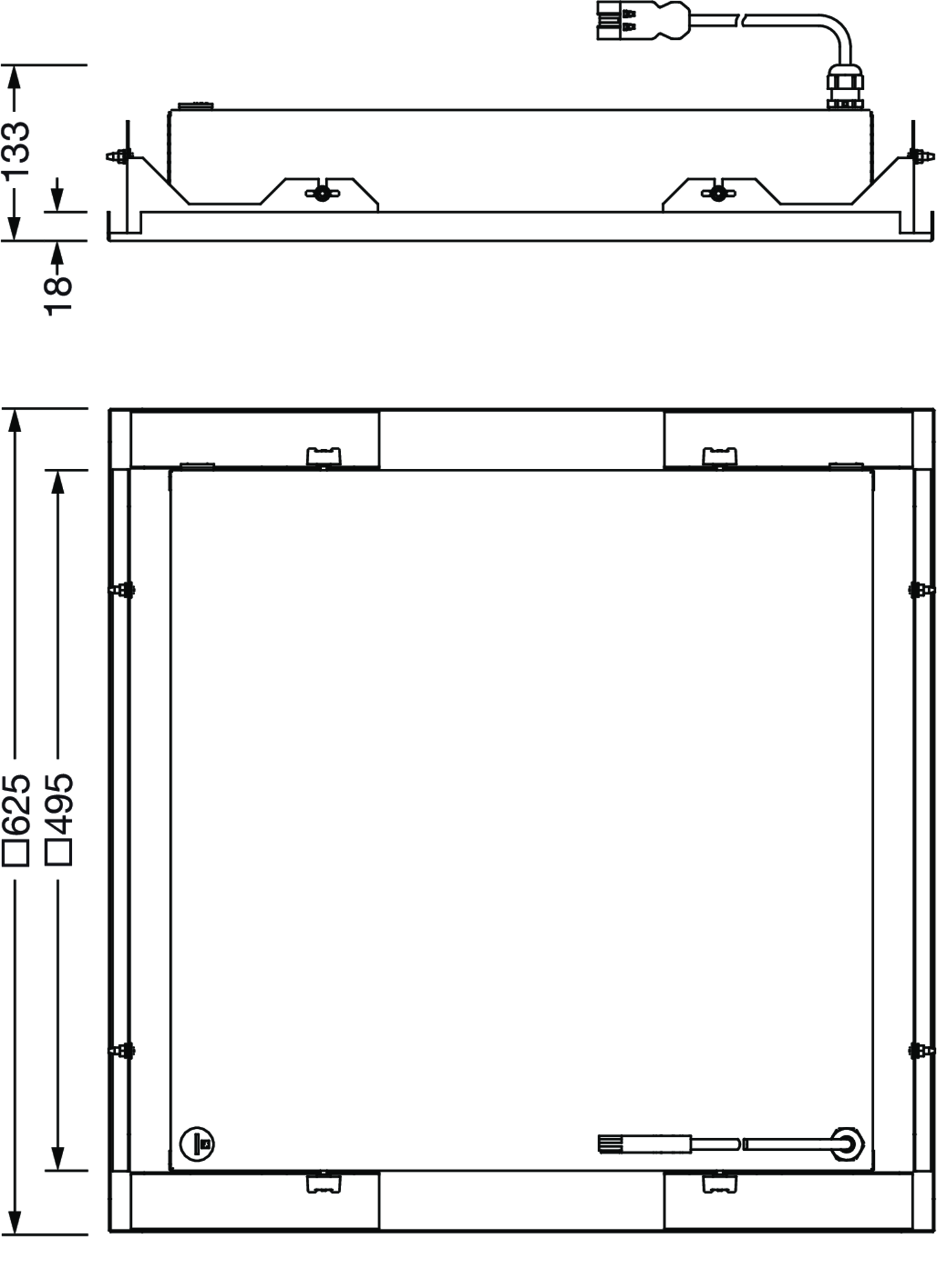

Dimensions, Weight

Length 623mm
Width 623mm
Height 91mm
Weight 10.0kg

Service life

Rated service life 50000h (L80/B10) at AT = 25°C

Product type
clean room luminaire

Product name
Mira 11 SL

Order No.
51FR427A433A

Light control
reflector

Cover
cover

Beam angle
wide distribution

Symmetry
symmetric

Light emission
direct distribution

Lamps
with LED

Rated luminous flux
3150lm

Luminous efficacy
113lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
28W

Control gear
ECG

Control
ON/OFF

Protection rating
IP54

Protection rating (on room side)
IP65

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
-5..+40°C

Standard
EN 50419

Certification, designation
CE, UKCA

luminaire housing
sheet steel, coated, pure white (RAL 9010), with wing nuts

Cover
cover of PC

Mounting method, mounting location
recessed, in the ceiling

Arrangement
single arrangement

Supplement
only suitable for use in indoor areas, for flush recessing into metal cassettes, inspection from below, inspection from above

Connection
terminal, 3-pole, max. 2.5mm²

Nominal voltage
230V, 230..240V, 50/60Hz, AC

Length
623mm

Width
623mm

Height
91mm

Weight
10.0kg

Rated service life
50000h (L80/B10) at AT = 25°C
