Key data

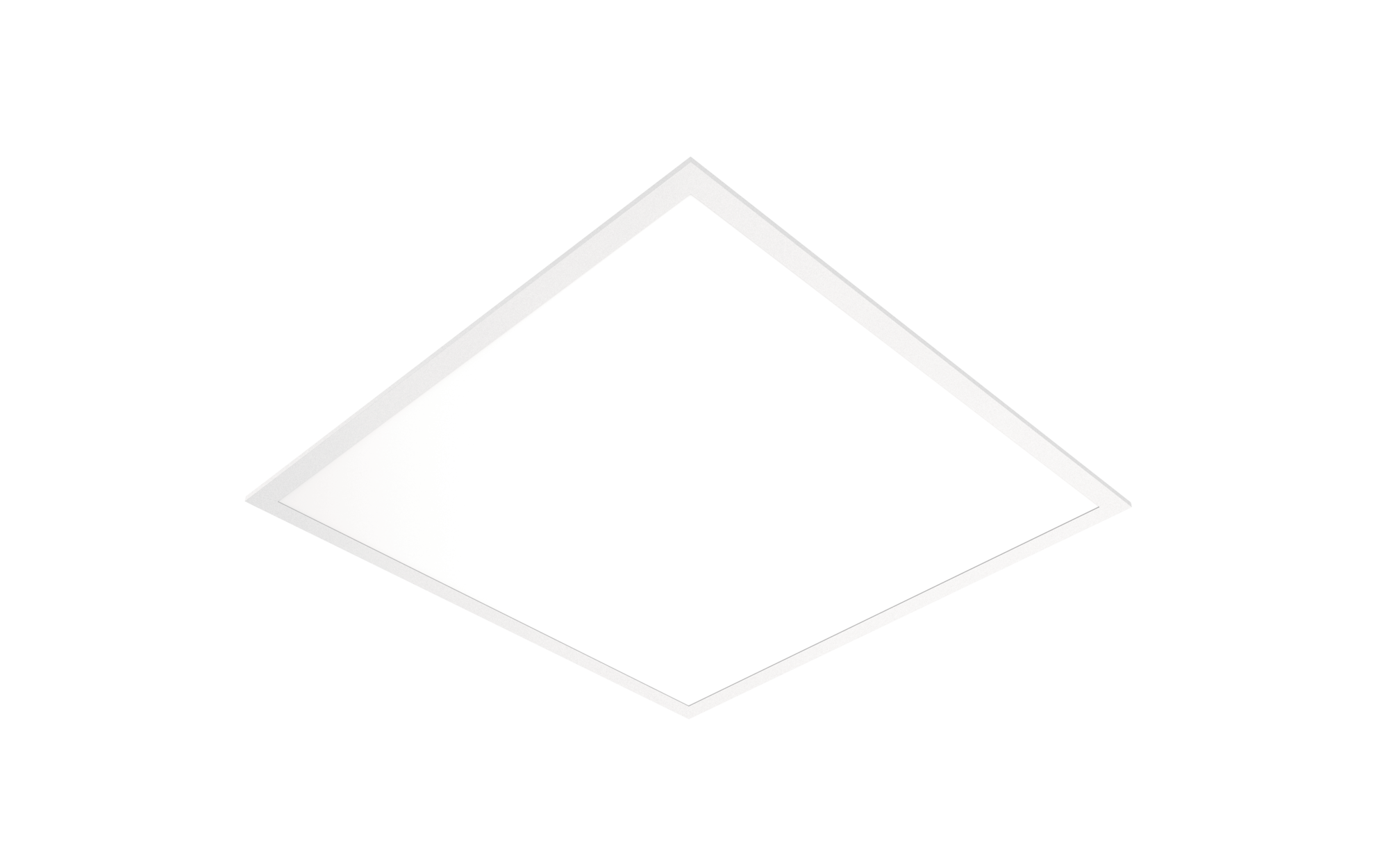

Product type office luminaire
Product name Apollon 41
Order No. 51MH11WM2443

Component 1

Lighting technology
Light control lens of PMMA
Cover prismatic diffuser

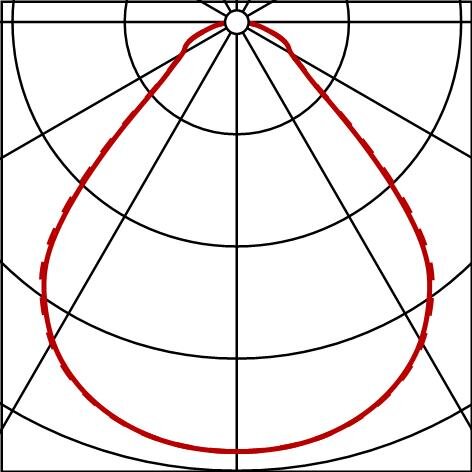

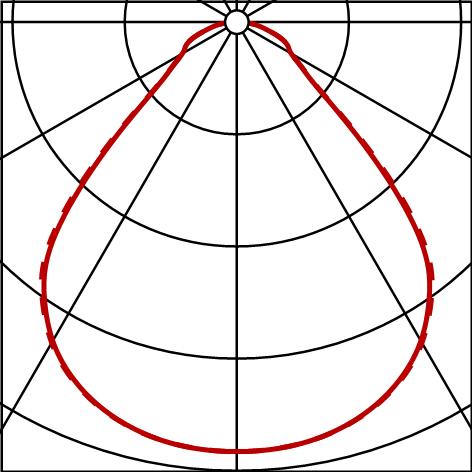

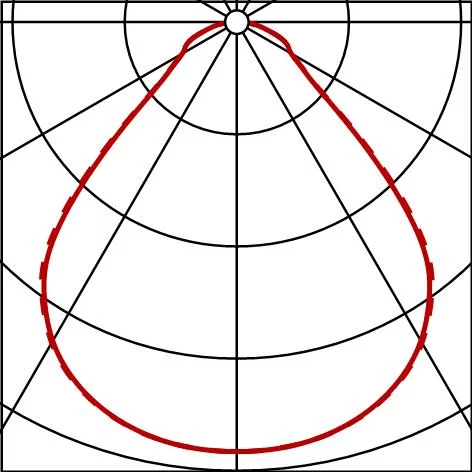

Beam angle wide distribution, 90°
Symmetry symmetric

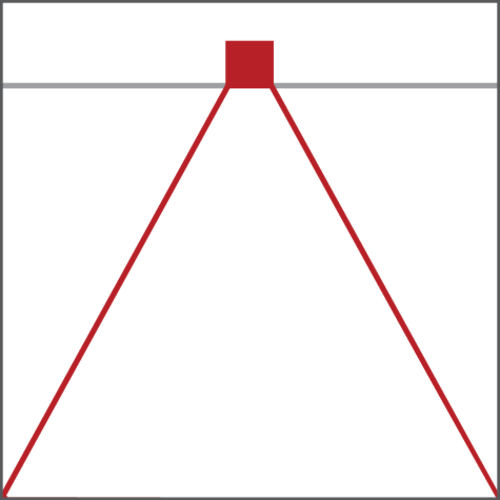

Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps
Lamps with LED
Rated luminous flux 4375lm
Luminous efficacy 125lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 35W
Supplement with through-wiring, luminous flux adjustable on luminaire in four steps at 4000K (2395/3059/3705/4375lm), connected load according to luminous flux setting (18/23/28.5/35W)

Operating device
Control ON/OFF Multilumen

Component 2

Operating device
Switching method suitable for self-contained emergency lighting element 58DB00B013A with integrated self-test function according to EN 60598-2-22

Certificates, Standards

Protection rating IP20
Protection rating (lamp compartment, on room side) IP40
Insulation class insulation class II (safety insulation)
Impact resistance IK03
Temperature range (operation) -25..+40°C
Certification, designation CE, ENEC

Material, Colour

housing aluminium, powder-coated, traffic white (RAL 9016)
housing upper side sheet steel, powder-coated
Cover prismatic diffuser of PMMA

Mounting

Mounting method, mounting location lay-in mounting, in the ceiling
Arrangement single arrangement
Supplement please order the required mounting accessories for ceiling recessing separately

Electrical connection

Connection terminal, 3-pole
Nominal voltage 220..240V, 50/60Hz, AC

Dimensions, Weight

Length 620mm
Width 620mm
Height 34mm
Weight 1.9kg

Service life

Rated service life 50000h (L80) at AT = 25°C
