51MX23TAT4S

: 51MX23TAT4S

Article office luminaire
Product name Silica 21 Linear Prismatic
Lamp LED
Rated luminous flux 3230lm
Luminous efficacy 95lm/W
Colour temperature 2700..6500K
Colour rendering CRI > 80
Rated input power 34W
Service life 50000h (L85) at AT = 25°C
Protection rating IP20
Weight 3.0kg

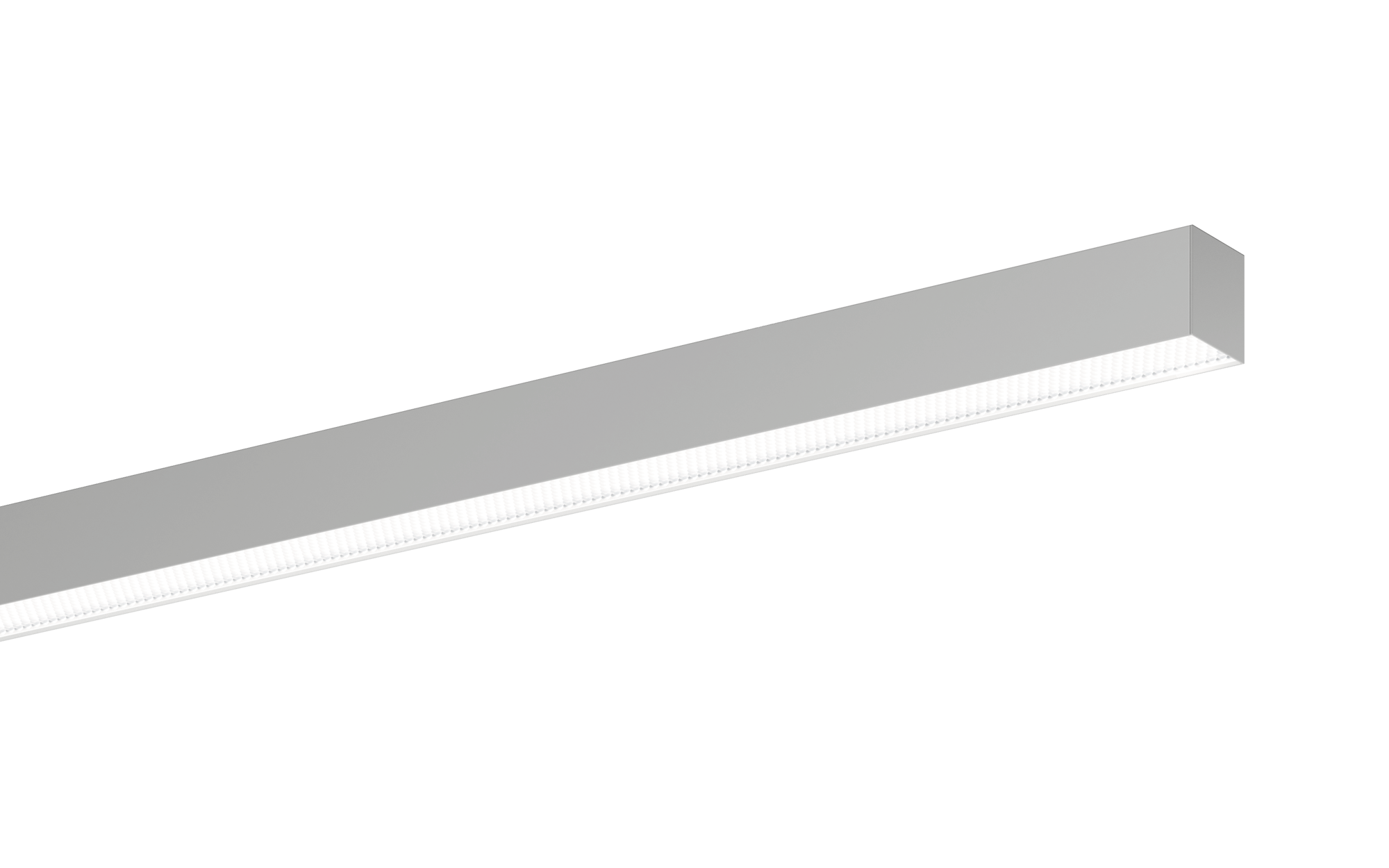

Silica 21 Linear Prismatic, office luminaire, primary optical cover: prismatic diffuser, of PMMA, CAT 2 (L= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 3.230lm, luminous efficacy: 95lm/W, light colour: 8tw, colour temperature: 2700..6500K, control gear: DALI DT8, with terminal, 3+2-pole, max. 2.5mm², mains connection: 220..240V, AC, 50/60Hz, rated input power: 34W, luminaire housing, of aluminium, metallic grey (RAL 9006), length: 1.204mm, width: 53mm, height: 53mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, permissible operating ambient temperature: 0..+35°C, standard: EN 50419, packaging unit: 1 piece

Downloads

Key data

Product type office luminaire
Product name Silica 21 Linear Prismatic
Order No. 51MX23TAT4S

Lighting technology

Cover prismatic diffuser
Beam angle extremely wide distribution
Symmetry symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps

Lamps with LED
Rated luminous flux 3230lm
Luminous efficacy 95lm/W
Colour temperature 2700..6500K
Colour rendering index CRI > 80
Light colour 8tw
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 34W

Operating device

Control DALI DT8

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) 0..+35°C
Standard EN 50419
Certification, designation CE

Material, Colour

luminaire housing aluminium, metallic grey (RAL 9006)
Cover prismatic diffuser of PMMA

Mounting

Mounting method, mounting location surface-mounted, to the ceiling
Arrangement single arrangement

Electrical connection

Connection terminal, 3+2-pole, max. 2.5mm²
Nominal voltage 220..240V, 50/60Hz, AC

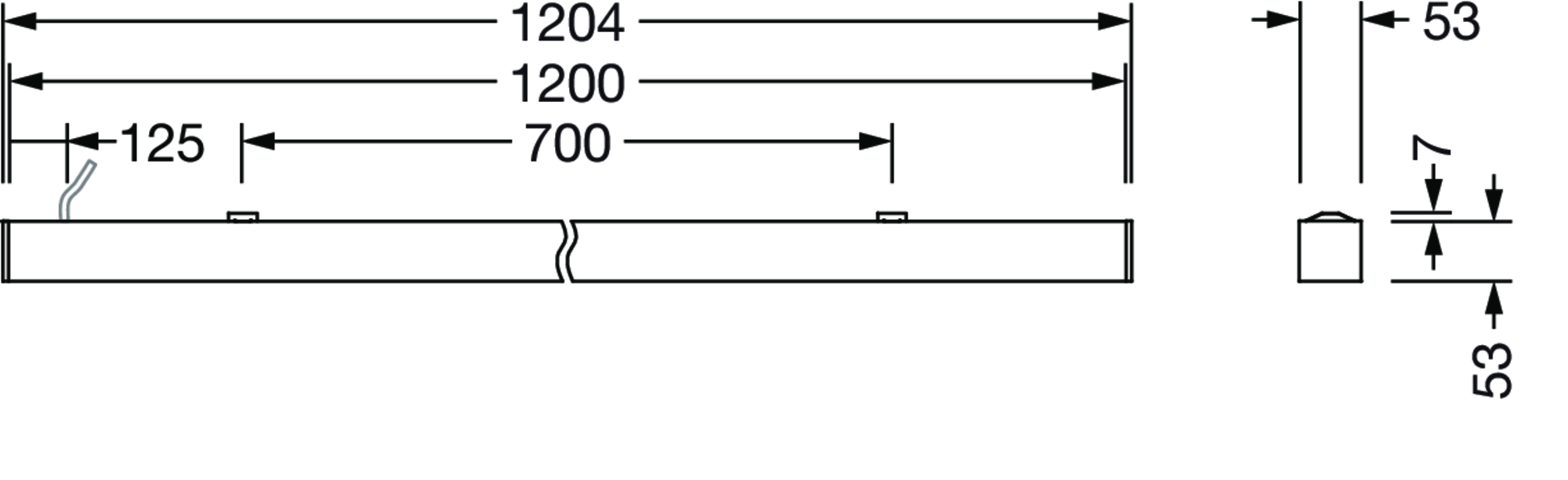

Dimensions, Weight

Length 1204mm
Width 53mm
Height 53mm
Weight 3.0kg

Service life

Rated service life 50000h (L85) at AT = 25°C

Product type
office luminaire

Product name
Silica 21 Linear Prismatic

Order No.
51MX23TAT4S

Cover
prismatic diffuser

Beam angle
extremely wide distribution

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 19

UGR viewing direction along lateral luminaire axis
≤ 19

Lamps
with LED

Rated luminous flux
3230lm

Luminous efficacy
95lm/W

Colour temperature
2700..6500K

Colour rendering index
CRI > 80

Light colour
8tw

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
34W

Control
DALI DT8

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
0..+35°C

Standard
EN 50419

Certification, designation
CE

luminaire housing
aluminium, metallic grey (RAL 9006)

Cover
prismatic diffuser of PMMA

Mounting method, mounting location
surface-mounted, to the ceiling

Arrangement
single arrangement

Connection
terminal, 3+2-pole, max. 2.5mm²

Nominal voltage
220..240V, 50/60Hz, AC

Length
1204mm

Width
53mm

Height
53mm

Weight
3.0kg

Rated service life
50000h (L85) at AT = 25°C

Silica 21 Linear Prismatic
office luminaire, metallic grey (RAL 9006), DALI DT8, 3230lm, 8tw, 1204x53mm, Connection: terminal
: LED 4000K / CRI >= 80, factory setting
: 51MX23TAT4S

Silica 21 Linear Prismatic

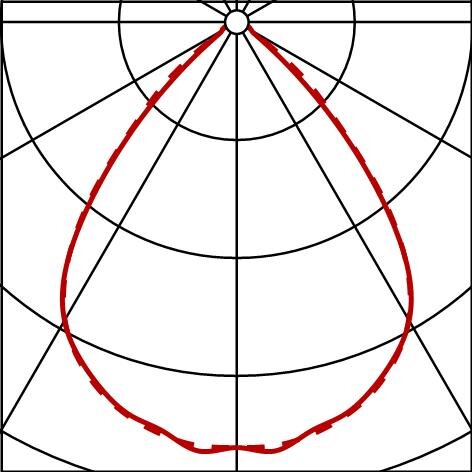

: LED 6500K / CRI >= 80, individual setting
: 51MX23TAT4S

Silica 21 Linear Prismatic
: LED 2700K / CRI >= 80, individual setting
: 51MX23TAT4S
