51MX23TBT5W

Order No.: 51MX23TBT5W

Remember article Remember article

Article office luminaire

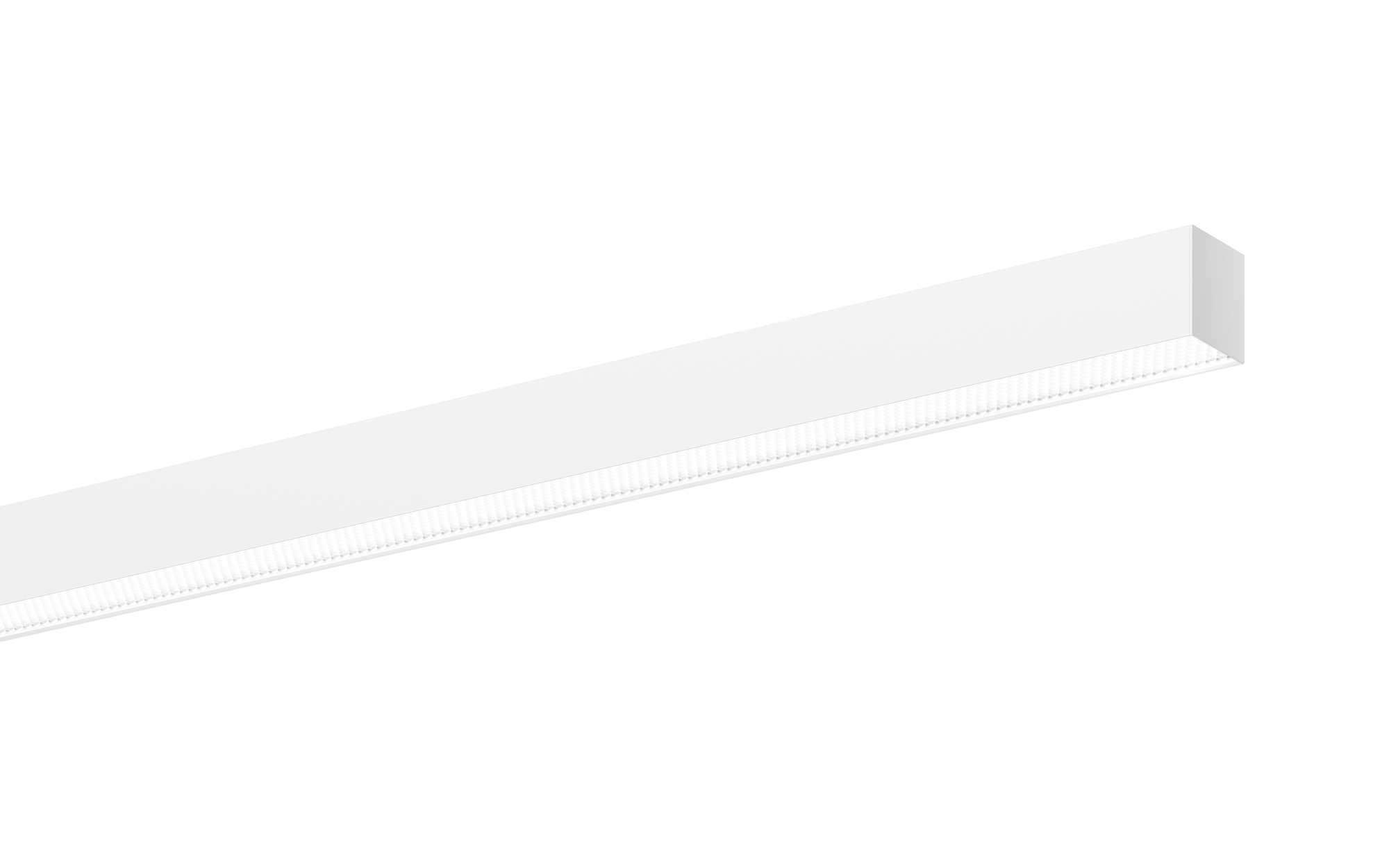

Product name Silica 21 Linear Prismatic
Lamp LED
Rated luminous flux 4030lm
Luminous efficacy 95lm/W
Colour temperature 2700..6500K
Colour rendering CRI > 80
Rated input power 42.6W
Service life 50000h (L85) at AT = 25°C
Protection rating IP20
Weight 3.5kg

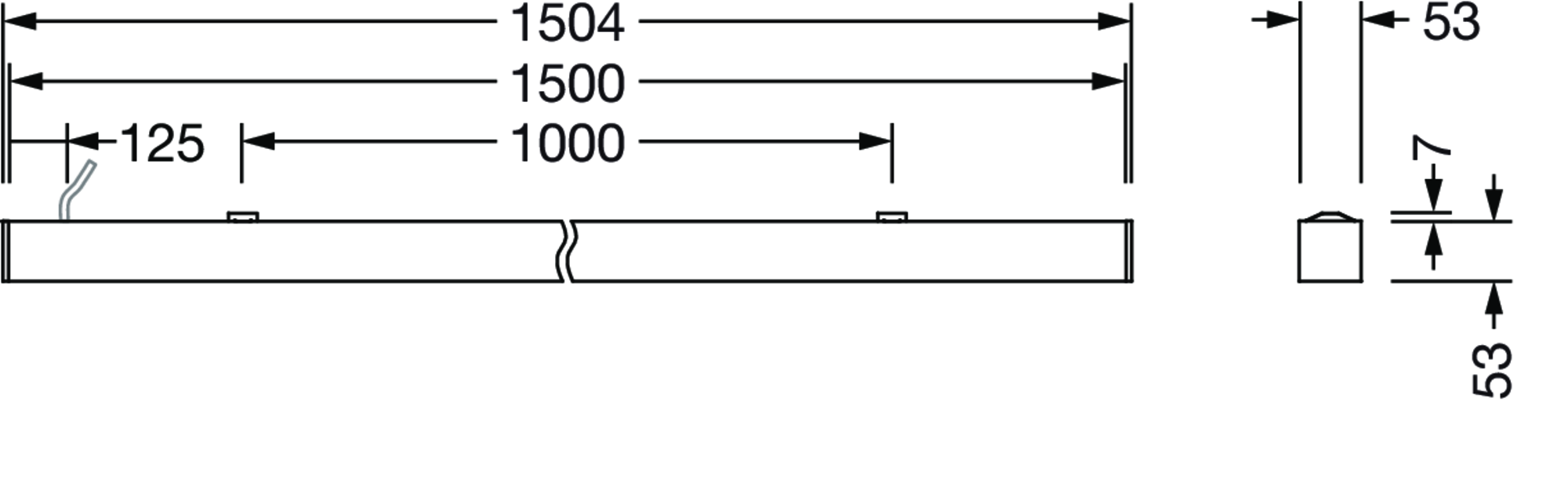

Silica 21 Linear Prismatic, office luminaire, primary optical cover: prismatic diffuser, of PMMA, CAT 2 (L= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 4.030lm, luminous efficacy: 95lm/W, light colour: 8tw, colour temperature: 2700..6500K, control gear: DALI DT8, with terminal, 3+2-pole, max. 2.5mm², mains connection: 220..240V, AC, 50/60Hz, rated input power: 42.6W, luminaire housing, of aluminium, traffic white (RAL 9016), length: 1.504mm, width: 53mm, height: 53mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, permissible operating ambient temperature: 0..+35°C, standard: EN 50419, packaging unit: 1 piece

show moreshow less

Downloads

Technical product information

Data for applications

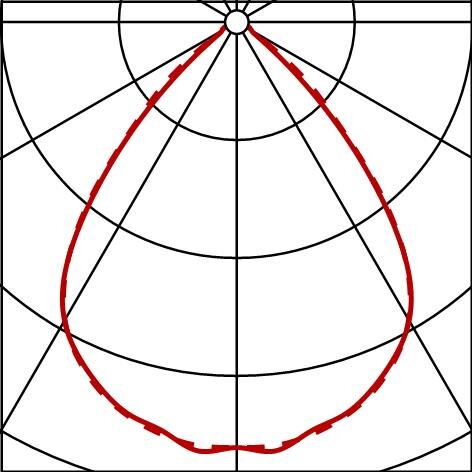

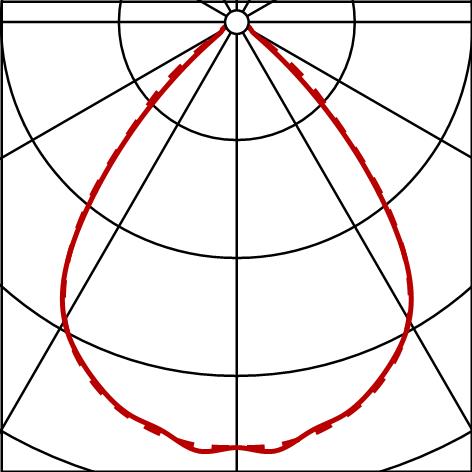

Photometric report / planning data

Silica 21 Linear Prismatic
office luminaire, traffic white (RAL 9016), DALI DT8, 4030lm, 8tw, 1504x53mm, Connection: terminal
Lamps: LED 4000K / CRI >= 80, factory setting
Order No.: 51MX23TBT5W

Photometric report (PDF)

Product versions/accessory
