51SD64MB11D3B

Order No.: 51SD64MB11D3B
Remember articleRemember article

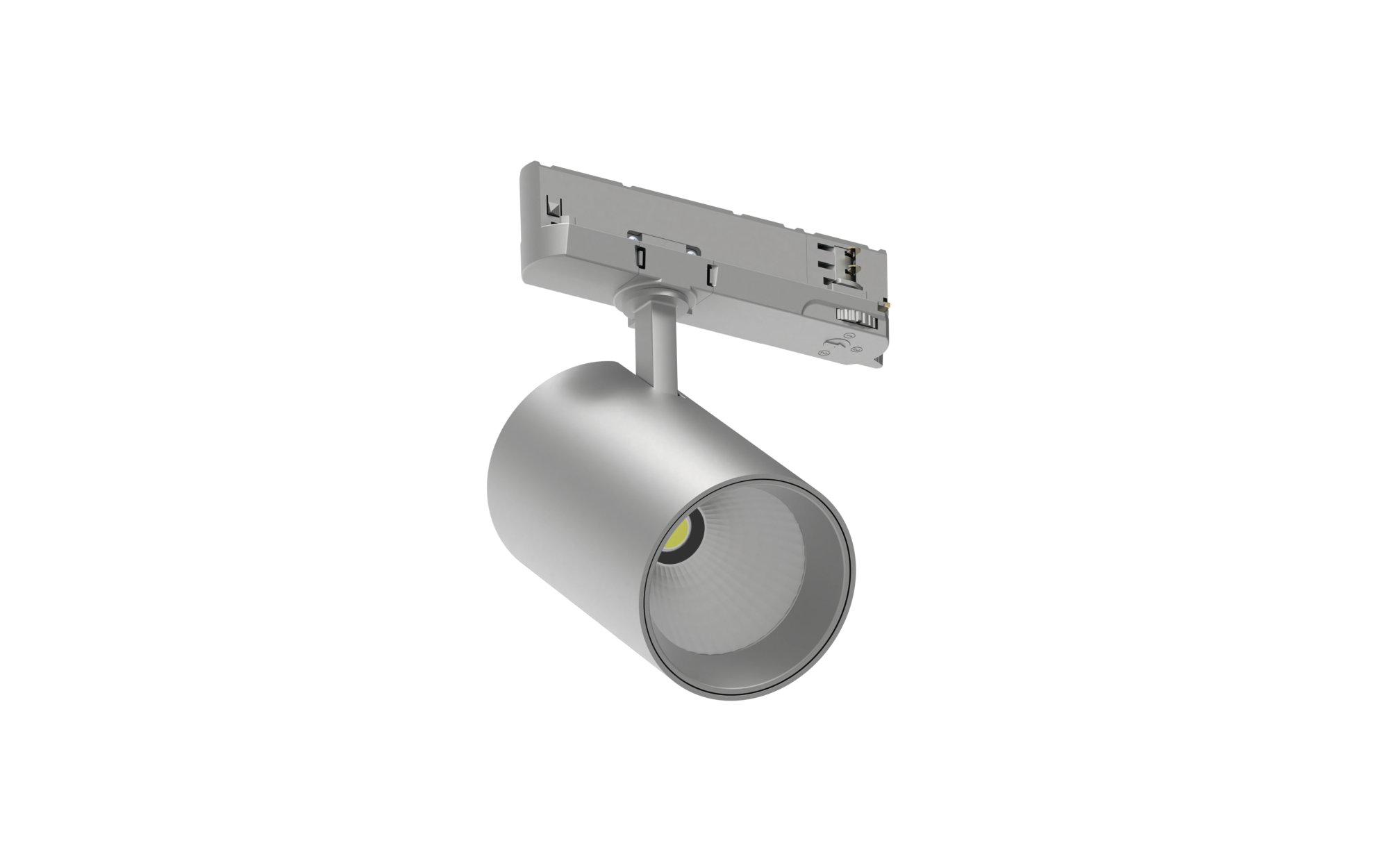

Article directional spotlight
Product name Spot 21 Performance
Lamp LED
Rated luminous flux 3060lm
Luminous efficacy 160lm/W
Colour temperature 4000K
Colour rendering CRI > 90
Rated input power 19.1W
Service life 50000h (L90/B10) at AT = 25°C, 100000h (L80/B10) at AT = 25°C
Protection rating IP20
Impact resistance IK02
Weight 0.6kg

Spot 21 Performance, directional spotlight, light control with reflector, of aluminium, optical cover: cover panel, of glass, beam angle: wide distribution, LED rated luminous flux: 3.060lm, light colour: 940, with 3-phase adapter, mains connection: 220..240V, AC, 50/60Hz, of aluminium, metallic grey (RAL 9006), length: 162mm, diameter: 90mm, decorative ring, of PC, metallic grey (RAL 9006), protection rating (complete): IP20, insulation class (complete): insulation class II (safety insulation), certification: CE, impact resistance: IK02, permissible ambient temperature for indoor applications: -20..+25°C, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type directional spotlight
Product name Spot 21 Performance
Order No. 51SD64MB11D3B

Lighting technology

Light control reflector of aluminium
Cover cover panel
Beam angle wide distribution
Symmetry symmetric

Lamps

Lamps with LED
Rated luminous flux 3060lm
Luminous efficacy 160lm/W
Colour temperature 4000K
Colour rendering index CRI > 90
Light colour 940
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 2 SDCM (initial)
Rated input power 19.1W
Supplement luminous flux adjustable on luminaire in 8 steps (2170/.../4190lm), connected load according to luminous flux setting (13.4/.../27W)

Operating device

Control ON/OFF Multilumen

Certificates, Standards

Protection rating IP20
Insulation class insulation class II (safety insulation)
Impact resistance IK02
Temperature range (operation) -20..+25°C
Certification, designation CE

Material, Colour

decorative ring PC, metallic grey (RAL 9006)
Cover cover panel of glass

Mounting

Mounting method, mounting location slip-in mounting, in a 3-phase track

Electrical connection

Connection 3-phase adapter
Nominal voltage 220..240V, 50/60Hz, AC

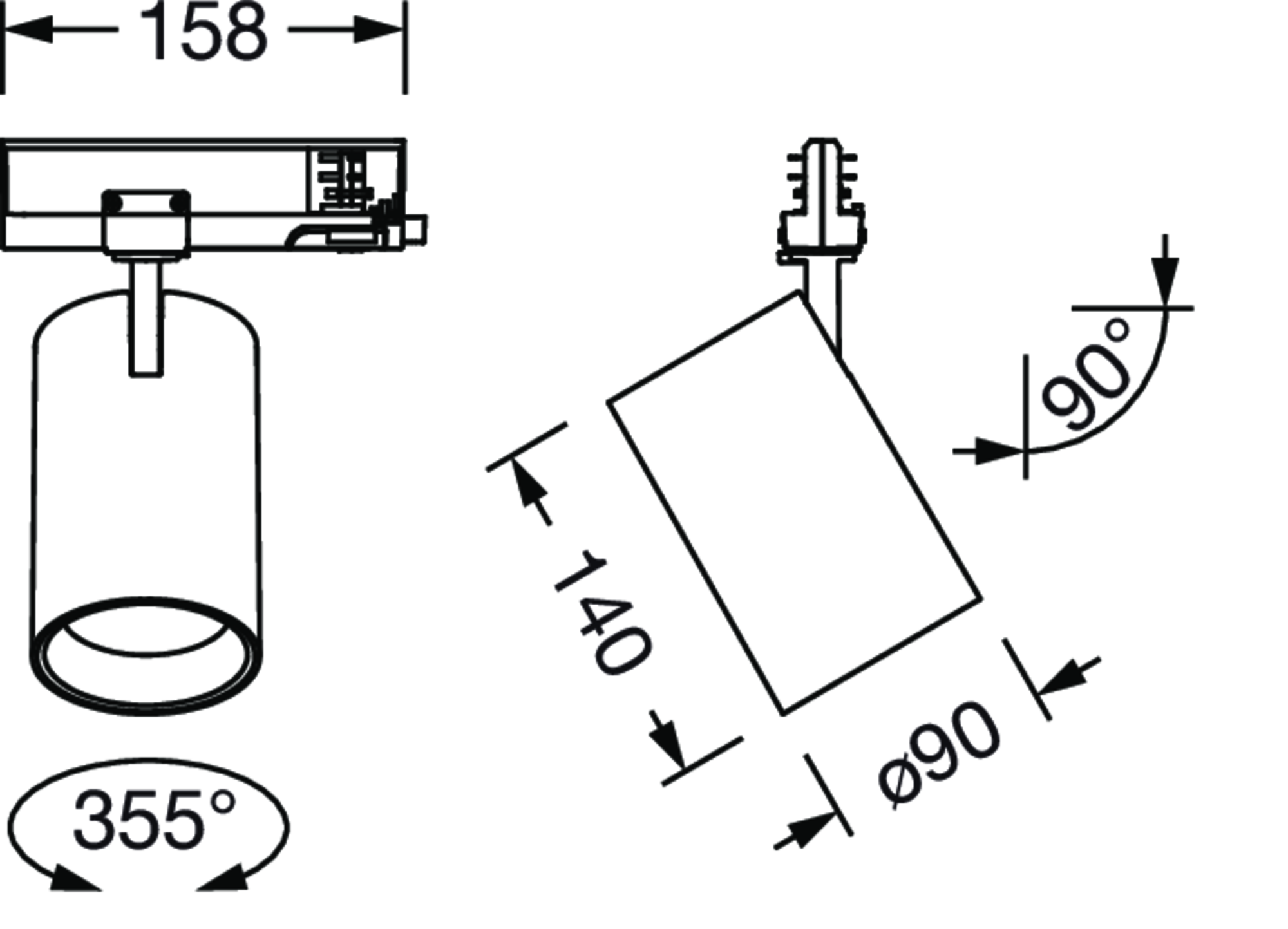

Dimensions, Weight

Length 162mm
Diameter 90mm
Weight 0.6kg

Service life

Rated service life 100000h (L80/B10) at AT = 25°C, 50000h (L90/B10) at AT = 25°C

Product type
directional spotlight

Product name
Spot 21 Performance

Order No.
51SD64MB11D3B

Light control
reflector of aluminium

Cover
cover panel

Beam angle
wide distribution

Symmetry
symmetric

Lamps
with LED

Rated luminous flux
3060lm

Luminous efficacy
160lm/W

Colour temperature
4000K

Colour rendering index
CRI > 90

Light colour
940

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 2 SDCM (initial)

Rated input power
19.1W

Supplement
luminous flux adjustable on luminaire in 8 steps (2170/.../4190lm), connected load according to luminous flux setting (13.4/.../27W)

Control
ON/OFF Multilumen

Protection rating
IP20

Insulation class
insulation class II (safety insulation)

Impact resistance
IK02

Temperature range (operation)
-20..+25°C

Certification, designation
CE

decorative ring
PC, metallic grey (RAL 9006)

Cover
cover panel of glass

Mounting method, mounting location
slip-in mounting, in a 3-phase track

Connection
3-phase adapter

Nominal voltage
220..240V, 50/60Hz, AC

Length
162mm

Diameter
90mm

Weight
0.6kg

Rated service life
100000h (L80/B10) at AT = 25°C, 50000h (L90/B10) at AT = 25°C

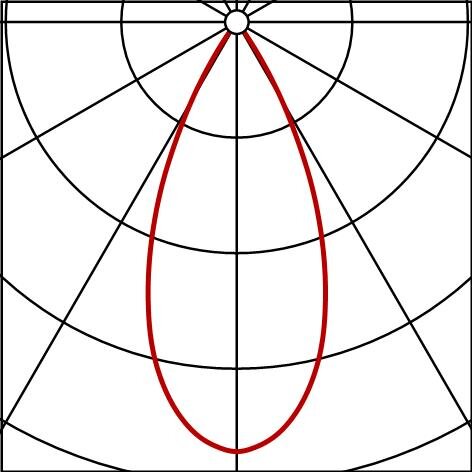

Photometric report / planning data

Spot21Pe
wd,3060lm940,ML,90,sr
Lamps: LED 4000K / CRI >= 90
Order No.: 51SD64MB11D3B

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
IES
