: 51SE137CB3A

Article directional spotlight
Product name Spot 21 standard
Lamp LED
Rated luminous flux 3000lm
Luminous efficacy on request
Colour temperature 3000K
Colour rendering CRI > 90
Rated input power on request
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP20
Impact resistance IK02
Weight 0.7kg

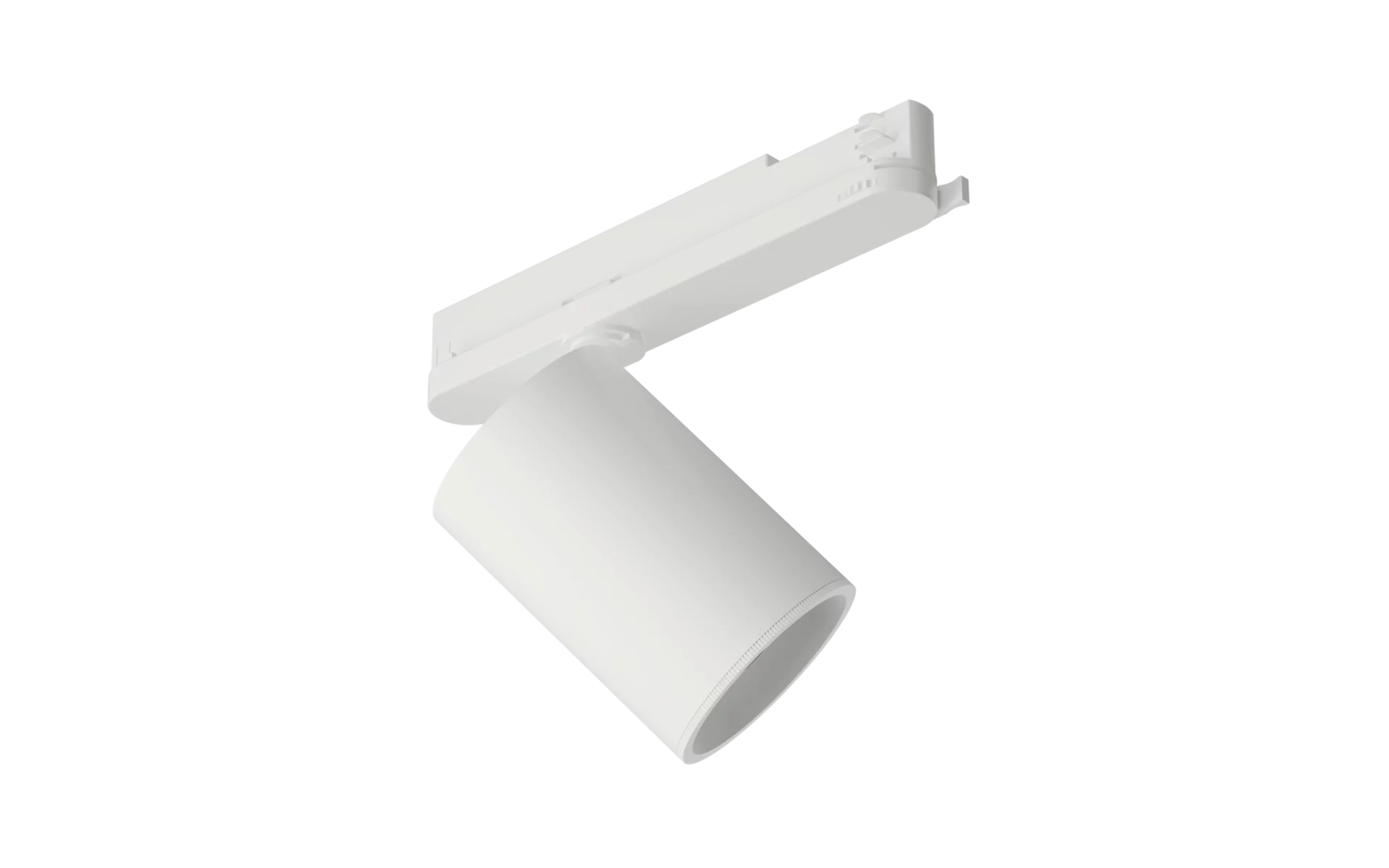

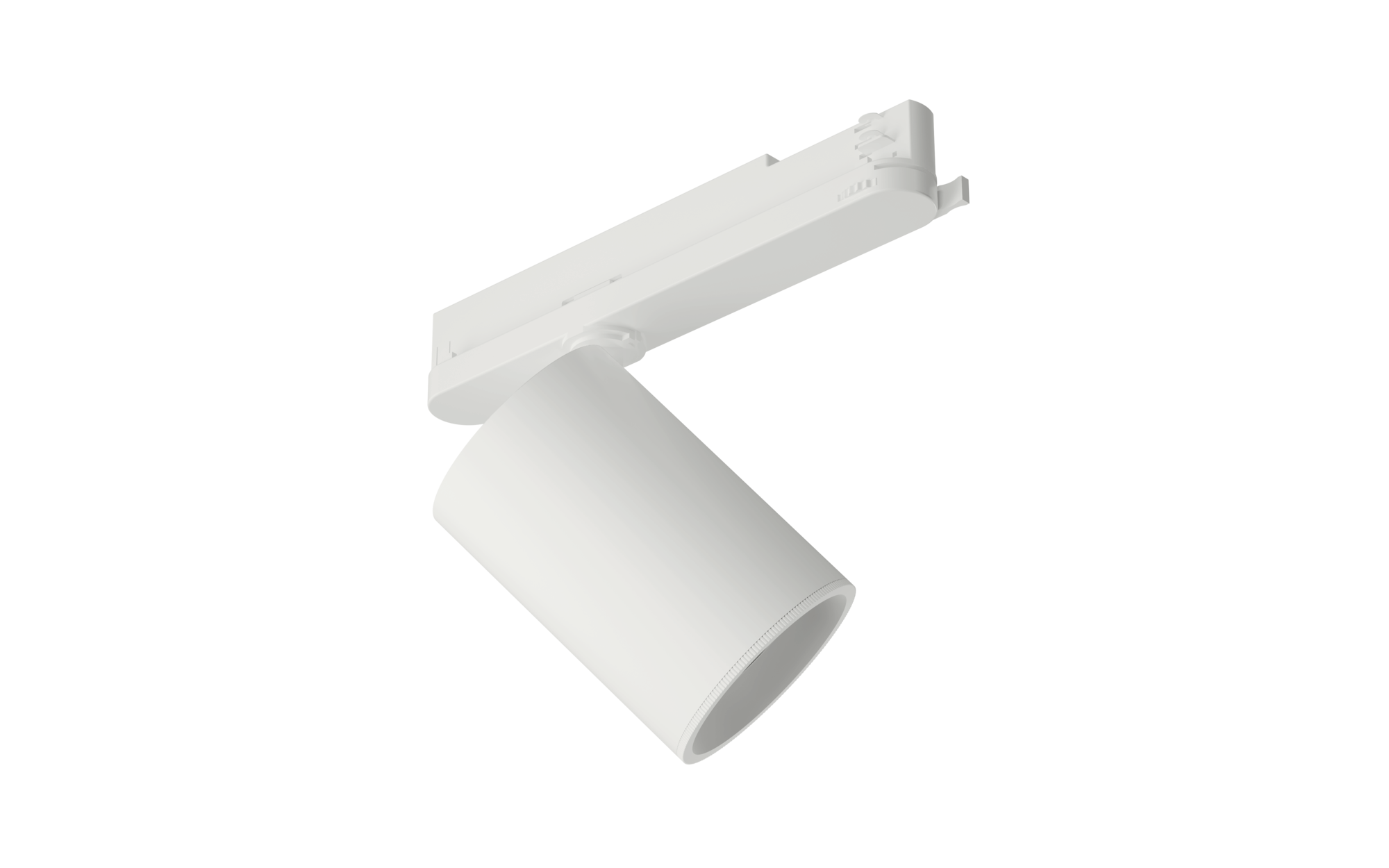

Spot 21 standard, directional spotlight, light control with reflector, of aluminium, beam angle: 26°, LED rated luminous flux: 3.000lm, light colour: 930, control gear: ECG, with 3-phase adapter, mains connection: 220..240V, AC, 50/60Hz, housing, of aluminium, white, length: 228mm, diameter: 90mm, adapter, of plastic, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK02, packaging unit: 1 piece

Downloads


Key data

Product type directional spotlight
Product name Spot 21 standard
Order No. 51SE137CB3A


Lighting technology

Light control reflector of aluminium
Beam angle 26°
Symmetry symmetric


Lamps

Lamps with LED
Rated luminous flux 3000lm
Colour temperature 3000K
Colour rendering index CRI > 90
Light colour 930


Operating device

Control gear ECG
Control ON/OFF


Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Impact resistance IK02
Certification, designation CE


Material, Colour

housing aluminium, white
adapter plastic


Electrical connection

Connection 3-phase adapter
Nominal voltage 220..240V, 50/60Hz, AC

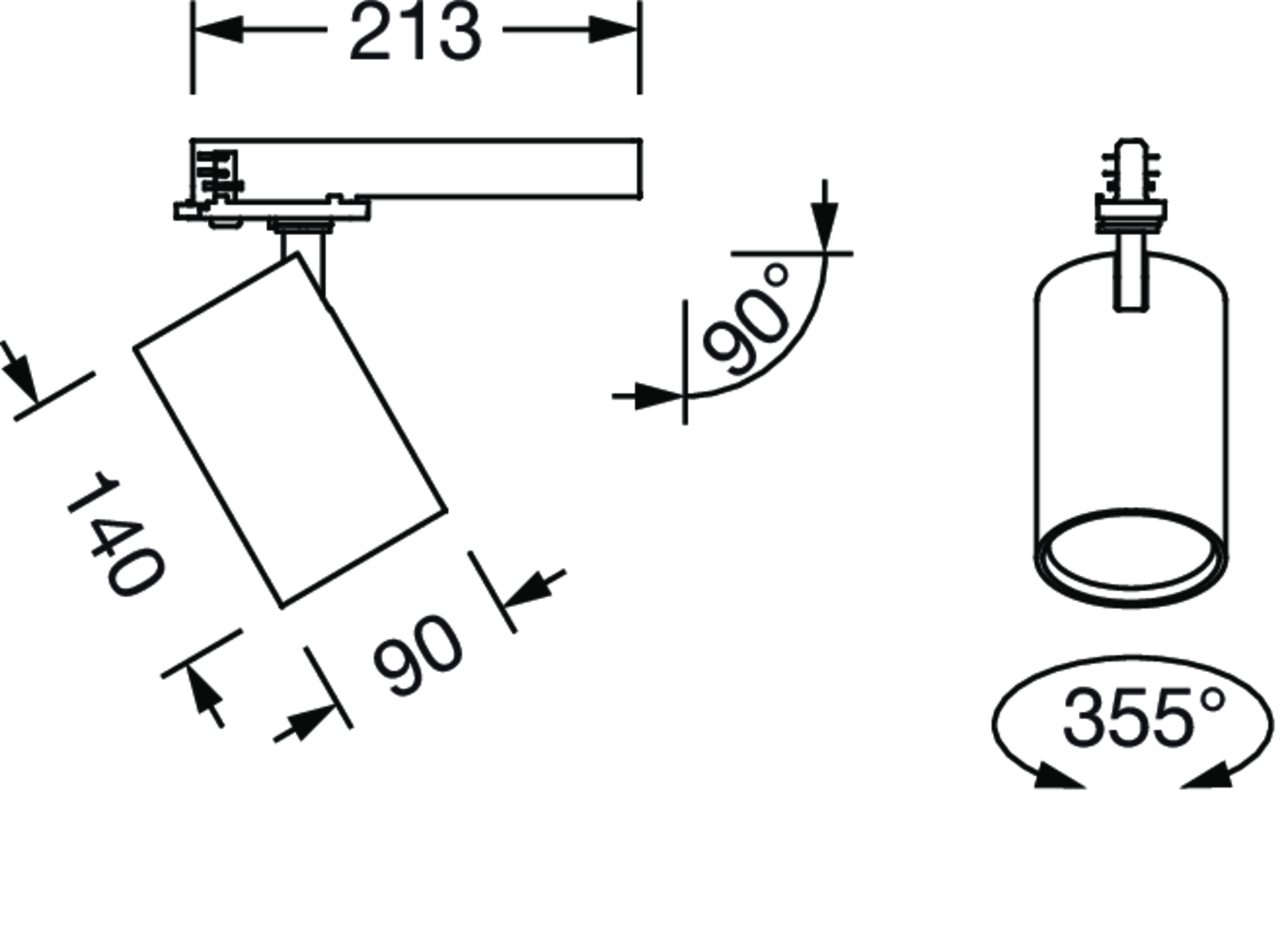

Dimensions, Weight

Length 228mm
Diameter 90mm
Weight 0.7kg


Service life

Rated service life 50000h (L80/B50) at AT = 25°C

Product type
directional spotlight

Product name
Spot 21 standard

Order No.
51SE137CB3A

Light control
reflector of aluminium

Beam angle
26°

Symmetry
symmetric

Lamps
with LED

Rated luminous flux
3000lm

Colour temperature
3000K

Colour rendering index
CRI > 90

Light colour
930

Control gear
ECG

Control
ON/OFF

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Impact resistance
IK02

Certification, designation
CE

housing
aluminium, white

adapter
plastic

Connection
3-phase adapter

Nominal voltage
220..240V, 50/60Hz, AC

Length
228mm

Diameter
90mm

Weight
0.7kg

Rated service life
50000h (L80/B50) at AT = 25°C
