51SE13MA2CD2C

Order No.: 51SE13MA2CD2C
Remember articleRemember article

Article directional spotlight

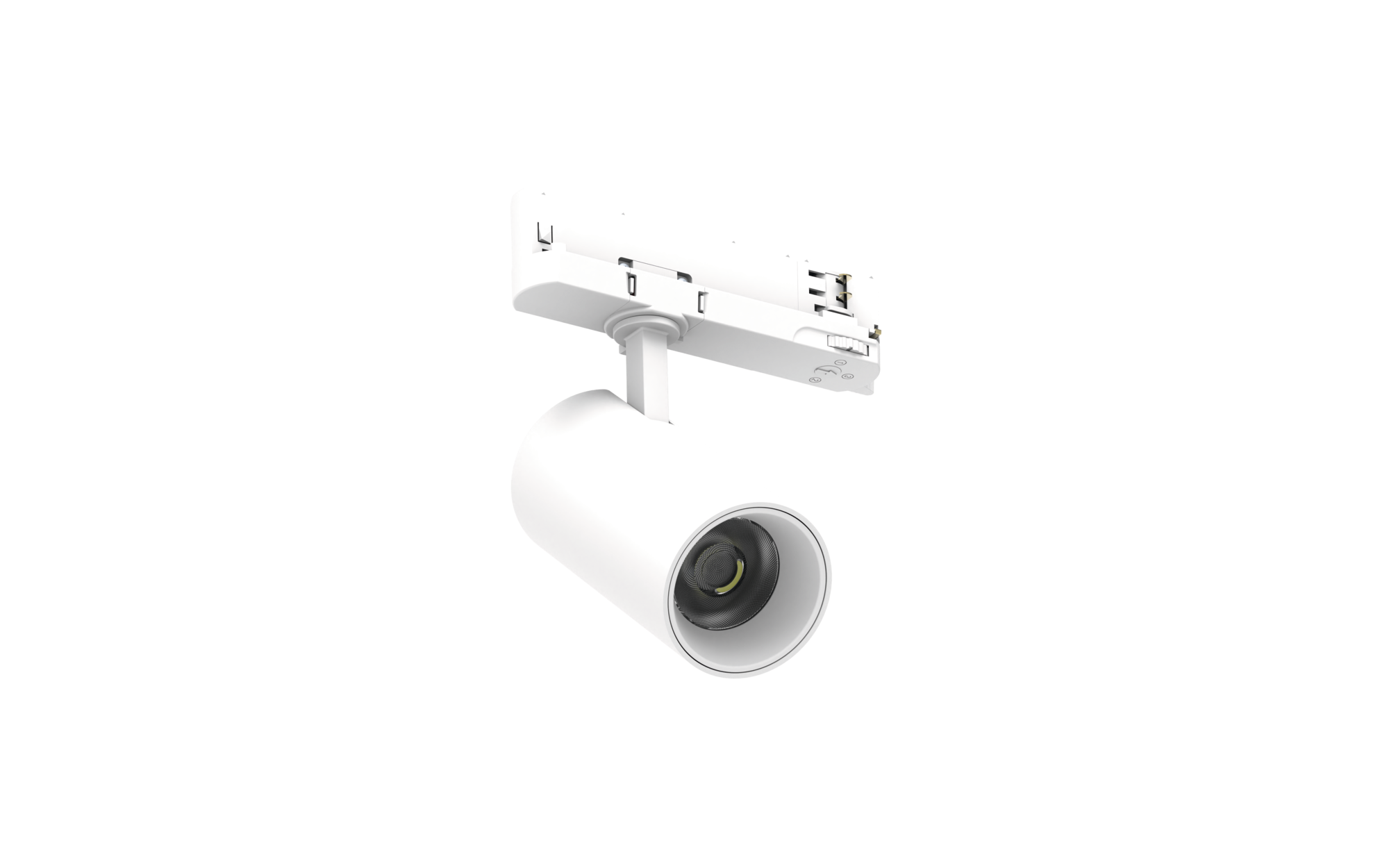

Product name Spot 21 standard
Lamp LED
Rated luminous flux 2130lm
Luminous efficacy 144lm/W
Colour temperature 4000K
Colour rendering CRI > 90
Rated input power 14.8W
Service life 50000h (L90/B10) at AT = 25°C
Protection rating IP20
Impact resistance IK02
Weight 0.4kg

Spot 21 standard, directional spotlight, light control with lens, of PMMA, beam angle: medium distribution, LED rated luminous flux: 2.130lm, light colour: 940, with 3-phase adapter, mains connection: 220..240V, AC, 50/60Hz, of aluminium, traffic white (RAL 9016), length: 162mm, diameter: 70mm, decorative ring, of PC, traffic white (RAL 9016), protection rating (complete): IP20, insulation class (complete): insulation class II (safety insulation), certification: CE, impact resistance: IK02, permissible ambient temperature for indoor applications: -20..+25°C, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type directional spotlight
Product name Spot 21 standard
Order No. 51SE13MA2CD2C

Lighting technology

Light control lens of PMMA
Beam angle medium distribution
Symmetry symmetric

Lamps

Lamps with LED
Rated luminous flux 2130lm
Luminous efficacy 144lm/W
Colour temperature 4000K
Colour rendering index CRI > 90
Light colour 940
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 2 SDCM (initial)
Rated input power 14.8W
Supplement luminous flux adjustable on luminaire in 8 steps (1880/.../3520lm), connected load according to luminous flux setting (12.8/.../26.5W)

Operating device

Control ON/OFF Multilumen

Certificates, Standards

Protection rating IP20
Insulation class insulation class II (safety insulation)
Impact resistance IK02
Temperature range (operation) -20..+25°C
Certification, designation CE

Material, Colour

decorative ring PC, traffic white (RAL 9016)

Mounting

Mounting method, mounting location slip-in mounting, in a 3-phase track

Electrical connection

Connection 3-phase adapter
Nominal voltage 220..240V, 50/60Hz, AC

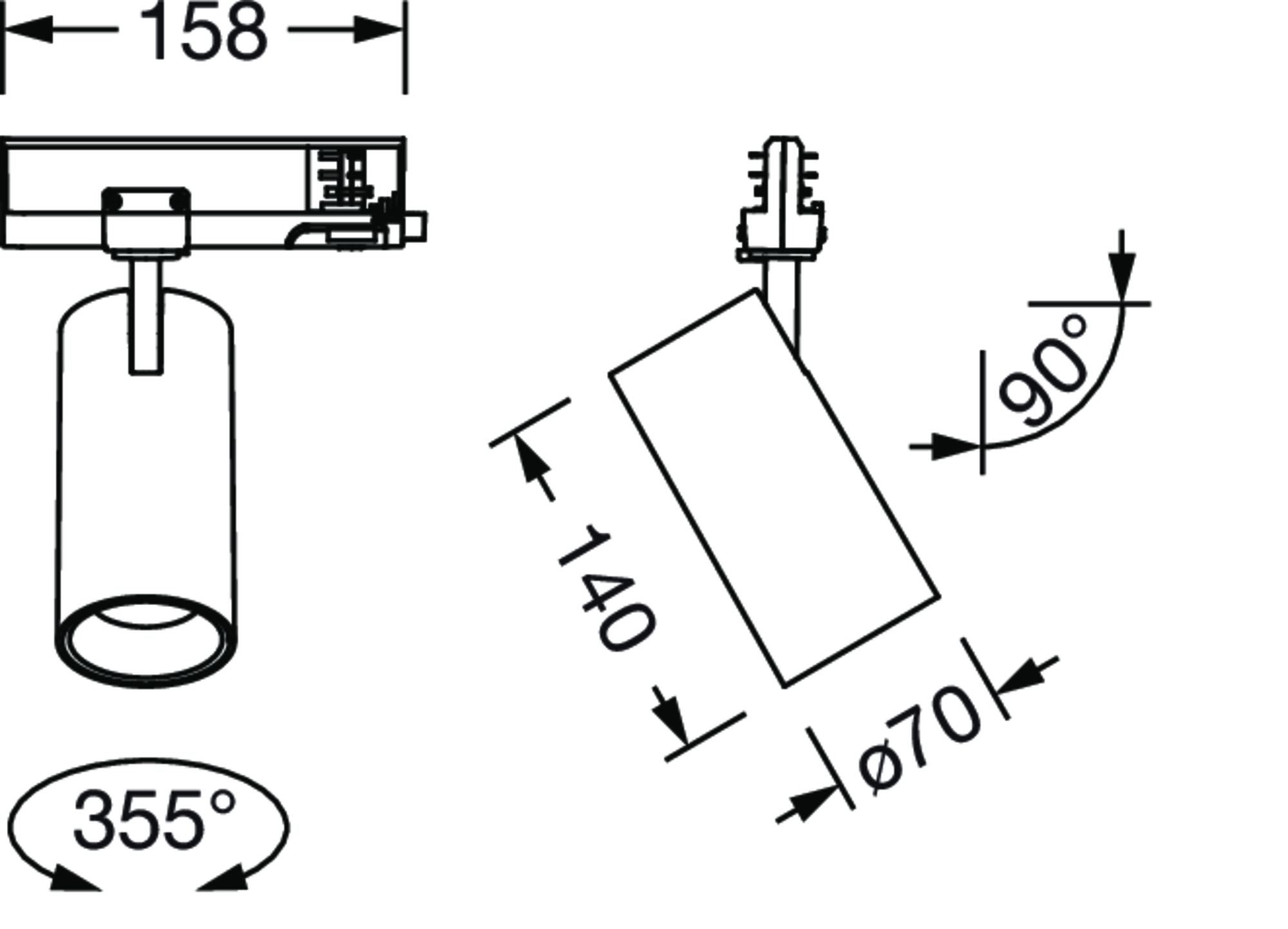

Dimensions, Weight

Length 162mm
Diameter 70mm
Weight 0.4kg

Service life

Rated service life 50000h (L90/B10) at AT = 25°C

Product type
directional spotlight

Product name
Spot 21 standard

Order No.
51SE13MA2CD2C

Light control
lens of PMMA

Beam angle
medium distribution

Symmetry
symmetric

Lamps
with LED

Rated luminous flux
2130lm

Luminous efficacy
144lm/W

Colour temperature
4000K

Colour rendering index
CRI > 90

Light colour
940

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 2 SDCM (initial)

Rated input power
14.8W

Supplement
luminous flux adjustable on luminaire in 8 steps (1880/.../3520lm), connected load according to luminous flux setting (12.8/.../26.5W)

Control
ON/OFF Multilumen

Protection rating
IP20

Insulation class
insulation class II (safety insulation)

Impact resistance
IK02

Temperature range (operation)
-20..+25°C

Certification, designation
CE

decorative ring
PC, traffic white (RAL 9016)

Mounting method, mounting location
slip-in mounting, in a 3-phase track

Connection
3-phase adapter

Nominal voltage
220..240V, 50/60Hz, AC

Length
162mm

Diameter
70mm

Weight
0.4kg

Rated service life
50000h (L90/B10) at AT = 25°C

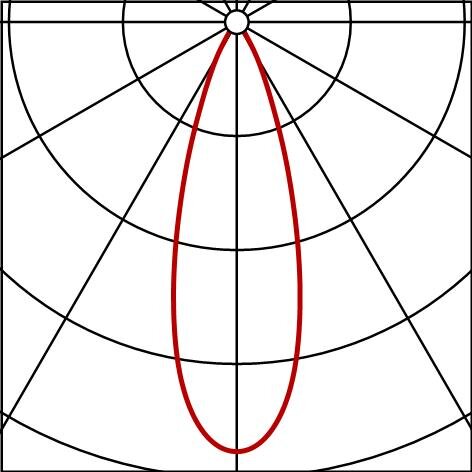

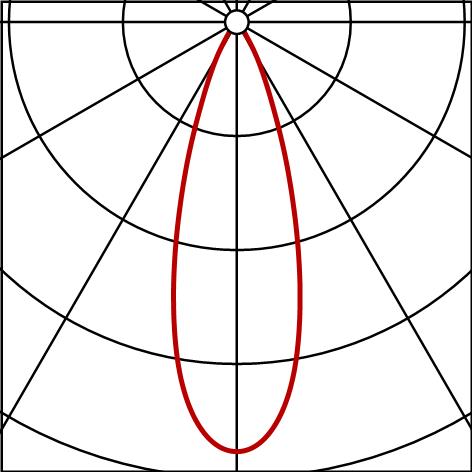

Photometric report / planning data

Spot21std
med,2130lm940,ML,70,wh
Lamps: LED 4000K / CRI >= 90
Order No.: 51SE13MA2CD2C

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
IES
