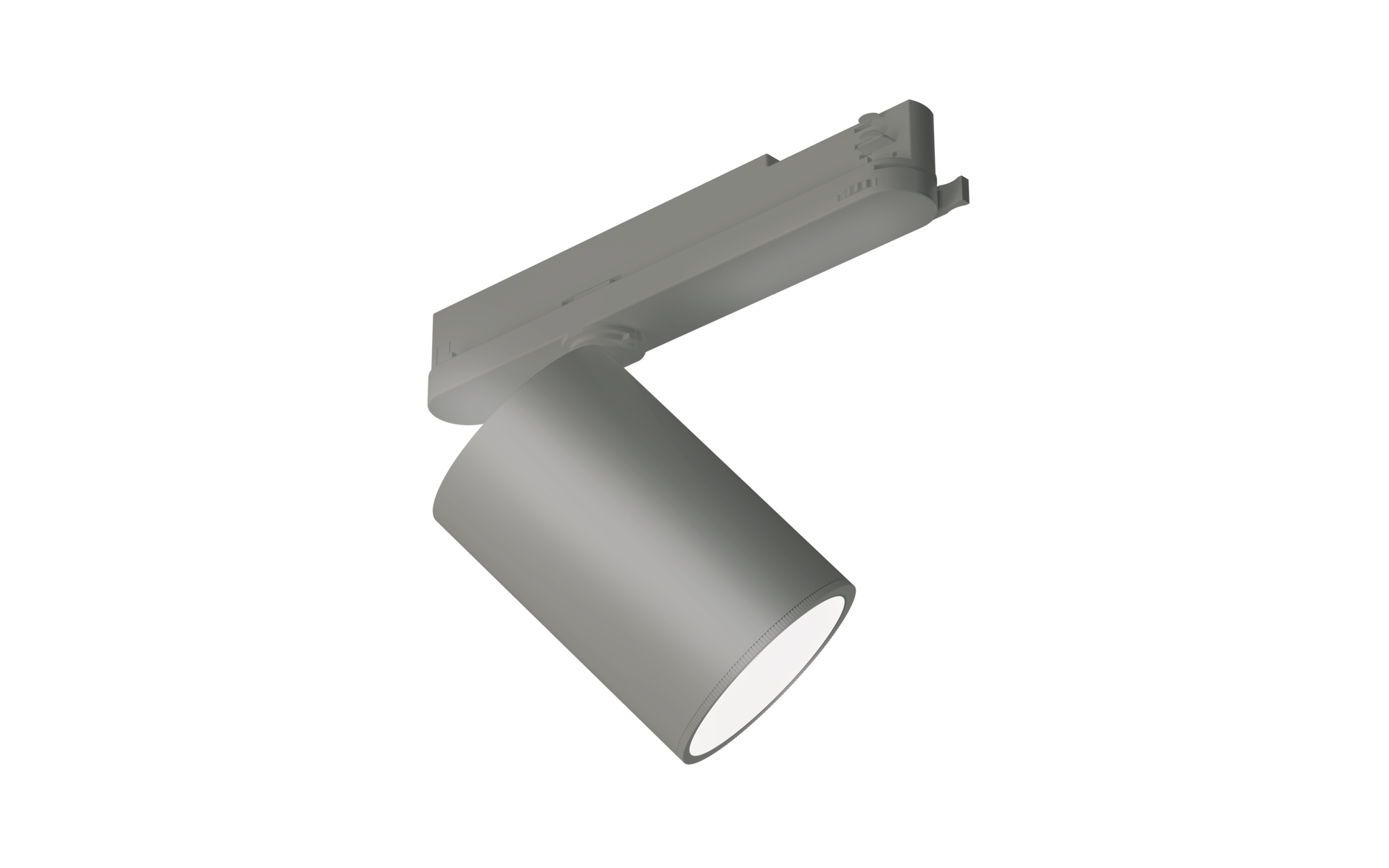

Spot 31, 21°, ON/OFF Multilumen, Ø90, metallic grey (RAL 9006)

: 51SF62MAD4B

Article directional spotlight
Product name Spot 31
Lamp LED
Rated luminous flux 4930lm
Luminous efficacy 123lm/W
Colour temperature 4000K
Colour rendering CRI > 90
Rated input power 40W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP20
Impact resistance IK02
Weight 0.8kg

Spot 31, directional spotlight, light control with lens, of PMMA, UGR of luminaire ≤ 16 (X = 4H | Y = 8H | S = 0.25H | reflection values 70/50/20), beam angle: 21°, LED rated luminous flux: 4.930lm, light colour: 940, with 3-phase adapter, mains connection: 220..240V, AC, 50/60Hz, of aluminium, metallic grey (RAL 9006), length: 213mm, diameter: 90mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK02, permissible ambient temperature for indoor applications: -20..+40°C, packaging unit: 1 piece

Downloads

Key data

Product type directional spotlight
Product name Spot 31
Order No. 51SF62MAD4B

Lighting technology

Light control lens of PMMA

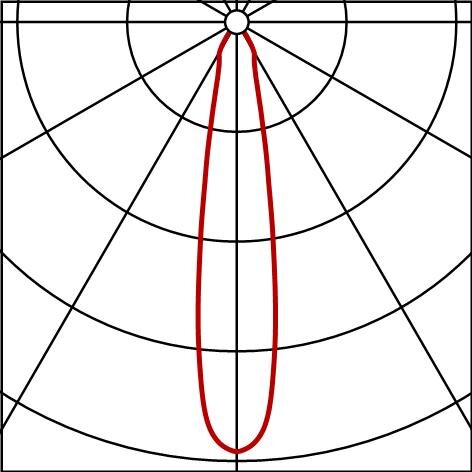

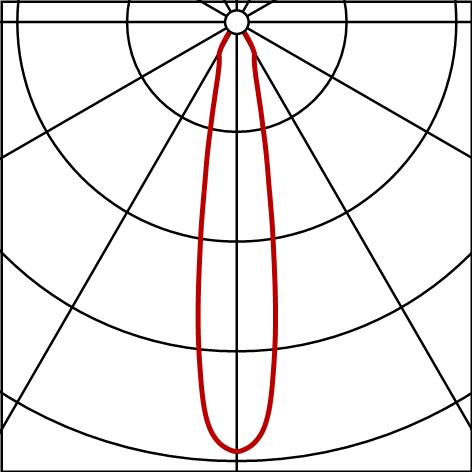

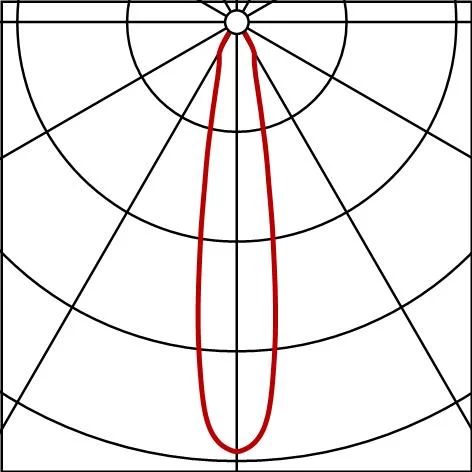

Beam angle 21°
Symmetry symmetric
UGR viewing direction along longitudinal luminaire axis ≤ 16
UGR viewing direction along lateral luminaire axis ≤ 16

Lamps

Lamps with LED
Rated luminous flux 4930lm
Luminous efficacy 123lm/W
Colour temperature 4000K
Colour rendering index CRI > 90
Light colour 940
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 40W

Operating device

Control ON/OFF Multilumen

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Impact resistance IK02
Temperature range (operation) -20..+40°C
Certification, designation CE

Mounting

Mounting method, mounting location slip-in mounting, in a 3-phase track

Electrical connection

Connection 3-phase adapter
Nominal voltage 220..240V, 50/60Hz, AC

Dimensions, Weight

Length 213mm
Diameter 90mm
Weight 0.8kg

Service life

Rated service life 50000h (L80/B50) at AT = 25°C

Product type
directional spotlight

Product name
Spot 31

Order No.
51SF62MAD4B

Light control
lens of PMMA

Beam angle
21°

Symmetry
symmetric

UGR viewing direction along longitudinal luminaire axis
≤ 16

UGR viewing direction along lateral luminaire axis
≤ 16

Lamps
with LED

Rated luminous flux
4930lm

Luminous efficacy
123lm/W

Colour temperature
4000K

Colour rendering index
CRI > 90

Light colour
940

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
40W

Control
ON/OFF Multilumen

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Impact resistance
IK02

Temperature range (operation)
-20..+40°C

Certification, designation
CE

Mounting method, mounting location
slip-in mounting, in a 3-phase track

Connection
3-phase adapter

Nominal voltage
220..240V, 50/60Hz, AC

Length
213mm

Diameter
90mm

Weight
0.8kg

Rated service life
50000h (L80/B50) at AT = 25°C

Spot31
21°,4930lm940,ML,90,sr
: LED 4000K / CRI >= 90
: 51SF62MAD4B
