56TN1SDSPE1B

: 56TN1SDSPE1B

Article sensor
Product name Licross
Protection rating IP54
Weight 0.6kg

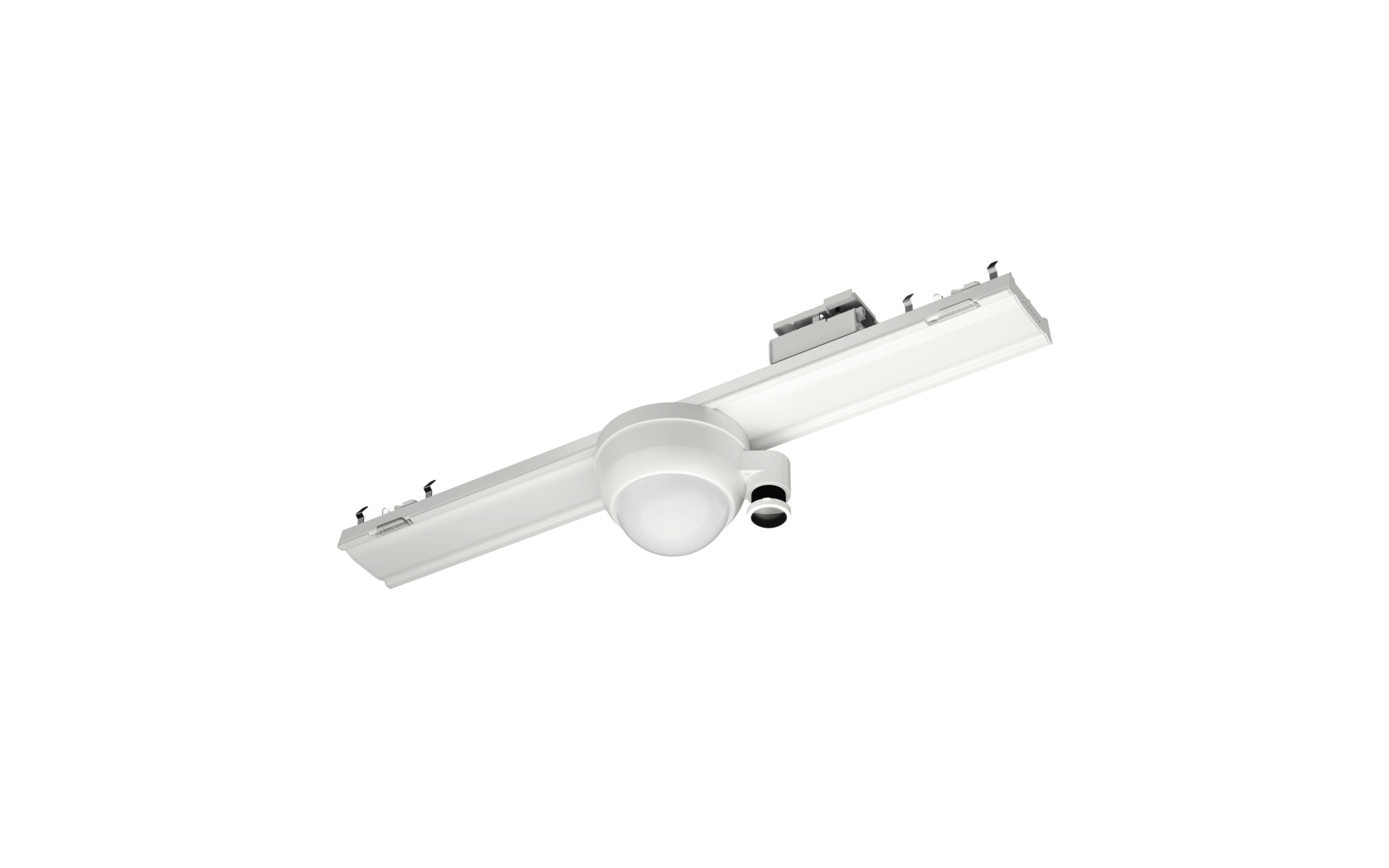

Licrosssensor PE1, slave, local control - self-sufficient standalone sensors, central control - connection to lighting or building management, dimmable, installation type: recessed, installation location: to the Licross trunking rail, of sheet steel, galvanised, protection rating (complete): IP54, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, 1 x PIR movement sensor, 1 x light sensor, 1 x DALI-2, 1 x status LED, packaging unit: 1 piece

Downloads

Key data

System family SITECO Connect 11, SITECO Connect 22
Product type sensor
Product name Licross
Order No. 56TN1SDSPE1B

Control

Certificates, Standards

Protection rating IP54
Insulation class insulation class I (protective earthing)
Temperature range (operation) -25..+50°C
Certification, designation CE, UKCA

Material, Colour

trunking rail adapter set sheet steel, galvanised, coil coated, white
housing plastic, UV-stabilised, pure white (RAL 9010)

Mounting

Mounting method, mounting location recessed, to the Licross trunking rail
Mounting height 5..14m
Supplement only suitable for use in indoor areas

Dimensions, Weight

Length 500mm
Width 96mm
Height 97mm
Weight 0.6kg

Inputs

1x PIR movement sensor
Connection PIR sensor (passive-infrared)
Detection angle 360°

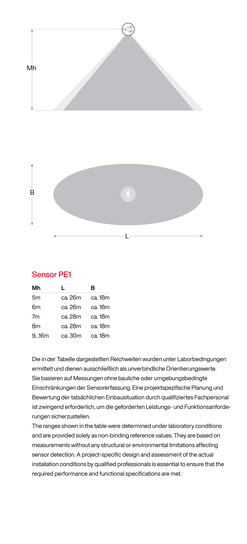

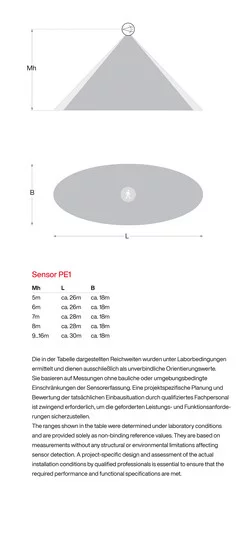

Detection range max. 30x19m
Option Individual sensitivity adjustment per PIR sensor
Feature ellipsoid detection area

1x light sensor
Illuminance 0..4095 Lux
Option application-oriented light measurement via mechanically adjustable telescopic light sensor for mounting heights of 5..16m

Outputs

1x DALI-2
System current DALI current 7mA

System family
SITECO Connect 11, SITECO Connect 22

Product type
sensor

Product name
Licross

Order No.
56TN1SDSPE1B

Protection rating
IP54

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
-25..+50°C

Certification, designation
CE, UKCA

trunking rail adapter set
sheet steel, galvanised, coil coated, white

housing
plastic, UV-stabilised, pure white (RAL 9010)

Mounting method, mounting location
recessed, to the Licross trunking rail

Mounting height
5..14m

Supplement
only suitable for use in indoor areas

Length
500mm

Width
96mm

Height
97mm

Weight
0.6kg

1x PIR movement sensor

Connection
PIR sensor (passive-infrared)

Detection angle
360°

Detection range
max. 30x19m

Option
Individual sensitivity adjustment per PIR sensor

Feature
ellipsoid detection area

1x light sensor

Illuminance
0..4095 Lux

Option
application-oriented light measurement via mechanically adjustable telescopic light sensor for mounting heights of 5..16m

1x DALI-2

System current
DALI current 7mA
