5EA3LB244

: 5EA3LB244

Article operating unit
Product name SITECO Connect Sport
Rated input power 0.2W
Protection rating IP20
Weight 0.7kg

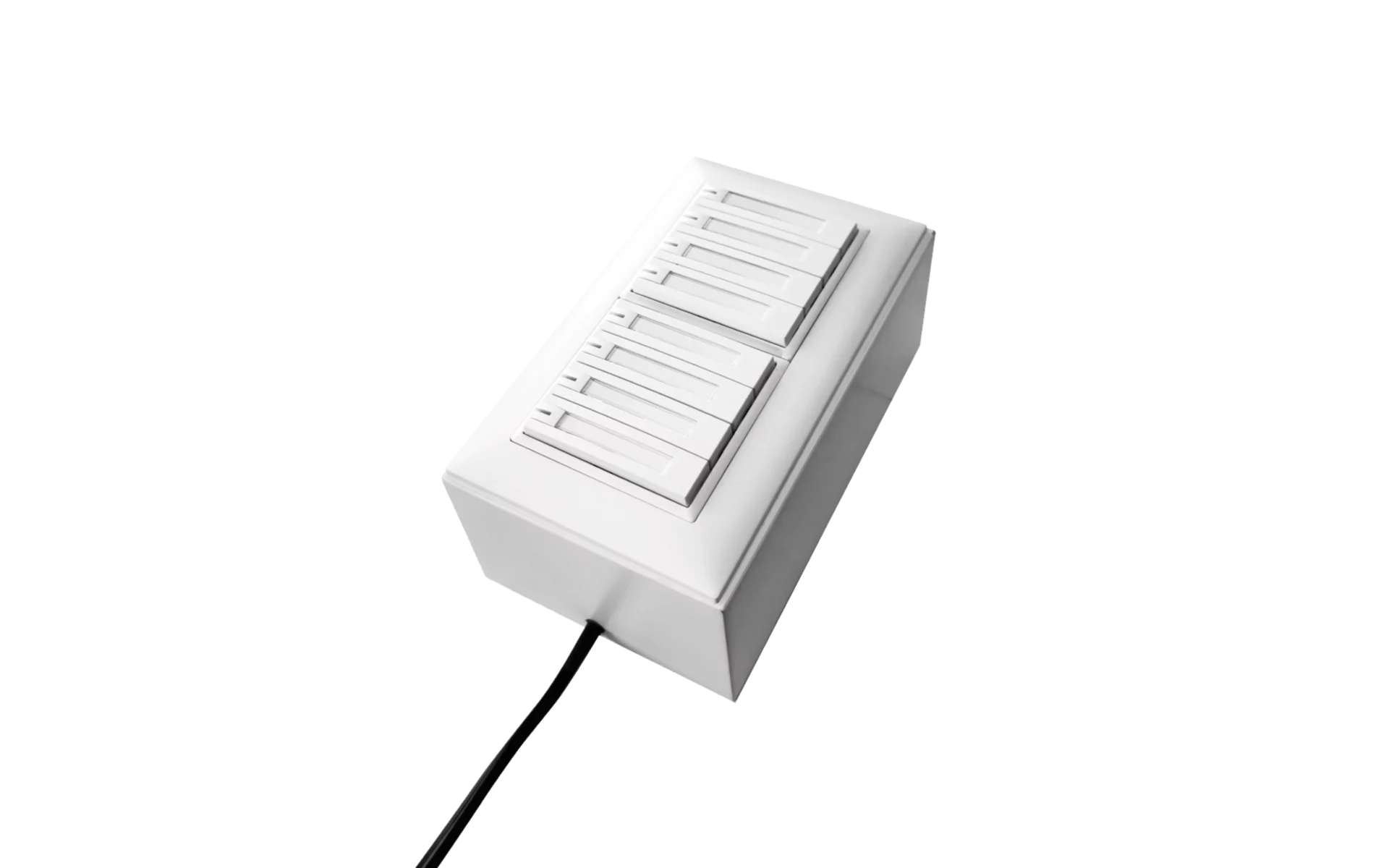

SITECO Connect Sport8 Button, configuration via Casambi app, optional remote setup and operation via gateway, installation type: surface-mounted, installation location: to the wall, in an electrical distributor, in a switching cabinet, of plastic, protection rating (complete): IP20, certification: CE, voltage: 230V, voltage type: AC, cable length: 1,5 m, push button, packaging unit: 1 piece, incl. cable with safety plug

Downloads

Key data

Product type operating unit
Product name SITECO Connect Sport
Order No. 5EA3LB244

Lamps

Rated input power 0.2W

Operating device

Control Casambi, configuration via Casambi app, optional remote setup and operation via gateway

Certificates, Standards

Protection rating IP20
Certification, designation CE

Material, Colour

surface-mounted housing plastic, white

Mounting

Mounting method, mounting location surface-mounted, to the wall, in an electrical distributor, in a switching cabinet

Electrical connection

Nominal voltage 230V, 50/60Hz, AC

Dimensions, Weight

Weight 0.7kg

Inputs

push button
Range max. 50m in open field
Option controllable via smartphone

Product type
operating unit

Product name
SITECO Connect Sport

Order No.
5EA3LB244

Rated input power
0.2W

Control
Casambi, configuration via Casambi app, optional remote setup and operation via gateway

Protection rating
IP20

Certification, designation
CE

surface-mounted housing
plastic, white

Mounting method, mounting location
surface-mounted, to the wall, in an electrical distributor, in a switching cabinet

Nominal voltage
230V, 50/60Hz, AC

Weight
0.7kg

push button

Range
max. 50m in open field

Option
controllable via smartphone
