5LZ904722A

: 5LZ904722A

Article sensor
Product name DALI2
Protection rating IP20
Weight 0.1kg

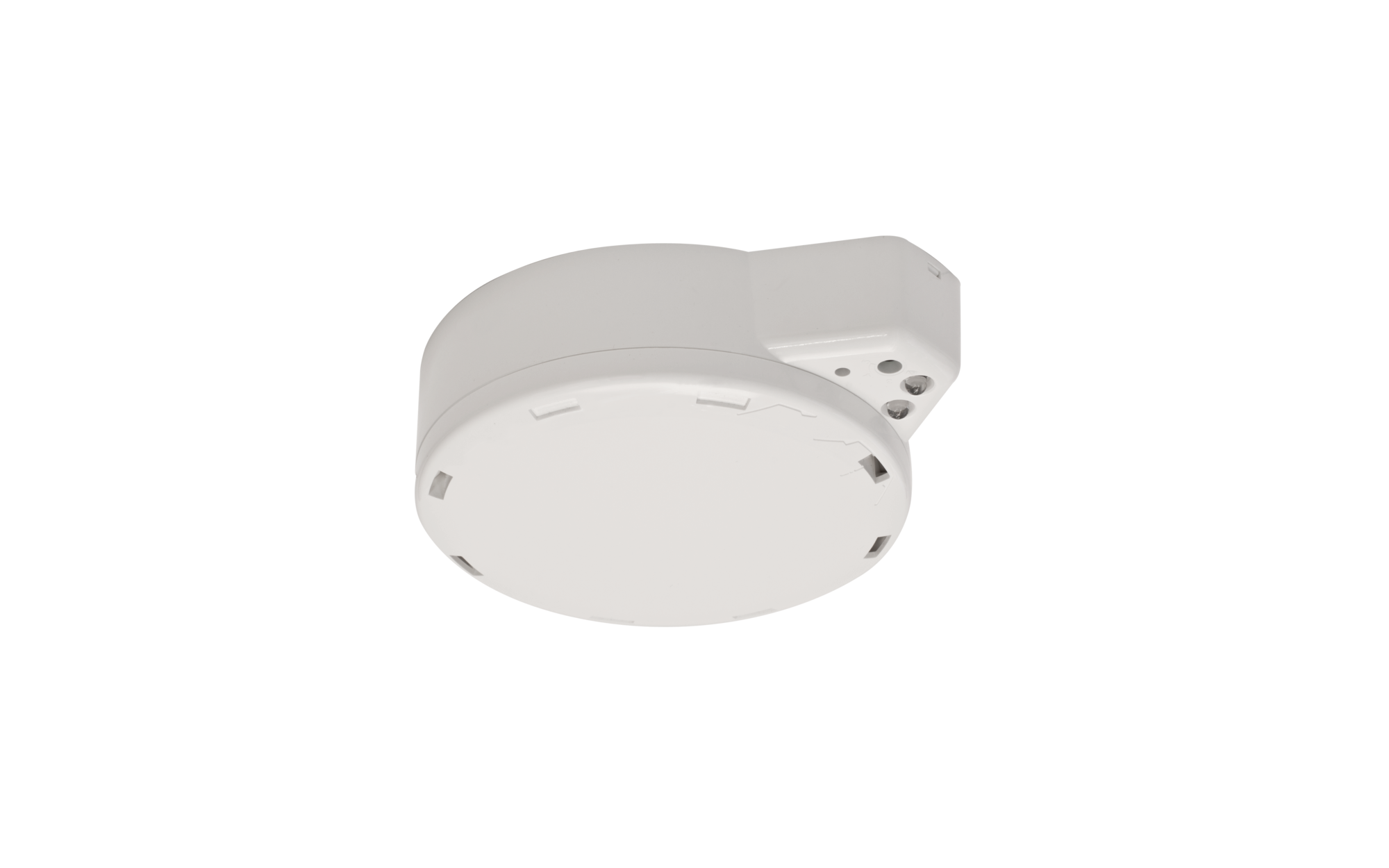

DALI2sensor D1, slave, central control - connection to lighting or building management, dimmable, installation type: surface-mounted, installation location: to the ceiling, of plastic, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, voltage: 120..277V, voltage type: AC, 1 x light sensor, 1 x DALI-2, packaging unit: 1 piece

Downloads

Key data

System family SITECO Connect 11, SITECO Connect 21
Product type sensor
Product name DALI2
Order No. 5LZ904722A

Control

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) 0..+50°C
Certification, designation CE, UKCA

Material, Colour

surface-mounted housing plastic, white

Mounting

Mounting method, mounting location surface-mounted, to the ceiling
Mounting height 4..12m
Supplement only suitable for use in indoor areas

Electrical connection

Connection screw terminal, 3-pole, max. 2.5mm²
Nominal voltage 120..277V, 50/60Hz, AC

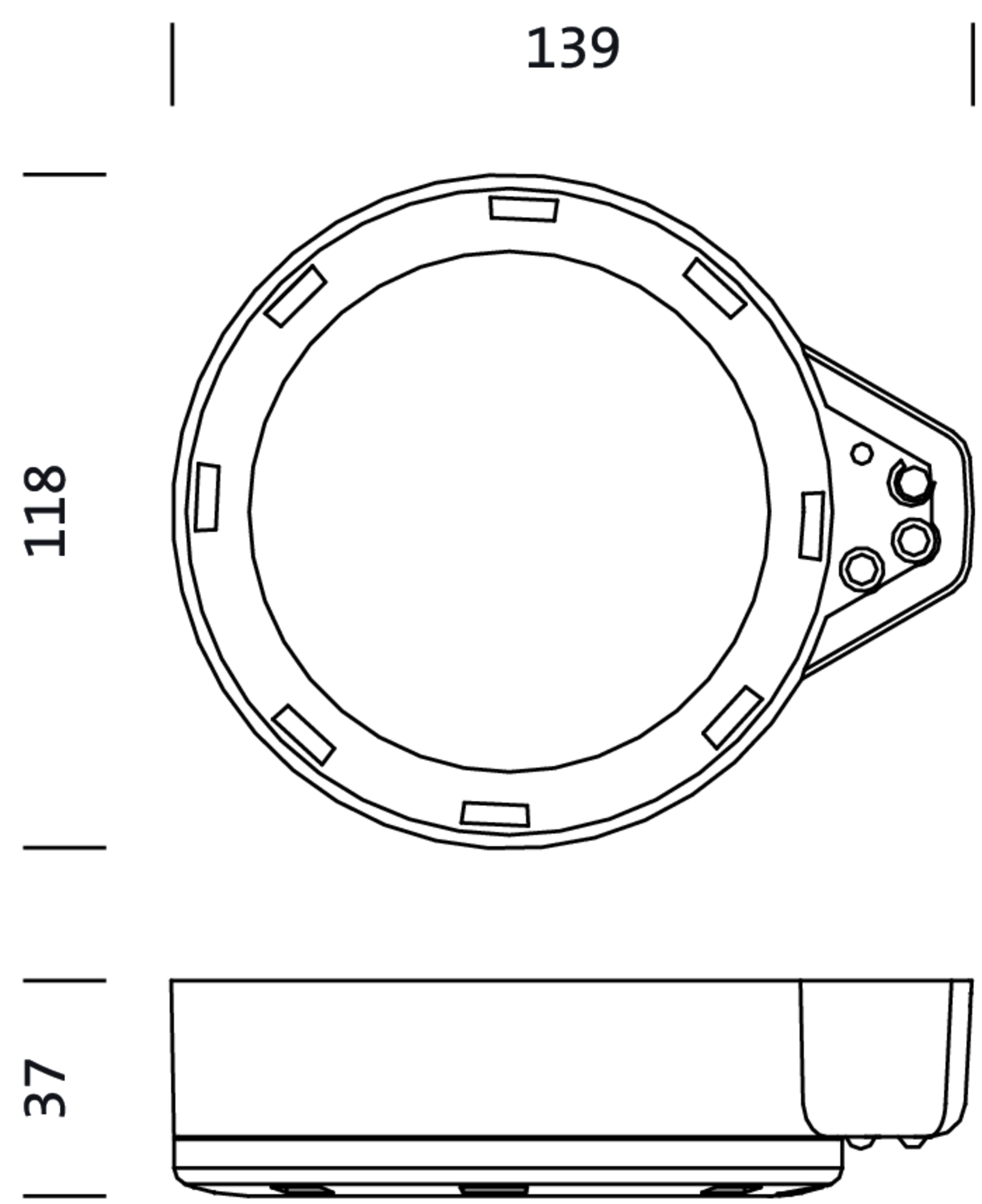

Dimensions, Weight

Length 135mm
Width 115mm
Height 37mm
Weight 0.1kg

Inputs

1x light sensor
Connection light sensor
Illuminance 20..800lx
Option usability at high altitudes

Outputs

1x DALI-2
System current 7mA

System family
SITECO Connect 11, SITECO Connect 21

Product type
sensor

Product name
DALI2

Order No.
5LZ904722A

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
0..+50°C

Certification, designation
CE, UKCA

surface-mounted housing
plastic, white

Mounting method, mounting location
surface-mounted, to the ceiling

Mounting height
4..12m

Supplement
only suitable for use in indoor areas

Connection
screw terminal, 3-pole, max. 2.5mm²

Nominal voltage
120..277V, 50/60Hz, AC

Length
135mm

Width
115mm

Height
37mm

Weight
0.1kg

1x light sensor

Connection
light sensor

Illuminance
20..800lx

Option
usability at high altitudes

1x DALI-2

System current
7mA
