5MZ312LEDZM00191XX

Order No.: 5MZ312LEDZM00191XX
Remember articleRemember article

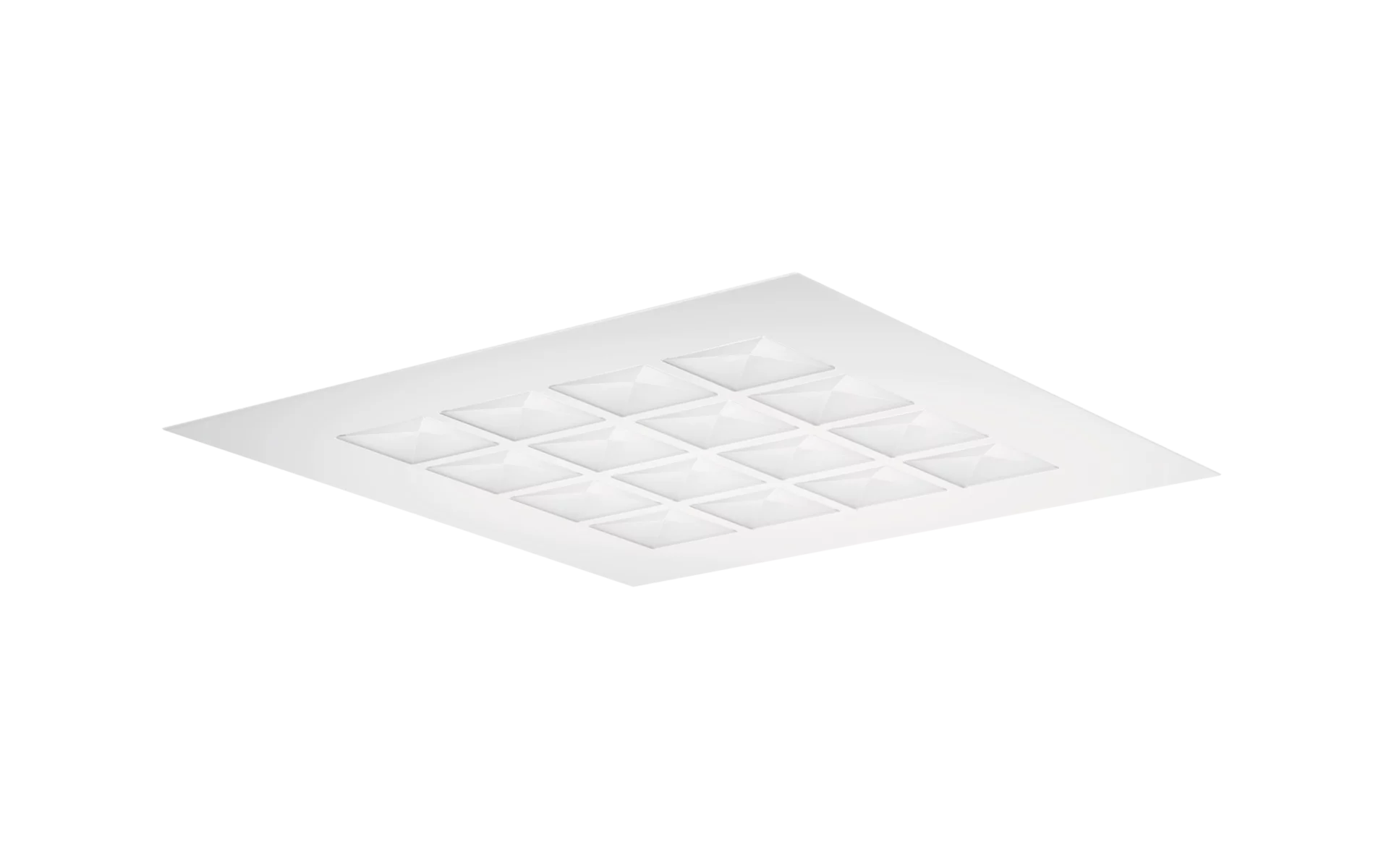

Article office luminaire
Product name Scriptus 11
Lamp LED
Rated luminous flux 6400lm
Luminous efficacy on request
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power on request
Service life 50000h at AT = 25°C
Protection rating IP20
Impact resistance IK02
Weight 8.0kg

Scriptus 11, office luminaire, primary optical cover: lenses, CAT 2 (L= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: lay-in mounting, LED, rated luminous flux: 6.400lm, light colour: 840, colour temperature: 4000K, control gear: DALI, with terminal, 3+2-pole, max. 2.5mm², mains connection: 230V, AC, 50Hz, housing, of sheet steel, galvanised, traffic white (RAL 9016), module: M625, length: 621mm, width: 621mm, height: 68mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK02, permissible operating ambient temperature: 0..+35°C, standard: EN 50419, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type office luminaire
Product name Scriptus 11
Order No. 5MZ312LEDZM00191XX

Lighting technology

Cover lenses
Symmetry symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps

Lamps with LED
Rated luminous flux 6400lm
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)

Operating device

Control gear ECG DALI
Control DALI

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Impact resistance IK02
Temperature range (operation) 0..+35°C
Standard EN 50419
Certification, designation CE

Material, Colour

housing sheet steel, galvanised, traffic white (RAL 9016)
Cover lenses

Mounting

Mounting method, mounting location lay-in mounting, in the ceiling
Arrangement single arrangement

Electrical connection

Connection terminal, 3+2-pole, max. 2.5mm²
Nominal voltage 230V, 230..240V, 50Hz, AC

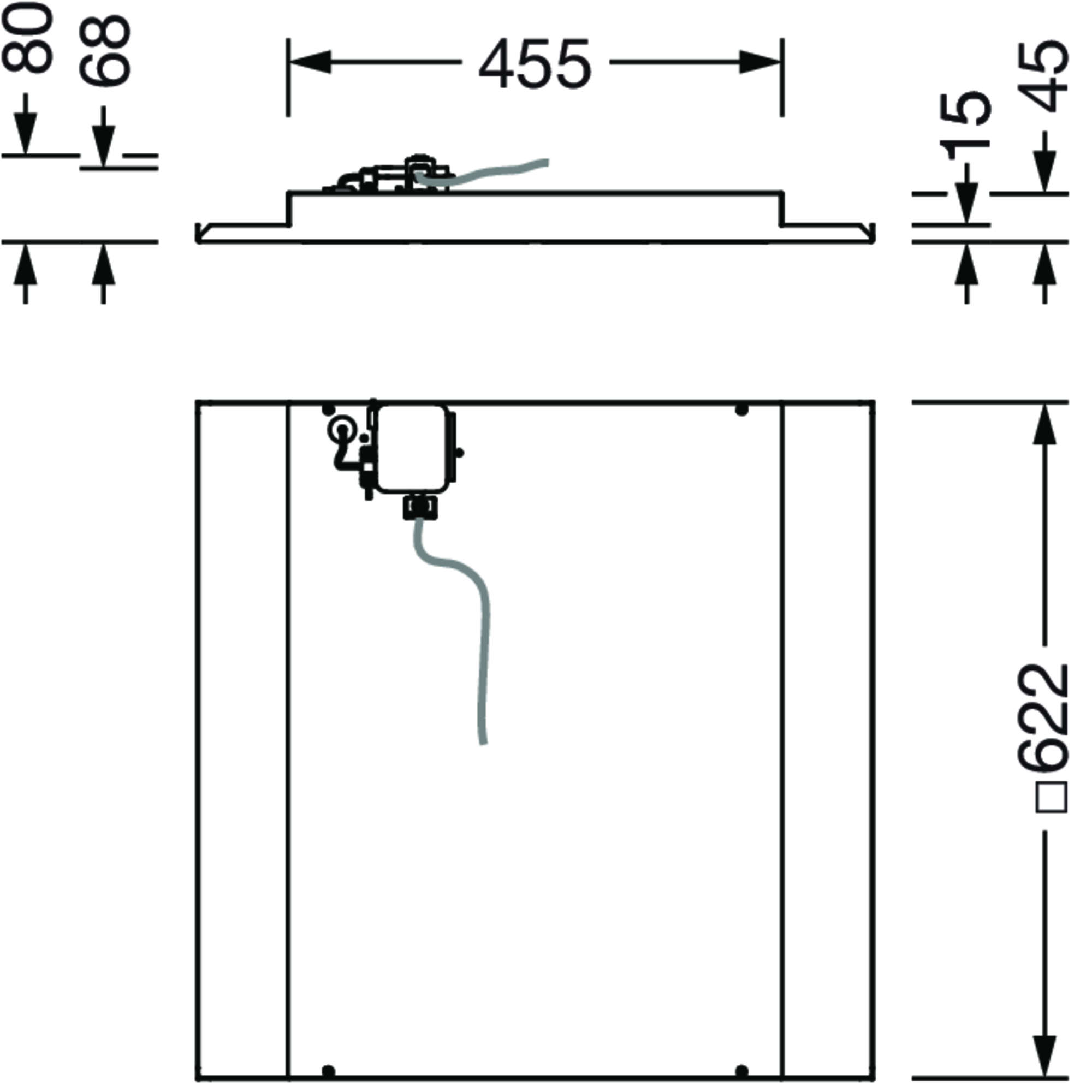

Dimensions, Weight

Length 621mm
Width 621mm
Height 68mm
Weight 8.0kg

Service life

Rated service life 50000h at AT = 25°C

Product type
office luminaire

Product name
Scriptus 11

Order No.
5MZ312LEDZM00191XX

Cover
lenses

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 19

UGR viewing direction along lateral luminaire axis
≤ 19

Lamps
with LED

Rated luminous flux
6400lm

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Control gear
ECG DALI

Control
DALI

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Impact resistance
IK02

Temperature range (operation)
0..+35°C

Standard
EN 50419

Certification, designation
CE

housing
sheet steel, galvanised, traffic white (RAL 9016)

Cover
lenses

Mounting method, mounting location
lay-in mounting, in the ceiling

Arrangement
single arrangement

Connection
terminal, 3+2-pole, max. 2.5mm²

Nominal voltage
230V, 230..240V, 50Hz, AC

Length
621mm

Width
621mm

Height
68mm

Weight
8.0kg

Rated service life
50000h at AT = 25°C

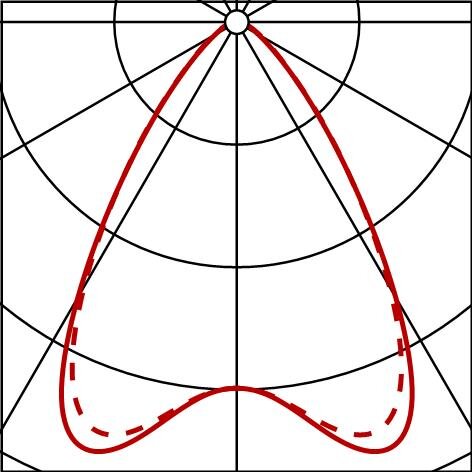

Photometric report / planning data

Scriptus 11
office luminaire, traffic white (RAL 9016), DALI, 6400lm, 840, 621x621mm, for M625, Connection: terminal
Lamps: LED 4000K / CRI >= 80
Order No.: 5MZ312LEDZM00191XX

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
