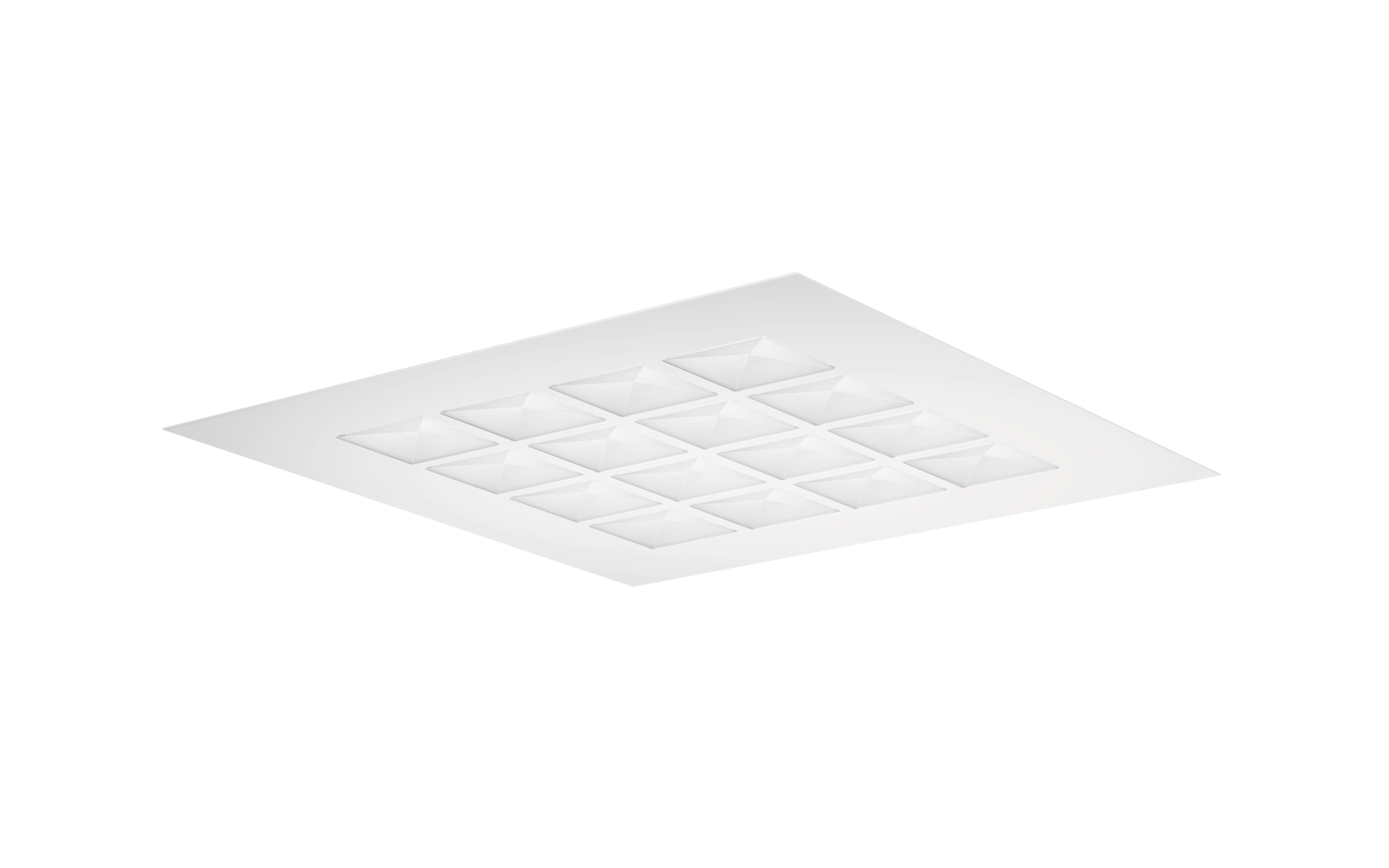

5MZ312LEDZM00192XX
Article office luminaire
Product name Scriptus 11
Lamp LED
Rated luminous flux 6400lm
Luminous efficacy on request
Colour temperature 2700..6500K
Colour rendering CRI > 80
Rated input power on request
Service life 50000h at AT = 25°C
Protection rating IP20
Impact resistance IK02
Weight 8.0kg

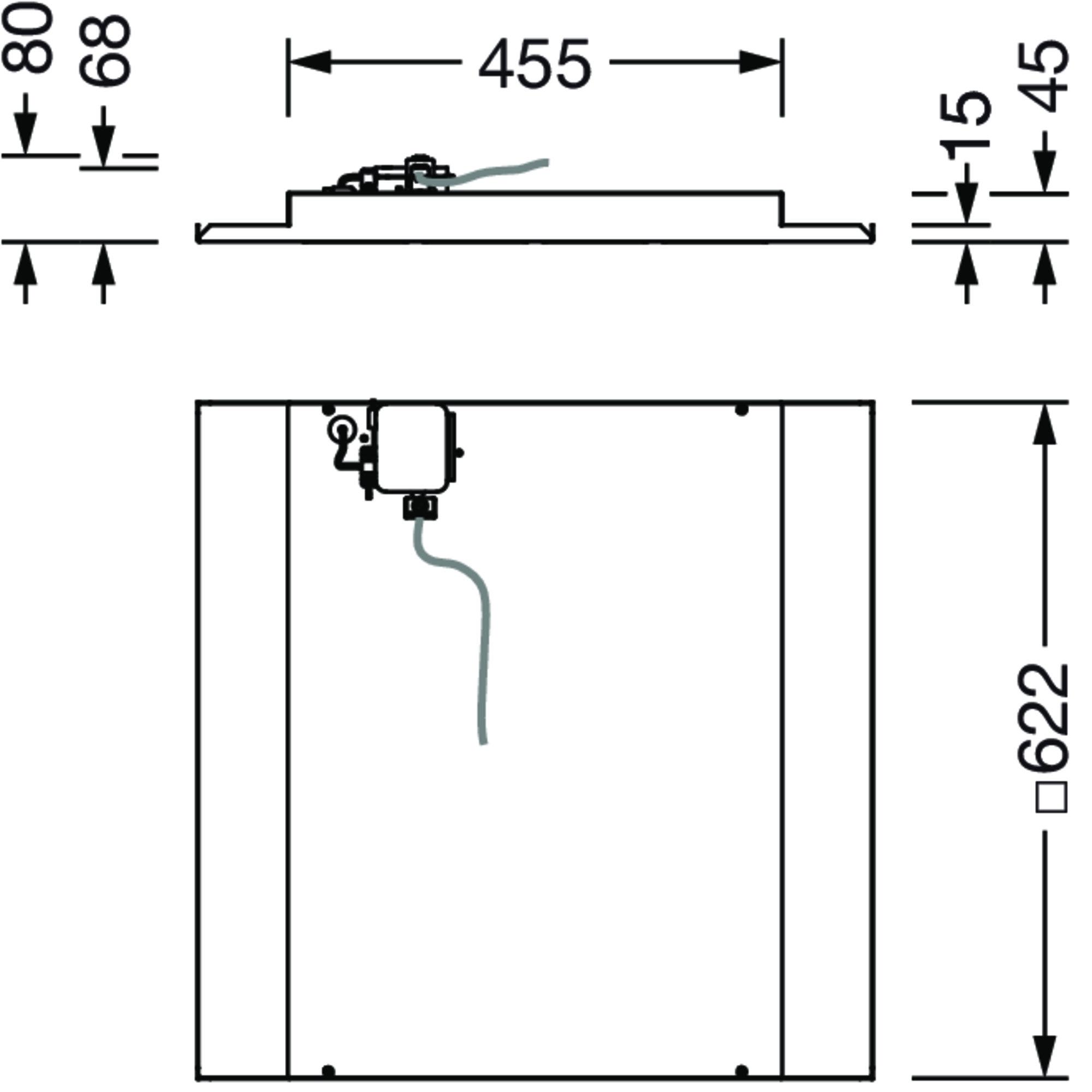

Scriptus 11, office luminaire, primary optical cover: lenses, CAT 2 (L= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: lay-in mounting, LED, rated luminous flux: 6.400lm, light colour: 8tw, colour temperature: 2700..6500K, control gear: DALI DT8, with terminal, 3+2-pole, max. 2.5mm², mains connection: 230V, AC, 50Hz, housing, of sheet steel, galvanised, traffic white (RAL 9016), module: M625, length: 621mm, width: 621mm, height: 68mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK02, permissible operating ambient temperature: 0..+35°C, standard: EN 50419, packaging unit: 1 piece
