Order No.: 5NY15621XA08

Article curved mast extension
Product name Large Bell
Weight 10.3kg

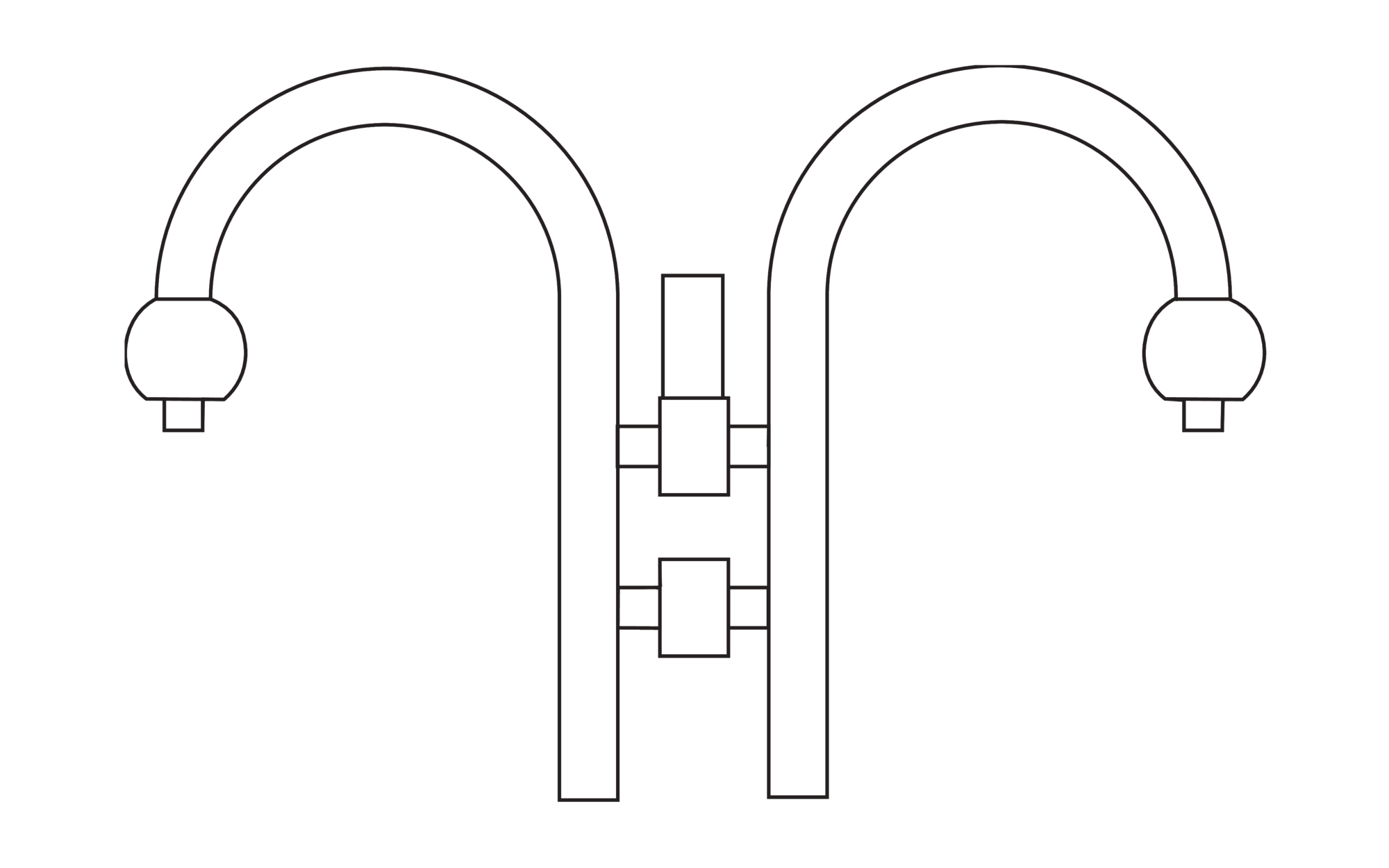

Large Bell, curved mast extension, curved mast extension, offset, of steel, galvanised, coated, SITECO metallic grey (DB 702S), 1-arm, with bayonet catch, bayonet catch allows rapid, tool-free mounting of Bell to curved mast, diameter: 76mm, height: 1040mm, spigot size: 76mm (post-top), packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details


Key data

Product type curved mast extension
Product name Large Bell
Order No. 5NY15621XA08


Material, Colour

curved mast extension, offset steel, galvanised, coated, SITECO metallic grey (DB 702S), with bayonet catch

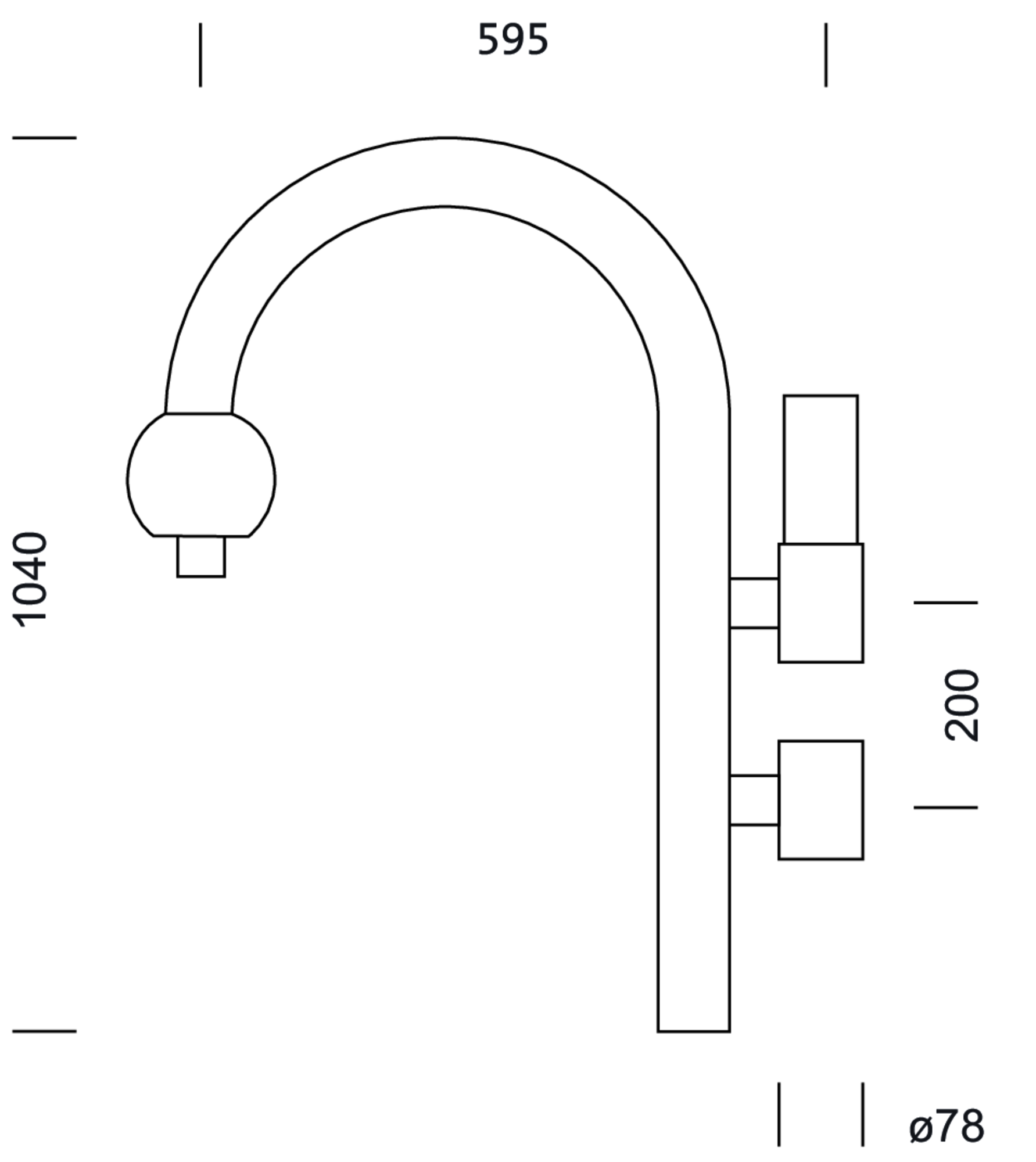

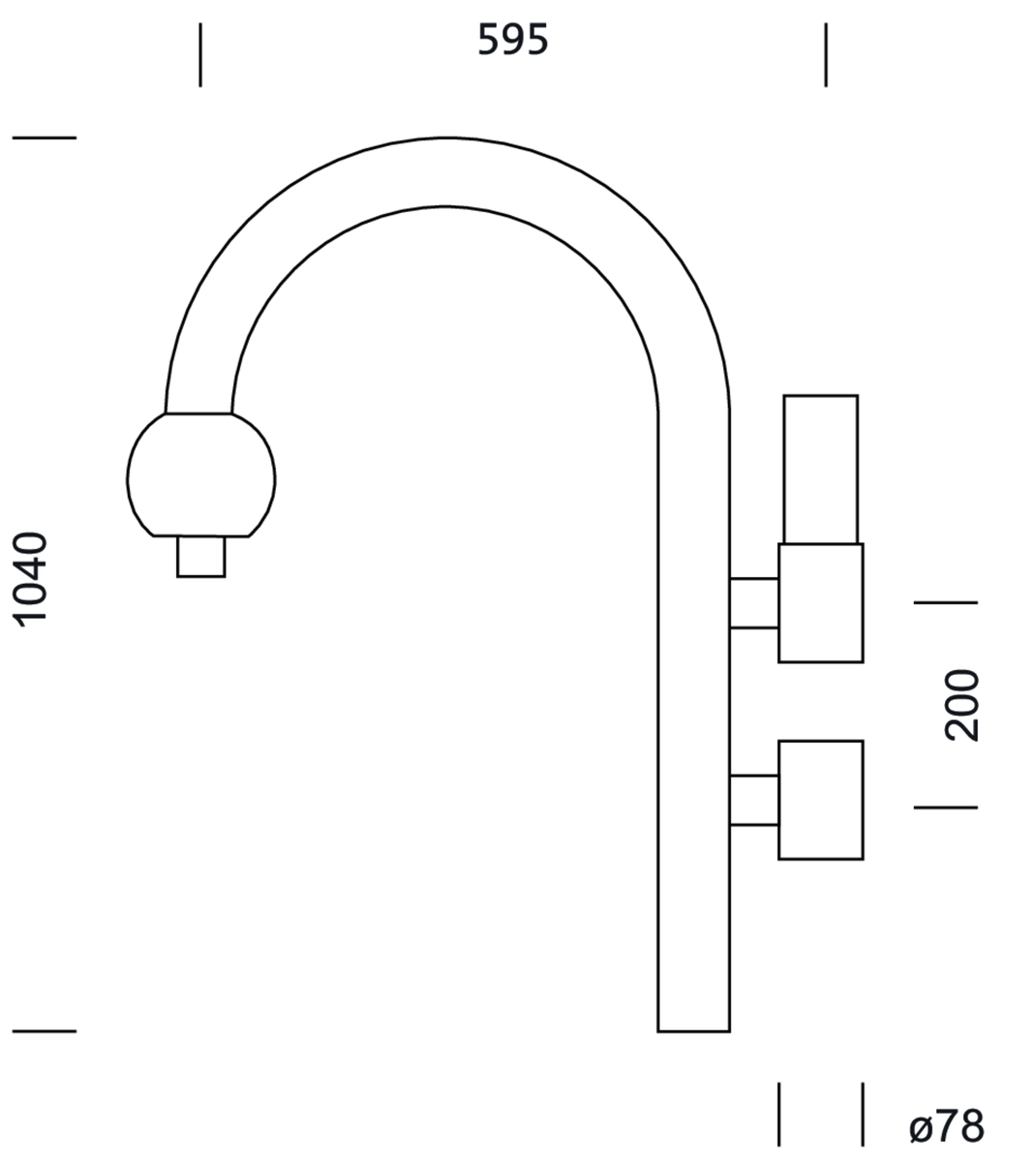

Dimensions, Weight

Diameter 76mm
Height 1040mm
Weight 10.3kg
Mast spigot spigot size: 76mm

Product type
curved mast extension

Product name
Large Bell

Order No.
5NY15621XA08

curved mast extension, offset
steel, galvanised, coated, SITECO metallic grey (DB 702S), with bayonet catch

Diameter
76mm

Height
1040mm

Weight
10.3kg

Mast spigot
spigot size: 76mm
