5TR9092AQ

: 5TR9092AQ

Article additional feed
Product name Modario
Protection rating for IP20 protection rating
Weight 2.5kg

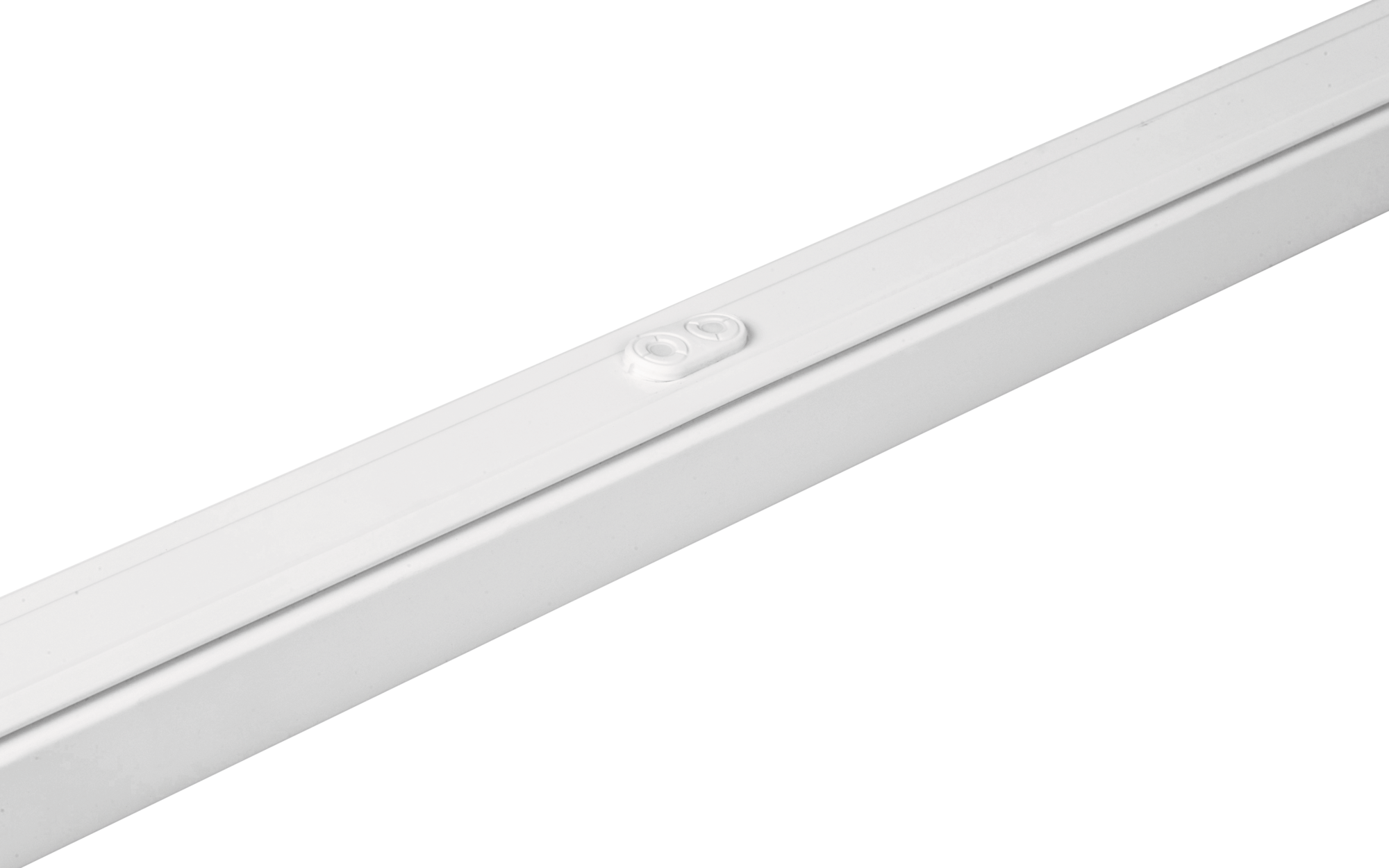

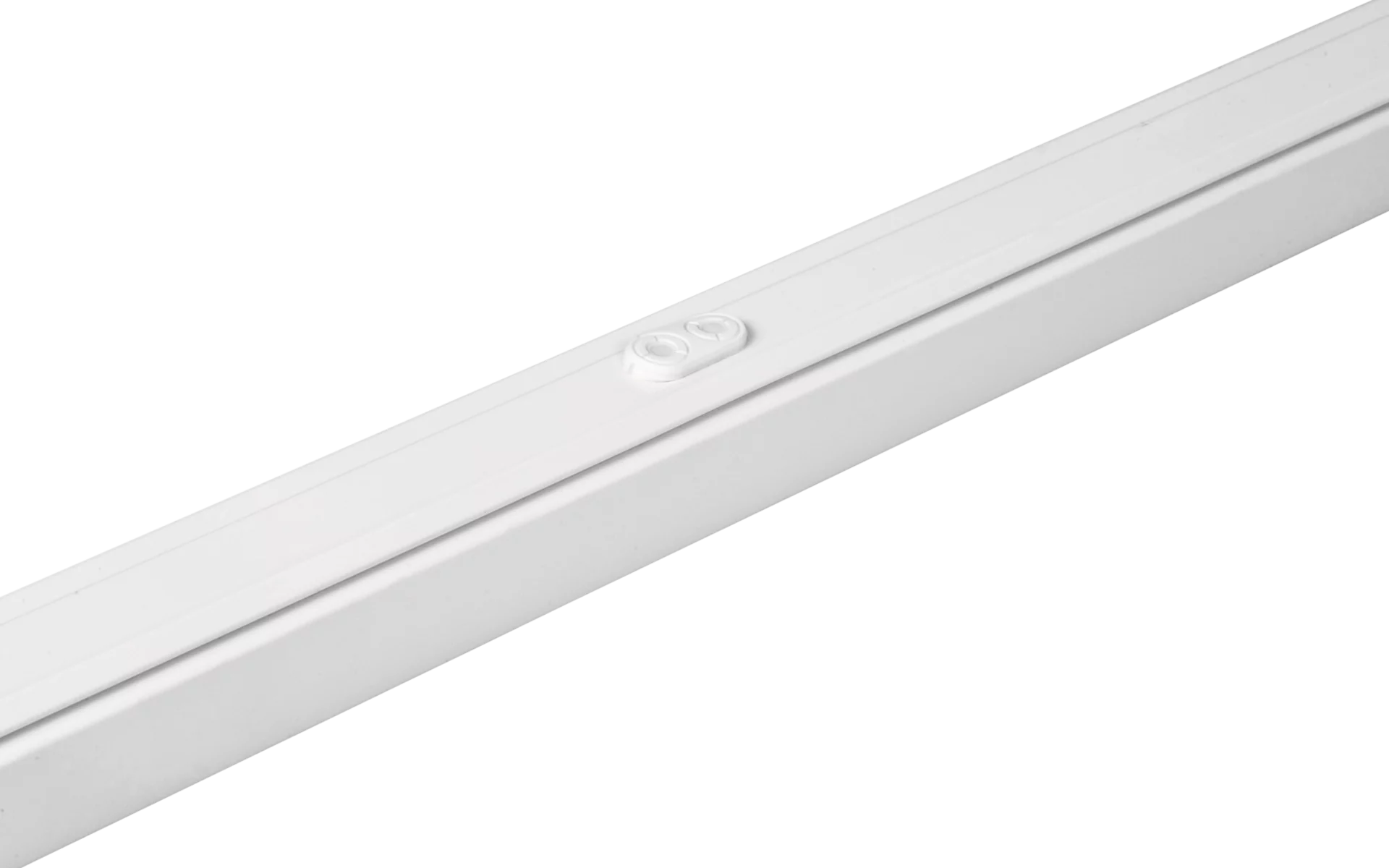

Modario, additional feed, wiring,with 20x 2-fold terminal 1.5..2.5mm², for infeed, through-wiring: 10x 2.5mm², trunking rail element, of steel, coated, pure white, 5x system unit, length: 1.495mm, width: 58mm, height: 43mm, protection rating (complete): for IP20 protection rating, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, packaging unit: 1 piece

Downloads

Key data

Product type additional feed
Product name Modario
Order No. 5TR9092AQ

Certificates, Standards

Protection rating for IP20 protection rating
Insulation class insulation class I (protective earthing)
Certification, designation CE, UKCA

Material, Colour

trunking rail element steel, coated, pure white, 5x system unit

Electrical connection

Connection 20x 2-fold terminal 1.5..2.5mm², for infeed
Through-wiring 10x 2.5mm²

Dimensions, Weight

System units 5x SE

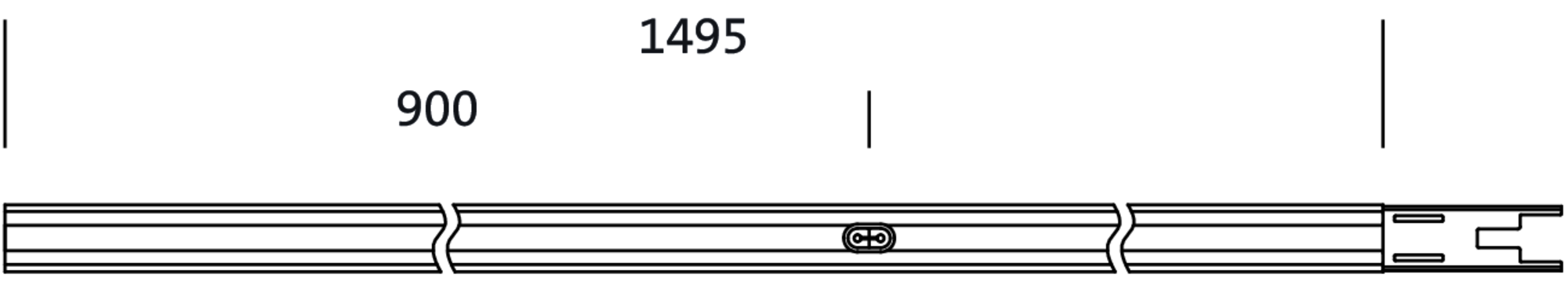

Length 1495mm
Width 58mm
Height 43mm
Weight 2.5kg

Product type
additional feed

Product name
Modario

Order No.
5TR9092AQ

Protection rating
for IP20 protection rating

Insulation class
insulation class I (protective earthing)

Certification, designation
CE, UKCA

trunking rail element
steel, coated, pure white, 5x system unit

Connection
20x 2-fold terminal 1.5..2.5mm², for infeed

Through-wiring
10x 2.5mm²

System units
5x SE

Length
1495mm

Width
58mm

Height
43mm

Weight
2.5kg
