Silica
Project Line.

Silica Project Line

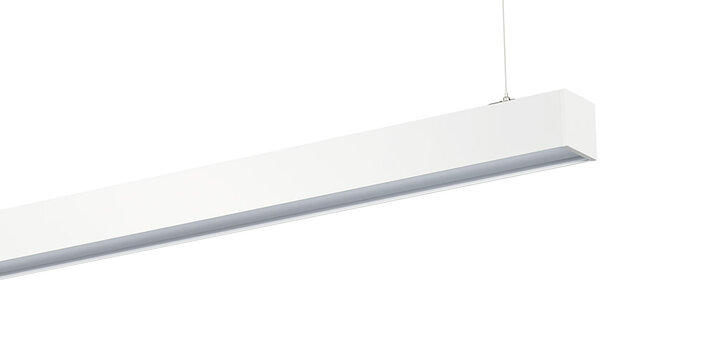

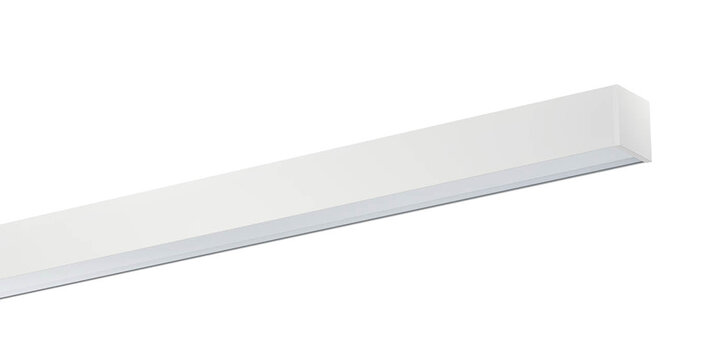

Linear luminaire system – flexible lighting

One system – Individual solutions

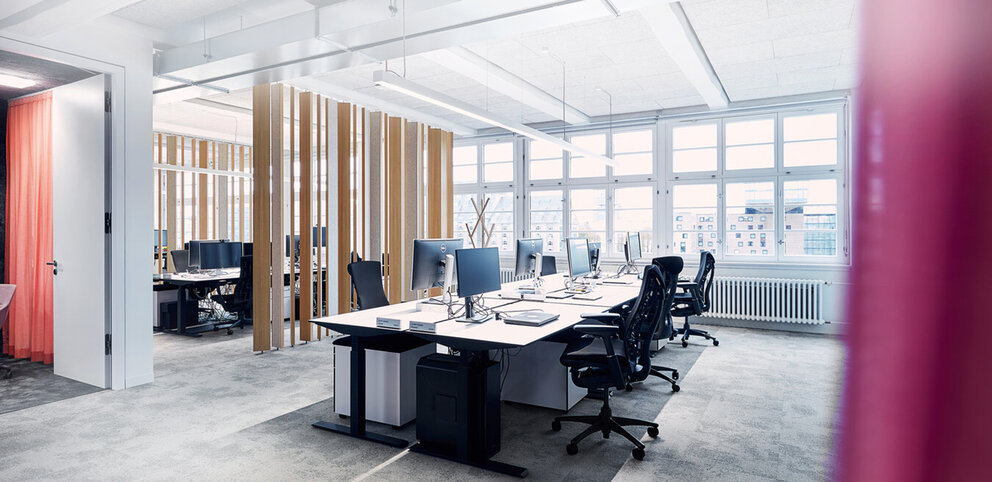

As the latest member of the SITECO Office family, Silica® Project Line stands for flexible lighting solutions in architectural environments. Light becomes a special design element and at the same time achieves a pleasant room atmosphere. Flexibility in use is the most important factor and, with its puristic design, Silica® Project Line is ideal for lighting offices and circulation routes as well as foyers and communication zones. Thanks to its individual configurability, large areas of a public building for example can be uniformly and efficiently equipped with one lighting solution. Selected configurations as catalog goods:

  • Light line luminaire in modular lengths (module size: 280mm)
  • Puristic design and compact housing
  • High lumen output and best efficiency (up to 160lm/W)
  • Four different optics for illumination of workstations and secondary zones

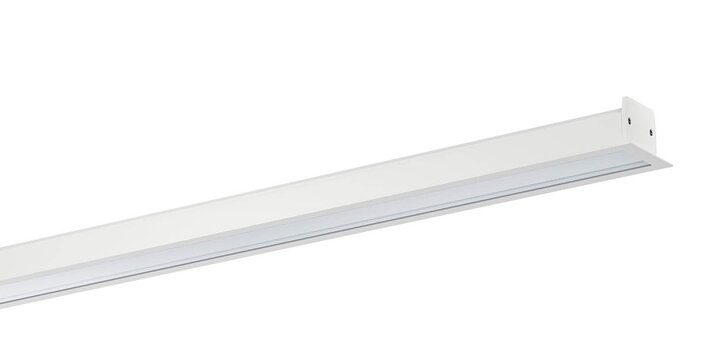

  • Different designs and mounting options Recessed, surface-mounted and suspended mounting
  • Floorstanding luminaire for two and four-person workstations available in the family

Mounting options

Simple, quick mounting:

  • Clip-in holder: simple snap-in by means of previously mounted fixing clips on the ceiling
  • Adjustable fixing points: flexible adaptation of mounting and suspension points to on-site conditions
  • Adjustable ceiling installation clip: Height-adjustable mounting system for adapting to different ceiling thicknesses

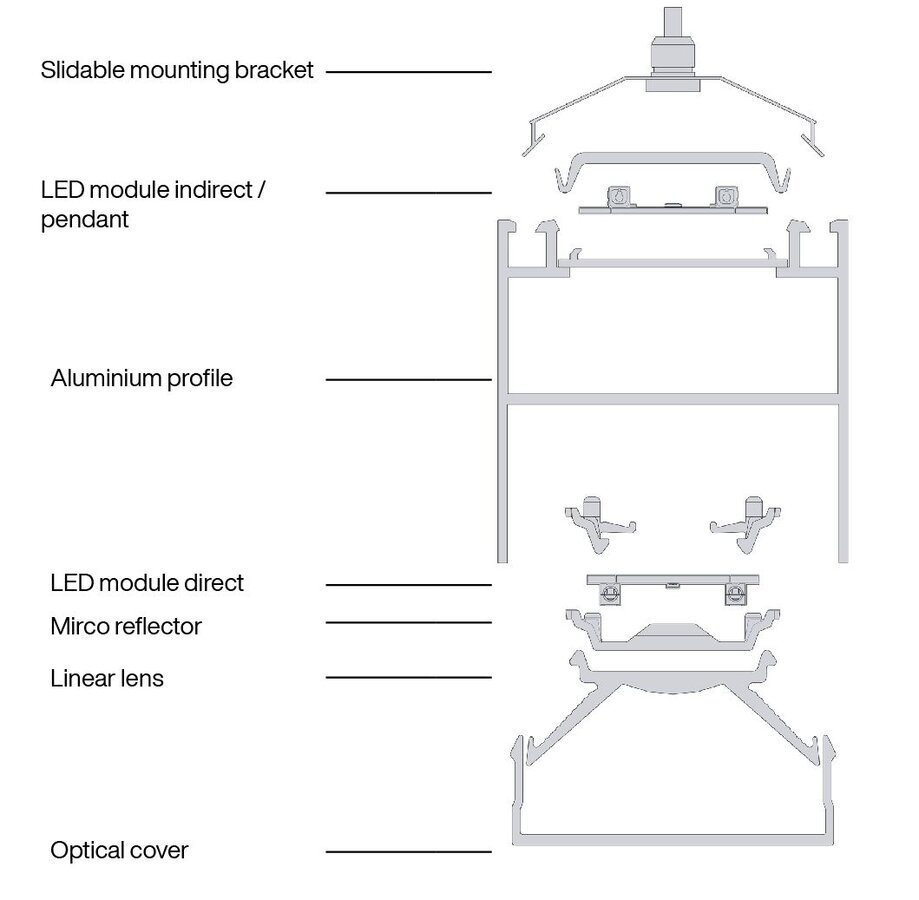

Modular design

A variety of optics

The right light control for every application, always in the same housing.

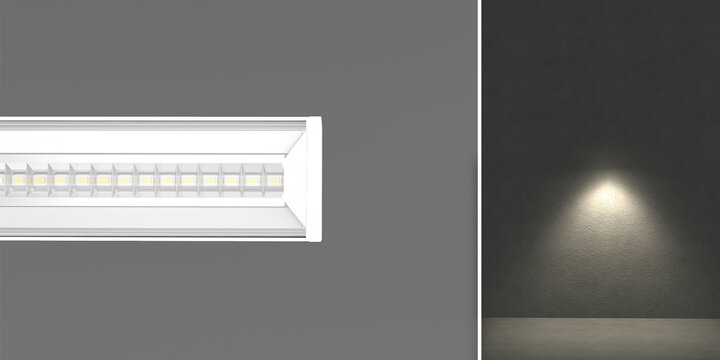

Hybrid

Unique combination of louver, linear lens and cover.
Provides optimum glare control for computer workstations with expanded maximum luminance levels when looking into the luminaire.

Data for 280mm module:

  • 990 lm / module
  • 160 lm/W
  • UGR<19
  • BAP <3000cd/m²
  • 3000K/4000K

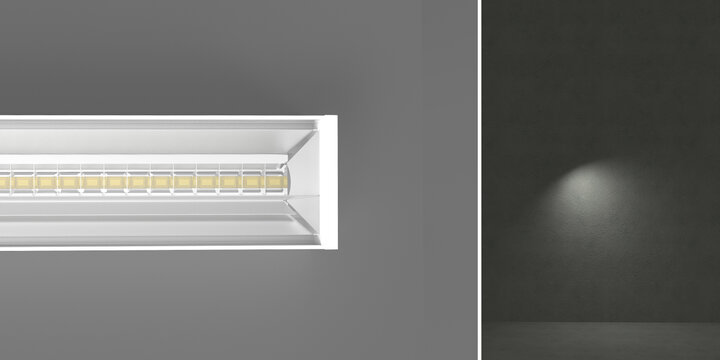

Hybrid asymmetric

The ideal complement for the illumination of vertical surfaces.
Optimized light control with highly reflective mirror optics.
For homogeneous illumination without glare.

Data for 280mm module:

  • 990 lm / module
  • 160 lm/W
  • UGR<19
  • BAP <3000cd/m²
  • 3000K/4000K

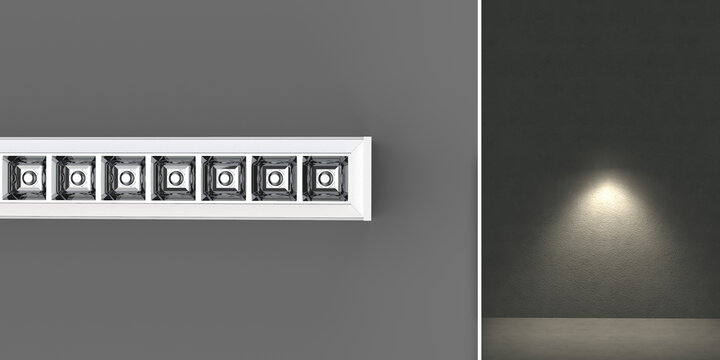

Dark Light

The elegant classic for modern LED technology.
Dark Light louver in a variety of colors and finishes, including Tunable White functionality

Data for 280mm module:

  • 1000 lm / module
  • 165 lm/W
  • UGR<19
  • BAP <3000cd/m²
  • 3000K/4000K/ TW

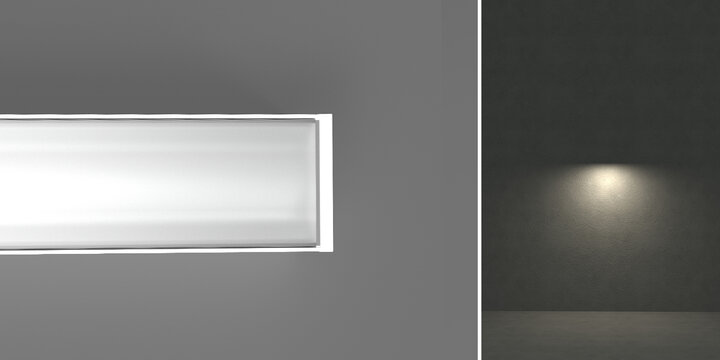

Diffuse

Perfect homogeneity with minimal dimensions.
The benchmark when it comes to homogeneous illumination of secondary zones.

Data for 280mm module:

  • 600 lm / module
  • 125 lm/W
  • UGR<25
  • Diffus 3000K/4000K/TW

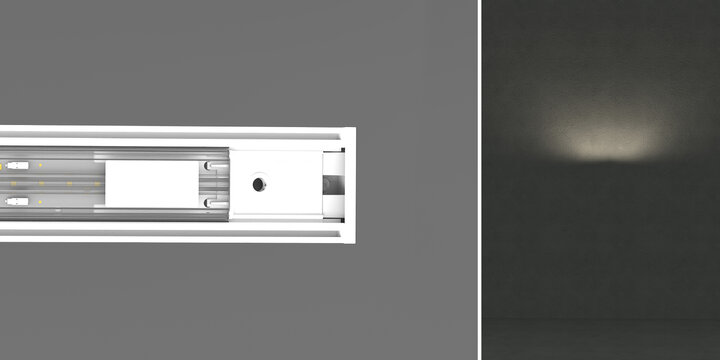

Indirect

For a pleasant illumination of the room.
The extremely wide diffusing lens ensures uniform illumination
of the ceiling, even with low suspension heights.

Data for 280mm module:

  • 420lm / module (indirect component can be increased on customer request)
  • 130 lm/W
  • 3000K/4000K/TW

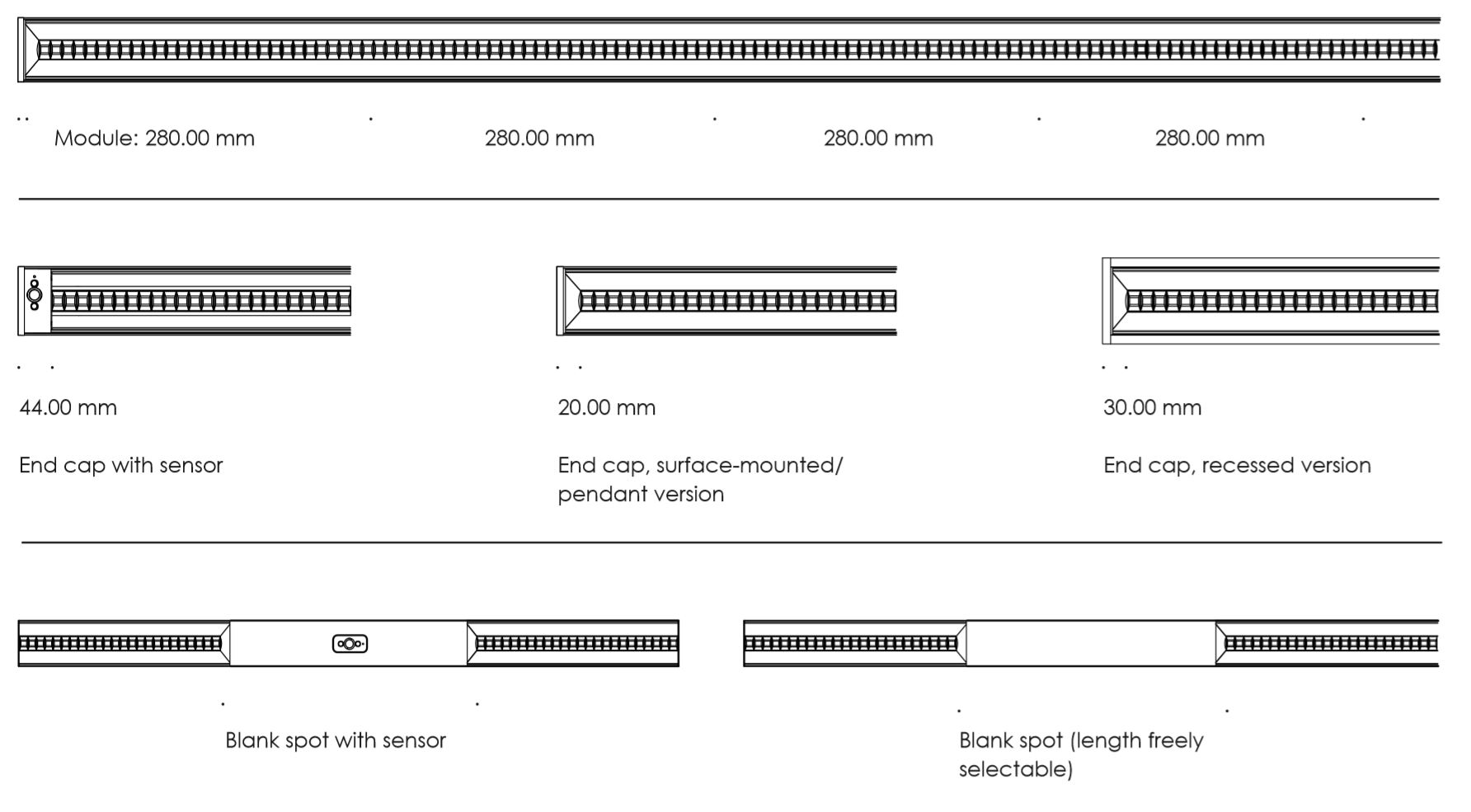

Modular lengths

Colors

Choose from standard colors or custom paint coating on customer request

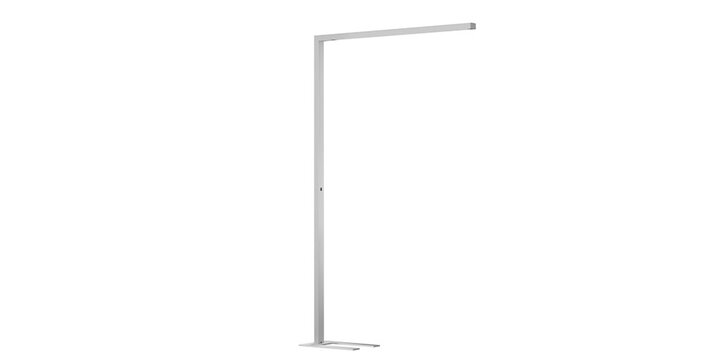

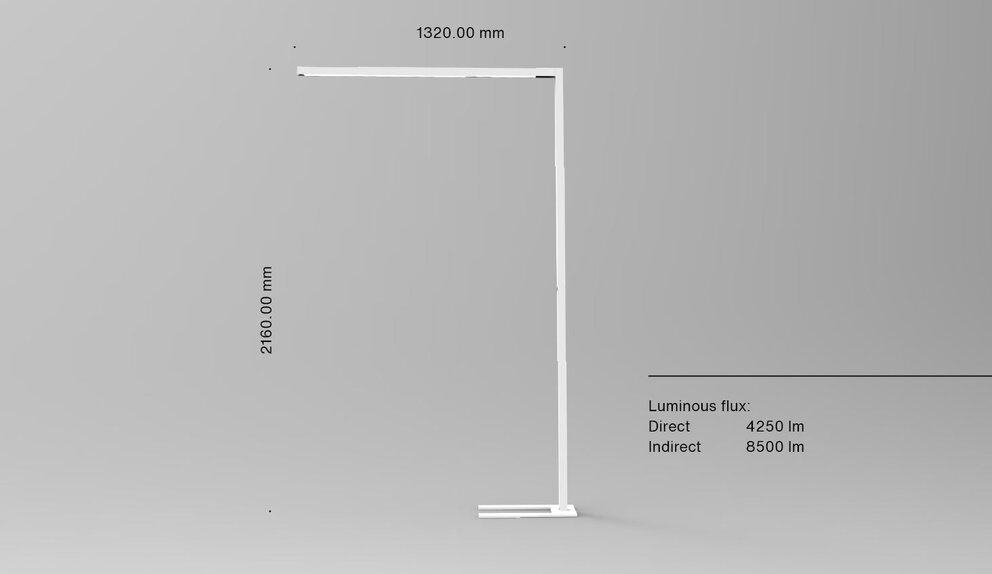

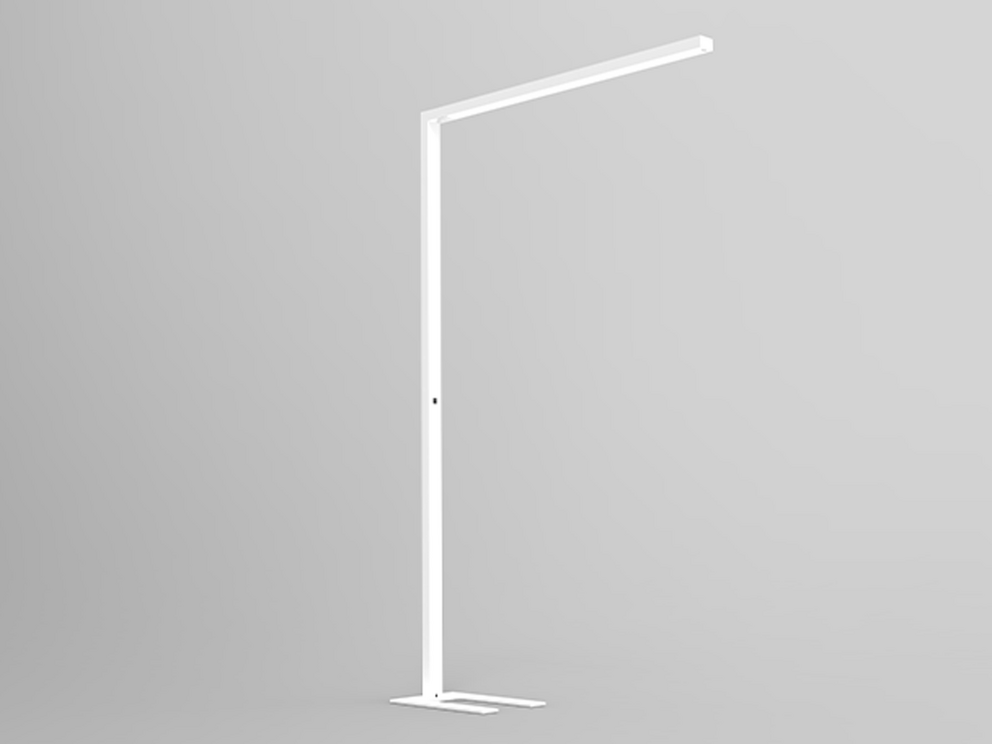

Silica Floor

Floorstanding luminaire for single and two-person workstation

  • Uniform, standard-compliant illumination
  • High luminous flux with low glare
  • Very high efficiency 157lm/W
  • Also works with height-adjustable tables thanks to the height of the luminaire
  • Direct and indirect components can be switched/dimmed separately
  • Integrated daylight and presence sensor
  • Various base plates and table adaptations on request

Technical data:
12460lm; 4000K; CRI80; 79W

Downloads

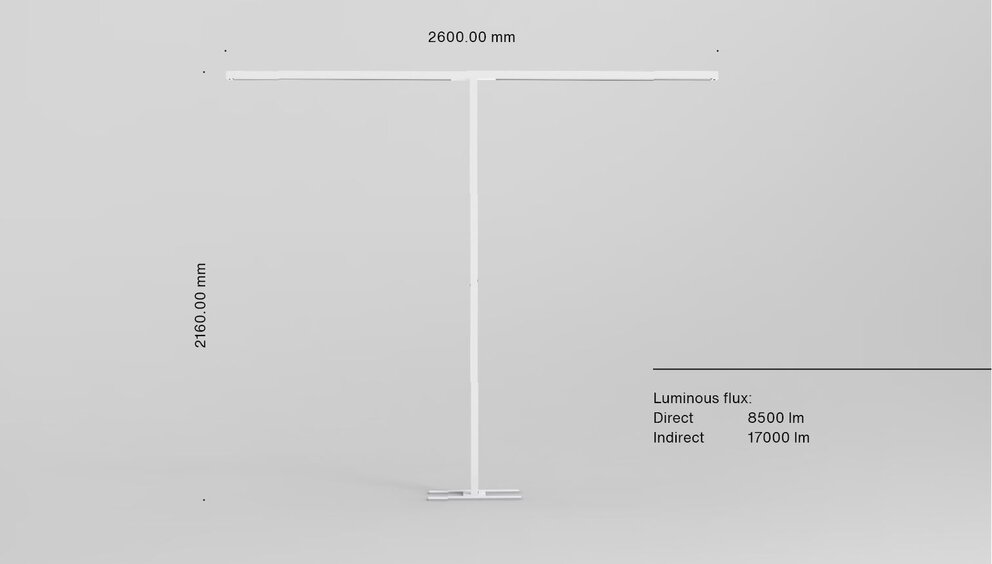

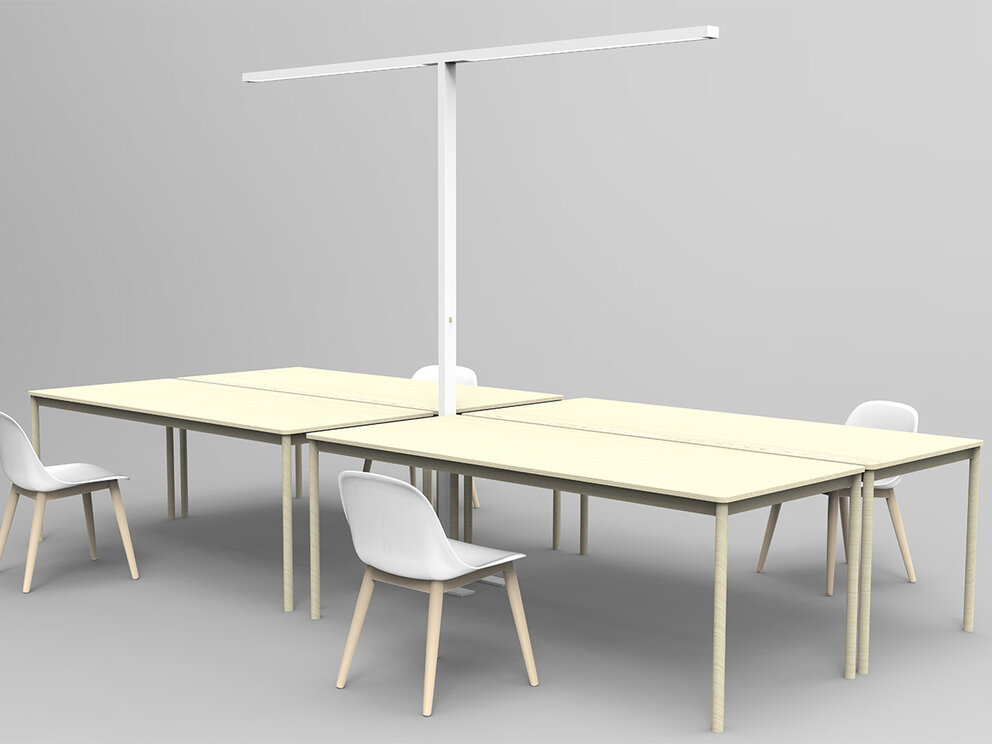

Silica Floor Duo

Floorstanding luminaire for four-person workstation

  • Uniform, standard-compliant illumination
  • High luminous flux with low glare
  • Very high efficiency 161lm/W
  • Also works with height-adjustable tables thanks to the height of the luminaire
  • Direct and indirect components can be switched/dimmed separately
  • Integrated daylight and presence sensor
  • Various base plates and table adaptations on request

Technical data:

24930lm; 4000K; CRI80; 154W

Downloads
