SITECO Connect Wireless Outdoor
Single luminaire.
Control of individual luminaires.
Flexible, modular, efficient.
SITECO Connect Wireless Outdoor is the smart control system for street, area, and pathway lighting. A wide range of sensors and actuators enables advanced applications — locally or remotely controlled. Thanks to its modular structure, projects of any size can be implemented quickly.

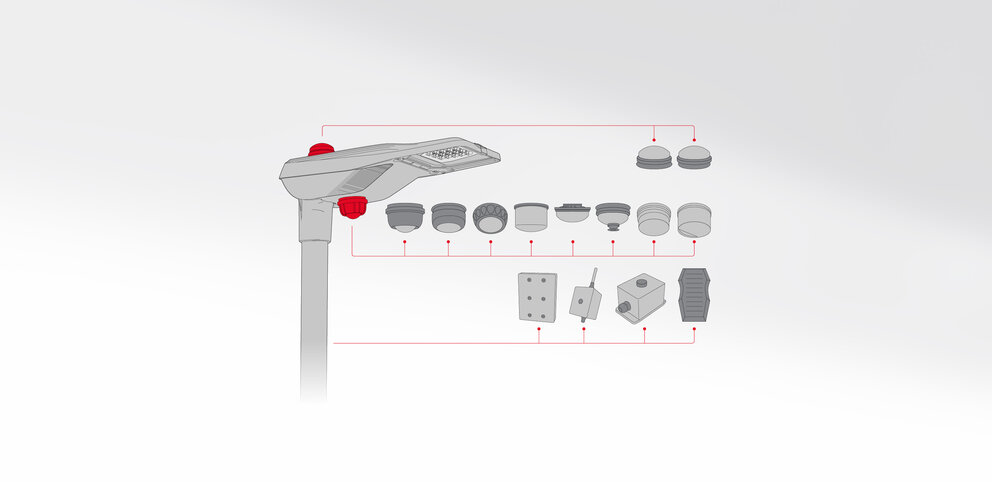

Components for the Smart-Interface:
Smart Plugs
Control and radio networking of luminaires with Zhaga / D4i-compatible luminaire controllers. With remote access or as a purely local radio network. Lighting control depending on time of day, day of the week and daylight. Local storage of the switching and dimming calendar for reliable operation. Colour-Switch colour control available.
Smart Plug Standard & Cellular
Available in various versions, including environmental and noise sensors.
Motion sensors
Lighting control depending on movement, daylight, day of the week and time of day. Autonomous or networked operation (adaptive lighting). Multiple setting options for dimming level, follow-up time, up / down speed.
Radio motion sensor Low & High
Oval detection range, freely alignable, e.g. for paths and driveways. Radio controller (Smart Plug Standard or Cellular) integrated. Colour-Switch Fcolour control available.
Motion sensor Radar
Very wide detection range, e.g. for roads. With and without radio controller (Smart Plug Standard).
Motion sensor Easy
Preset PIR motion sensor, ON / OFF at 30 lux, idle state 20 %, when movement detected 100 % for a minimum of 2 min. can be ne tworked as an option, large detection range to the right and left of the luminaire, can be limited with enclosed cap, e.g. for paths.
Motion sensor Low & High
PIR motion sensor with circular detection range, can be limited with enclosed cap, e.g. for surfaces.
Motion sensor 2PIR
PIR motion sensor with long detection range to the right and left of the luminaire, e.g. for residential streets.
Additional components
Mast Box
For the control and networking of DALI luminaires without Smart-Interface. With remote access (for use with Smart Plug Cellular as an accessory) or as a purely local radio network. Lighting control depending on time of day, day of the week and motion (Motion version). Local storage of the switching and dimming calendar for reliable operation.

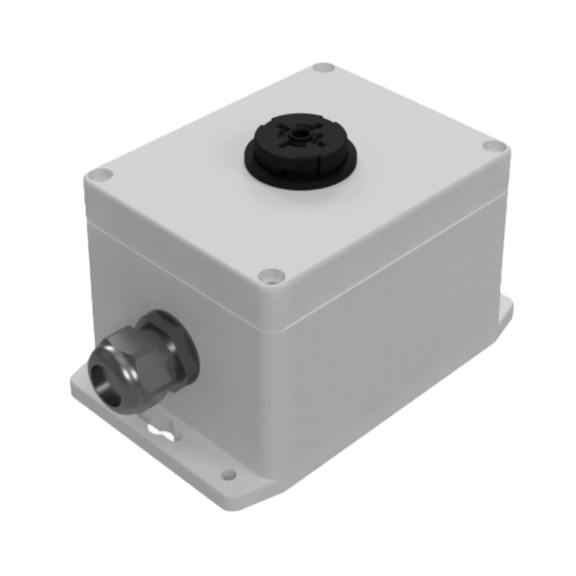

Smart Plug Box
For installation separate from the luminaire. Zhaga interface for placing additional motion sensors at inputs and outputs, for setting repeater or light sensor locations.
Wireless Push-Button
For individual lighting scenes.
Simple to start. Flexible to grow.
SITECO Connect Wireless 31
Single luminaires are activated or dimmed e.g. with a local motion detector.
Example: The motion detector activates just one luminaire.
SITECO Connect Wireless 21
Several luminaires are connected via radio. The luminaires in the network communicate and synchronize with one another. The luminaires are synchronously or continuously activated or dimmed.
Example: The motion detector also switches neighboring luminaires via radio link.
SITECO Connect Wireless 11
The luminaires are connected via radio. Settings can be defined from the office via the network with remote access and status messages sent automatically. Existing inventory and workflow systems such as LuxData by sixData can be used as a master.
Example: The network of luminaires functions synchronously and is remotely monitored.
Planning & Commissioning.
Our experts are available to support your SITECO Connect installation with tailored services that ensure a smooth setup and intuitive operation.
Contact us.
