51SL62DB11B2C

Order No.: 51SL62DB11B2C
Remember articleRemember article

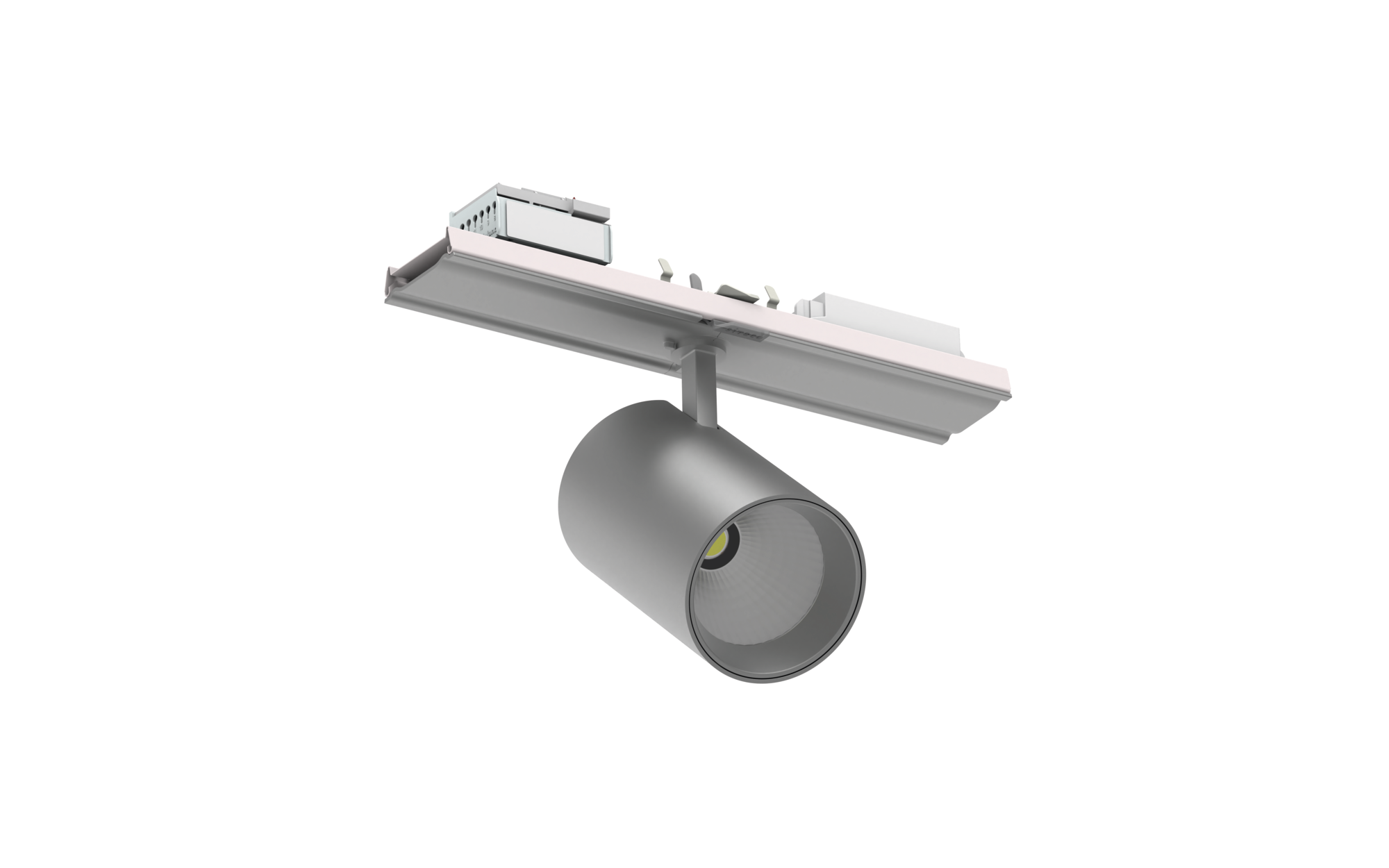

Article directional spotlight
Product name Licross Spot 21
Lamp LED
Rated luminous flux 2820lm
Luminous efficacy 142lm/W
Colour temperature 3000K
Colour rendering CRI > 90
Rated input power 19.8W
Service life 50000h (L90/B10) at AT = 25°C
Protection rating IP20
Impact resistance IK02
Weight 0.8kg

Licross Spot 21, directional spotlight, light control with reflector, of aluminium, optical cover: cover panel, of glass, beam angle: narrow distribution, LED rated luminous flux: 2.820lm, light colour: 930, with plug, 5-pole, with phase selection, mains connection: 220..240V, AC, 50/60Hz, of aluminium, metallic grey (RAL 9006), length: 300mm, diameter: 90mm, decorative ring, of PC, metallic grey (RAL 9006), protection rating (complete): IP20, insulation class (complete): insulation class II (safety insulation), certification: CE, impact resistance: IK02, permissible ambient temperature for indoor applications: -20..+25°C, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type directional spotlight
Product name Licross Spot 21
Order No. 51SL62DB11B2C

Lighting technology

Light control reflector of aluminium
Cover cover panel
Beam angle narrow distribution
Symmetry symmetric

Lamps

Lamps with LED
Rated luminous flux 2820lm
Luminous efficacy 142lm/W
Colour temperature 3000K
Colour rendering index CRI > 90
Light colour 930
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 2 SDCM (initial)
Rated input power 19.8W
Supplement luminous flux adjustable on luminaire in 12 steps (880/.../3790lm), connected load according to luminous flux setting (6/.../28.1W)

Operating device

Control DALI 2, Multilumen

Certificates, Standards

Protection rating IP20
Insulation class insulation class II (safety insulation)
Impact resistance IK02
Temperature range (operation) -20..+25°C
Certification, designation CE

Material, Colour

decorative ring PC, metallic grey (RAL 9006)
Cover cover panel of glass

Mounting

Mounting method, mounting location slip-in mounting, in the Licross trunking rail

Electrical connection

Connection plug, 5-pole, with phase selection
Nominal voltage 220..240V, 50/60Hz, AC

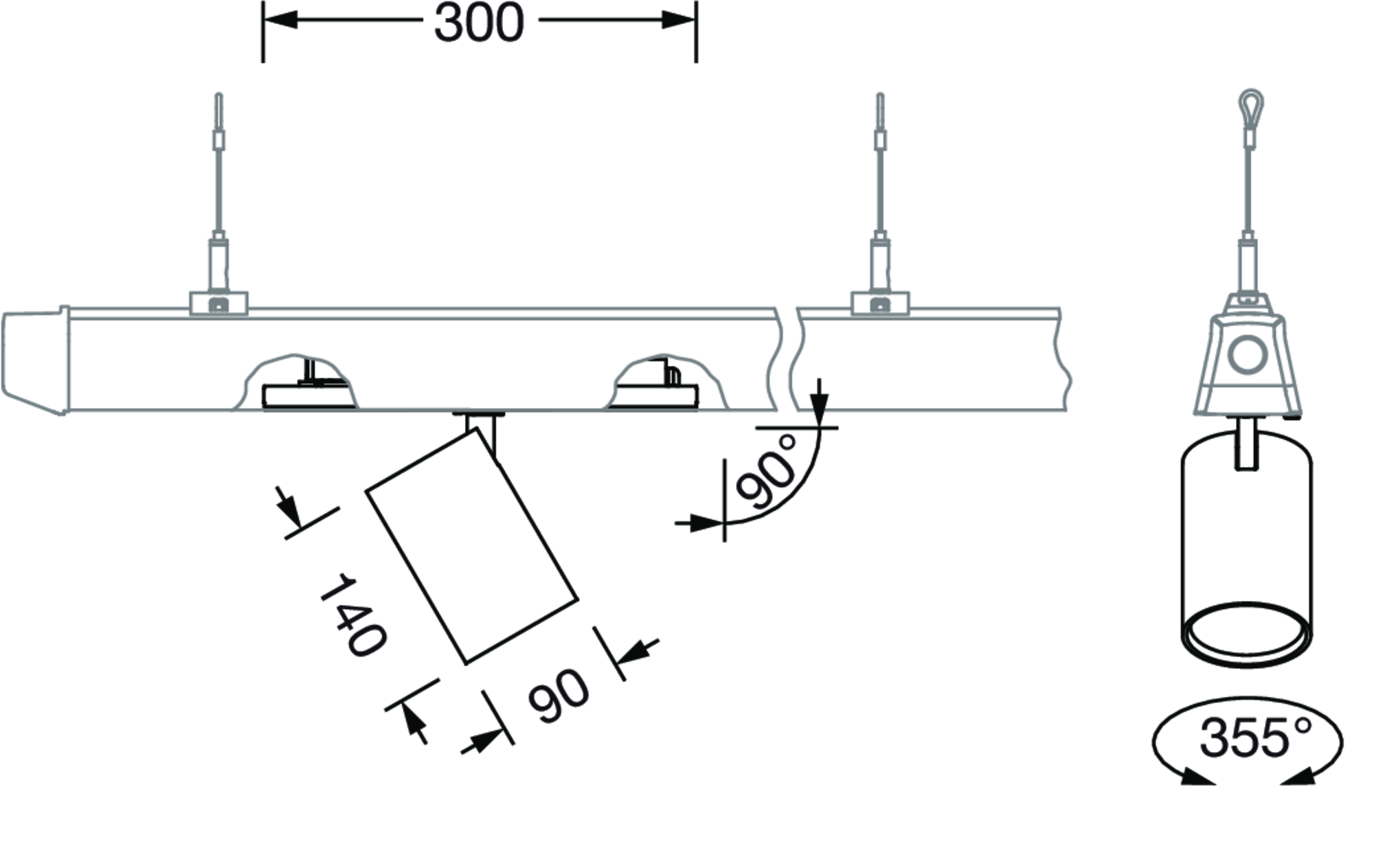

Dimensions, Weight

Length 300mm
Diameter 90mm
Weight 0.8kg

Service life

Rated service life 50000h (L90/B10) at AT = 25°C

Product type
directional spotlight

Product name
Licross Spot 21

Order No.
51SL62DB11B2C

Light control
reflector of aluminium

Cover
cover panel

Beam angle
narrow distribution

Symmetry
symmetric

Lamps
with LED

Rated luminous flux
2820lm

Luminous efficacy
142lm/W

Colour temperature
3000K

Colour rendering index
CRI > 90

Light colour
930

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 2 SDCM (initial)

Rated input power
19.8W

Supplement
luminous flux adjustable on luminaire in 12 steps (880/.../3790lm), connected load according to luminous flux setting (6/.../28.1W)

Control
DALI 2, Multilumen

Protection rating
IP20

Insulation class
insulation class II (safety insulation)

Impact resistance
IK02

Temperature range (operation)
-20..+25°C

Certification, designation
CE

decorative ring
PC, metallic grey (RAL 9006)

Cover
cover panel of glass

Mounting method, mounting location
slip-in mounting, in the Licross trunking rail

Connection
plug, 5-pole, with phase selection

Nominal voltage
220..240V, 50/60Hz, AC

Length
300mm

Diameter
90mm

Weight
0.8kg

Rated service life
50000h (L90/B10) at AT = 25°C

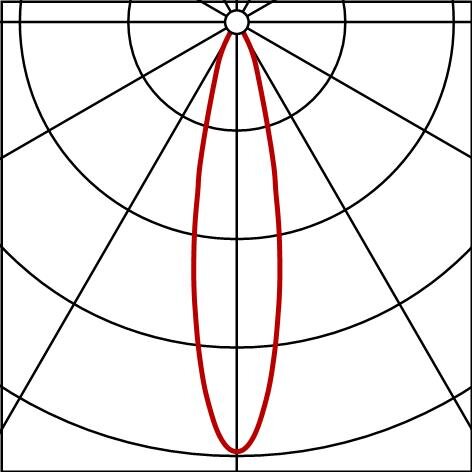

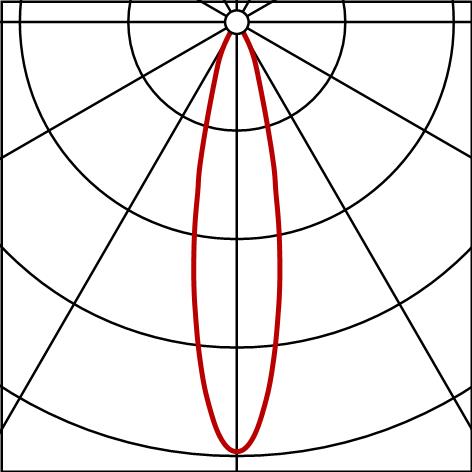

Photometric report / planning data

LicSp21
nrrw,2820lm930,DA2ML,sr
Lamps: LED 3000K / CRI >= 90
Order No.: 51SL62DB11B2C

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
IES
