51SM13DB11D2C

Order No.: 51SM13DB11D2C
Remember articleRemember article

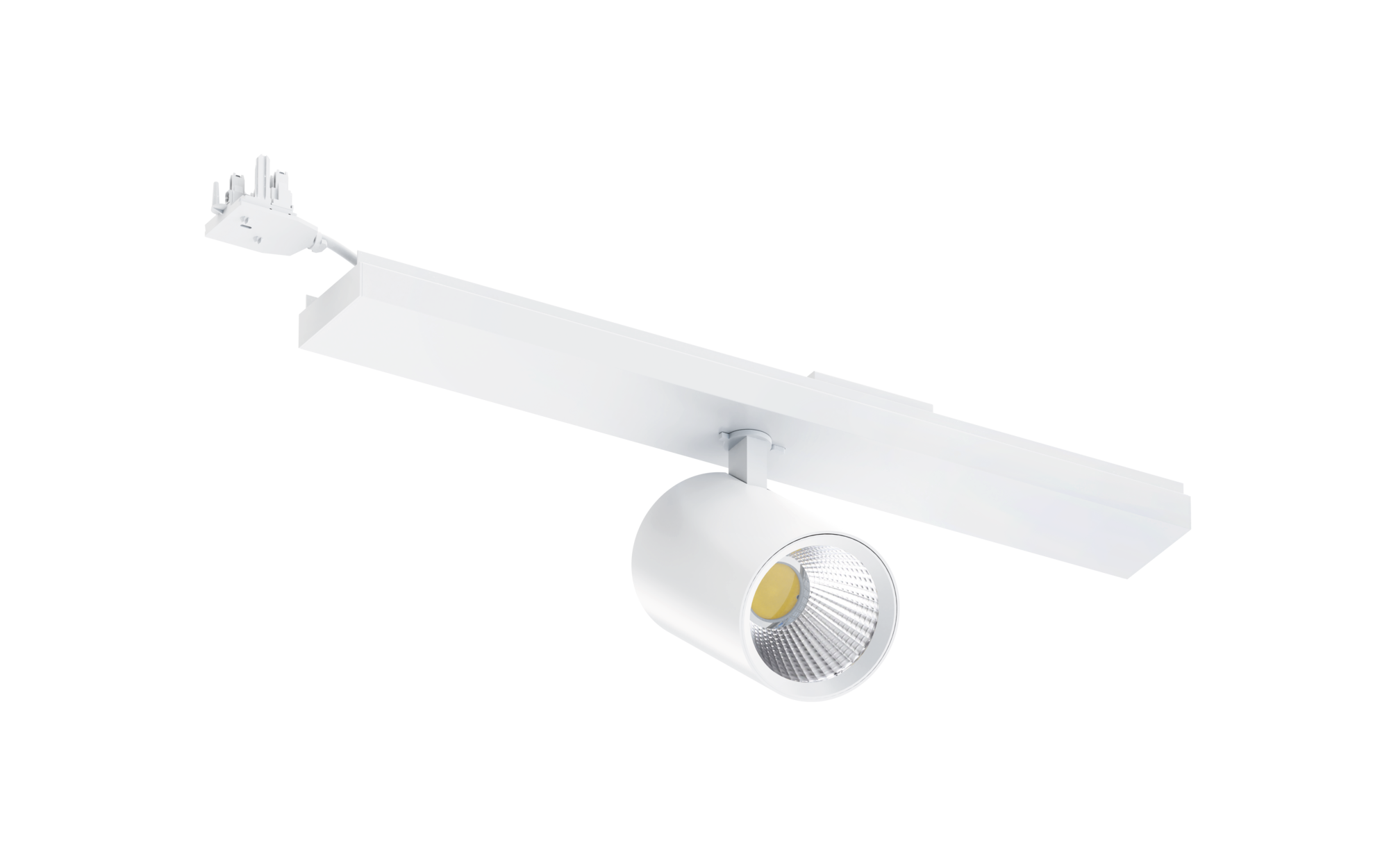

Article directional spotlight
Product name Spot 21
Lamp LED
Rated luminous flux 4170lm
Luminous efficacy 130lm/W
Colour temperature 4000K
Colour rendering CRI > 90
Rated input power 31W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP20
Weight 1.4kg

Spot 21, directional spotlight, light control with lens, of plastic, beam angle: medium distribution, LED rated luminous flux: 4.170lm, light colour: 940, with plug, 5-pole, with phase selection, mains connection: 220..240V, AC, 50/60Hz, of aluminium, traffic white (RAL 9016), diameter: 90mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type directional spotlight
Product name Spot 21
Order No. 51SM13DB11D2C

Lighting technology

Light control lens of plastic
Beam angle medium distribution
Symmetry symmetric

Lamps

Lamps with LED
Rated luminous flux 4170lm
Luminous efficacy 130lm/W
Colour temperature 4000K
Colour rendering index CRI > 90
Light colour 940
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 31W

Operating device

Control DALI 2, Multilumen

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Certification, designation CE

Mounting

Mounting method, mounting location slip-in mounting, in the Modario trunking rail

Electrical connection

Connection plug, 5-pole, with phase selection
Nominal voltage 220..240V, 50/60Hz, AC

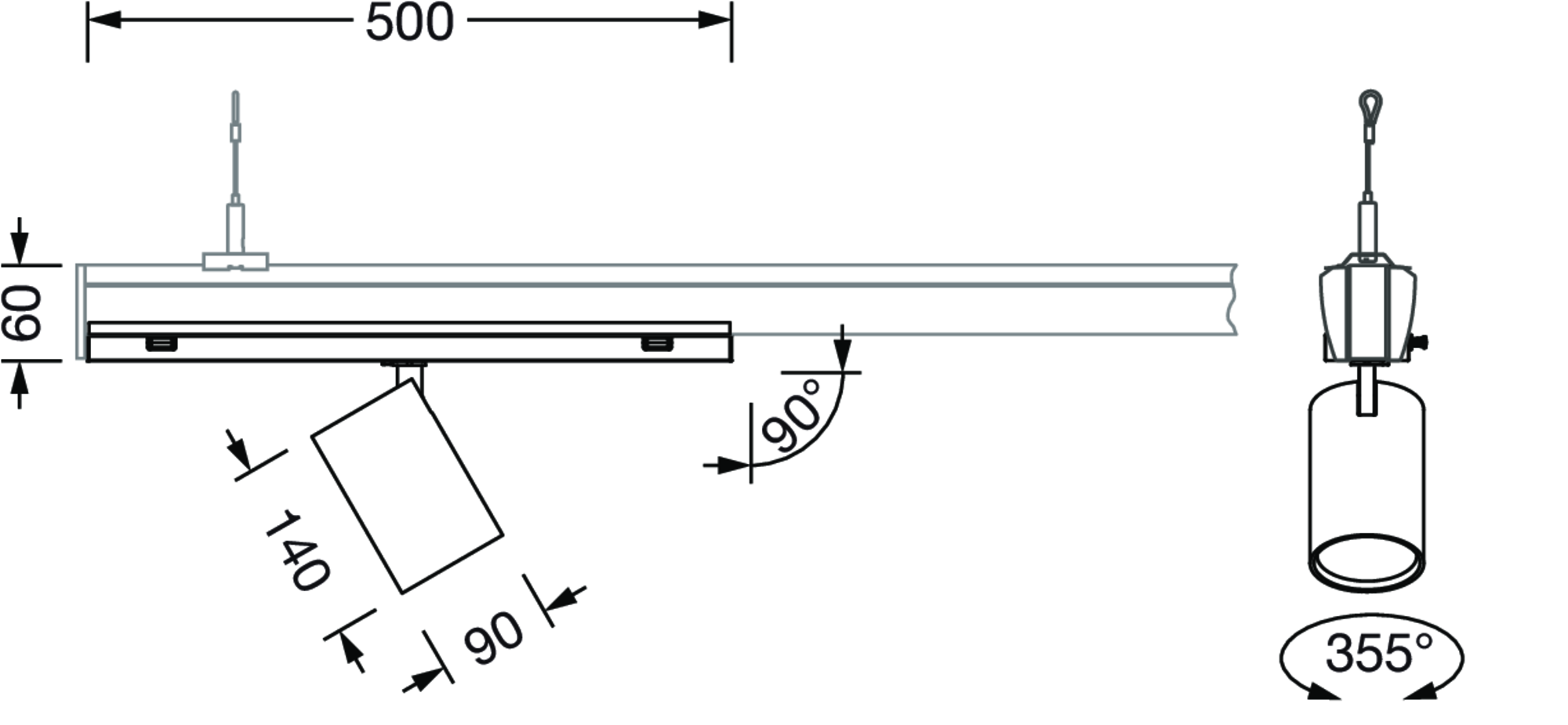

Dimensions, Weight

Diameter 90mm
Weight 1.4kg

Service life

Rated service life 50000h (L80/B50) at AT = 25°C

Product type
directional spotlight

Product name
Spot 21

Order No.
51SM13DB11D2C

Light control
lens of plastic

Beam angle
medium distribution

Symmetry
symmetric

Lamps
with LED

Rated luminous flux
4170lm

Luminous efficacy
130lm/W

Colour temperature
4000K

Colour rendering index
CRI > 90

Light colour
940

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
31W

Control
DALI 2, Multilumen

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Certification, designation
CE

Mounting method, mounting location
slip-in mounting, in the Modario trunking rail

Connection
plug, 5-pole, with phase selection

Nominal voltage
220..240V, 50/60Hz, AC

Diameter
90mm

Weight
1.4kg

Rated service life
50000h (L80/B50) at AT = 25°C

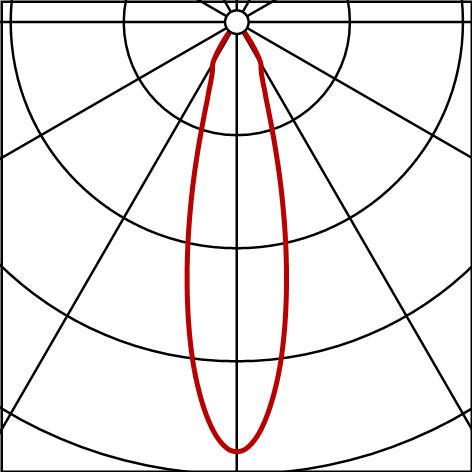

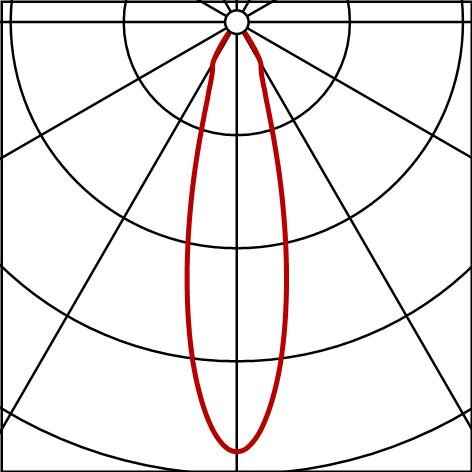

Photometric report / planning data

Spot21
med,4170lm940,DA2ML,90,wh
Lamps: LED 4000K / CRI >= 90
Order No.: 51SM13DB11D2C

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
IES
