Key data

System family DALI-2
Product type sensor

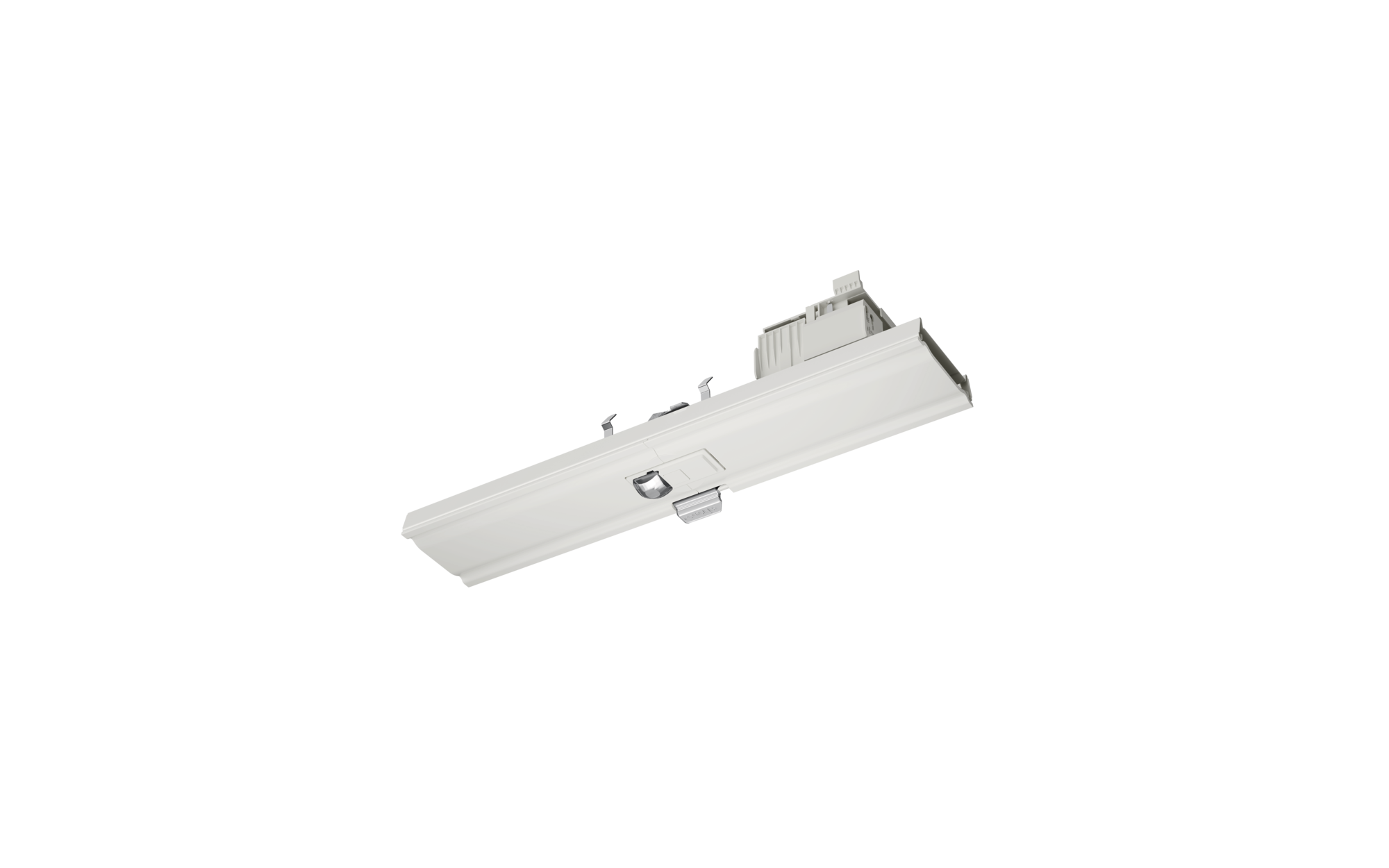

Product name Licross
Order No. 56TL1MDSPC3A

Lamps

Supplement internal wiring halogen-free

Operating device

Control DALI 2, dimmable

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) 0..+40°C
Certification, designation CE, UKCA

Material, Colour

sensor module sheet steel, coil coated, white

Mounting

Mounting method, mounting location recessed, to the Licross trunking rail
Mounting height 2.5..5m
Supplement only suitable for use in indoor areas

Dimensions, Weight

Length 300mm
Width 66mm
Height 71mm
Weight 0.3kg

Inputs

1x PIR movement sensor
Connection PIR sensor (passive-infrared)

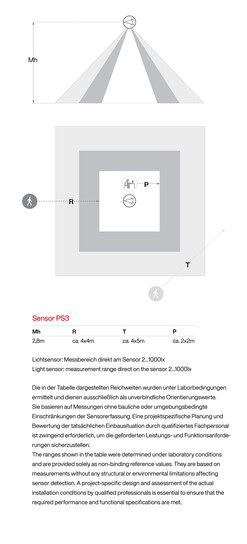

Detection range tangential max. 4x5m
Detection range max. 2x 2m
Feature square detection area

1x light sensor
Illuminance 2..1000lx

Outputs

1x DALI-2
Feature DALI, slave function, DALI current max. 6mA
