5LZ904731A

: 5LZ904731A

Article push button interface
Product name DALI2
Protection rating IP20
Weight 0.1kg

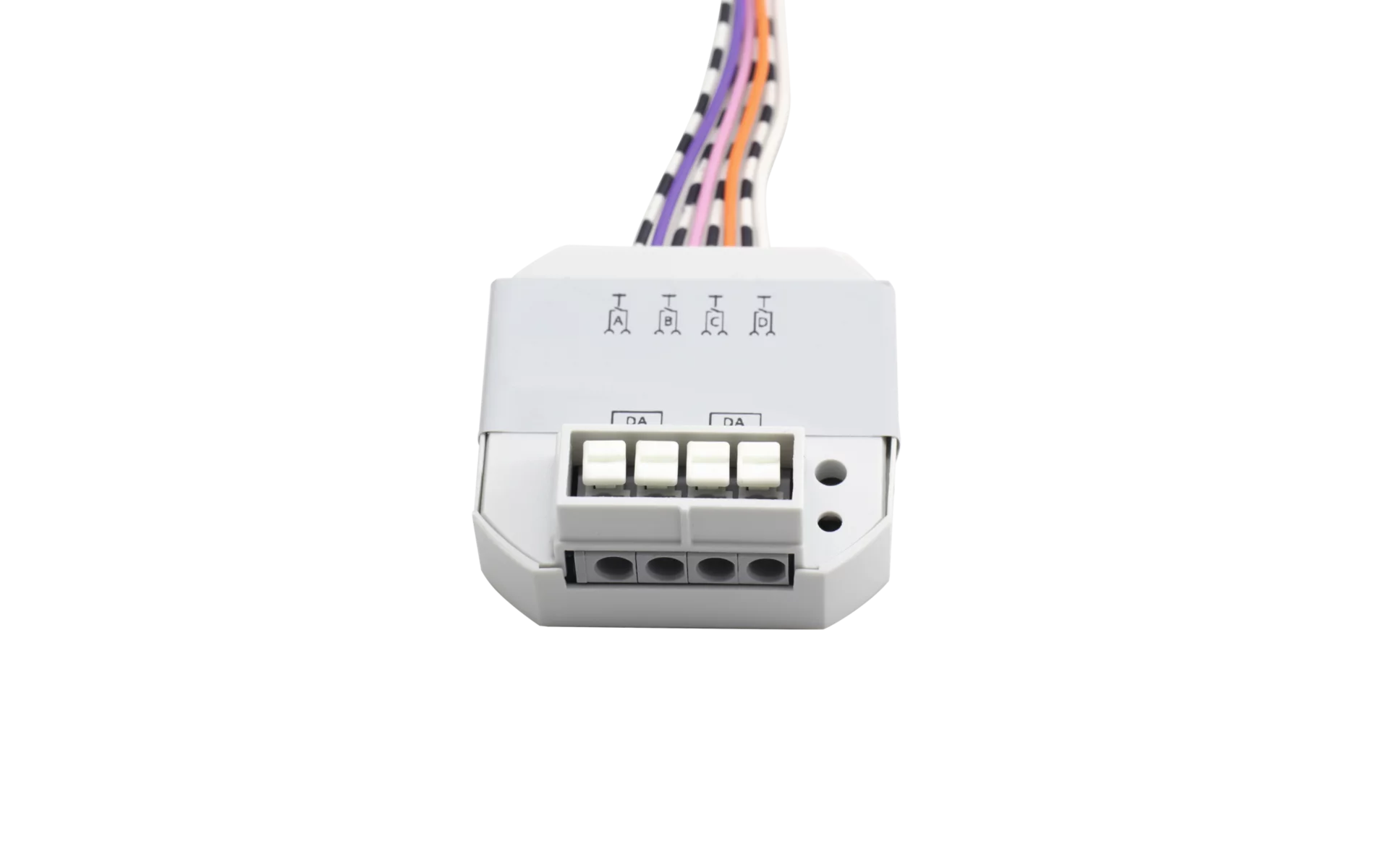

DALI2push button interface, slave, central control - connection to lighting or building management, dimmable, installation type: recessed, installation location: in the switch box, of plastic, protection rating (complete): IP20, certification: CE, 4 x push button input, 1 x DALI-2, packaging unit: 1 piece

Downloads

Key data

System family SITECO Connect 11, SITECO Connect 21
Product type push button interface
Product name DALI2
Order No. 5LZ904731A

Control

Certificates, Standards

Protection rating IP20
Temperature range (operation) 0..+50°C
Certification, designation CE

Material, Colour

housing plastic, grey

Mounting

Mounting method, mounting location recessed, in the switch box
Supplement only suitable for use in indoor areas

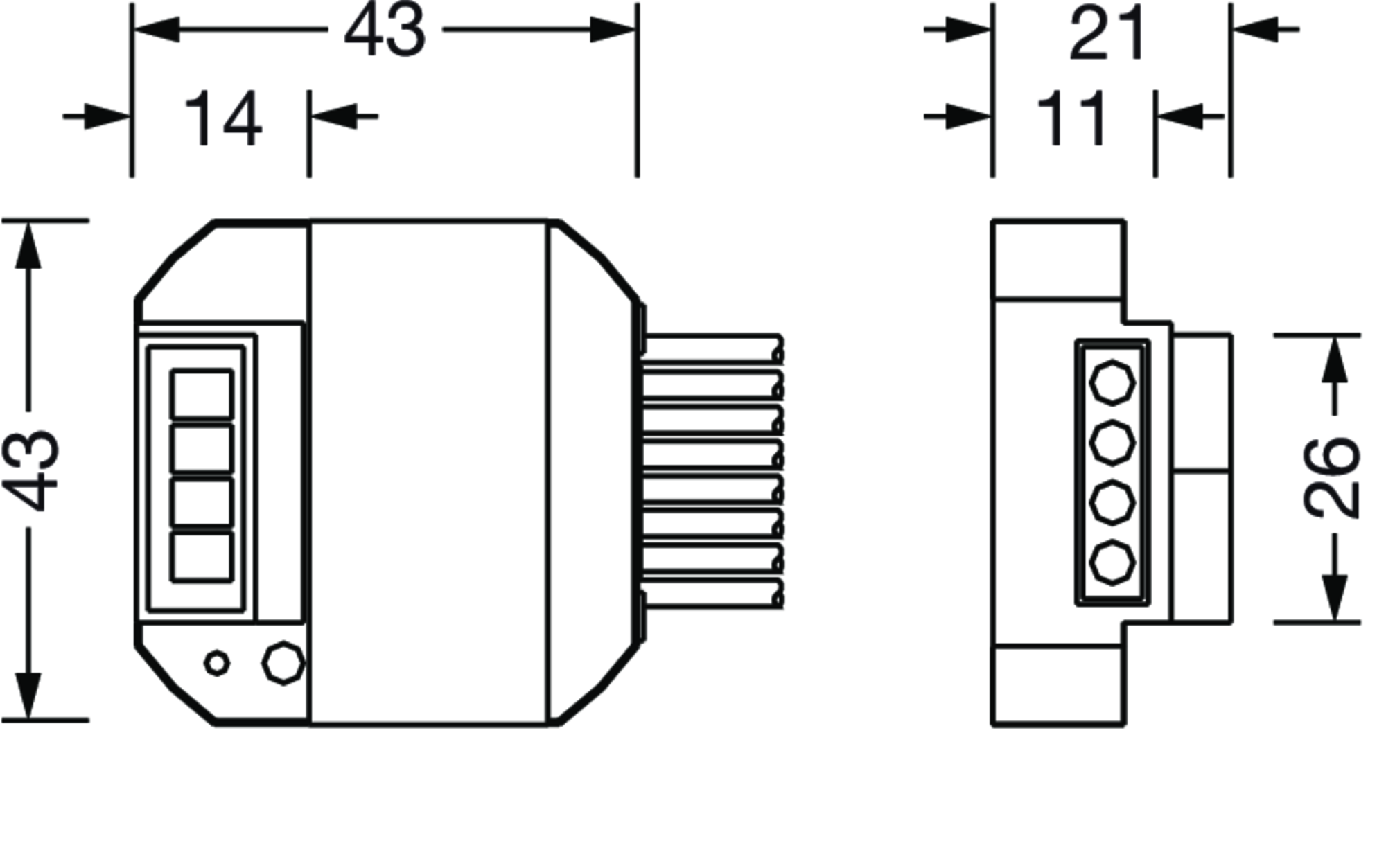

Dimensions, Weight

Length 42mm
Width 42mm
Height 20mm
Weight 0.1kg

Inputs

4x push button input
Connection cable pair (2-pole), A=0.25mm², colour coding of cables, with pre-assembled wire end sleeve
Feature maximum of 4 potential-free push buttons can be connected

Outputs

1x DALI-2
Connection plug-in terminal, 2-pole, max. 2.5mm²
System current 6mA

System family
SITECO Connect 11, SITECO Connect 21

Product type
push button interface

Product name
DALI2

Order No.
5LZ904731A

Protection rating
IP20

Temperature range (operation)
0..+50°C

Certification, designation
CE

housing
plastic, grey

Mounting method, mounting location
recessed, in the switch box

Supplement
only suitable for use in indoor areas

Length
42mm

Width
42mm

Height
20mm

Weight
0.1kg

4x push button input

Connection
cable pair (2-pole), A=0.25mm², colour coding of cables, with pre-assembled wire end sleeve

Feature
maximum of 4 potential-free push buttons can be connected

1x DALI-2

Connection
plug-in terminal, 2-pole, max. 2.5mm²

System current
6mA
