51MQ11HM2L55

: 51MQ11HM2L55

Article office luminaire
Product name Apollon 21 square
Lamp LED
Rated luminous flux 5000lm
Luminous efficacy 163lm/W
Colour temperature 3000/4000K
Colour rendering CRI > 90
Rated input power 31W
Service life 100000h (L80) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 3.1kg

Apollon 21 square, office luminaire, primary light control with lens, of PMMA, primary optical cover: micro prismatic cover, of PMMA, CAT 2 (L= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: lay-in mounting, LED, rated luminous flux: 5.000lm, luminous efficacy: 163lm/W, light colour: 930/940, colour temperature: 3000/4000K, control gear: ON/OFF Multilumen, with terminal, 3-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 31W, suitable for self-contained emergency lighting element 58DB00B013A with integrated self-test function according to EN 60598-2-22, housing, of aluminium, powder-coated, traffic white (RAL 9016), module: M625, length: 620mm, width: 620mm, height: 34mm, housing upper side, of sheet steel, galvanised, protection rating (complete): IP20, protection rating (lamp compartment, on room side): IP54, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, UKCA, impact resistance: IK03, permissible operating ambient temperature: -20..+40°C, standard: EN 60598-2-22, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, packaging unit: 1 piece

Downloads

Key data

Product type office luminaire
Product name Apollon 21 square
Order No. 51MQ11HM2L55

Component 1

Lighting technology
Light control lens of PMMA
Cover micro prismatic cover
Beam angle wide distribution, 90°
Symmetry symmetric

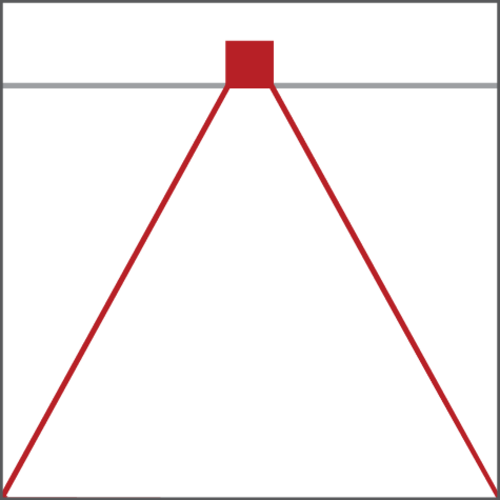

Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps
Lamps with LED
Rated luminous flux 5000lm
Luminous efficacy 163lm/W
Colour temperature 3000/4000K
Colour rendering index CRI > 90
Light colour 930/940
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 31W
Supplement with through-wiring, luminous flux adjustable on luminaire in 13 steps at 4000K (2800/.../6400lm), connected load according to luminous flux setting (17/.../40.4W)

Operating device
Control ON/OFF Multilumen

Component 2

Operating device
Switching method suitable for self-contained emergency lighting element 58DB00B013A with integrated self-test function according to EN 60598-2-22

Certificates, Standards

Protection rating IP20
Protection rating (lamp compartment, on room side) IP54
Insulation class insulation class II (safety insulation)
Impact resistance IK03
Temperature range (operation) -20..+40°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry
Standard EN 60598-2-22
Certification, designation CE, ENEC, UKCA

Material, Colour

housing aluminium, powder-coated, traffic white (RAL 9016)
housing upper side sheet steel, galvanised
Cover micro prismatic cover of PMMA

Mounting

Mounting method, mounting location lay-in mounting, in the ceiling
Arrangement single arrangement
Supplement please order the required mounting accessories for ceiling recessing separately, recessing into cut ceiling apertures only possible with installation frame

Electrical connection

Connection terminal, 3-pole
Nominal voltage 220..240V, 50/60Hz, AC

Dimensions, Weight

Length 620mm
Width 620mm
Height 34mm
Weight 3.1kg

Service life

Rated service life 100000h (L80) at AT = 25°C

Product type
office luminaire

Product name
Apollon 21 square

Order No.
51MQ11HM2L55

Lighting technology

Light control
lens of PMMA

Cover
micro prismatic cover

Beam angle
wide distribution, 90°

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 19

UGR viewing direction along lateral luminaire axis
≤ 19

Lamps

Lamps
with LED

Rated luminous flux
5000lm

Luminous efficacy
163lm/W

Colour temperature
3000/4000K

Colour rendering index
CRI > 90

Light colour
930/940

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
31W

Supplement
with through-wiring, luminous flux adjustable on luminaire in 13 steps at 4000K (2800/.../6400lm), connected load according to luminous flux setting (17/.../40.4W)

Operating device

Control
ON/OFF Multilumen

Operating device

Switching method
suitable for self-contained emergency lighting element 58DB00B013A with integrated self-test function according to EN 60598-2-22

Protection rating
IP20

Protection rating (lamp compartment, on room side)
IP54

Insulation class
insulation class II (safety insulation)

Impact resistance
IK03

Temperature range (operation)
-20..+40°C

Supplement
corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry

Standard
EN 60598-2-22

Certification, designation
CE, ENEC, UKCA

housing
aluminium, powder-coated, traffic white (RAL 9016)

housing upper side
sheet steel, galvanised

Cover
micro prismatic cover of PMMA

Mounting method, mounting location
lay-in mounting, in the ceiling

Arrangement
single arrangement

Supplement
please order the required mounting accessories for ceiling recessing separately, recessing into cut ceiling apertures only possible with installation frame

Connection
terminal, 3-pole

Nominal voltage
220..240V, 50/60Hz, AC

Length
620mm

Width
620mm

Height
34mm

Weight
3.1kg

Rated service life
100000h (L80) at AT = 25°C

Apollon 21 square
office luminaire, traffic white (RAL 9016), ON/OFF Multilumen, 5000lm, 930/940, 620x620mm, for M625, Connection: terminal
: LED 4000K / CRI >= 90, factory setting: colour temperature 4000K
: 51MQ11HM2L55

Apollon 21 square
: LED 3000K / CRI >= 90, individual setting: colour temperature 3000K
: 51MQ11HM2L55
