51MQ11WD2W55

: 51MQ11WD2W55

Article office luminaire
Product name Apollon 21 square
Lamp LED
Rated luminous flux 4900lm
Luminous efficacy 164lm/W
Colour temperature 2700..6500K
Colour rendering CRI > 90
Rated input power 30W
Service life 100000h (L80) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 2.3kg

Apollon 21 square, office luminaire, primary light control with lens, of PMMA, primary optical cover: micro prismatic cover, of PMMA, CAT 2 (L= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: lay-in mounting, LED, rated luminous flux: 4.900lm, luminous efficacy: 164lm/W, light colour: 9tw, colour temperature: 2700..6500K, control gear: DALI 2 DT8, Multilumen, with terminal, 5-pole, mains connection: 220..240V, AC/DC, 0/50..60Hz, rated input power: 30W, housing, of aluminium, powder-coated, traffic white (RAL 9016), module: M625, length: 620mm, width: 620mm, height: 34mm, housing upper side, of sheet steel, powder-coated, protection rating (complete): IP20, protection rating (lamp compartment, on room side): IP54, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, UKCA, impact resistance: IK03, permissible operating ambient temperature: -20..+40°C, standard: EN 60598-2-22, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, packaging unit: 1 piece

Downloads

Key data

Product type office luminaire
Product name Apollon 21 square
Order No. 51MQ11WD2W55

Lighting technology

Light control lens of PMMA
Cover micro prismatic cover

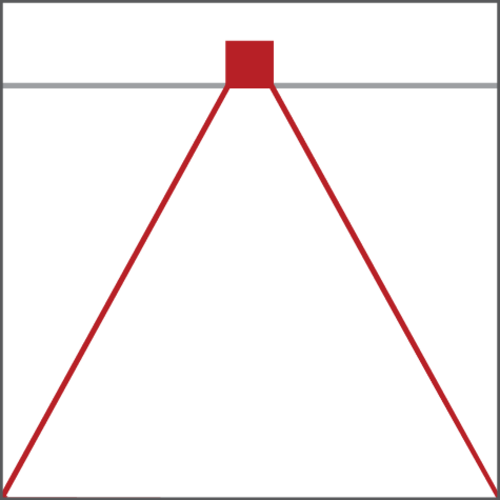

Beam angle wide distribution, 90°
Symmetry symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps

Lamps with LED
Rated luminous flux 4900lm
Luminous efficacy 164lm/W
Colour temperature 2700..6500K
Colour rendering index CRI > 90
Light colour 9tw
Rated input power 30W
Supplement with through-wiring, for central battery installations according to EN 60598-2-22, luminous flux reduced to approx. 15% with DC operation, luminous flux adjustable on luminaire in 10 steps at 4000K (3600/.../6200lm), connected load according to luminous flux setting (22.1/.../39W)

Operating device

Control DALI 2 DT8, Multilumen

Certificates, Standards

Protection rating IP20
Protection rating (lamp compartment, on room side) IP54
Insulation class insulation class II (safety insulation)
Impact resistance IK03
Temperature range (operation) -20..+40°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry
Standard EN 60598-2-22
Certification, designation CE, ENEC, UKCA

Material, Colour

housing aluminium, powder-coated, traffic white (RAL 9016)
housing upper side sheet steel, powder-coated
Cover micro prismatic cover of PMMA

Mounting

Mounting method, mounting location lay-in mounting, in the ceiling
Arrangement single arrangement
Supplement please order the required mounting accessories for ceiling recessing separately, recessing into cut ceiling apertures only possible with installation frame

Electrical connection

Connection terminal, 5-pole
Nominal voltage 220..240V, 0/50..60Hz, AC/DC

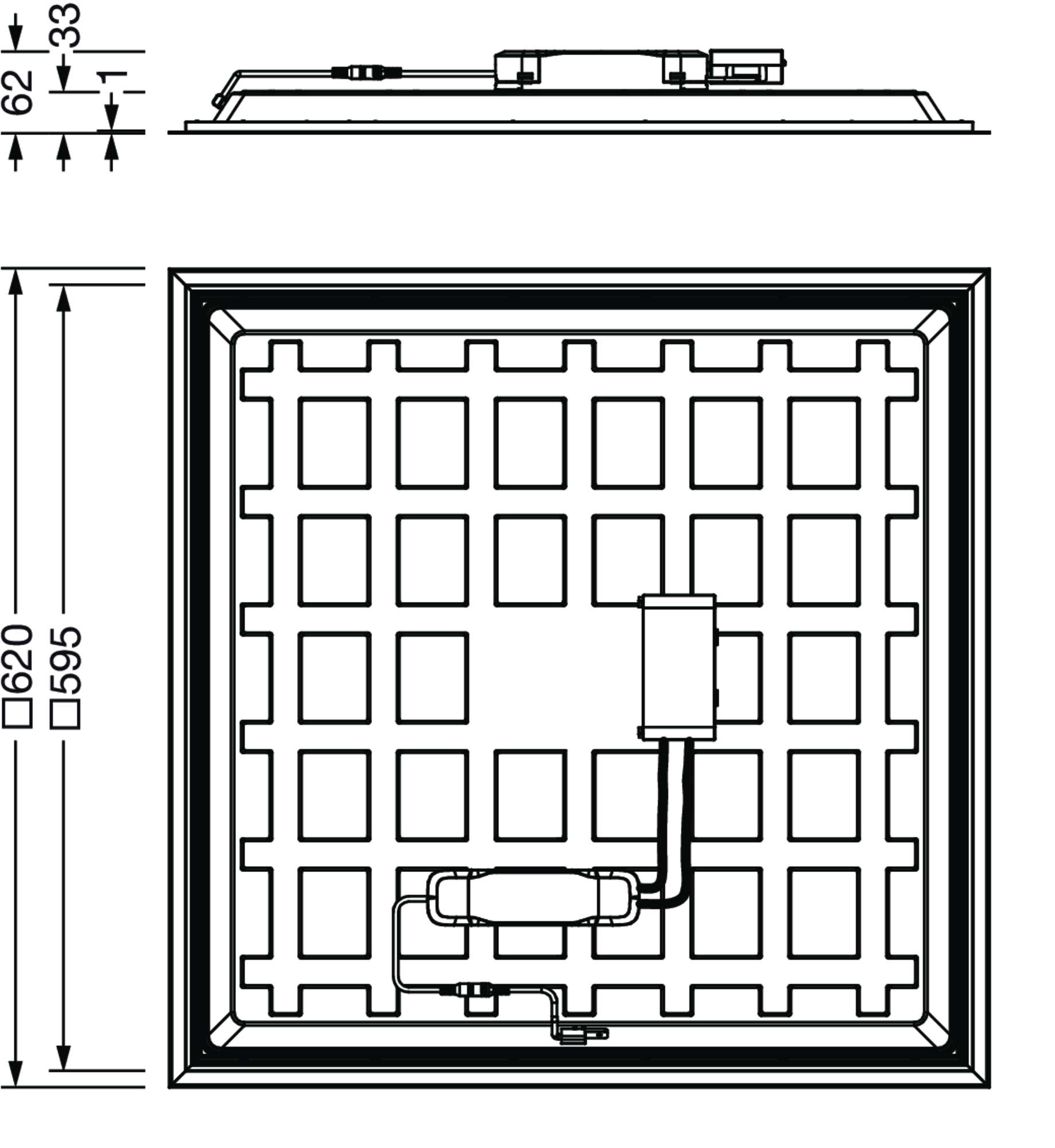

Dimensions, Weight

Length 620mm
Width 620mm
Height 34mm
Weight 2.3kg

Service life

Rated service life 100000h (L80) at AT = 25°C

Product type
office luminaire

Product name
Apollon 21 square

Order No.
51MQ11WD2W55

Light control
lens of PMMA

Cover
micro prismatic cover

Beam angle
wide distribution, 90°

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 19

UGR viewing direction along lateral luminaire axis
≤ 19

Lamps
with LED

Rated luminous flux
4900lm

Luminous efficacy
164lm/W

Colour temperature
2700..6500K

Colour rendering index
CRI > 90

Light colour
9tw

Rated input power
30W

Supplement
with through-wiring, for central battery installations according to EN 60598-2-22, luminous flux reduced to approx. 15% with DC operation, luminous flux adjustable on luminaire in 10 steps at 4000K (3600/.../6200lm), connected load according to luminous flux setting (22.1/.../39W)

Control
DALI 2 DT8, Multilumen

Protection rating
IP20

Protection rating (lamp compartment, on room side)
IP54

Insulation class
insulation class II (safety insulation)

Impact resistance
IK03

Temperature range (operation)
-20..+40°C

Supplement
corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry

Standard
EN 60598-2-22

Certification, designation
CE, ENEC, UKCA

housing
aluminium, powder-coated, traffic white (RAL 9016)

housing upper side
sheet steel, powder-coated

Cover
micro prismatic cover of PMMA

Mounting method, mounting location
lay-in mounting, in the ceiling

Arrangement
single arrangement

Supplement
please order the required mounting accessories for ceiling recessing separately, recessing into cut ceiling apertures only possible with installation frame

Connection
terminal, 5-pole

Nominal voltage
220..240V, 0/50..60Hz, AC/DC

Length
620mm

Width
620mm

Height
34mm

Weight
2.3kg

Rated service life
100000h (L80) at AT = 25°C

Apollon 21 square
office luminaire, traffic white (RAL 9016), DALI 2 DT8, Multilumen, 4900lm, 9tw, 620x620mm, for M625, Connection: terminal

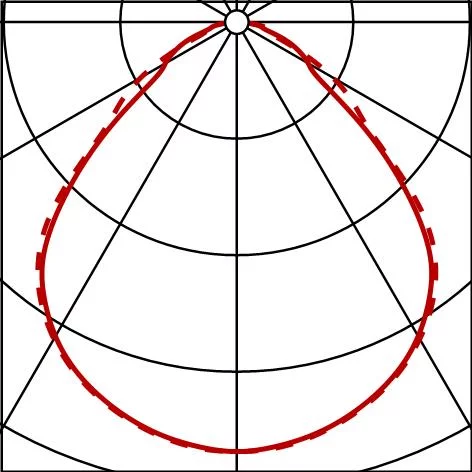

: LED 4000K / CRI >= 90, factory setting: colour temperature 4000K
: 51MQ11WD2W55

Apollon 21 square

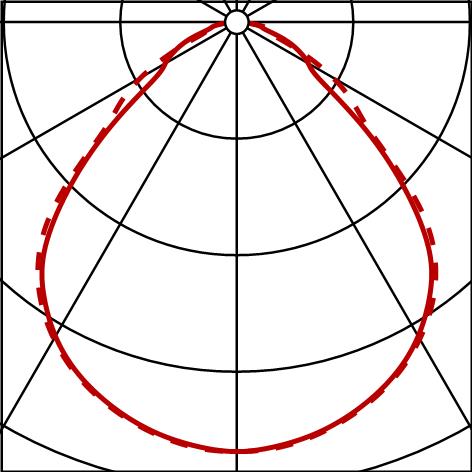

: LED 6500K / CRI >= 90, individual setting: colour temperature 6500K
: 51MQ11WD2W55

Apollon 21 square
: LED 2700K / CRI >= 90, individual setting: colour temperature 2700K
: 51MQ11WD2W55
