59MQ11005021

: 59MQ11005021

Article ceiling recessing frame
Product name Apollon
Weight 0.5kg

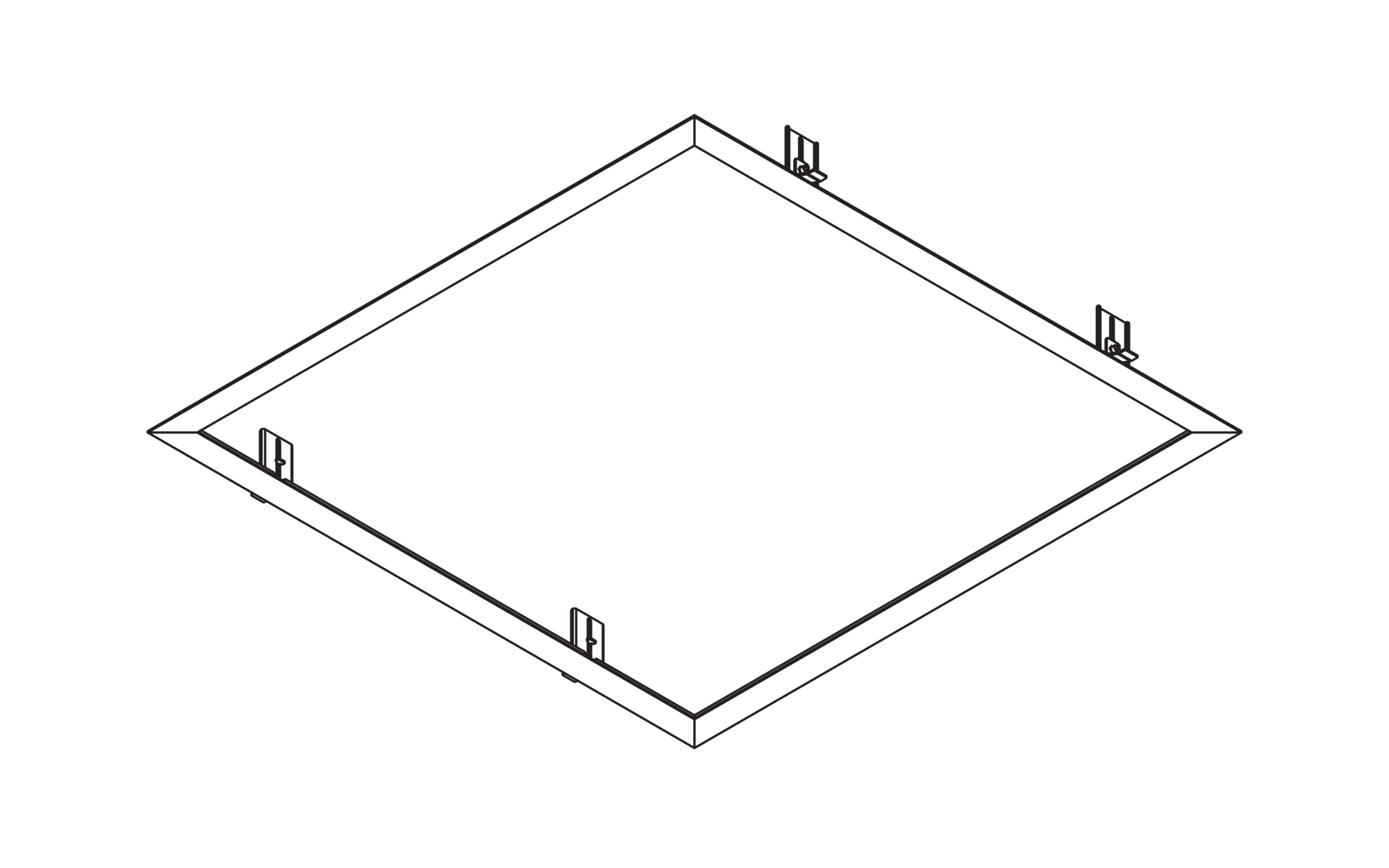

Apollon, ceiling recessing frame, installation type: recessed, mounting frame, of aluminium, traffic white (RAL 9016), length: 662mm, width: 662mm, height: 58mm, clamping range: 1..40mm, packaging unit: 1 piece

Downloads

Key data

Product type ceiling recessing frame
Product name Apollon
Order No. 59MQ11005021

Material, Colour

mounting frame aluminium, traffic white (RAL 9016)

Mounting

Mounting method, mounting location recessed, in the ceiling
Clamping range 1..40mm
Supplement for cut ceiling apertures

Dimensions, Weight

Length 662mm
Width 662mm
Height 58mm
Weight 0.5kg
Supplement for luminaire M625

Product type
ceiling recessing frame

Product name
Apollon

Order No.
59MQ11005021

mounting frame
aluminium, traffic white (RAL 9016)

Mounting method, mounting location
recessed, in the ceiling

Clamping range
1..40mm

Supplement
for cut ceiling apertures

Length
662mm

Width
662mm

Height
58mm

Weight
0.5kg

Supplement
for luminaire M625
