51DB14MF15B1D

: 51DB14MF15B1D

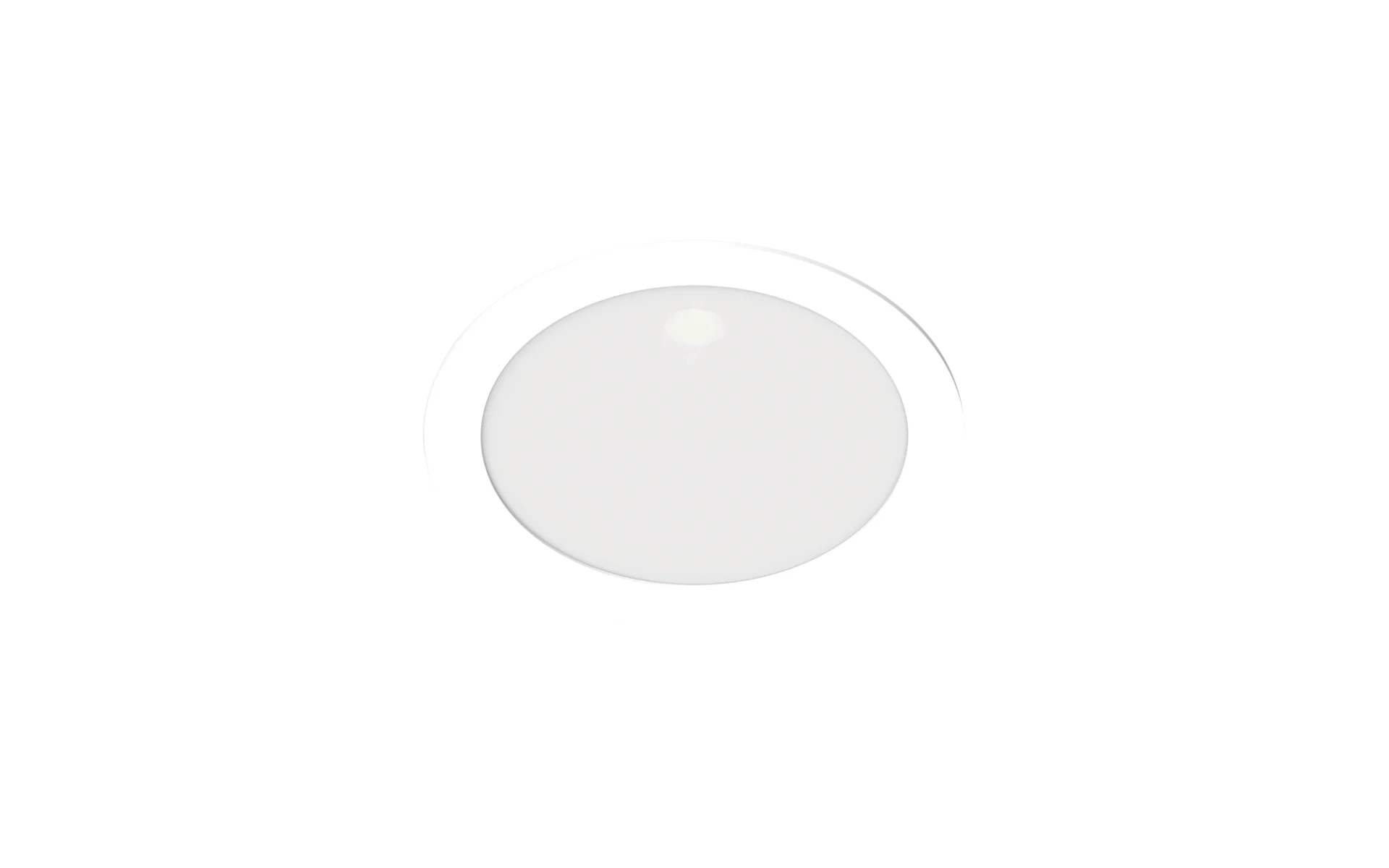

Article downlight
Product name Lunis 21 XL
Lamp LED
Rated luminous flux 2100lm
Luminous efficacy 140lm/W
Colour temperature 3000K
Colour rendering CRI > 90
Rated input power 15.1W
Service life 50000h (L90/B10) at AT = 25°C, 100000h (L80/B10) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 1.0kg

Lunis 21 XL, downlight, opal, beam angle: extremely wide distribution, light emission: direct distribution, LED rated luminous flux: 1.860/.../3.600lm, factory setting: 2.120lm, light colour: 930, colour temperature: 3000K, colour rendering: CRI > 90, with terminal, 3-pole, mains connection: 220..240V, AC/DC, 0/50..60Hz, rated input power: 13,3/.../26,4W, factory setting: 15,1W, luminous flux at DC operation 100%, with through-wiring, housing, round, of diecast aluminium, powder-coated, traffic white (RAL 9016), diameter: 230mm, clamping range: 1..40mm, protection rating (complete): IP20, protection rating (on room side): IP54, insulation class (complete): insulation class II (safety insulation), certification: CE, impact resistance: IK03, permissible ambient temperature for indoor applications: -20..+40°C, packaging unit: 1 piece

Downloads

Key data

Product type downlight
Product name Lunis 21 XL
Order No. 51DB14MF15B1D

Lighting technology

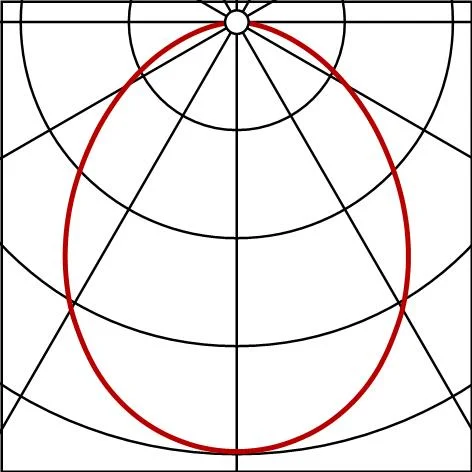

Beam angle extremely wide distribution
Light emission direct distribution

Lamps

Lamps with LED
Rated luminous flux 2100lm
Luminous efficacy 140lm/W
Colour temperature 3000K
Colour rendering index CRI > 90
Light colour 930
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 15.1W
Supplement with through-wiring, luminous flux at DC operation 100%

Operating device

Control ON/OFF Multilumen

Certificates, Standards

Protection rating IP20
Protection rating (on room side) IP54
Insulation class insulation class II (safety insulation)
Impact resistance IK03
Temperature range (operation) -20..+40°C
Certification, designation CE

Material, Colour

housing diecast aluminium, powder-coated, traffic white (RAL 9016), round

Mounting

Mounting method, mounting location recessed, in the ceiling
Ø of ceiling cut-out 200mm
Clamping range 1..40mm
Arrangement single arrangement

Electrical connection

Connection terminal, 3-pole
Nominal voltage 220..240V, 0/50..60Hz, AC/DC

Dimensions, Weight

Diameter 230mm
Height 77mm
Weight 1.0kg

Service life

Rated service life 100000h (L80/B10) at AT = 25°C, 50000h (L90/B10) at AT = 25°C

Product type
downlight

Product name
Lunis 21 XL

Order No.
51DB14MF15B1D

Beam angle
extremely wide distribution

Light emission
direct distribution

Lamps
with LED

Rated luminous flux
2100lm

Luminous efficacy
140lm/W

Colour temperature
3000K

Colour rendering index
CRI > 90

Light colour
930

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
15.1W

Supplement
with through-wiring, luminous flux at DC operation 100%

Control
ON/OFF Multilumen

Protection rating
IP20

Protection rating (on room side)
IP54

Insulation class
insulation class II (safety insulation)

Impact resistance
IK03

Temperature range (operation)
-20..+40°C

Certification, designation
CE

housing
diecast aluminium, powder-coated, traffic white (RAL 9016), round

Mounting method, mounting location
recessed, in the ceiling

Ø of ceiling cut-out
200mm

Clamping range
1..40mm

Arrangement
single arrangement

Connection
terminal, 3-pole

Nominal voltage
220..240V, 0/50..60Hz, AC/DC

Diameter
230mm

Height
77mm

Weight
1.0kg

Rated service life
100000h (L80/B10) at AT = 25°C, 50000h (L90/B10) at AT = 25°C

Lunis 21
LED, opal, direct extremely wide distribution, single arrangement, recessed, in the ceiling, ø= 230mm
: LED 3000K / CRI >= 90
: 51DB14MF15B1D
