Article downlight
Product name Lunis 21 M
Lamp LED
Rated luminous flux 1500lm
Luminous efficacy 134lm/W
Colour temperature 3000K
Colour rendering CRI > 90
Rated input power 11.6W
Service life 50000h (L90/B10) at AT = 25°C, 100000h (L80/B10) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 0.4kg

Lunis 21 M, downlight, light control with lens, of PMMA, anti glare with reflector, beam angle: ellipsoid distribution, light emission: direct distribution, LED rated luminous flux: 800/.../2.170lm, factory setting: 1.520lm, light colour: 930, colour temperature: 3000K, colour rendering: CRI > 90, with terminal, 3-pole, mains connection: 220..240V, AC/DC, 0/50..60Hz, rated input power: 5,7/.../17,4W, factory setting: 11,4W, luminous flux at DC operation 100%, with through-wiring, housing, round, of diecast aluminium, powder-coated, jet black (RAL 9005), diameter: 116mm, clamping range: 1..40mm, protection rating (complete): IP20, protection rating (on room side): IP54, insulation class (complete): insulation class II (safety insulation), certification: CE, impact resistance: IK03, permissible ambient temperature for indoor applications: -20..+30°C, packaging unit: 1 piece

Downloads

Key data

Product type downlight
Product name Lunis 21 M
Order No. 51DB36MC13B1D

Lighting technology

Light control lens of PMMA
Glare reduction reflector

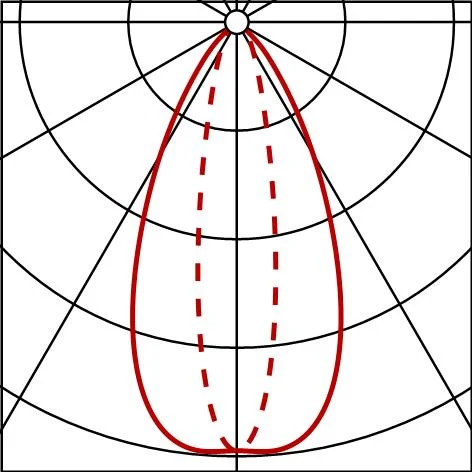

Beam angle ellipsoid distribution
Symmetry symmetric
Light emission direct distribution

Lamps

Lamps with LED
Rated luminous flux 1500lm
Luminous efficacy 134lm/W
Colour temperature 3000K
Colour rendering index CRI > 90
Light colour 930
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 11.6W
Supplement with through-wiring, luminous flux at DC operation 100%

Operating device

Control ON/OFF Multilumen

Certificates, Standards

Protection rating IP20
Protection rating (on room side) IP54
Insulation class insulation class II (safety insulation)
Impact resistance IK03
Temperature range (operation) -20..+30°C
Certification, designation CE

Material, Colour

housing diecast aluminium, powder-coated, jet black (RAL 9005), round

Mounting

Mounting method, mounting location recessed, in the ceiling
Ø of ceiling cut-out 100mm
Clamping range 1..40mm
Arrangement single arrangement

Electrical connection

Connection terminal, 3-pole
Nominal voltage 220..240V, 0/50..60Hz, AC/DC

Dimensions, Weight

Diameter 116mm
Height 53mm
Weight 0.4kg

Service life

Rated service life 100000h (L80/B10) at AT = 25°C, 50000h (L90/B10) at AT = 25°C

Product type
downlight

Product name
Lunis 21 M

Order No.
51DB36MC13B1D

Light control
lens of PMMA

Glare reduction
reflector

Beam angle
ellipsoid distribution

Symmetry
symmetric

Light emission
direct distribution

Lamps
with LED

Rated luminous flux
1500lm

Luminous efficacy
134lm/W

Colour temperature
3000K

Colour rendering index
CRI > 90

Light colour
930

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
11.6W

Supplement
with through-wiring, luminous flux at DC operation 100%

Control
ON/OFF Multilumen

Protection rating
IP20

Protection rating (on room side)
IP54

Insulation class
insulation class II (safety insulation)

Impact resistance
IK03

Temperature range (operation)
-20..+30°C

Certification, designation
CE

housing
diecast aluminium, powder-coated, jet black (RAL 9005), round

Mounting method, mounting location
recessed, in the ceiling

Ø of ceiling cut-out
100mm

Clamping range
1..40mm

Arrangement
single arrangement

Connection
terminal, 3-pole

Nominal voltage
220..240V, 0/50..60Hz, AC/DC

Diameter
116mm

Height
53mm

Weight
0.4kg

Rated service life
100000h (L80/B10) at AT = 25°C, 50000h (L90/B10) at AT = 25°C

Lunis 21
LED, lens, PMMA, reflector, direct symmetric elliptical distribution, single arrangement, recessed, in the ceiling, ø= 116mm
