51TD1BDN68XG3S

Article luminaire insert

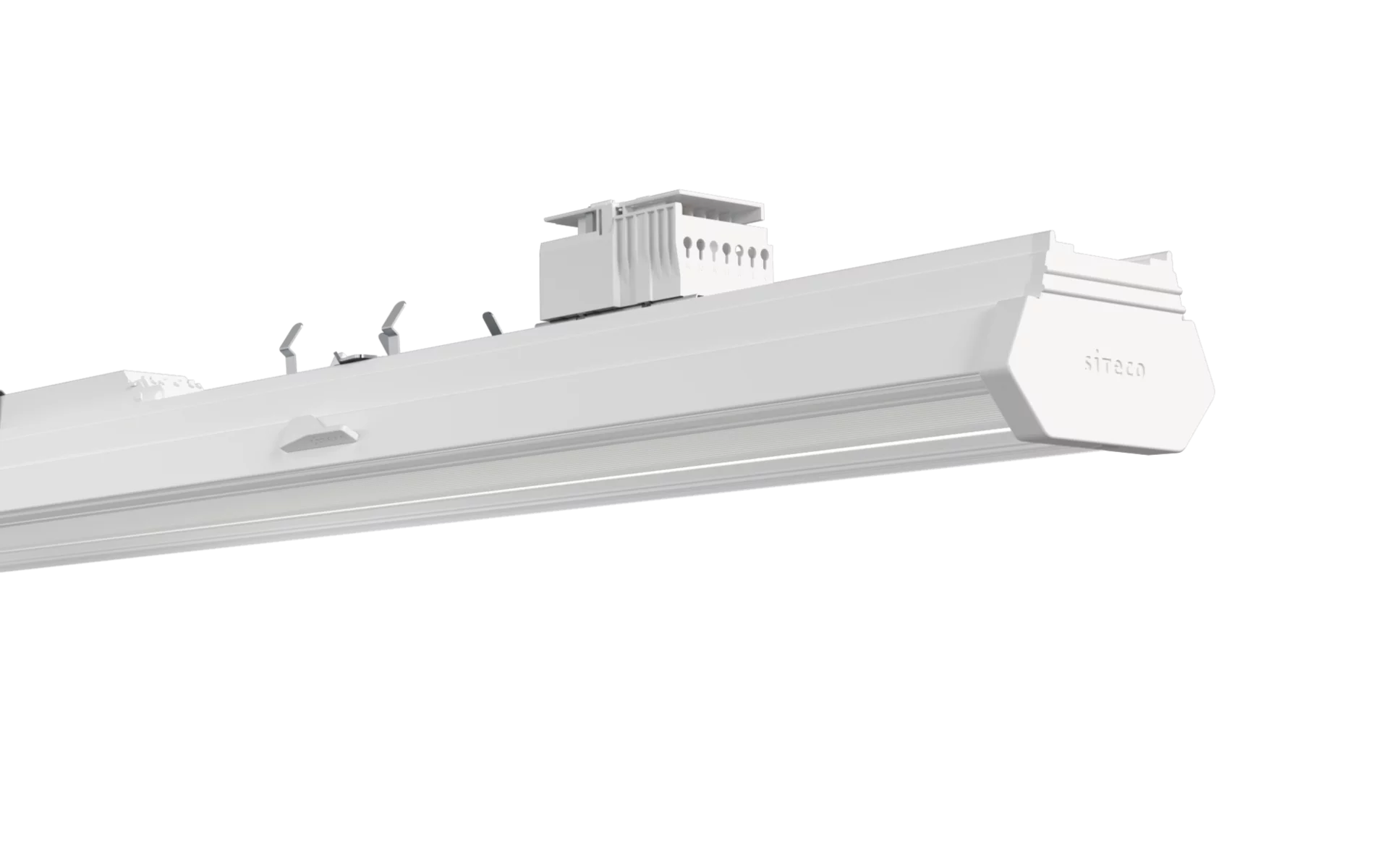

Product name Licross 11 Protected MO
Lamp LED
Rated luminous flux 8310lm
Luminous efficacy 151lm/W
Colour temperature 6500K
Colour rendering CRI > 80
Rated input power 55W
Service life 100000h (L90) at AT = ta max, 100000h (L95) at AT = 25°C
Protection rating IP54
Impact resistance IK06
Weight 2.9kg

Licross 11 Protected MO, luminaire insert, of sheet steel, galvanised, coil coated, white, length: 1.500mm, width: 90mm, height: 101mm, LED rated luminous flux: 8.310lm, light colour: 865, SDCM (Standard Deviation of Colour Matching)MacAdam ≤ 2 SDCM (initial), control gear: DALI 2 (for two DALI lines), with plug, 6-pole, with phase selection, for trunking rail, 14-core, mains connection: 220..240V, AC, 50/60Hz, rated input power: 55W, for trunking rail, 14-core, internal wiring halogen-free, for emergency light function, converter,control gear: single battery element, battery: LiFePO4, 9Ah, primary optical cover: cover, of PMMA, light emission: direct distribution, primary light characteristic: symmetric, protection rating (complete): IP54, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, protection symbol: D if used in an environment with non-conductive dust loads with corresponding accessories, impact resistance: IK06, permissible ambient temperature for indoor applications: +5..+35°C, standard: EN 60598-2-22EPBD ready: DALI 2 ECG, certified according to IEC62386, parts 251 (Luminaire Data), 252 (Energy Data), 253 (Diagnostics & Maintenance Data), corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, LABS conformity tested according to VDMA 24364:2018-05, The light source and the operating device comply with the requirements of the Ecodesign Regulation (EU) 2019/2020 and are replaceable in accordance with this regulation, packaging unit: 1 piece

show moreshow less

Downloads

Key data

Product type luminaire insert
Product name Licross 11 Protected MO
Order No. 51TD1BDN68XG3S

Component 1

Lighting technology
Cover cover

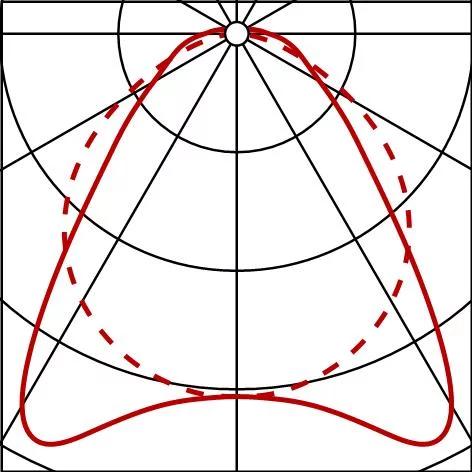

Beam angle wide distribution
Symmetry symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 25
UGR viewing direction along lateral luminaire axis ≤ 25

Lamps
Lamps with LED
Rated luminous flux 8310lm
Luminous efficacy 151lm/W
Colour temperature 6500K
Colour rendering index CRI > 80
Light colour 865
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 2 SDCM (initial)
Rated input power 55W
Supplement for emergency light function, internal wiring halogen-free, for trunking rail, 14-core

Operating device
Control DALI 2 (for two DALI lines)

Component 2

Lamps
Supplement with self-test function according to EN 60598-2-22, 2-rod battery, charging phase on R (wire number 6)

Operating device
Control gear single battery element
Battery LiFePO4
Nominal operating time 3h

Certificates, Standards

Protection rating IP54
Insulation class insulation class I (protective earthing)
Impact resistance IK06
Protection symbol D if used in an environment with non-conductive dust loads with corresponding accessories
Temperature range (operation) +5..+35°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, LABS conformity tested according to VDMA 24364:2018-05
Standard EN 60598-2-22, EPBD ready: DALI 2 ECG, certified according to IEC62386, parts 251 (Luminaire Data), 252 (Energy Data), 253 (Diagnostics & Maintenance Data)
Certification, designation CE, UKCA

Material, Colour

Licross LED insert sheet steel, galvanised, coil coated, white
Cover cover of PMMA

Mounting

Mounting method, mounting location slip-in mounting, in the Licross trunking rail
Arrangement single/continuous arrangement
Supplement only suitable for use in indoor areas

Electrical connection

Connection plug, 6-pole, with phase selection, for trunking rail, 14-core
Nominal voltage 220..240V, 50/60Hz, AC

Dimensions, Weight

Length 1500mm
Width 90mm
Height 101mm
Weight 2.9kg

Service life

Rated service life 100000h (L95) at AT = 25°C, 100000h (L90) at AT = ta max

Key data

Product type
luminaire insert

Product name
Licross 11 Protected MO

Order No.
51TD1BDN68XG3S

Component 1

Lighting technology

Cover
cover

Beam angle
wide distribution

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 25

UGR viewing direction along lateral luminaire axis
≤ 25

Lamps

Lamps
with LED

Rated luminous flux
8310lm

Luminous efficacy
151lm/W

Colour temperature
6500K

Colour rendering index
CRI > 80

Light colour
865

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 2 SDCM (initial)

Rated input power
55W

Supplement
for emergency light function, internal wiring halogen-free, for trunking rail, 14-core

Operating device

Control
DALI 2 (for two DALI lines)

Component 2

Lamps

Supplement
with self-test function according to EN 60598-2-22, 2-rod battery, charging phase on R (wire number 6)

Operating device

Control gear
single battery element

Battery
LiFePO4

Nominal operating time
3h

Certificates, Standards

Protection rating
IP54

Insulation class
insulation class I (protective earthing)

Impact resistance
IK06

Protection symbol
D if used in an environment with non-conductive dust loads with corresponding accessories

Temperature range (operation)
+5..+35°C

Supplement
corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, LABS conformity tested according to VDMA 24364:2018-05

Standard
EN 60598-2-22, EPBD ready: DALI 2 ECG, certified according to IEC62386, parts 251 (Luminaire Data), 252 (Energy Data), 253 (Diagnostics & Maintenance Data)

Certification, designation
CE, UKCA

Material, Colour

Licross LED insert
sheet steel, galvanised, coil coated, white

Cover
cover of PMMA

Mounting

Mounting method, mounting location
slip-in mounting, in the Licross trunking rail

Arrangement
single/continuous arrangement

Supplement
only suitable for use in indoor areas

Electrical connection

Connection
plug, 6-pole, with phase selection, for trunking rail, 14-core

Nominal voltage
220..240V, 50/60Hz, AC

Dimensions, Weight

Length
1500mm

Width
90mm

Height
101mm

Weight
2.9kg

Service life

Rated service life
100000h (L95) at AT = 25°C, 100000h (L90) at AT = ta max
