5LZ930302

: 5LZ930302

Article switch
Product name SITECO Connect 11
Protection rating IP20
Weight 0.3kg

SITECO Connect 11, switch, installation type: recessed, with terminal, 3-pole, max. 1.5mm², mains connection: 24V, DC, housing, silver, length: 39mm, width: 73mm, height: 100mm, Switch, central control - connection to lighting or building management, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, permissible operating ambient temperature: 0..+55°C, packaging unit: 1 piece

Downloads

Key data

System family SITECO Connect 11
Product type switch
Product name SITECO Connect 11
Order No. 5LZ930302

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) 0..+55°C
Certification, designation CE

Material, Colour

housing silver

Mounting

Mounting method, mounting location recessed, in an electrical distributor

Electrical connection

Connection terminal, 3-pole, max. 1.5mm²
Nominal voltage 24V, DC

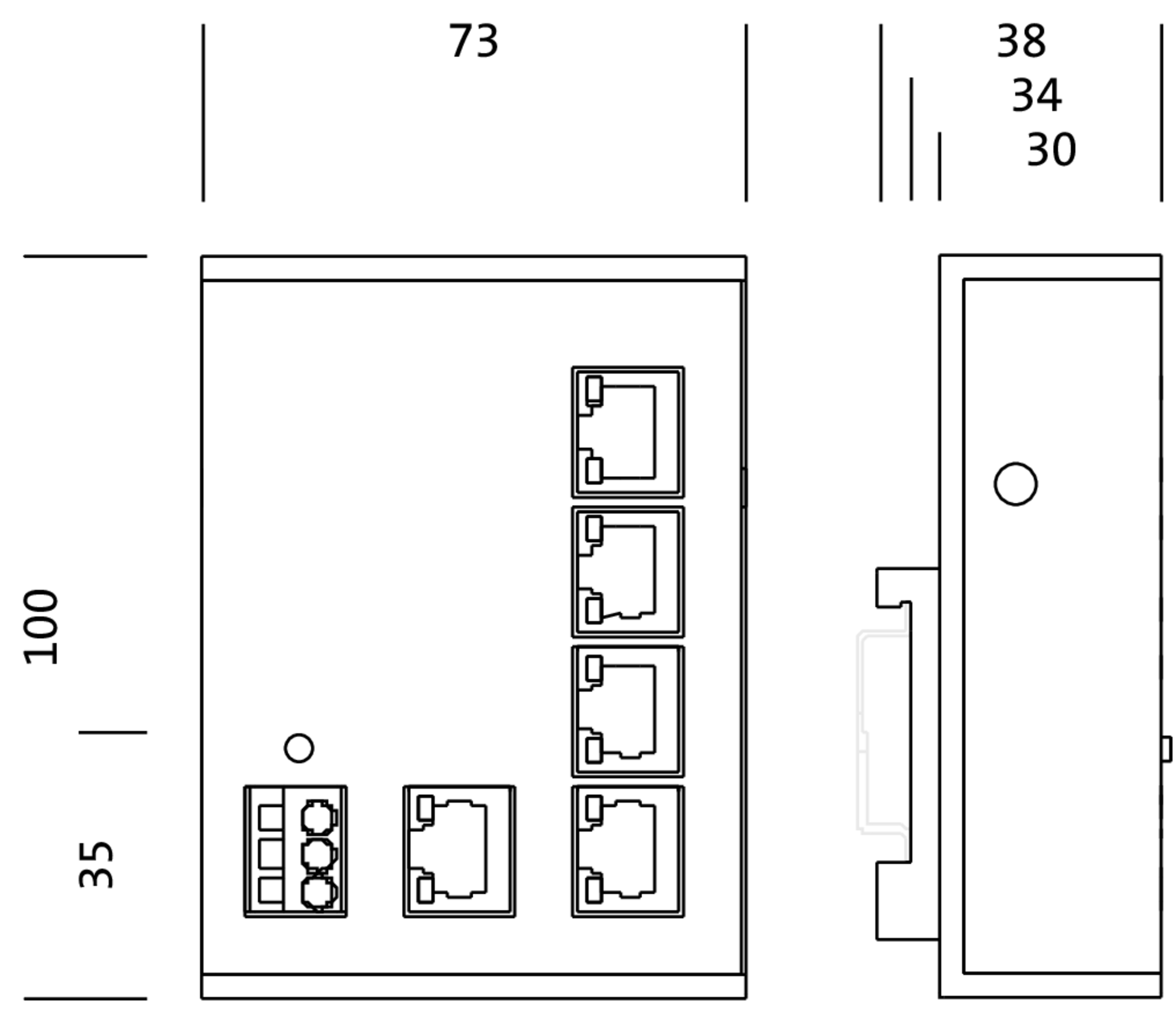

Dimensions, Weight

Length 39mm
Width 73mm
Height 100mm
Weight 0.3kg

Outputs

5x Ethernet
Connection socket RJ-45
Feature 10BASE-T/100BASE-TX ethernet

System family
SITECO Connect 11

Product type
switch

Product name
SITECO Connect 11

Order No.
5LZ930302

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
0..+55°C

Certification, designation
CE

housing
silver

Mounting method, mounting location
recessed, in an electrical distributor

Connection
terminal, 3-pole, max. 1.5mm²

Nominal voltage
24V, DC

Length
39mm

Width
73mm

Height
100mm

Weight
0.3kg

5x Ethernet

Connection
socket RJ-45

Feature
10BASE-T/100BASE-TX ethernet
