5XA1575E1F108
Article mast luminaire

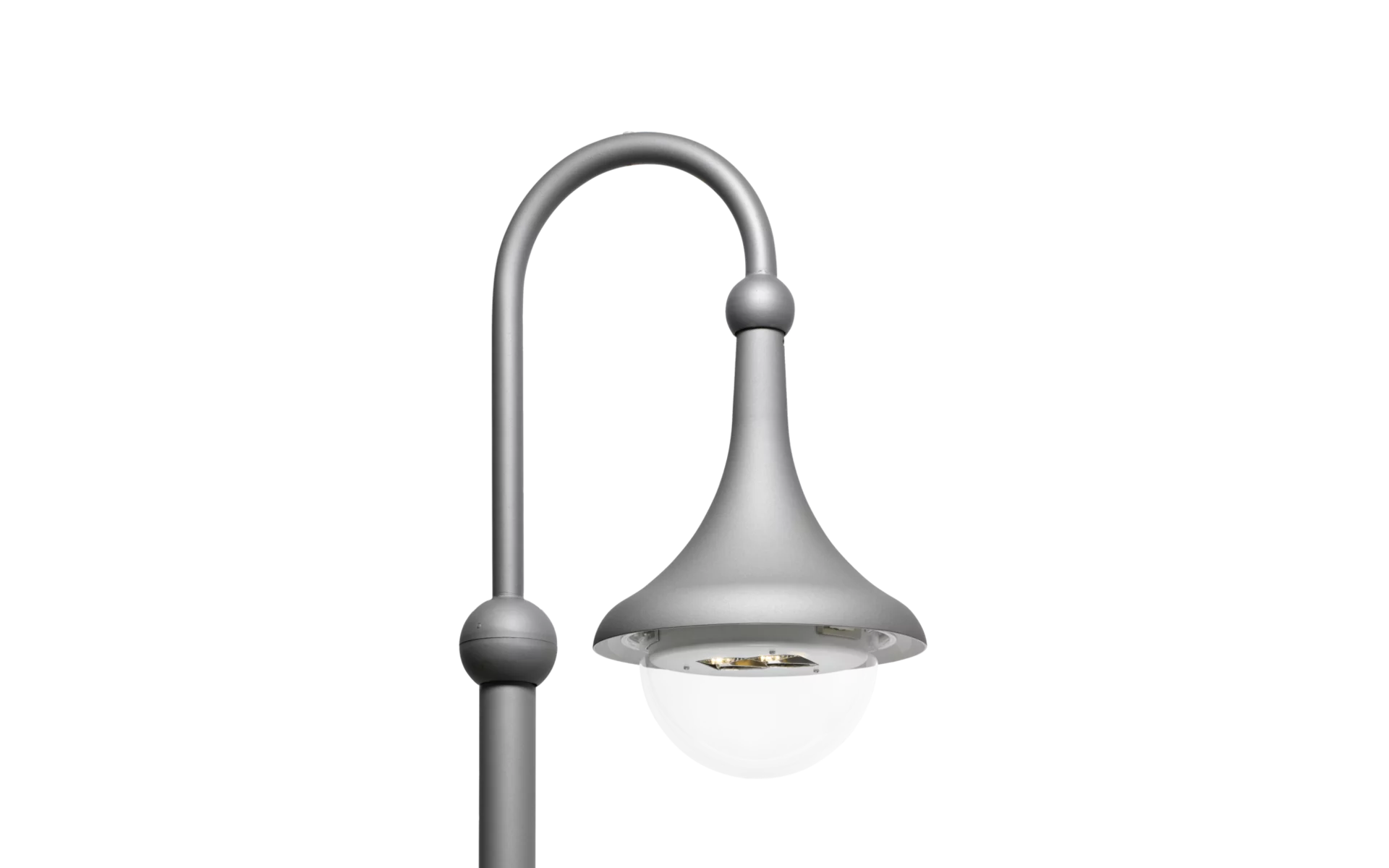

Product name Small Bell iQ
Lamp LED
Rated luminous flux 3220lm
Luminous efficacy 160.2lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom 20.1W
Pnom end service life 20.6W
Pred at 50% lumin. flux 9.9W
Service life 80000h (L97/B10) at AT = 25°C
Protection rating IP54
Impact resistance IK09

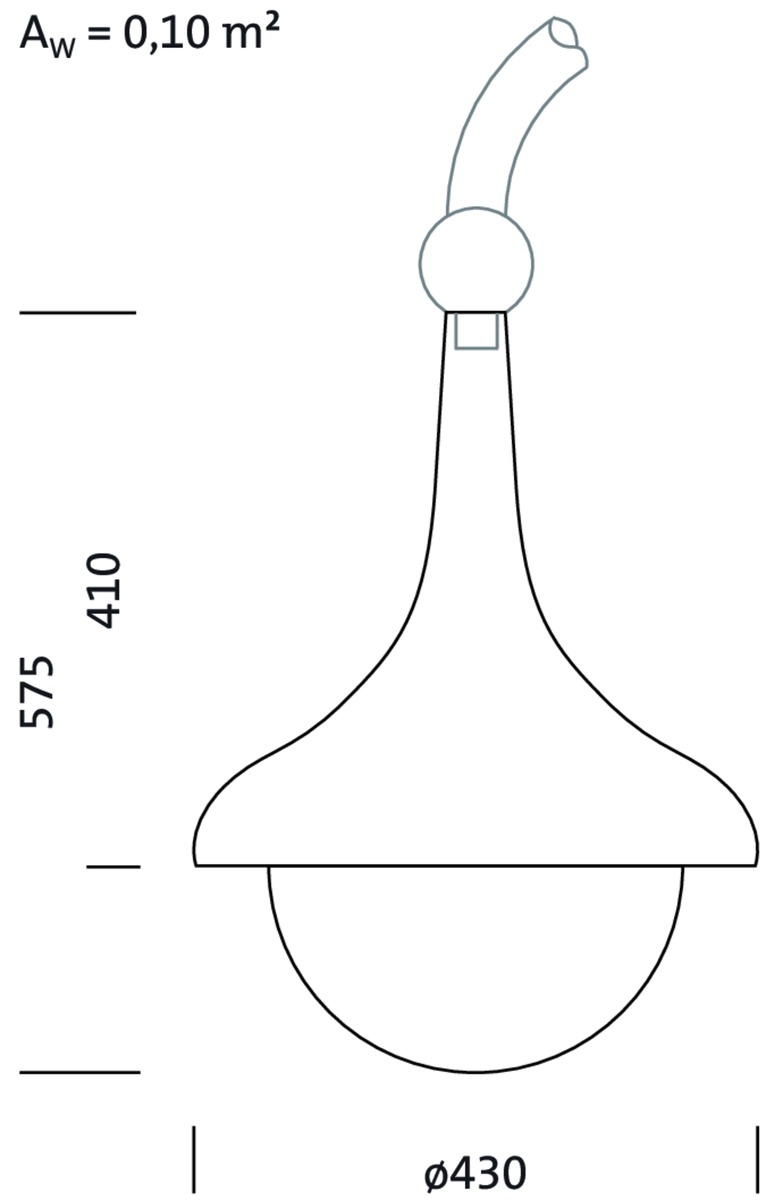

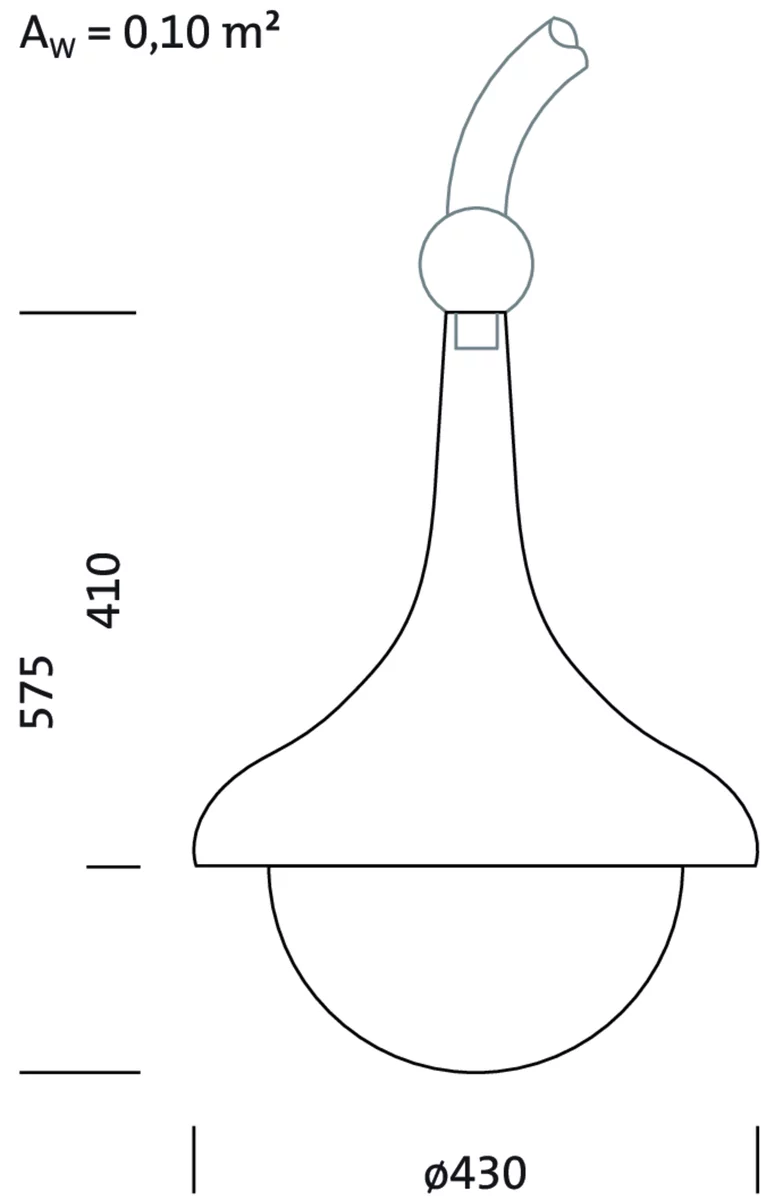

Weight 5.3kg
Small Bell iQ, mast luminaire, primary light control with 3 zone facetted reflector, of plastic, silver coated, primary optical cover: enclosure, of PMMA, transparent, light distribution: S120005, primary beam angle: wide distribution, light emission: direct distribution, primary light characteristic: asymmetric, installation type: suspended mounting, lamps: LED, rated values: 3.220lm | 20,1W | 160,2lm/W (begin service life); end service life: 3.220lm | 20,6W; at 50% lumin. flux: 1.610lm | 9,9W | 162,6lm/W, colour temperature: 3000K, colour rendering: CRI > 70, light colour: 730, light setting 1 (further light settings possible): 100% | 3.220lm | 20,1W | 160,2lm/W | 3.000K (begin service life); end service life: 20,6W, control gear: iQ Street-Remote, control: optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic, pre-setting: linear dimming characteristic, mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: surge voltage resistance: 10kV (common mode); 6kV (differential mode), luminaire housing, bell-shaped, of glass-fibre reinforced polyester, coated, SITECO metallic grey (DB 702S), please order curved mast extension separately, diameter: 430mm, height: 575mm, protection rating (complete): IP54, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, impact resistance: IK09, standard-compliant lighting for roads and squares, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

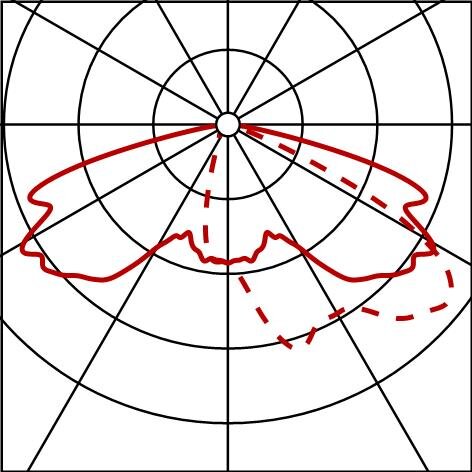

Photometric report / planning data
SmBelliQ
S120005,3220lm730,SR
Lamps: LED 3000K / CRI >= 70
Order No.: 5XA1575E1F108
SmBelliQ
Lamps: LED 3000K / CRI >= 70
Order No.: 5XA1575E1F108
shield
Order No.: 5NA15700XB1
