5XA7785E2F1A
Article floodlight
Product name Floodlight FL 21 midi
Lamp LED
Rated luminous flux 26630lm
Luminous efficacy 125.4lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom 212.4W
Pnom end service life 230.9W
Pred at 50% lumin. flux 94.9W
Service life 100000h (L95/B10) at AT = 15°C, 50000h (L95/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 14.3kg

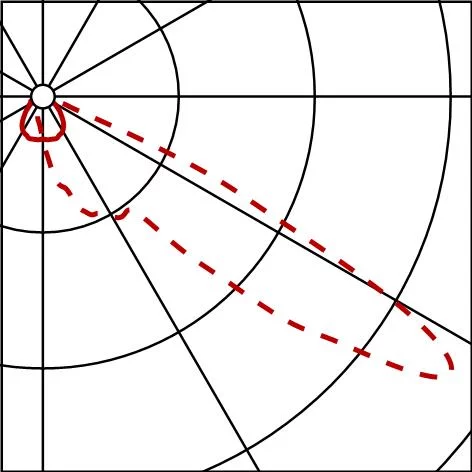

Floodlight FL 21 midi, floodlight, primary light control with lens, of PMMA, primary optical cover: protective disc, of toughened safety glass, transparent, light distribution: A330005, light emission: direct distribution, 0% light immission, installation type: surface-mounted, installation location: to the cross arm, to supporting structure, with mounting bracket, screws of glass cover cannot be lost, lamps: LED, rated values: 26.630lm | 212,4W | 125,4lm/W (begin service life); end service life: 26.630lm | 230,9W; at 50% lumin. flux: 13.295lm | 94,9W | 140,1lm/W, colour temperature: 3000K, colour rendering: CRI > 70, light colour: 730, light setting 1 (further light settings possible): 100% | 26.630lm | 212,4W | 125,4lm/W | 3.000K (begin service life); end service life: 230,9W, control gear: Smart Interface (Zhaga), control: overheat protection, constant luminous flux control, time-dependent luminous flux control, flexible luminous flux parameterisation, pre-setting: logarithmic dimming characteristic, mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: surge voltage resistance: 10kV (common mode); 6kV (differential mode), electrical connection: terminal, 6-pole, max. 2.5mm², solid wire, fine wire, prepared for through-wiring, ECG replaceable at mast without ESD environment, exclusion of faulty assembly when replacing spare parts thanks to reverse polarity protected plug connection, electronic type plate, ECG replaceable without ESD environment, luminaire housing, of diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), corrosivity category C5 mid according to DIN EN ISO 12944, suitable for swimming pools, chlorine-resistant, sealing non-destructively replaceable, mounting bracket, of steel, powder-coated, SITECO metallic grey (DB 702S), Smart Interface above: Zhaga, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, protection symbol: D, impact resistance: IK08, permissible operating ambient temperature: -40..+40°C, permissible operating ambient temperature for outdoor applications: -40..+50°C, standard: DIN EN 12944, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece

Floodlight FL 21 midi
LED, direct distribution, surface-mounted, to the cross arm, to supporting structure
: LED 3000K / CRI >= 70
: 5XA7785E2F1A
