Article mast luminaire

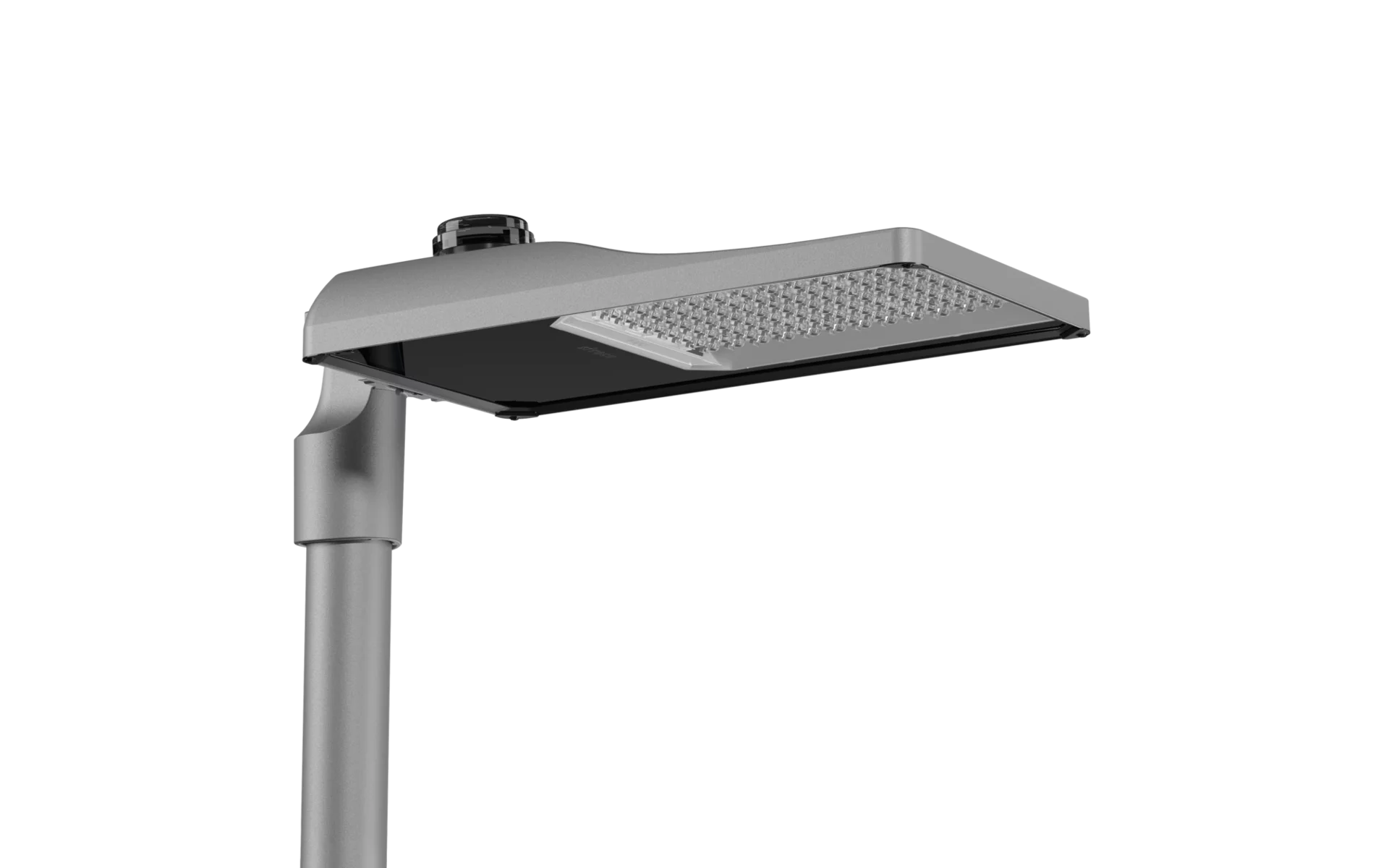

Product name Streetlight SL 31 maxi
Lamp LED
Rated luminous flux 28060lm
Luminous efficacy 134.5lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom 208.6W
Pnom end service life 233.1W
Pred at 50% lumin. flux 88W
Service life 100000h (L93/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK10
Weight 12.0kg

Streetlight SL 31 maxi, mast luminaire, primary light control with lens, of PMMA, primary optical cover: cover, of toughened safety glass, transparent, light distribution: S100003, primary beam angle: wide distribution, light emission: direct distribution, primary light characteristic: asymmetric, 0% light immission, installation type: post-top, side-entry, lamps: LED, rated values: 28.060lm | 208,6W | 134,5lm/W (begin service life); end service life: 28.060lm | 233,1W; at 50% lumin. flux: 13.988lm | 88W | 159lm/W, colour temperature: 3000K, colour rendering: CRI > 70, light colour: 730, light setting 1 (further light settings possible): 100% | 28.060lm | 208,6W | 134,5lm/W | 3.000K (begin service life); end service life: 233,1W, control gear: D4i, Desk-Remote, control: pre-setting: linear dimming characteristic, flexible luminous flux parameterisation, time-dependent luminous flux control, constant luminous flux control, intelligent temperature release in ECG and LED module, overheat protection, mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: surge voltage resistance: 10kV (common mode); 6kV (differential mode), connection cable: pre-assembled, cable length: 14,5m, wiring characteristics: H07RN-F, 3G 1,5mm², configuration: L/N/PE, luminaire housing, of diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), corrosivity category C5 high according to DIN EN ISO 12944, no sealing on luminaire upper side, inclination: -15°..+20° (post-top) | -20°..+20° (side-entry), adjustable in 5° steps, multi-level sealing system, sealing non-destructively replaceable, mast flange for spigot size: 60/48mm (side-entry/post-top): 5XH10108XM2, 76/32mm (side-entry/post-top): 5XH10108XM3, mast flange, of diecast aluminium, coated, SITECO metallic grey (DB 702S), Smart Interface above: NEMA (7pin), protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, ENEC+, VDE, UKCA, impact resistance: IK10, permissible operating ambient temperature for outdoor applications: -40..+50°C, standard-compliant lighting for roads and squares, packaging unit: 1 piece

Downloads

Key data

Product type mast luminaire
Product name Streetlight SL 31 maxi
Order No. 5XH8D35N08SA

Lighting technology

Light control lens of PMMA
Cover cover, transparent
Light distribution S100003
Beam angle wide distribution
Symmetry asymmetric distribution
Light emission direct distribution

Lamps

Lamps with LED
Rated values 28060lm | 208.6W | 134.5lm/W (begin service life);
end service life: 28060lm | 233.1W;
at 50% lumin. flux: 13988lm | 88W | 159lm/W
Colour temperature 3000K
Colour rendering index CRI > 70
Light colour 730

Factory light settings (LS)

begin service life
LS 1: 100% | 28060lm | 208.6W | 134.5lm/W | 3000K
end service life
LS 1: 233.1W
further light settings possible

Operating device

Control D4i, Desk-Remote
Smart Interface above NEMA (7pin)
Equipment overheat protection, constant luminous flux control, time-dependent luminous flux control, flexible luminous flux parameterisation, intelligent temperature release in ECG and LED module, pre-setting: linear dimming characteristic

Certificates, Standards

Protection rating IP66
Insulation class insulation class I (protective earthing)
Impact resistance IK10
Temperature range (operation) -40..+50°C
Supplement standard-compliant lighting for roads and squares
Corrosion protection corrosivity category C5 high according to DIN EN ISO 12944
Certification, designation CE, ENEC, ENEC+, VDE, UKCA

Material, Colour

luminaire housing diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), sealing non-destructively replaceable, multi-level sealing system, inclination: -15°..+20° (post-top) | -20°..+20° (side-entry), adjustable in 5° steps, no sealing on luminaire upper side
mast flange diecast aluminium, coated, SITECO metallic grey (DB 702S), mast flange included unmounted
Cover cover of toughened safety glass

Mounting

Mounting method, mounting location side-entry, post-top, on mast

Electrical connection

Connection cable pre-assembled, L= 14.5m, H07RN-F, 3G 1.5mm², L/N/PE
Nominal voltage 220..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)

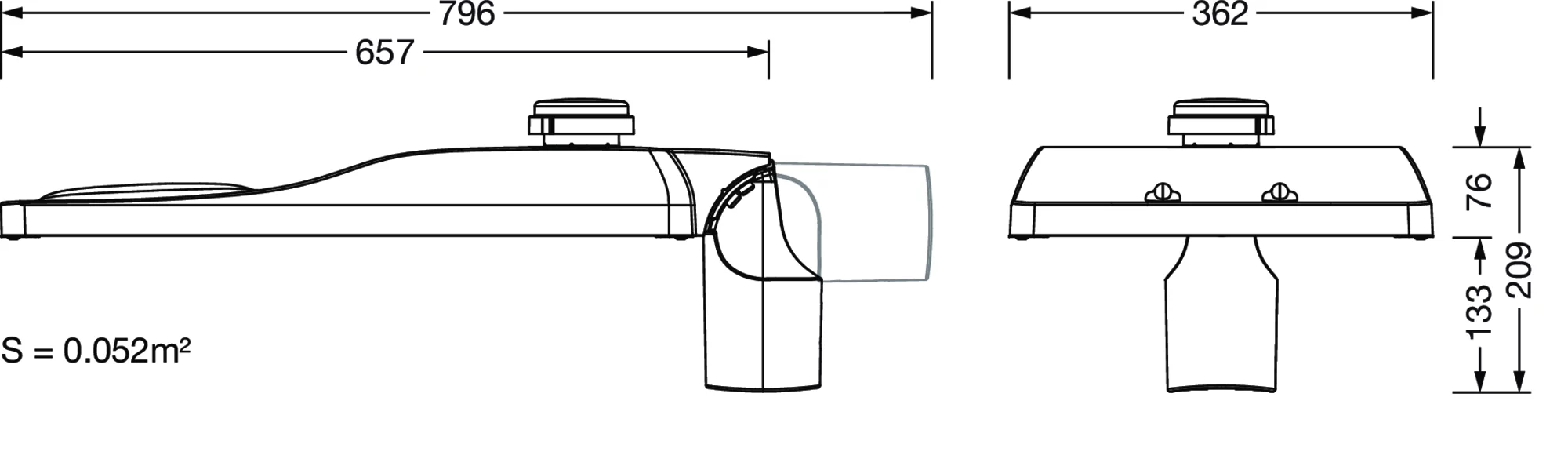

Dimensions, Weight

Weight 12.0kg
Mast spigot mast flange for spigot size: 60/48mm (side-entry/post-top): 5XH10108XM2, 76/32mm (side-entry/post-top): 5XH10108XM3

Light emission

Light emission 0% at 0° inclination

Service life

Rated service life 100000h (L93/B10) at AT = 25°C

Product type
mast luminaire

Product name
Streetlight SL 31 maxi

Order No.
5XH8D35N08SA

Light control
lens of PMMA

Cover
cover, transparent

Light distribution
S100003

Beam angle
wide distribution

Symmetry
asymmetric distribution

Light emission
direct distribution

Lamps
with LED

Rated values
28060lm | 208.6W | 134.5lm/W (begin service life);
end service life: 28060lm | 233.1W;
at 50% lumin. flux: 13988lm | 88W | 159lm/W

Colour temperature
3000K

Colour rendering index
CRI > 70

Light colour
730

begin service life

LS 1: 100% | 28060lm | 208.6W | 134.5lm/W | 3000K

end service life

LS 1: 233.1W


further light settings possible

Control
D4i, Desk-Remote

Smart Interface above
NEMA (7pin)

Equipment
overheat protection, constant luminous flux control, time-dependent luminous flux control, flexible luminous flux parameterisation, intelligent temperature release in ECG and LED module, pre-setting: linear dimming characteristic

Protection rating
IP66

Insulation class
insulation class I (protective earthing)

Impact resistance
IK10

Temperature range (operation)
-40..+50°C

Supplement
standard-compliant lighting for roads and squares

Corrosion protection
corrosivity category C5 high according to DIN EN ISO 12944

Certification, designation
CE, ENEC, ENEC+, VDE, UKCA

luminaire housing
diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), sealing non-destructively replaceable, multi-level sealing system, inclination: -15°..+20° (post-top) | -20°..+20° (side-entry), adjustable in 5° steps, no sealing on luminaire upper side

mast flange
diecast aluminium, coated, SITECO metallic grey (DB 702S), mast flange included unmounted

Cover
cover of toughened safety glass

Mounting method, mounting location
side-entry, post-top, on mast

Connection cable
pre-assembled, L= 14.5m, H07RN-F, 3G 1.5mm², L/N/PE

Nominal voltage
220..240V, 50/60Hz, AC

Surge voltage resistance
surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Weight
12.0kg

Mast spigot
mast flange for spigot size: 60/48mm (side-entry/post-top): 5XH10108XM2, 76/32mm (side-entry/post-top): 5XH10108XM3

Light emission
0% at 0° inclination

Rated service life
100000h (L93/B10) at AT = 25°C
