51DB11MF14B1D
Article downlight

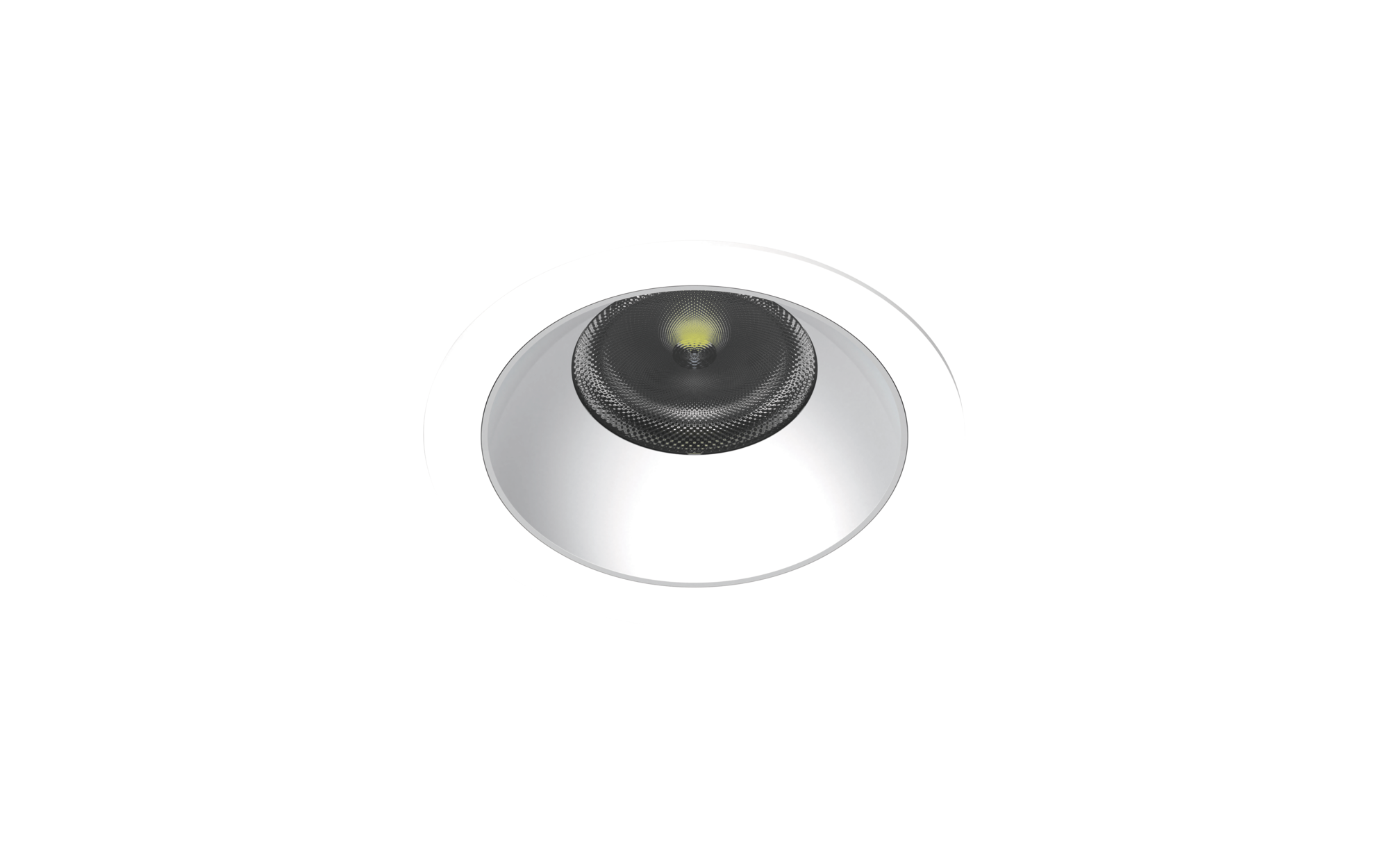

Product name Lunis 21 XL
Lamp LED
Rated luminous flux 2500lm
Luminous efficacy 164lm/W
Colour temperature 3000K
Colour rendering CRI > 90
Rated input power 15.1W
Service life 50000h (L90/B10) at AT = 25°C, 100000h (L80/B10) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 1.0kg

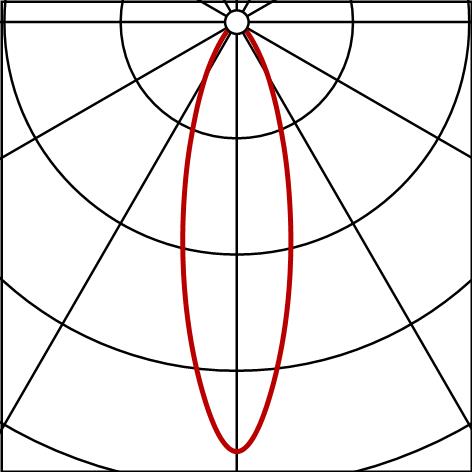

Lunis 21 XL, downlight, light control with lens, of PMMA, anti glare with reflector, matt, CAT 2 (L= 3000cd/m²), UGR of luminaire ≤ 16 (X = 4H | Y = 8H | S = 0.25H | reflection values 70/50/20), beam angle: narrow distribution, light emission: direct distribution, LED rated luminous flux: 2.180/.../4.220lm, factory setting: 2.480lm, light colour: 930, colour temperature: 3000K, colour rendering: CRI > 90, with terminal, 3-pole, mains connection: 220..240V, AC/DC, 0/50..60Hz, rated input power: 13,3/.../26,4W, factory setting: 15,1W, luminous flux reduced to approx. 15% with DC operation, with through-wiring, housing, round, of diecast aluminium, powder-coated, traffic white (RAL 9016), diameter: 230mm, clamping range: 1..40mm, protection rating (complete): IP20, protection rating (on room side): IP54, insulation class (complete): insulation class II (safety insulation), certification: CE, impact resistance: IK03, permissible ambient temperature for indoor applications: -20..+40°C, packaging unit: 1 piece
Lunis 21

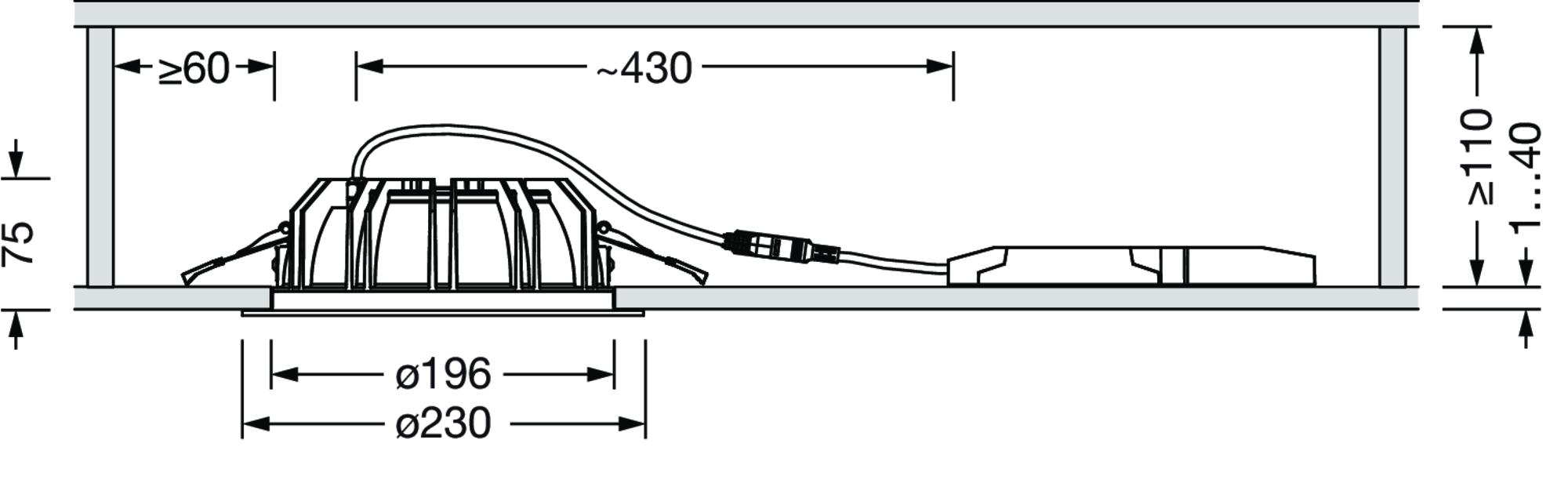

LED, lens, PMMA, reflector, matt, CAT 2 (L<= 3000cd/m²), direct narrow distribution, single arrangement, recessed, in the ceiling, ø= 230mm
: LED 3000K / CRI >= 90
: 51DB11MF14B1D
