51DB16MD91C

: 51DB16MD91C

Article downlight
Product name Lunis 21 L
Lamp LED
Rated luminous flux 1750lm
Luminous efficacy 143lm/W
Colour temperature 3000/4000/6500K
Colour rendering CRI > 80
Rated input power 12.2W
Service life 50000h (L80/B20) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 0.8kg

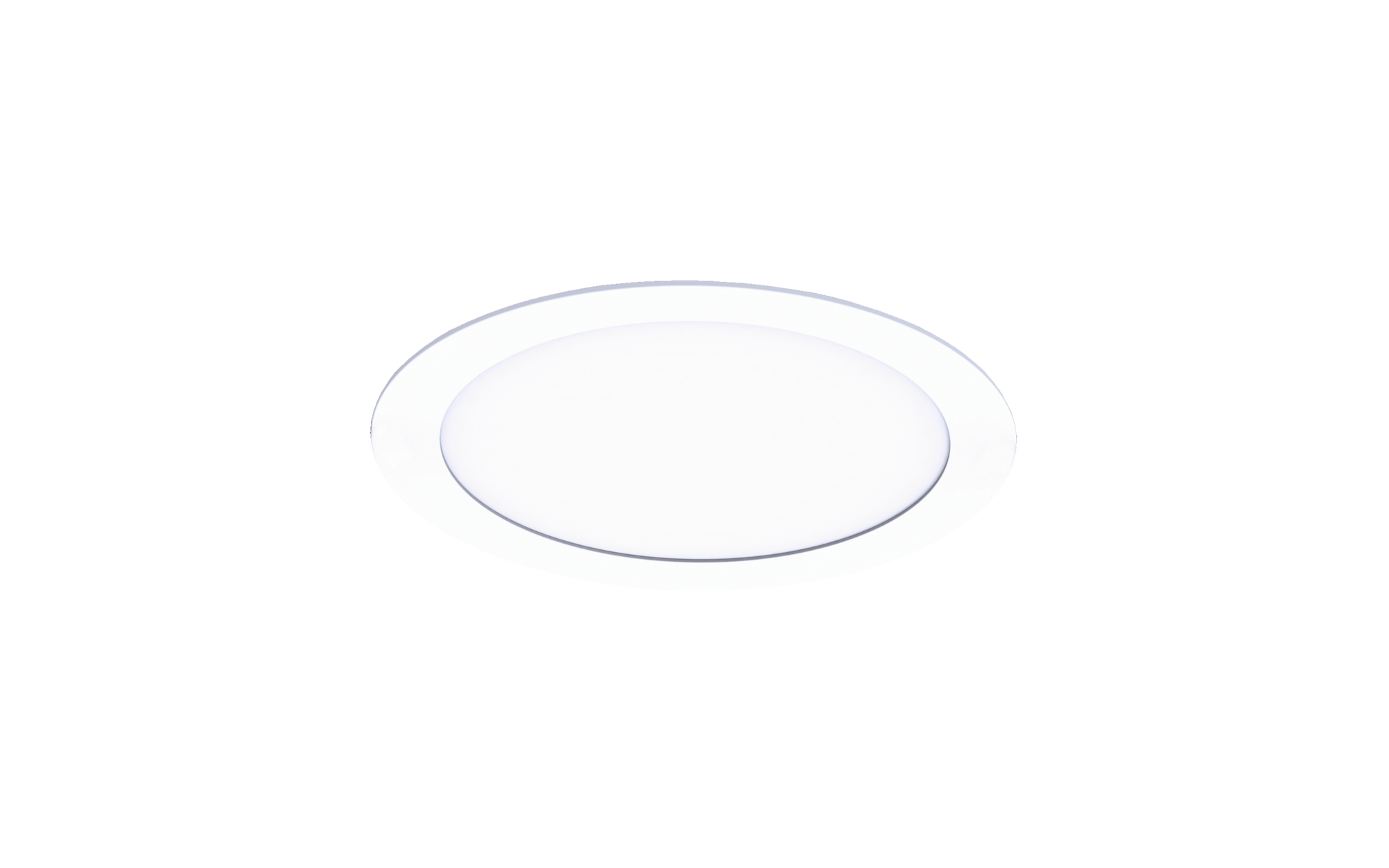

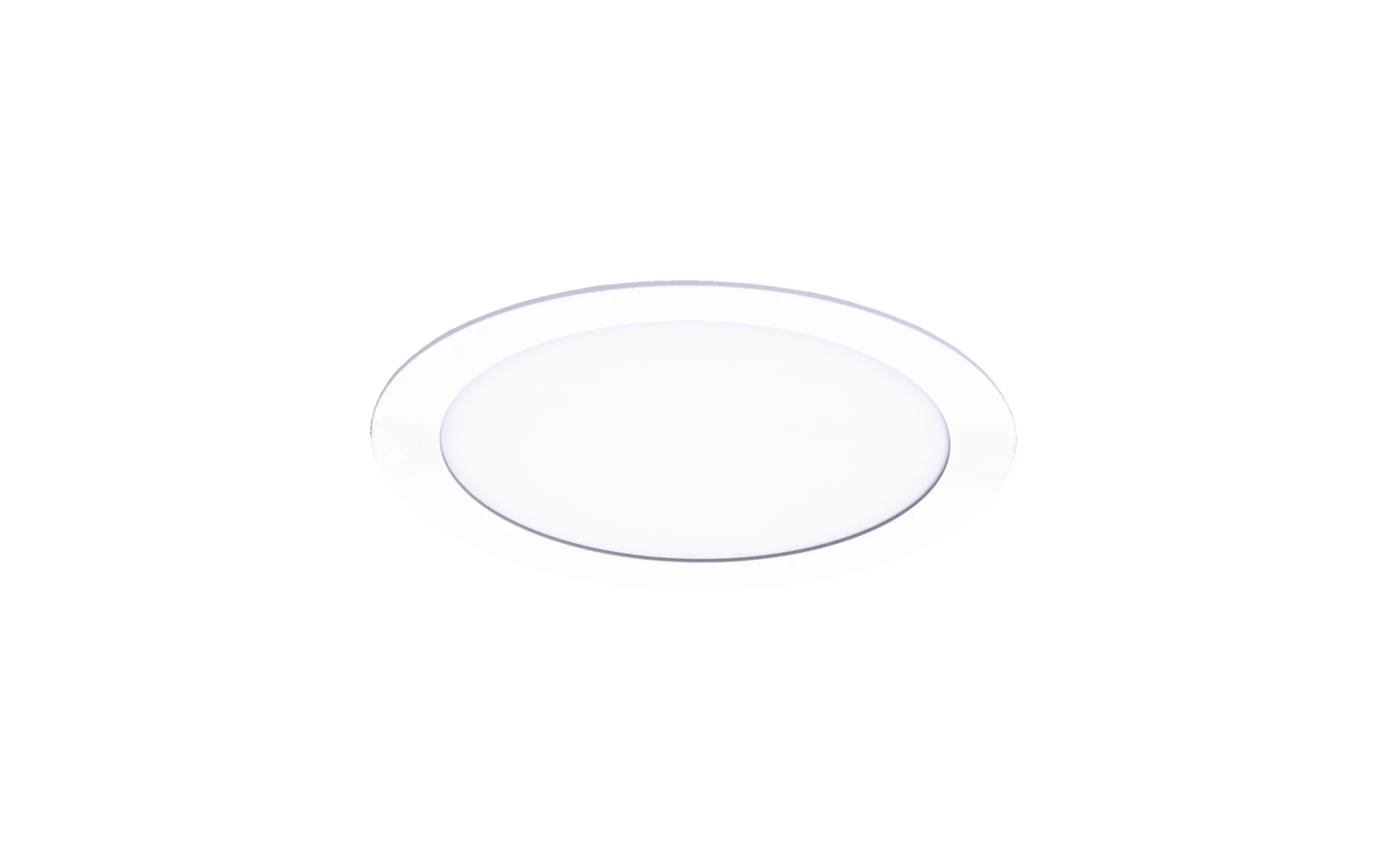

Lunis 21 L, downlight, light control with lens, of PMMA, optical cover: cover panel, of PC, opal, UGR of luminaire ≤ 22 (X = 4H | Y = 8H | S = 0.25H | reflection values 70/50/20), beam angle: wide distribution, light emission: direct distribution, LED rated luminous flux: 1.500/.../3.050lm, factory setting: 1.750lm, light colour: 830/840/865, colour temperature: 3000/4000/6500K, colour rendering: CRI > 80, with terminal, 3-pole, mains connection: 220..240V, AC/DC, 0/50..60Hz, rated input power: 10,5/.../21,7W, factory setting: 12,2W, UGR ≤ 19 with luminous fluxes up to factory setting, luminous flux designation at factory setting and 4000K, luminous flux adjustable on luminaire in eight steps at 4000K (1500/1750/1970/2210/2520/2720/2850/3050lm), connected load according to luminous flux setting (10.5/12.2/13.7/15.5/17.7/19.2/20.3/21.7W), housing, round, of diecast aluminium, traffic white (RAL 9016), diameter: 165mm, clamping range: 1..40mm, protection rating (complete): IP20, protection rating (on room side): IP54, insulation class (complete): insulation class II (safety insulation), certification: CE, impact resistance: IK03, packaging unit: 1 piece

Downloads

Key data

Product type downlight
Product name Lunis 21 L
Order No. 51DB16MD91C

Lighting technology

Light control lens of PMMA
Cover cover panel, opal
Beam angle wide distribution
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 22
UGR viewing direction along lateral luminaire axis ≤ 22

Lamps

Lamps with LED
Rated luminous flux 1750lm
Luminous efficacy 143lm/W
Colour temperature 3000/4000/6500K
Colour rendering index CRI > 80
Light colour 830/840/865
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 12.2W
Supplement UGR ≤ 19 with luminous fluxes up to factory setting, luminous flux designation at factory setting and 4000K, luminous flux adjustable on luminaire in eight steps at 4000K (1500/1750/1970/2210/2520/2720/2850/3050lm), connected load according to luminous flux setting (10.5/12.2/13.7/15.5/17.7/19.2/20.3/21.7W)

Operating device

Control ON/OFF Multilumen

Certificates, Standards

Protection rating IP20
Protection rating (on room side) IP54
Insulation class insulation class II (safety insulation)
Impact resistance IK03
Certification, designation CE

Material, Colour

housing diecast aluminium, traffic white (RAL 9016), round
Cover cover panel of PC

Mounting

Mounting method, mounting location recessed, in the ceiling

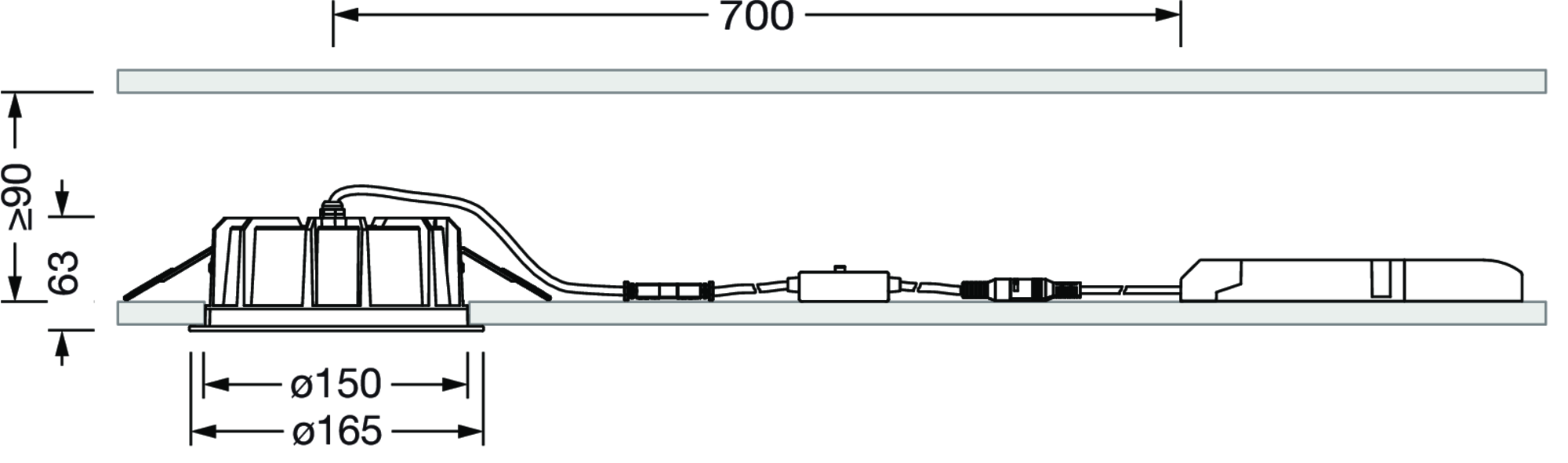

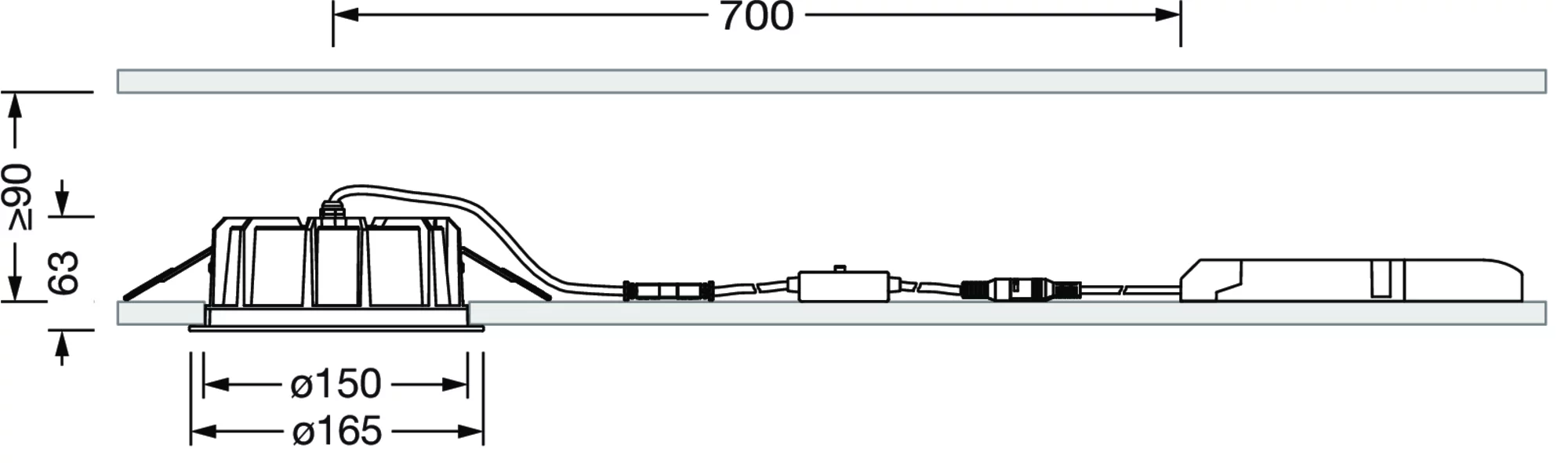

Ø of ceiling cut-out 150mm
Clamping range 1..40mm
Arrangement single arrangement

Electrical connection

Connection terminal, 3-pole
Nominal voltage 220..240V, 0/50..60Hz, AC/DC

Dimensions, Weight

Diameter 165mm
Weight 0.8kg

Service life

Rated service life 50000h (L80/B20) at AT = 25°C

Product type
downlight

Product name
Lunis 21 L

Order No.
51DB16MD91C

Light control
lens of PMMA

Cover
cover panel, opal

Beam angle
wide distribution

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 22

UGR viewing direction along lateral luminaire axis
≤ 22

Lamps
with LED

Rated luminous flux
1750lm

Luminous efficacy
143lm/W

Colour temperature
3000/4000/6500K

Colour rendering index
CRI > 80

Light colour
830/840/865

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
12.2W

Supplement
UGR ≤ 19 with luminous fluxes up to factory setting, luminous flux designation at factory setting and 4000K, luminous flux adjustable on luminaire in eight steps at 4000K (1500/1750/1970/2210/2520/2720/2850/3050lm), connected load according to luminous flux setting (10.5/12.2/13.7/15.5/17.7/19.2/20.3/21.7W)

Control
ON/OFF Multilumen

Protection rating
IP20

Protection rating (on room side)
IP54

Insulation class
insulation class II (safety insulation)

Impact resistance
IK03

Certification, designation
CE

housing
diecast aluminium, traffic white (RAL 9016), round

Cover
cover panel of PC

Mounting method, mounting location
recessed, in the ceiling

Ø of ceiling cut-out
150mm

Clamping range
1..40mm

Arrangement
single arrangement

Connection
terminal, 3-pole

Nominal voltage
220..240V, 0/50..60Hz, AC/DC

Diameter
165mm

Weight
0.8kg

Rated service life
50000h (L80/B20) at AT = 25°C

Lunis 21
LED, lens, PMMA, cover panel, PC, opal, direct wide distribution, single arrangement, recessed, in the ceiling, ø= 165mm

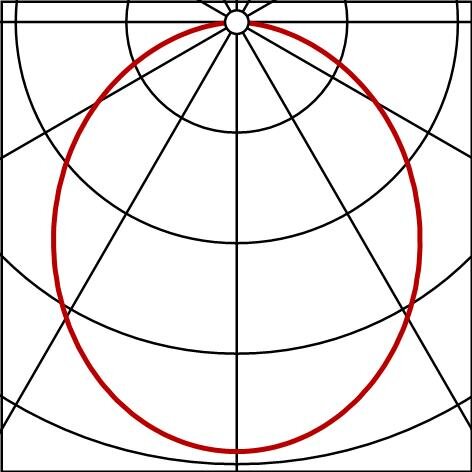

: LED 4000K / CRI >= 80, factory setting: colour temperature 4000K
: 51DB16MD91C

Lunis 21

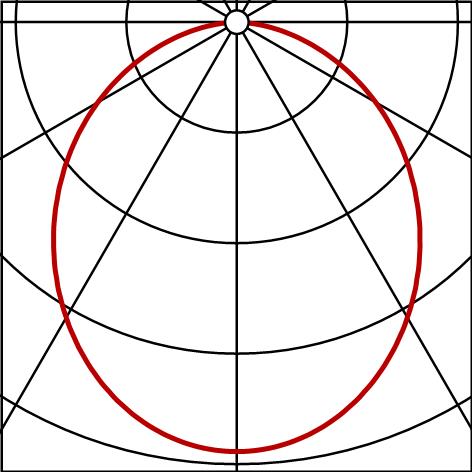

: LED 3000K / CRI >= 80, individual setting: colour temperature 3000K
: 51DB16MD91C

Lunis 21
: LED 6500K / CRI >= 80, individual setting: colour temperature 6500K
: 51DB16MD91C
