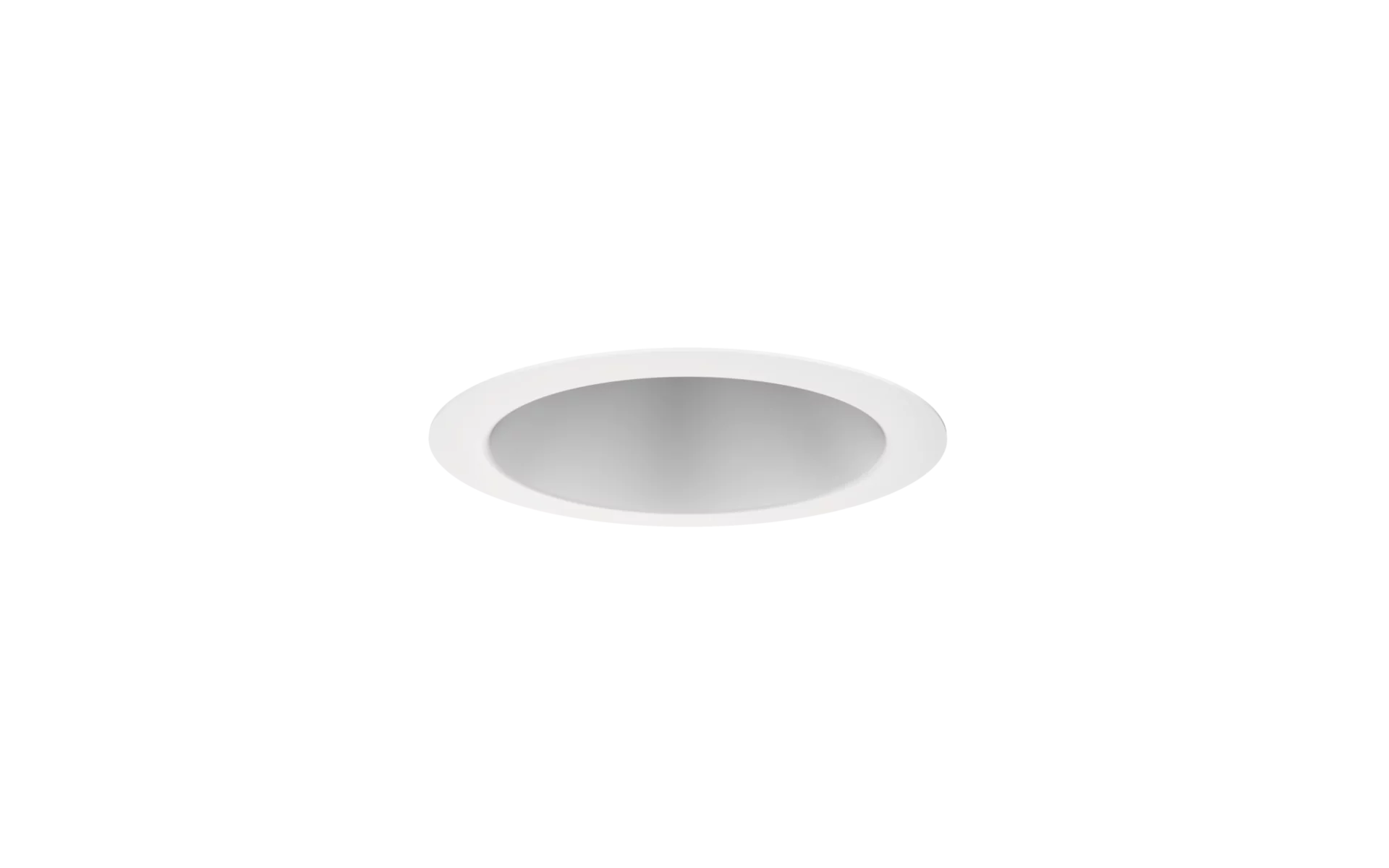

Lunis 31-L, wide distribution, DALI 2, Multilumen, white

: 51DN15EE31B

Article downlight
Product name Lunis 31-L
Lamp LED
Rated luminous flux 1650lm
Luminous efficacy 135lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 12.2W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP20
Weight 0.4kg

Lunis 31-L, downlight, light control with lens, anti glare with reflector, UGR of luminaire ≤ 19 (X = 4H | Y = 8H | S = 0.25H | reflection values 70/50/20), beam angle: wide distribution, light emission: direct distribution, LED rated luminous flux: 1.650lm, light colour: 830, with terminal, 5-pole, mains connection: 220..240V, AC/DC, 0/50..60Hz, housing, of aluminium, white, diameter: 189mm, protection rating (complete): IP20, protection rating (on room side): IP54, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, permissible ambient temperature for indoor applications: -20..+40°C, packaging unit: 1 piece

Downloads

Key data

Product type downlight
Product name Lunis 31-L
Order No. 51DN15EE31B

Lighting technology

Light control lens
Glare reduction reflector

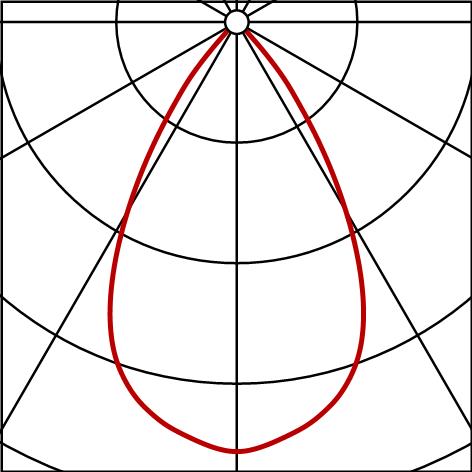

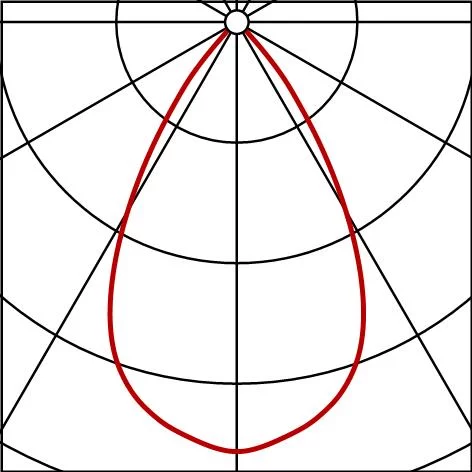

Beam angle wide distribution
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps

Lamps with LED
Rated luminous flux 1650lm
Luminous efficacy 135lm/W
Colour temperature 3000K
Colour rendering index CRI > 80
Light colour 830
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 4 SDCM (initial)
Rated input power 12.2W
Supplement luminous flux adjustable on luminaire in three steps at 3000K (1100/1375/1650lm), connected load according to luminous flux setting (8.2/10.2/12.0W)

Operating device

Control DALI 2, Multilumen

Certificates, Standards

Protection rating IP20
Protection rating (on room side) IP54
Insulation class insulation class II (safety insulation)
Temperature range (operation) -20..+40°C
Certification, designation CE, ENEC

Material, Colour

housing aluminium, white

Mounting

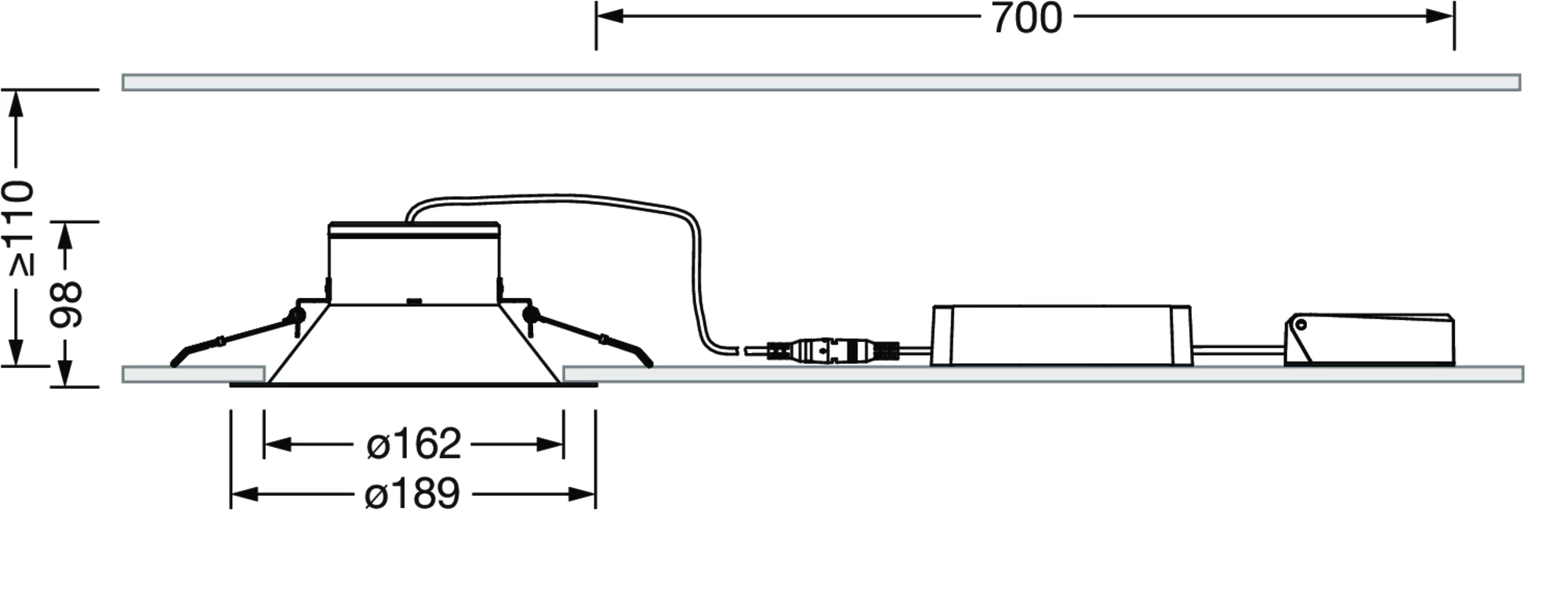

Mounting method, mounting location recessed, in the ceiling
Ø of ceiling cut-out 162mm
Arrangement single arrangement

Electrical connection

Connection terminal, 5-pole
Nominal voltage 220..240V, 0/50..60Hz, AC/DC

Dimensions, Weight

Diameter 189mm
Height 100mm
Weight 0.4kg

Service life

Rated service life 50000h (L80/B50) at AT = 25°C

Product type
downlight

Product name
Lunis 31-L

Order No.
51DN15EE31B

Light control
lens

Glare reduction
reflector

Beam angle
wide distribution

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 19

UGR viewing direction along lateral luminaire axis
≤ 19

Lamps
with LED

Rated luminous flux
1650lm

Luminous efficacy
135lm/W

Colour temperature
3000K

Colour rendering index
CRI > 80

Light colour
830

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 4 SDCM (initial)

Rated input power
12.2W

Supplement
luminous flux adjustable on luminaire in three steps at 3000K (1100/1375/1650lm), connected load according to luminous flux setting (8.2/10.2/12.0W)

Control
DALI 2, Multilumen

Protection rating
IP20

Protection rating (on room side)
IP54

Insulation class
insulation class II (safety insulation)

Temperature range (operation)
-20..+40°C

Certification, designation
CE, ENEC

housing
aluminium, white

Mounting method, mounting location
recessed, in the ceiling

Ø of ceiling cut-out
162mm

Arrangement
single arrangement

Connection
terminal, 5-pole

Nominal voltage
220..240V, 0/50..60Hz, AC/DC

Diameter
189mm

Height
100mm

Weight
0.4kg

Rated service life
50000h (L80/B50) at AT = 25°C

Lunis 31
LED, lens, reflector, direct wide distribution, single arrangement, recessed, in the ceiling, ø= 189mm
: LED 3000K / CRI >= 80
: 51DN15EE31B
