51DN16DE31

: 51DN16DE31

Article downlight
Product name Lunis 31-L
Lamp LED
Rated luminous flux 1000lm
Luminous efficacy 121lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 8.3W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP20
Weight 0.4kg

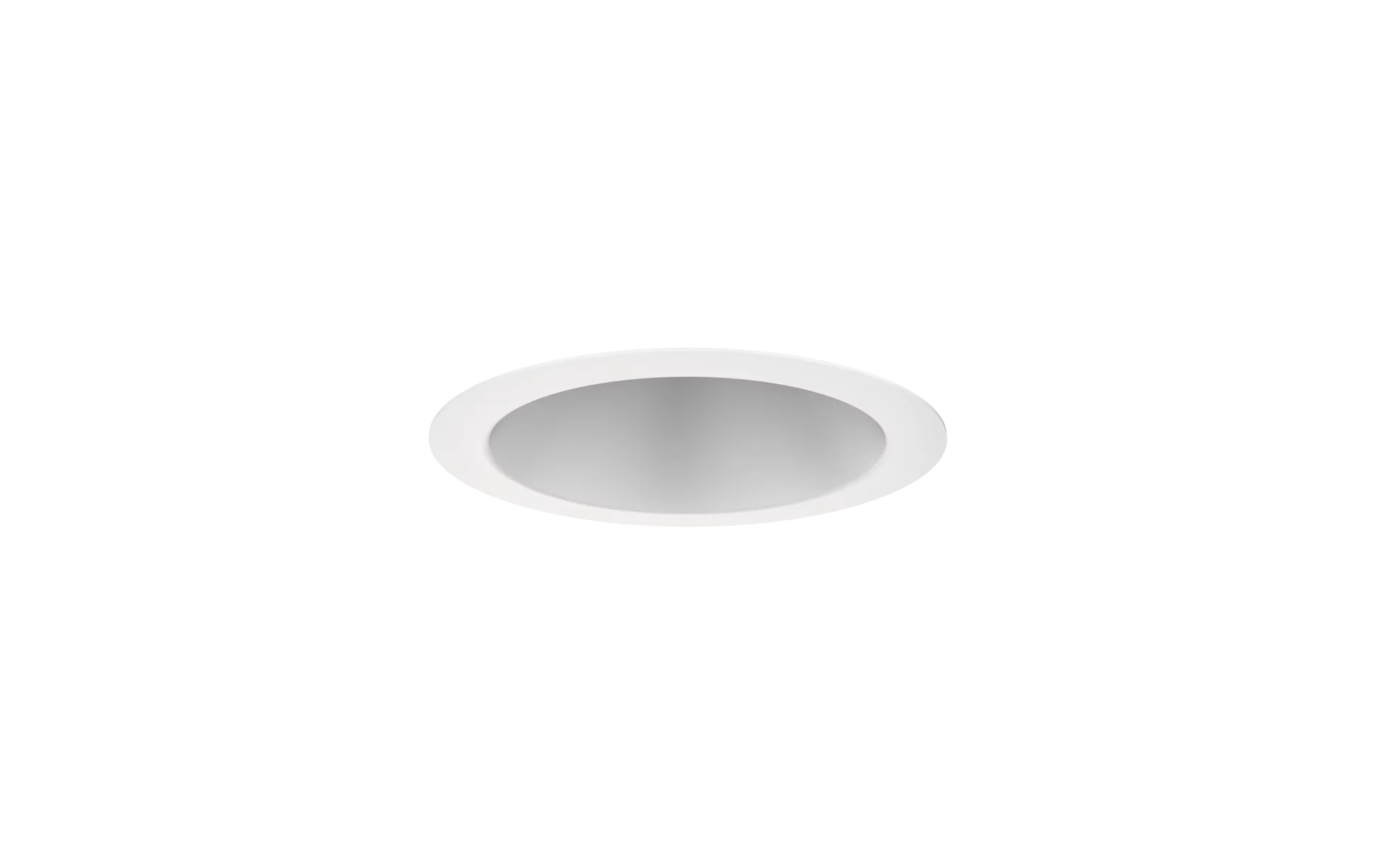

Lunis 31-L, downlight, light control with lens, of PC, anti glare with reflector, of sheet steel, white, UGR of luminaire ≤ 22 (X = 4H | Y = 8H | S = 0.25H | reflection values 70/50/20), beam angle: diffuse distribution, light emission: direct distribution, LED rated luminous flux: 1.000lm, light colour: 830, with terminal, 5-pole, mains connection: 220..240V, AC, 50/60Hz, housing, of aluminium, white, diameter: 189mm, protection rating (complete): IP20, protection rating (on room side): IP54, insulation class (complete): insulation class II (safety insulation), certification: CE, permissible ambient temperature for indoor applications: -20..+40°C, packaging unit: 1 piece

Downloads

Key data

Product type downlight
Product name Lunis 31-L
Order No. 51DN16DE31

Lighting technology

Light control lens of PC
Glare reduction reflector of sheet steel, white

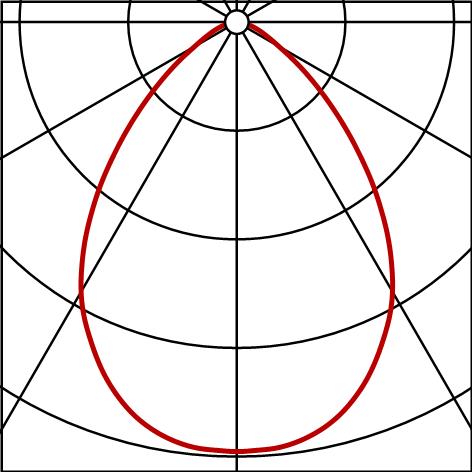

Beam angle diffuse distribution
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 22
UGR viewing direction along lateral luminaire axis ≤ 22

Lamps

Lamps with LED
Rated luminous flux 1000lm
Luminous efficacy 121lm/W
Colour temperature 3000K
Colour rendering index CRI > 80
Light colour 830
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 4 SDCM (initial)
Rated input power 8.3W

Operating device

Control DALI 2

Certificates, Standards

Protection rating IP20
Protection rating (on room side) IP54
Insulation class insulation class II (safety insulation)
Temperature range (operation) -20..+40°C
Certification, designation CE

Material, Colour

housing aluminium, white

Mounting

Mounting method, mounting location recessed, in the ceiling
Ø of ceiling cut-out 162mm
Arrangement single arrangement

Electrical connection

Connection terminal, 5-pole
Nominal voltage 220..240V, 50/60Hz, AC

Dimensions, Weight

Diameter 189mm
Height 100mm
Weight 0.4kg

Service life

Rated service life 50000h (L80/B50) at AT = 25°C

Product type
downlight

Product name
Lunis 31-L

Order No.
51DN16DE31

Light control
lens of PC

Glare reduction
reflector of sheet steel, white

Beam angle
diffuse distribution

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 22

UGR viewing direction along lateral luminaire axis
≤ 22

Lamps
with LED

Rated luminous flux
1000lm

Luminous efficacy
121lm/W

Colour temperature
3000K

Colour rendering index
CRI > 80

Light colour
830

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 4 SDCM (initial)

Rated input power
8.3W

Control
DALI 2

Protection rating
IP20

Protection rating (on room side)
IP54

Insulation class
insulation class II (safety insulation)

Temperature range (operation)
-20..+40°C

Certification, designation
CE

housing
aluminium, white

Mounting method, mounting location
recessed, in the ceiling

Ø of ceiling cut-out
162mm

Arrangement
single arrangement

Connection
terminal, 5-pole

Nominal voltage
220..240V, 50/60Hz, AC

Diameter
189mm

Height
100mm

Weight
0.4kg

Rated service life
50000h (L80/B50) at AT = 25°C

Lunis 31
LED, lens, PC, reflector, sheet steel, direct diffuse distribution, single arrangement, recessed, in the ceiling, ø= 189mm
: LED 3000K / CRI >= 80
: 51DN16DE31
