51DN16EG32B

: 51DN16EG32B

Article downlight
Product name Lunis 31-XL
Lamp LED
Rated luminous flux 2500lm
Luminous efficacy 147lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 17W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP20
Weight 0.5kg

Lunis 31-XL, downlight, light control with lens, anti glare with reflector, UGR of luminaire ≤ 22 (X = 4H | Y = 8H | S = 0.25H | reflection values 70/50/20), beam angle: diffuse distribution, light emission: direct distribution, LED rated luminous flux: 2.500lm, light colour: 830, with terminal, 5-pole, mains connection: 220..240V, AC/DC, 0/50..60Hz, housing, of aluminium, white, diameter: 260mm, protection rating (complete): IP20, protection rating (on room side): IP54, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, permissible ambient temperature for indoor applications: -20..+40°C, packaging unit: 1 piece

Downloads

Key data

Product type downlight
Product name Lunis 31-XL
Order No. 51DN16EG32B

Lighting technology

Light control lens
Glare reduction reflector

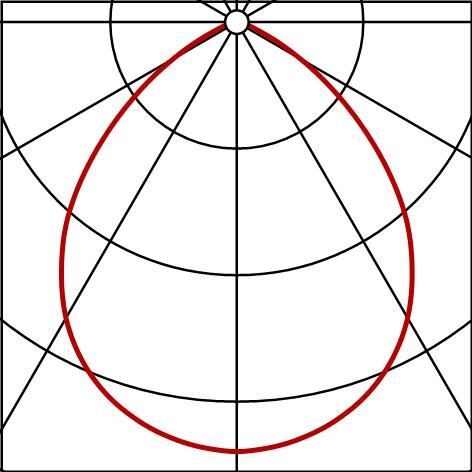

Beam angle diffuse distribution
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 22
UGR viewing direction along lateral luminaire axis ≤ 22

Lamps

Lamps with LED
Rated luminous flux 2500lm
Luminous efficacy 147lm/W
Colour temperature 3000K
Colour rendering index CRI > 80
Light colour 830
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 4 SDCM (initial)
Rated input power 17W
Supplement luminous flux adjustable on luminaire in three steps at 3000K (1960/2230/2500lm)

Operating device

Control DALI 2, Multilumen

Certificates, Standards

Protection rating IP20
Protection rating (on room side) IP54
Insulation class insulation class II (safety insulation)
Temperature range (operation) -20..+40°C
Certification, designation CE, ENEC

Material, Colour

housing aluminium, white

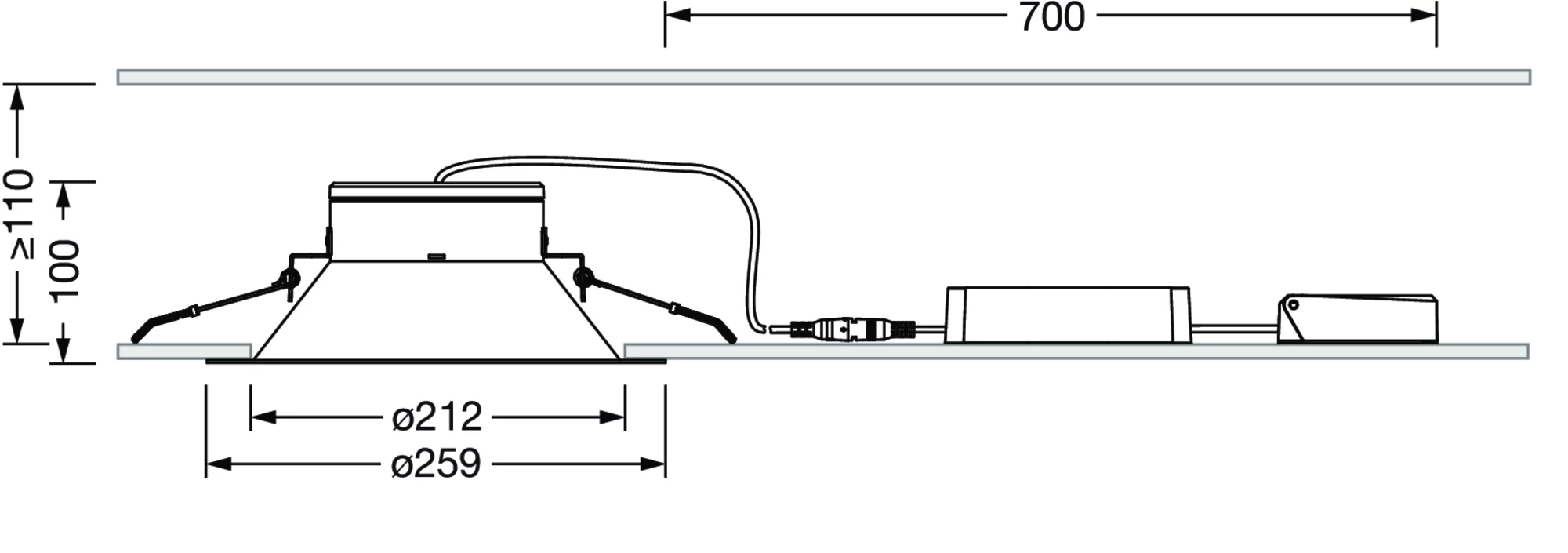

Mounting

Mounting method, mounting location recessed, in the ceiling
Ø of ceiling cut-out 212mm
Arrangement single arrangement

Electrical connection

Connection terminal, 5-pole
Nominal voltage 220..240V, 0/50..60Hz, AC/DC

Dimensions, Weight

Diameter 260mm
Height 100mm
Weight 0.5kg

Service life

Rated service life 50000h (L80/B50) at AT = 25°C

Product type
downlight

Product name
Lunis 31-XL

Order No.
51DN16EG32B

Light control
lens

Glare reduction
reflector

Beam angle
diffuse distribution

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 22

UGR viewing direction along lateral luminaire axis
≤ 22

Lamps
with LED

Rated luminous flux
2500lm

Luminous efficacy
147lm/W

Colour temperature
3000K

Colour rendering index
CRI > 80

Light colour
830

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 4 SDCM (initial)

Rated input power
17W

Supplement
luminous flux adjustable on luminaire in three steps at 3000K (1960/2230/2500lm)

Control
DALI 2, Multilumen

Protection rating
IP20

Protection rating (on room side)
IP54

Insulation class
insulation class II (safety insulation)

Temperature range (operation)
-20..+40°C

Certification, designation
CE, ENEC

housing
aluminium, white

Mounting method, mounting location
recessed, in the ceiling

Ø of ceiling cut-out
212mm

Arrangement
single arrangement

Connection
terminal, 5-pole

Nominal voltage
220..240V, 0/50..60Hz, AC/DC

Diameter
260mm

Height
100mm

Weight
0.5kg

Rated service life
50000h (L80/B50) at AT = 25°C

Lunis 31
LED, lens, reflector, direct diffuse distribution, single arrangement, recessed, in the ceiling, ø= 260mm
: LED 3000K / CRI >= 80
: 51DN16EG32B
