51DR10DFGCB

: 51DR10DFGCB

Article downlight
Product name Lunis 41 Flat
Lamp LED
Rated luminous flux 3100lm
Luminous efficacy 135lm/W
Colour temperature 3000/4000K
Colour rendering CRI > 80
Rated input power 23W
Service life 50000h (L70/B50) at AT = 25°C
Protection rating IP20
Weight 0.4kg

Lunis 41 Flat, downlight, optical cover: cover, of PC, light emission: direct distribution, LED rated luminous flux: 3.100lm, light colour: 830/840, control gear: ECG, mains connection: 230V, AC, 50/60Hz, housing, round, of aluminium, coated, traffic white (RAL 9016), diameter: 225mm, protection rating (complete): IP20, protection rating (on room side): IP44, insulation class (complete): insulation class II (safety insulation), certification: CE, permissible ambient temperature for indoor applications: -20..+40°C, packaging unit: 1 piece

Downloads

Key data

Product type downlight
Product name Lunis 41 Flat
Order No. 51DR10DFGCB

Lighting technology

Cover cover
Light emission direct distribution

Lamps

Lamps with LED
Rated luminous flux 3100lm
Luminous efficacy 135lm/W
Colour temperature 3000/4000K
Colour rendering index CRI > 80
Light colour 830/840
Rated input power 23W

Operating device

Control gear ECG
Control DALI 2

Certificates, Standards

Protection rating IP20
Protection rating (on room side) IP44
Insulation class insulation class II (safety insulation)
Temperature range (operation) -20..+40°C
Certification, designation CE

Material, Colour

housing aluminium, coated, traffic white (RAL 9016), round
Cover cover of PC

Mounting

Mounting method, mounting location recessed, in the ceiling
Ø of ceiling cut-out 200mm
Arrangement single arrangement

Electrical connection

Nominal voltage 230V, 50/60Hz, AC

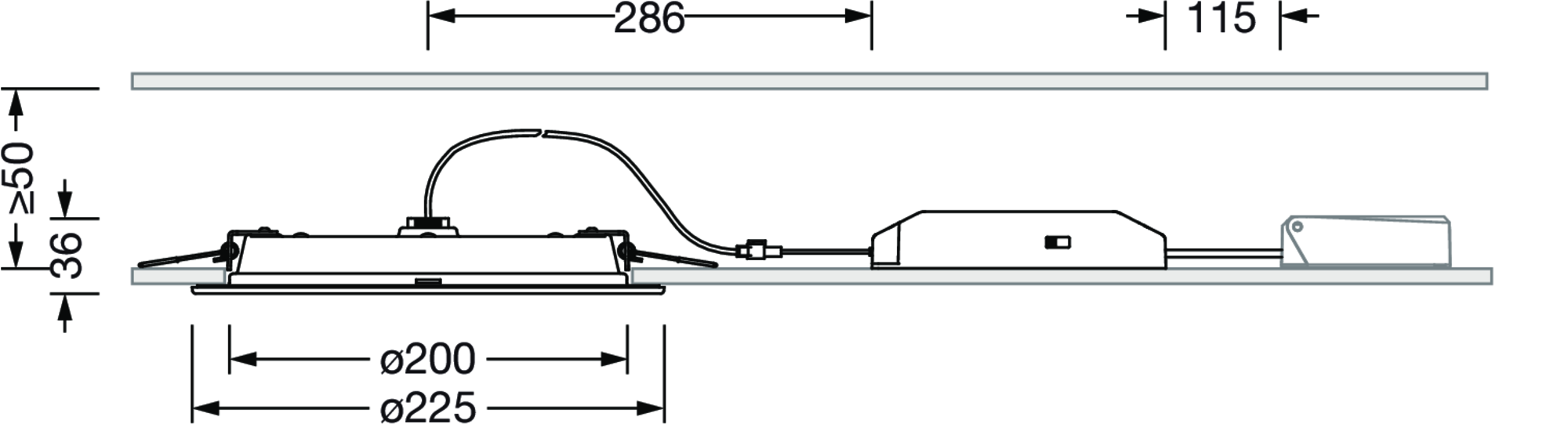

Dimensions, Weight

Diameter 225mm
Height 20mm
Weight 0.4kg

Service life

Rated service life 50000h (L70/B50) at AT = 25°C

Product type
downlight

Product name
Lunis 41 Flat

Order No.
51DR10DFGCB

Cover
cover

Light emission
direct distribution

Lamps
with LED

Rated luminous flux
3100lm

Luminous efficacy
135lm/W

Colour temperature
3000/4000K

Colour rendering index
CRI > 80

Light colour
830/840

Rated input power
23W

Control gear
ECG

Control
DALI 2

Protection rating
IP20

Protection rating (on room side)
IP44

Insulation class
insulation class II (safety insulation)

Temperature range (operation)
-20..+40°C

Certification, designation
CE

housing
aluminium, coated, traffic white (RAL 9016), round

Cover
cover of PC

Mounting method, mounting location
recessed, in the ceiling

Ø of ceiling cut-out
200mm

Arrangement
single arrangement

Nominal voltage
230V, 50/60Hz, AC

Diameter
225mm

Height
20mm

Weight
0.4kg

Rated service life
50000h (L70/B50) at AT = 25°C

Lunis 41
LED, ECG, cover, PC, direct distribution, single arrangement, recessed, in the ceiling, ø= 225mm
: LED 4000K / CRI >= 80, factory setting: colour temperature 4000K
: 51DR10DFGCB

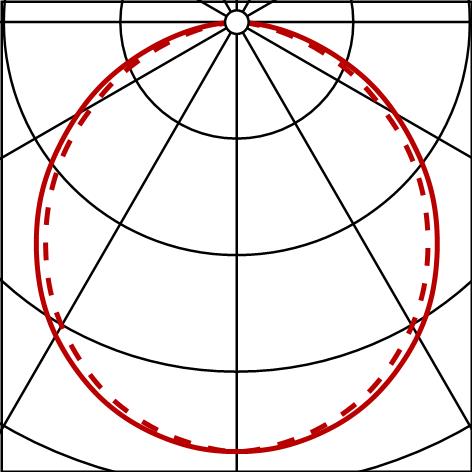

Lunis 41
: LED 3000K / CRI >= 80, individual setting: colour temperature 3000K
: 51DR10DFGCB
